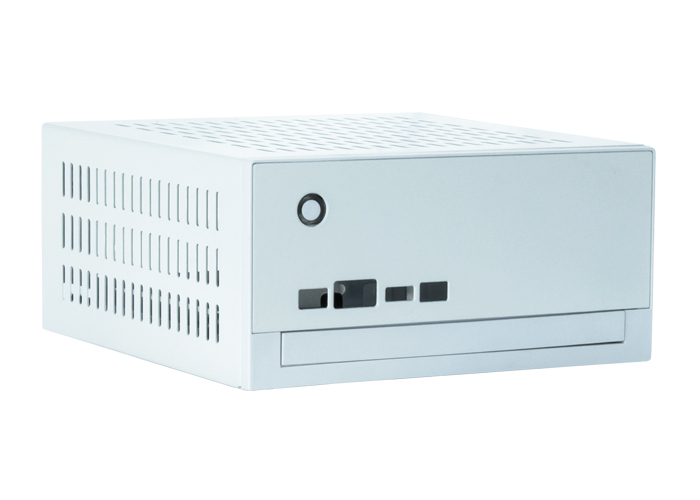

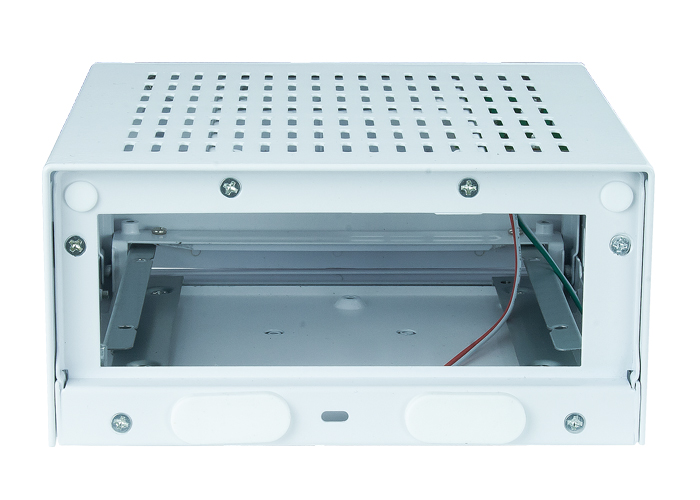

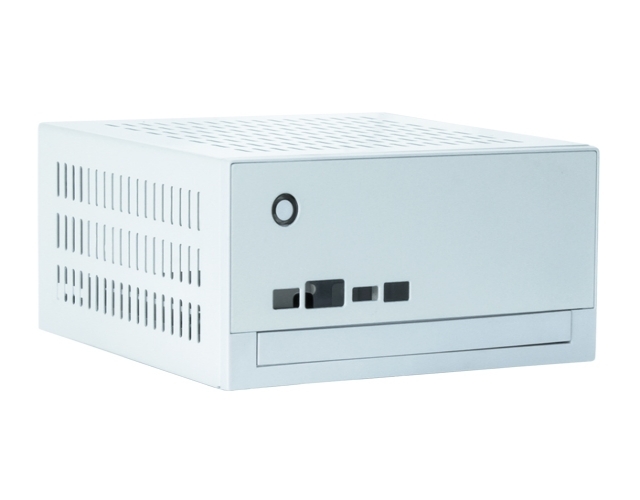

- With the Chieftec Mini STX chassis, your compact self-built PCs attains a state of perfection thereby offering two models in black and white respectively. With a 2-liter volume chassis offers a Kensington lock and two optional serial ports while as well giving the possibility to integrate an Ultra Slim ODD.
STX-01W-OP
DANE TECHNICZNE
| Form factor | Mini STX |
| Dimension (DxWxH) | 160mm x 154mm x 75mm |
| Weight | 0,8 kg (net) |
| Drive Bays est. | - |
| Drive Bays int. | - |
| Power Supply | - |
| Front I/O | 1x USB 3.0 (Type-A), 1x USB 3.0 (Type-C), Mic-in, Audio-out (AZALIA / HD-Audio) |

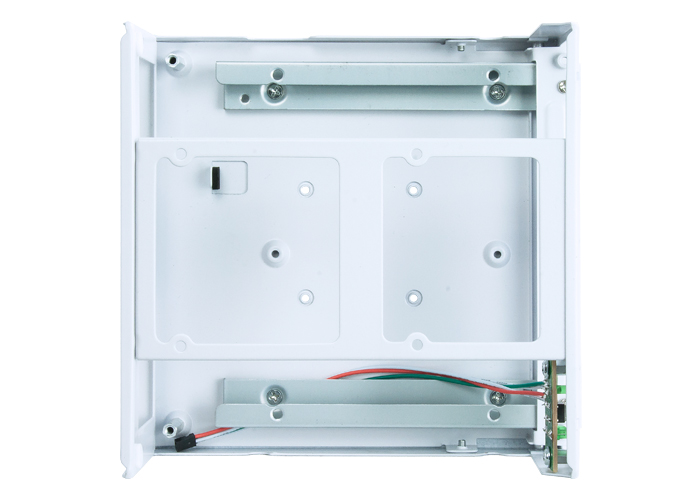

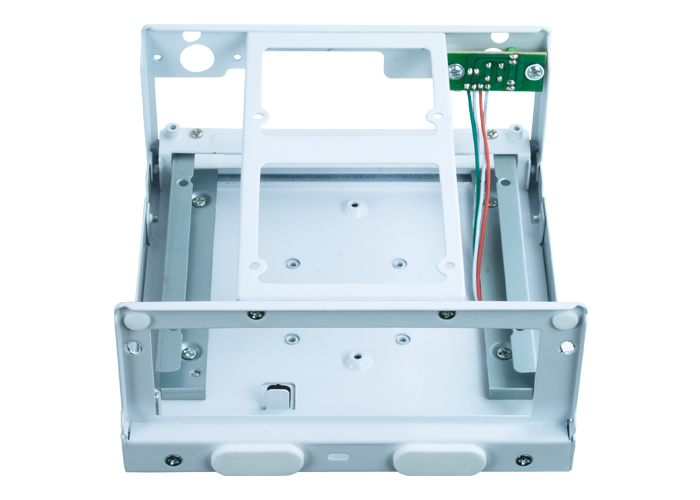

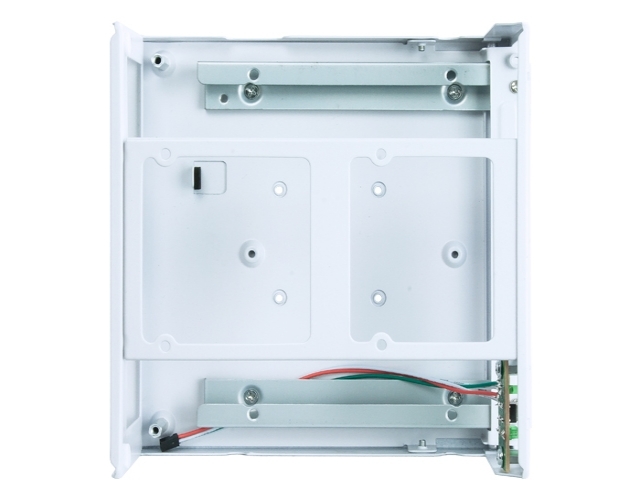

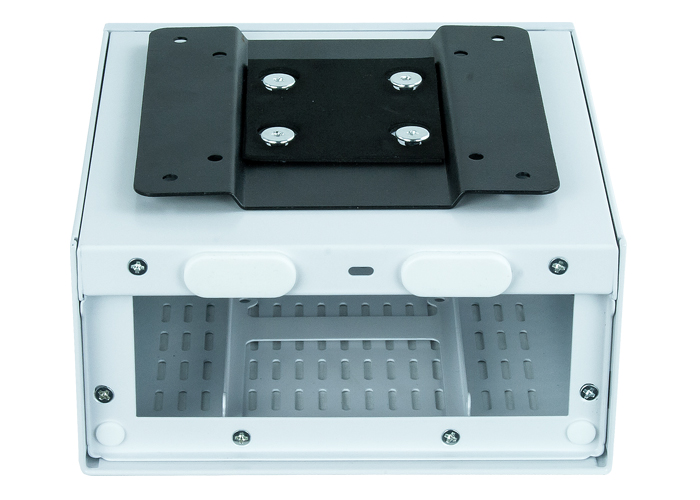

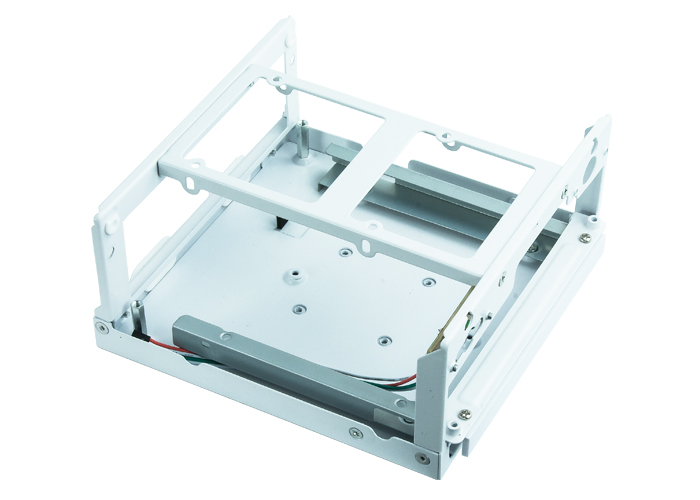

| Scope of delivery | Set of screws, rubber stands, Vesa mounting kit, slide rail for ultra slim ODD |
| Material | 0,8mm secc / white |
| Cooling | - |
| Mainboard suggestions | ASRock H310M-STX, ASRock H110M-STX |
| CPU cooler height (max.) | 40mm |
| VGA card length (max.) | - |
| Warranty | 24 months |
