- Latest power supply technology
- EXTRA long CPU & MB cables*
- Efficiency of 85% @ 230V (equiv. to 80 PLUS BRONZE)

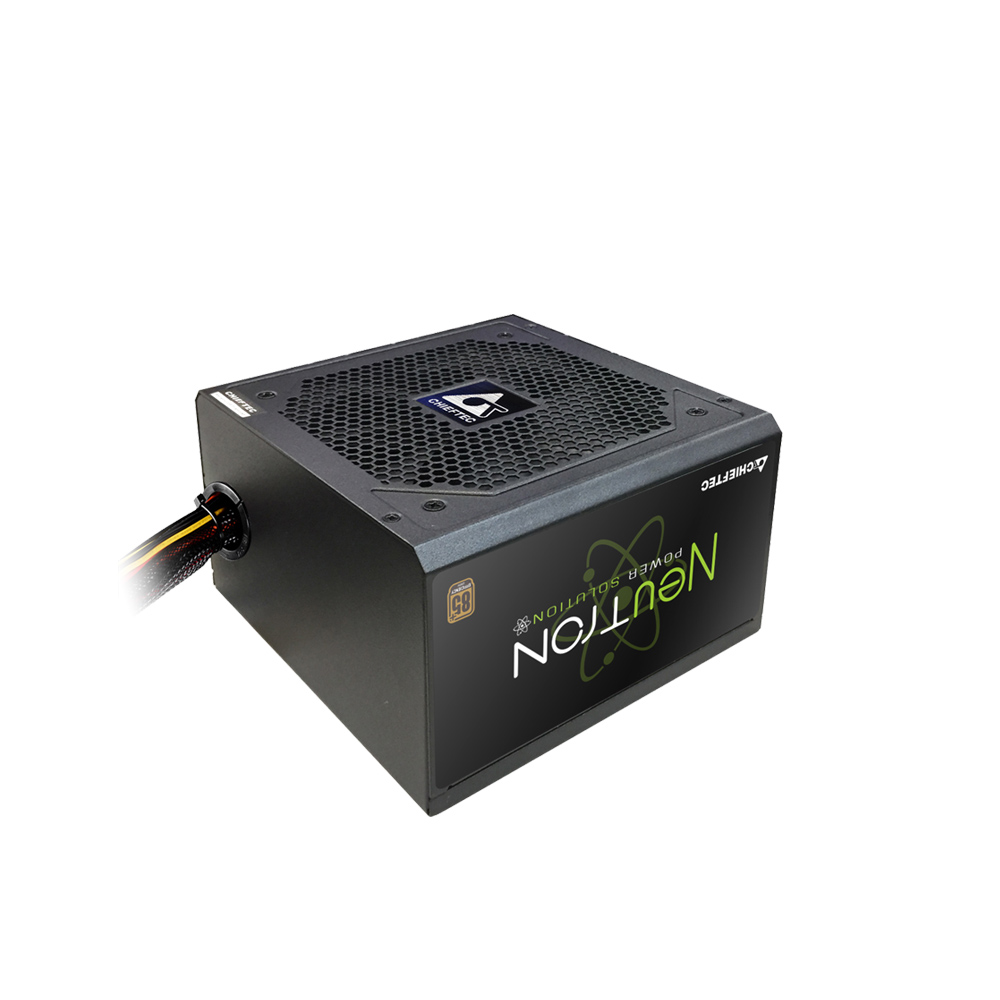

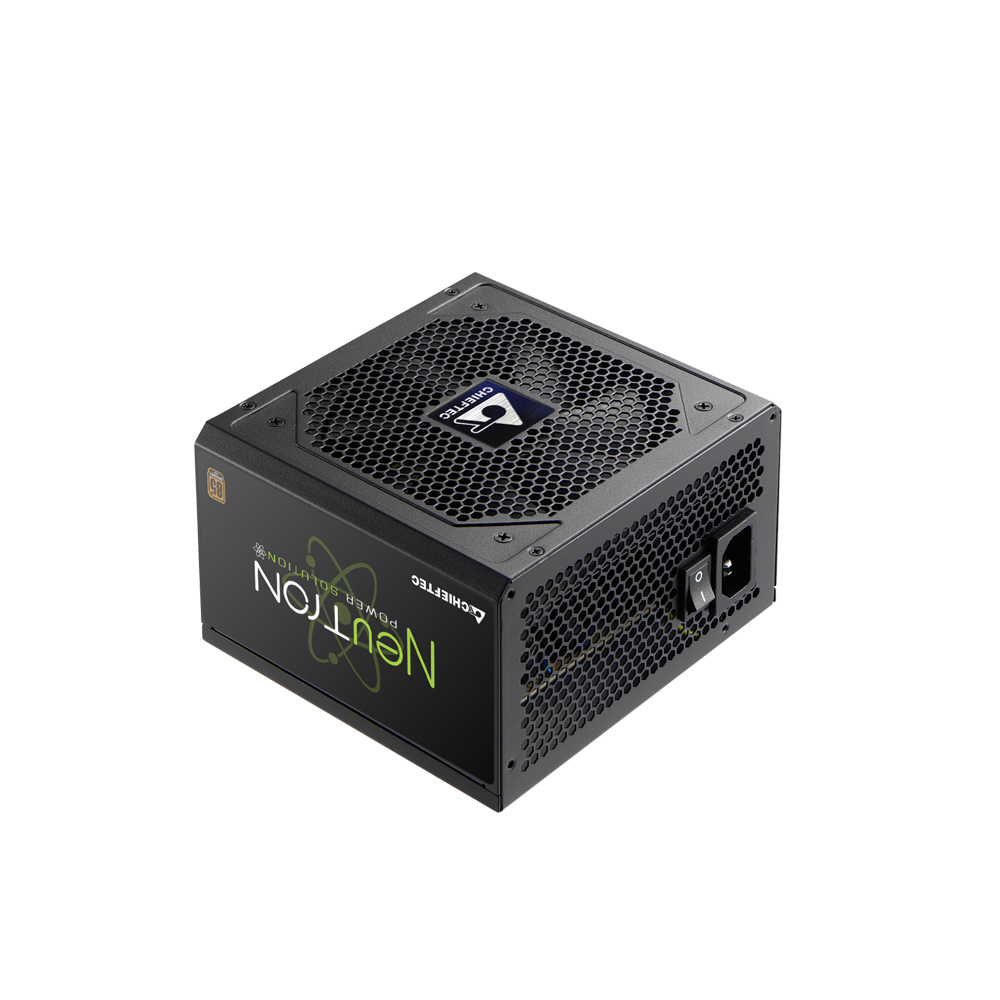

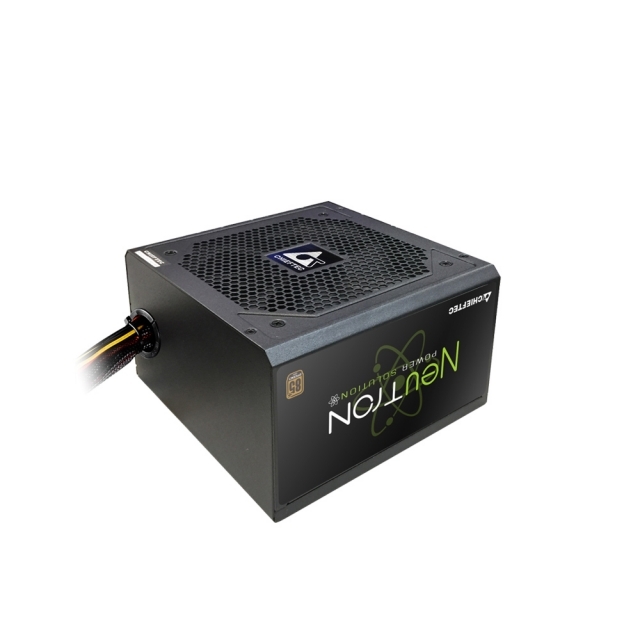

BLC-600S
SERIA NEUTRON
SZCZEGÓŁY
With the NEUTRON Series, CHIEFTEC stays true to the latest power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components.
DANE TECHNICZNE
| AC Input | 230V / 3A |
| Frequency | 50 Hz |
| +5V | 15A |
| +3,3V | 21A |
| >+5V & +3,3V combined | 103W |
| +12V 1 | 30A / 360W |
| +12V 2 | N/A |
| +12V 1 & +12V 2 combined | N/A |
| +12V 3 | N/A |
| +12V 4 | N/A |
| +12V 3 & +12V 4 combined | N/A |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Load | 600W |
| 20+4PIN ATX | 1 |
| SATA | 6 |
| MOLEX | 1 |
| Floppy | - |
| 4PIN 12V | 1 |
| 8PIN 12V | - |
| 8PIN (4+4) 12V | 1 |
| 6PIN PCIe | - |
| 8PIN (6+2) PCIe | 2 |
| Standard | ATX 12V 2.3 |
| Typ obudowy | PS II |
| Sprawność | >85% |
| Wymiary (głębokość x szerokość x wysokość) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Wentylator / poziom hałasu | 120mm silent fan |
| Bezpieczeństwo | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Gwarancja | 24 Months |
