- Minimum space requirements
- Maximum flexibility with a variety of expansion options (3.5'' HDD or Slimline ODD)

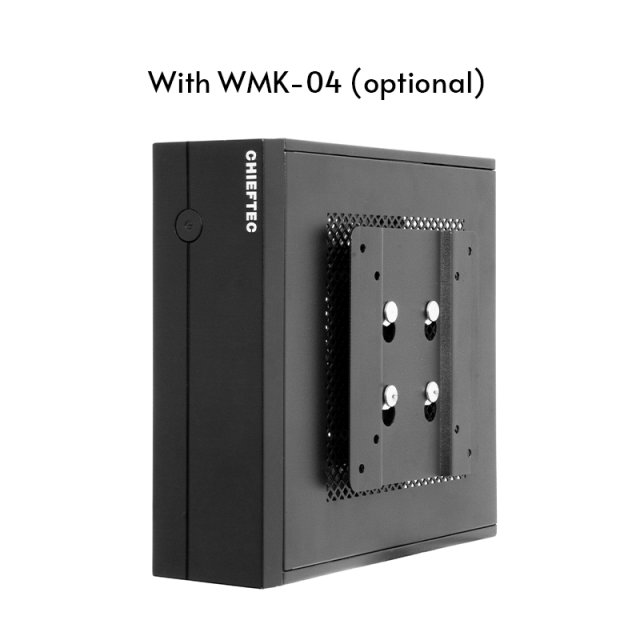

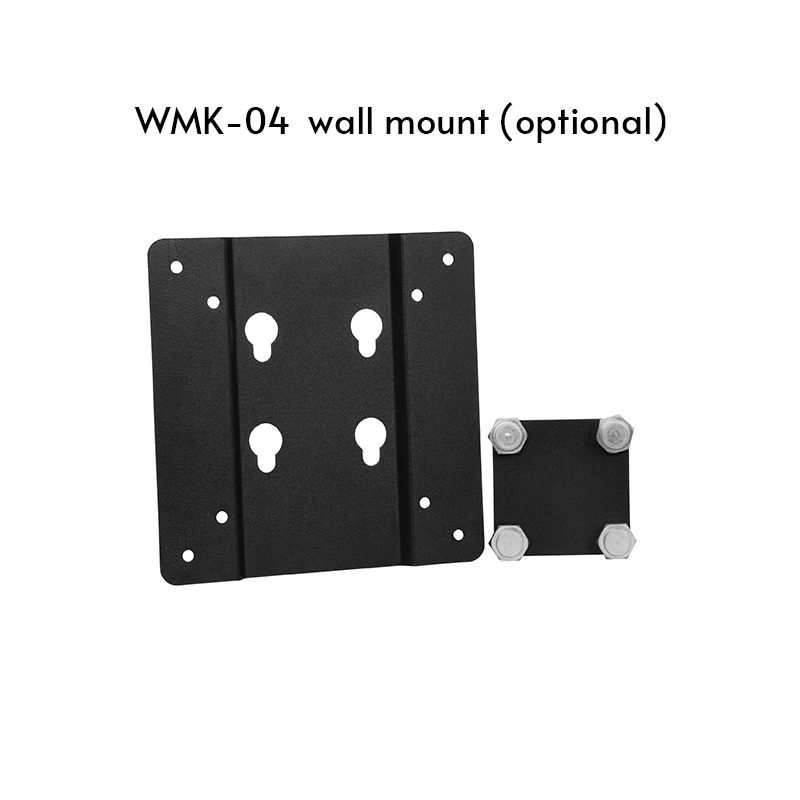

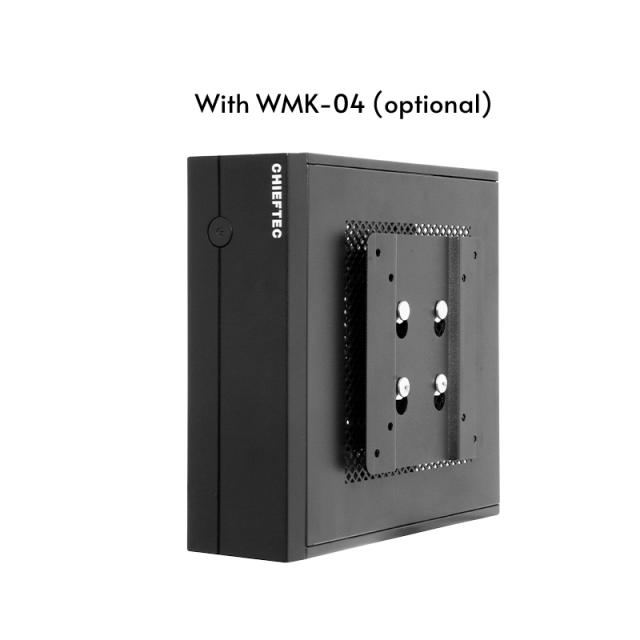

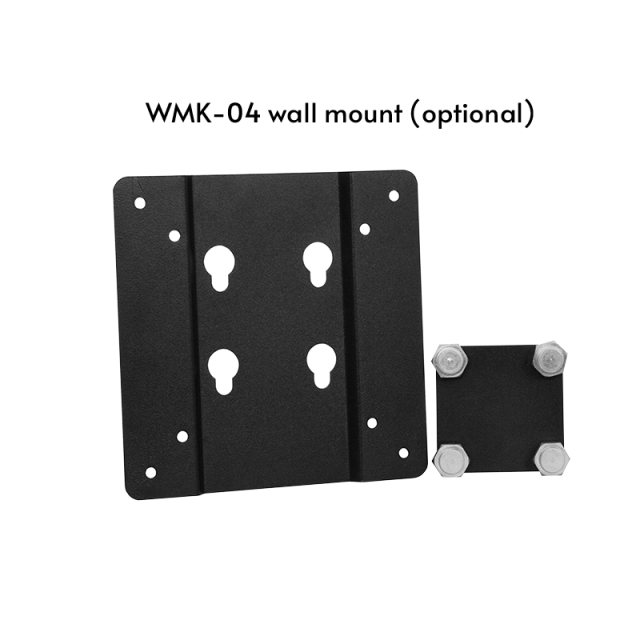

- VESA wall mount / monitor holder can be obtained optionally
IX-01B-OP
OVERVIEW

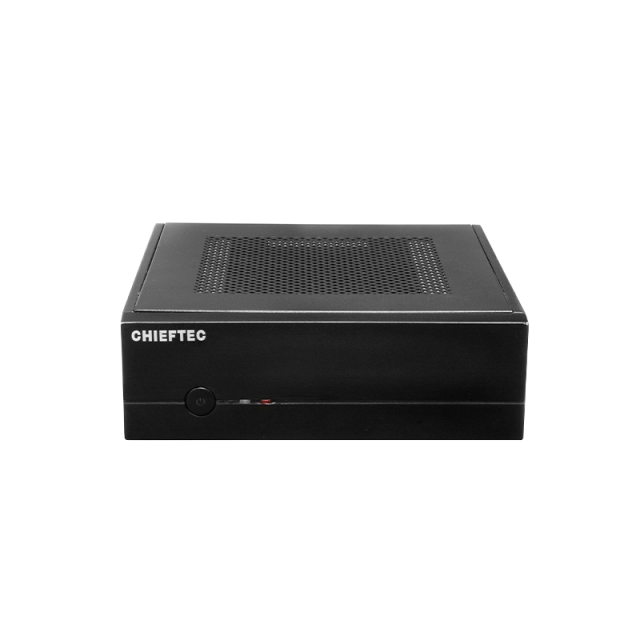

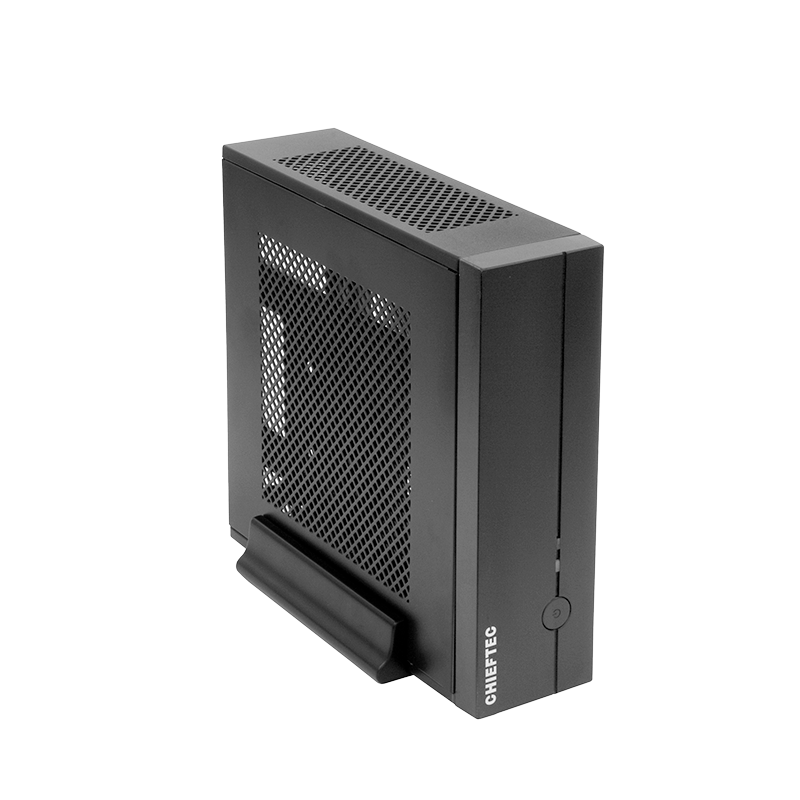

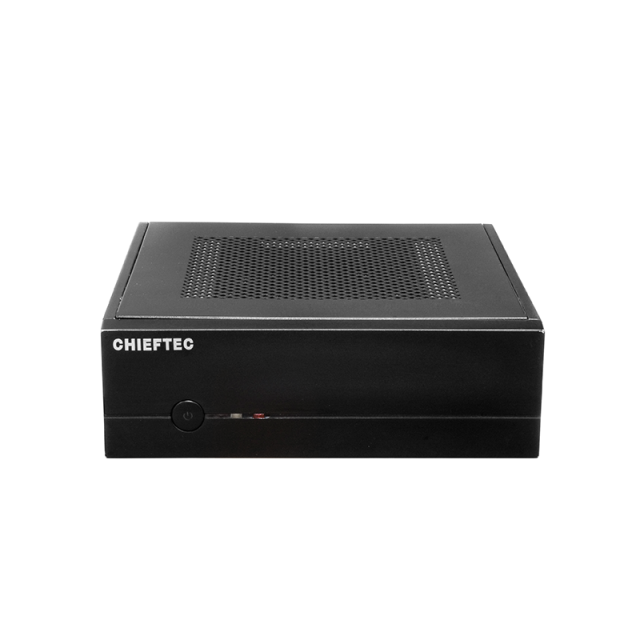

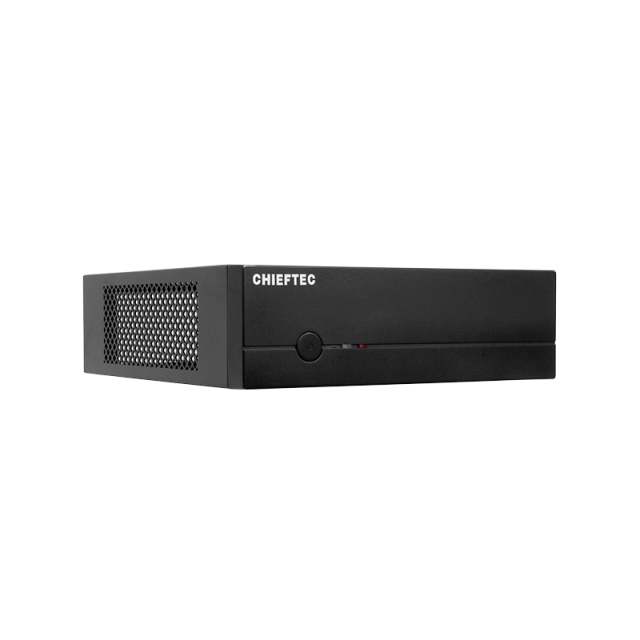

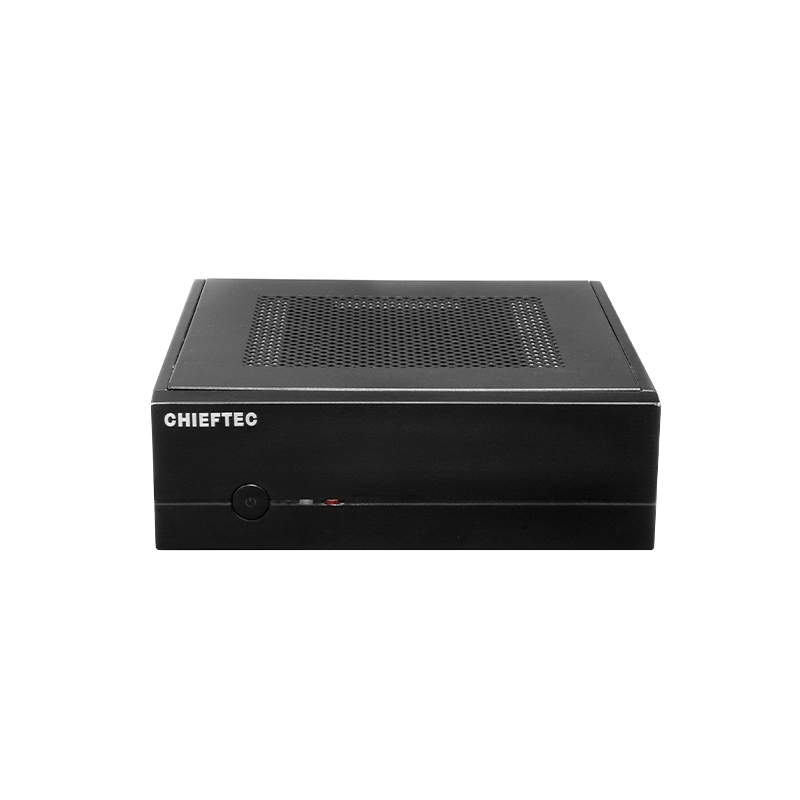

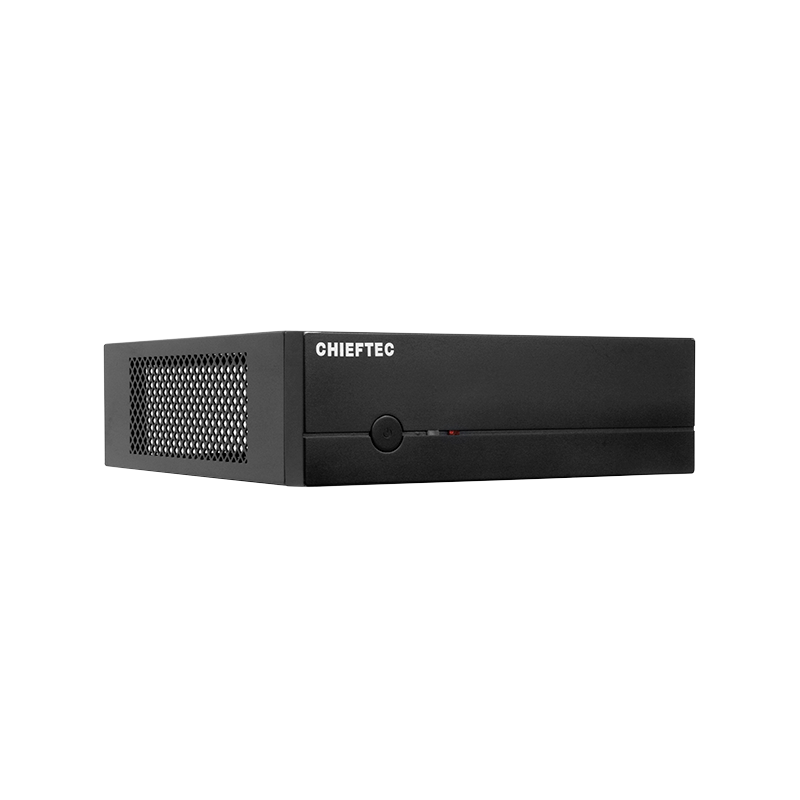

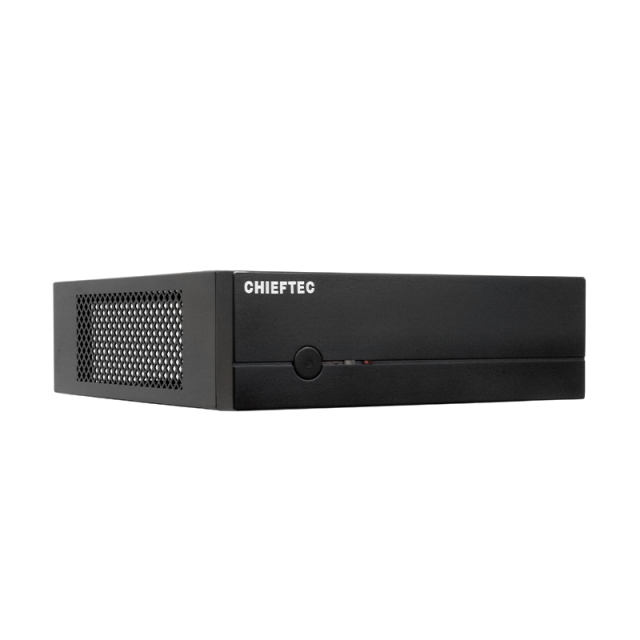

This tiny case can be operated both in a horizontal or vertical position, offering great flexibility and connectivity. It combines the compact dimensions of a Mini-ITX case with the comfort of a fully loaded PC, with many economical and low-priced components being available. It enables you to build a system with any configuration you are aiming to achieve at reasonable pricing. Additionally this case also has two storage bays for two regular size 2.5" HDDSs/SSDs.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
Article no. | IX-01B-OP |
EAN code | 4710713239739 |
Color | Black |
Material | 0.8mm SECC |
Motherboard support | Mini ITX |
Dimension (DxWxH) | 220mm x 197mm x 63mm |
Weight (without/with package) | 1.0kg / 1.4kg |
Drive bay external | Optional (1x 5.25” Slim Line in MK-35DV included) |
Drive bay internal | 2x 2.5” or (1x 3.5” and 1x 2.5”) with optional HDD Kit MK-35DV |

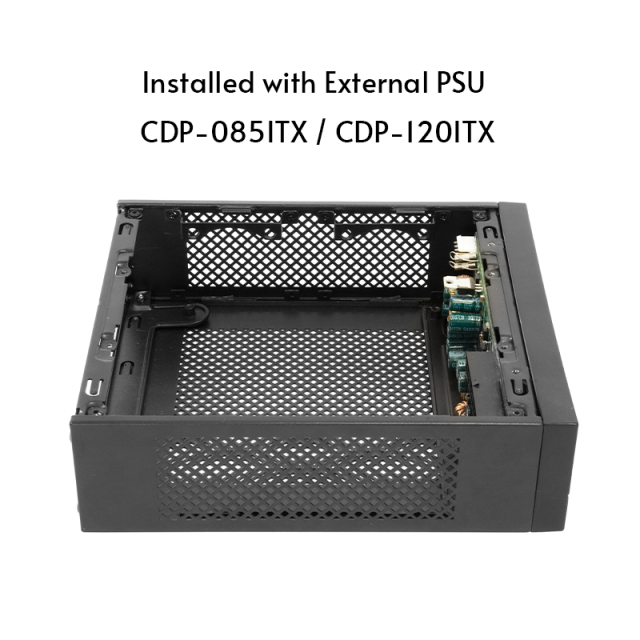

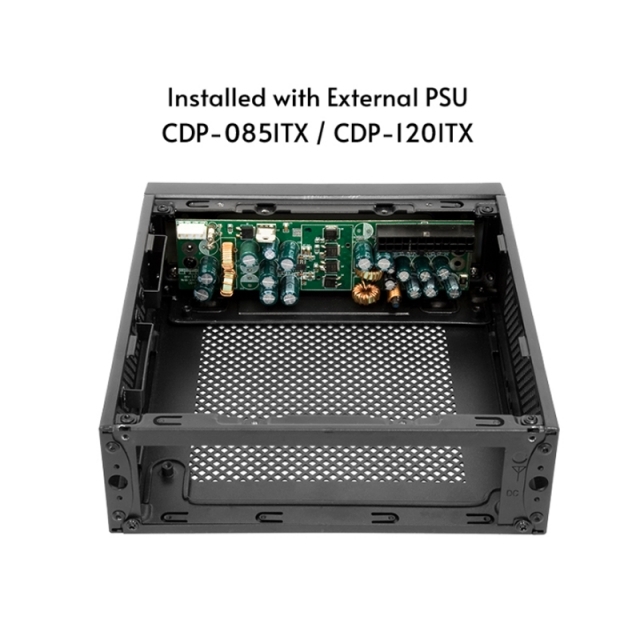

Power supply | Optional AC-DC adapter with DC-DC transformer (CDP-085ITX) |
Front I/O | - |

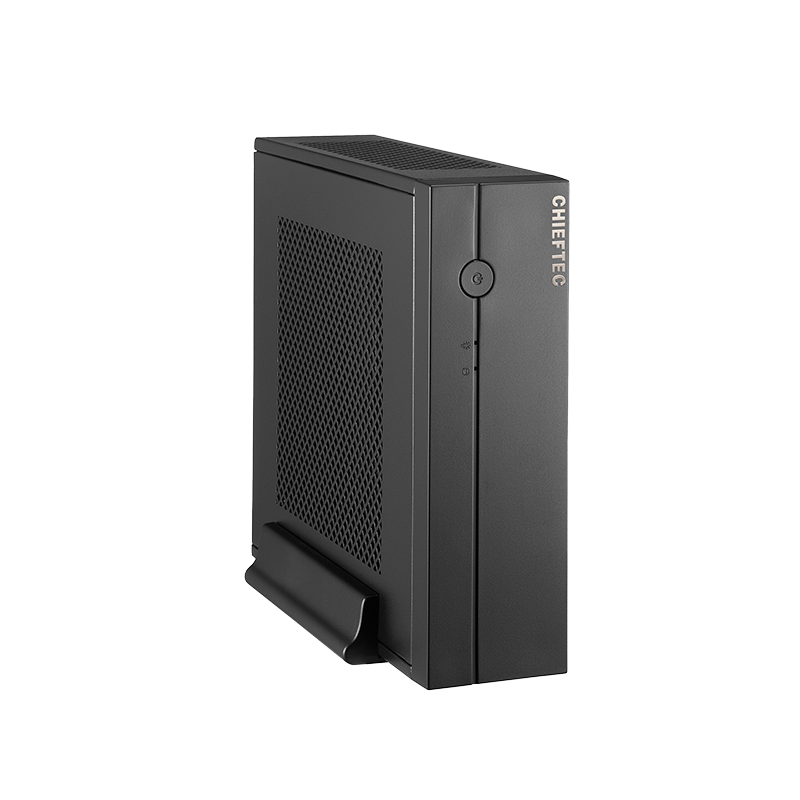

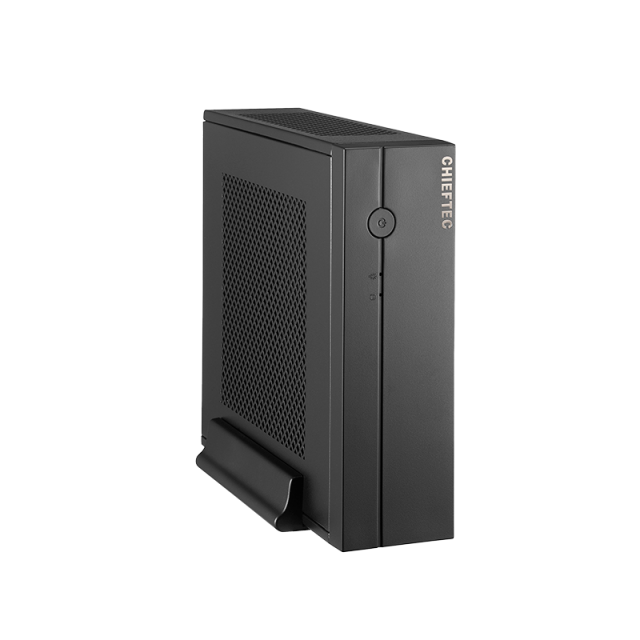

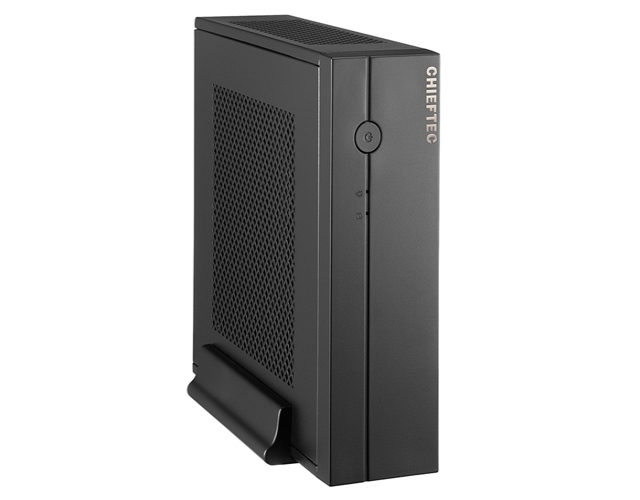

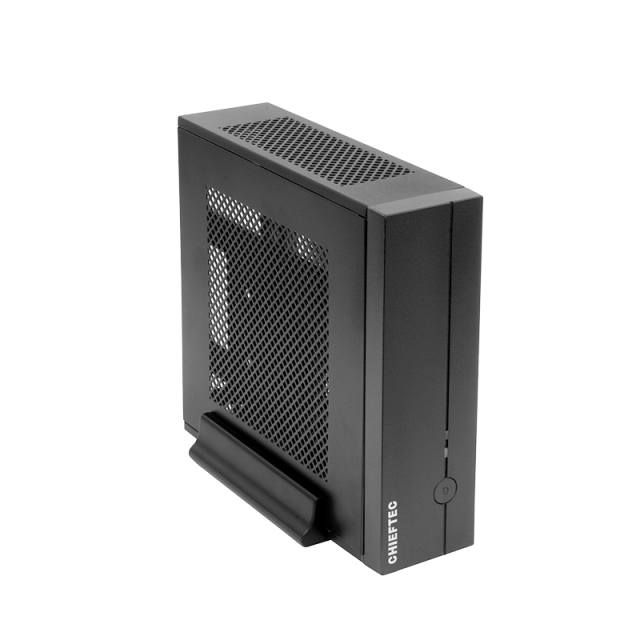

Scope of delivery | Set of screws, magnetic floor stand (can be used as desktop or tower) |
Expansion slots | - |
Cooling Compatibility | 2x 50mm |
CPU cooler height (max.) | 30mm with 2.5” HDD/SSD |
VGA card length (max.) | - |
Warranty | 24 Months |
