- Solid
- Space saving
- Ergonomically positioned front interfaces
- Front panel brushed alu design
HO-12B-350GPB
OVERVIEW

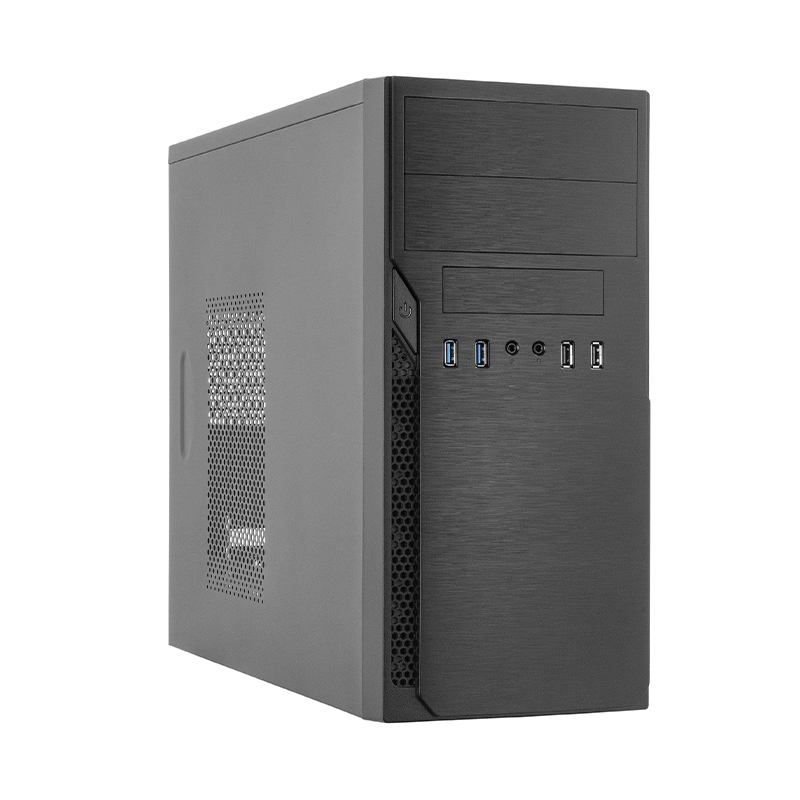

The outstanding and eye-catching hair-line design of the front panel of this brand new mATX chassis, transports a brushed aluminum feeling thereby blending perfectly into both Home and Office environments.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
Article no. | HO-12B-350GPB | HO-12B-OP |
EAN code | 0753263075581 | 0753263075536 |
Color | Black | Black |
Material | 0.5mm SECC | 0.5mm SECC |
Motherboard support | Mini ITX, mATX | Mini ITX, mATX |
Dimension (DxWxH) | 368mm x 173mm x 365mm | 368mm x 173mm x 365mm |
Weight (without/with package) | 4.32kg / 4.82kg | 3.05kg / 3.27kg |
Drive bay external | 2x 5.25” and 1x 3.5” | 2x 5.25” and 1x 3.5” |
Drive bay internal | 2x 3.5” and 1x 2.5” | 2x 3.5” and 1x 2.5” |
Power supply | GPB-350S (350W) | ATX optional |
Front I/O | 2x USB3.0 (USB3.1 Gen 1), 2x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-in |
2x USB3.0 (USB3.1 Gen 1), 2x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-in |
Scope of delivery | Screw set | Screw set |
Expansion slots | 4 | 4 |
Cooling Compatibility | Front: 1x 80mm or 1x90mm fan Rear: 1x80mm or 1x 90mm fan |
Front: 1x 80mm or 1x90mm fan Rear: 1x80mm or 1x 90mm fan |
CPU cooler height (max.) | 140mm | 140mm |
VGA card length (max.) | 340mm | 340mm |
Warranty | 24 Months | 24 Months |
