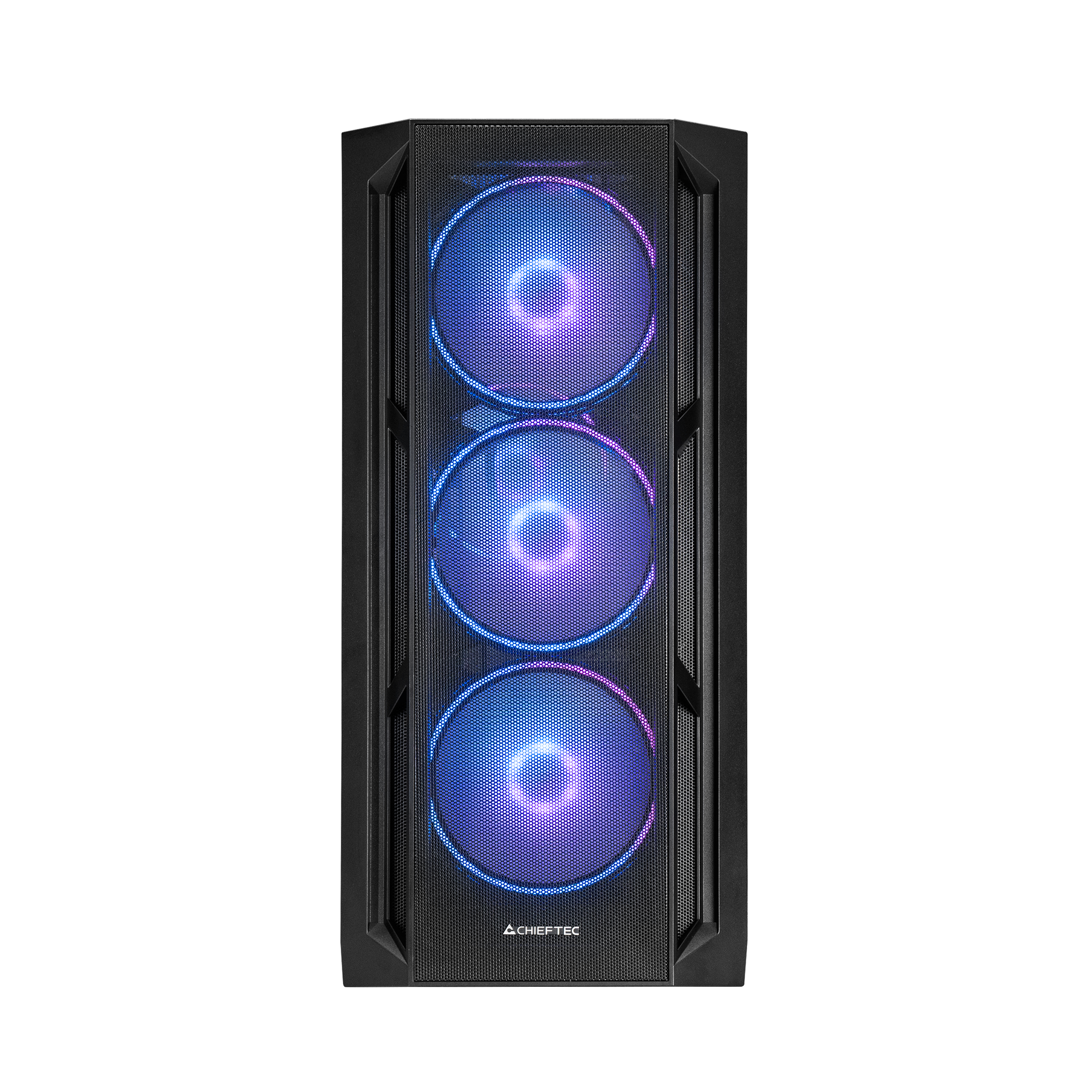

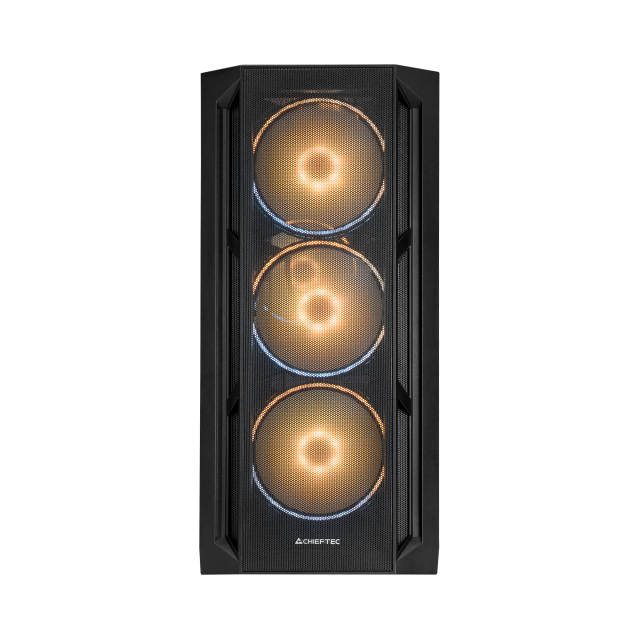

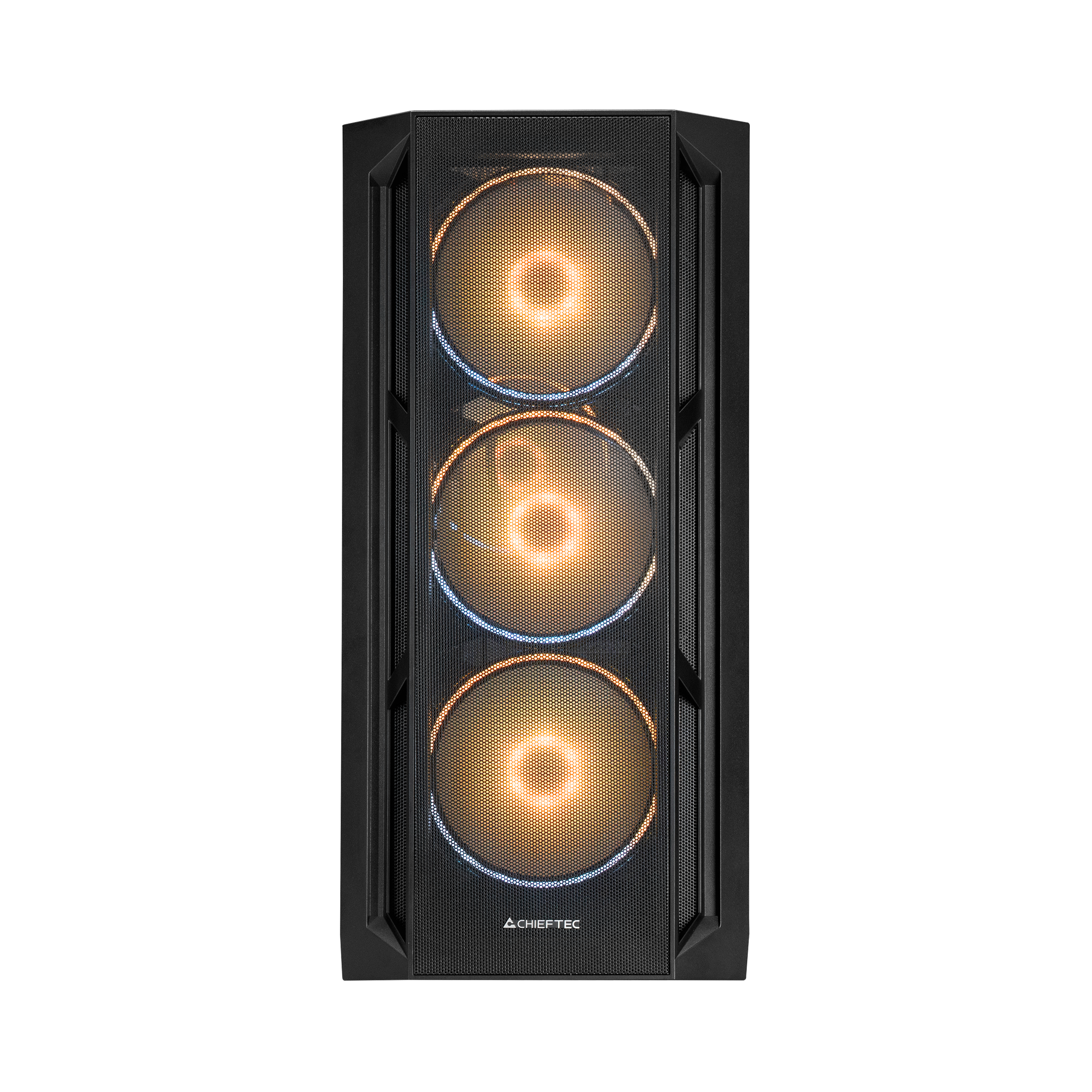

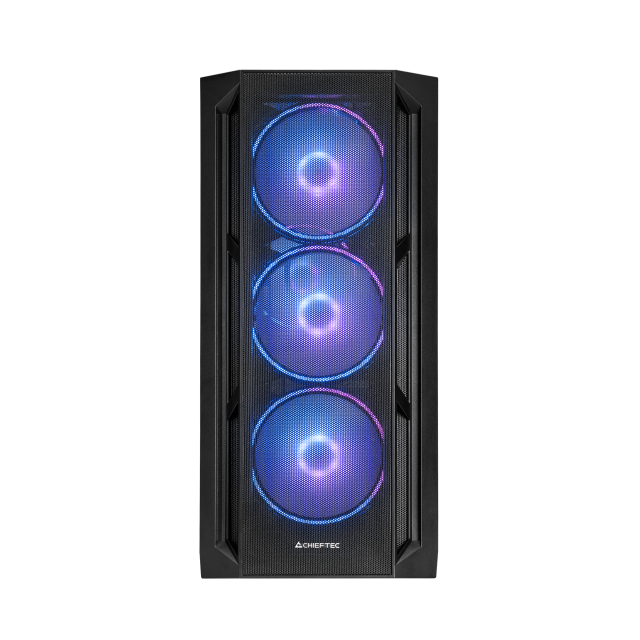

- High-Airflow optimized front mesh panel

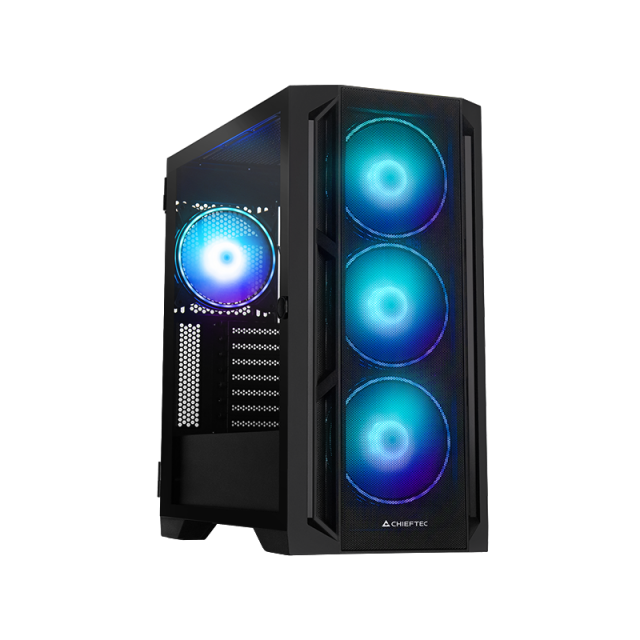

- Side panel made of TEMPERED GLASS
- 4x 140mm ARGB PWM fans pre-installed

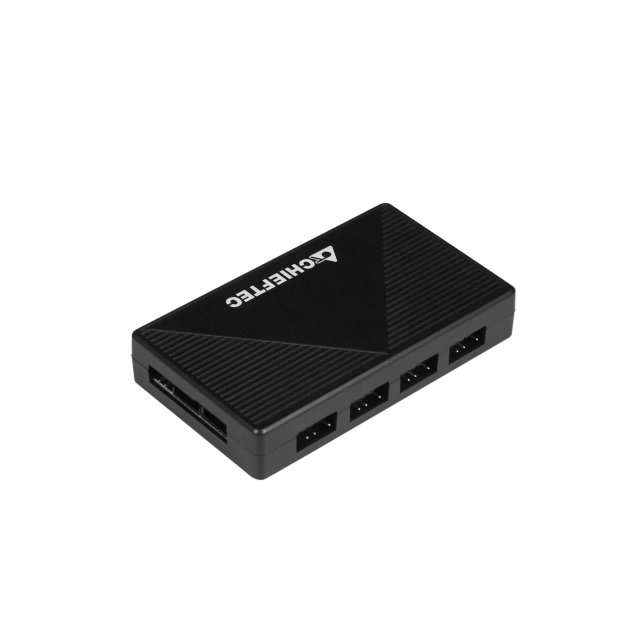

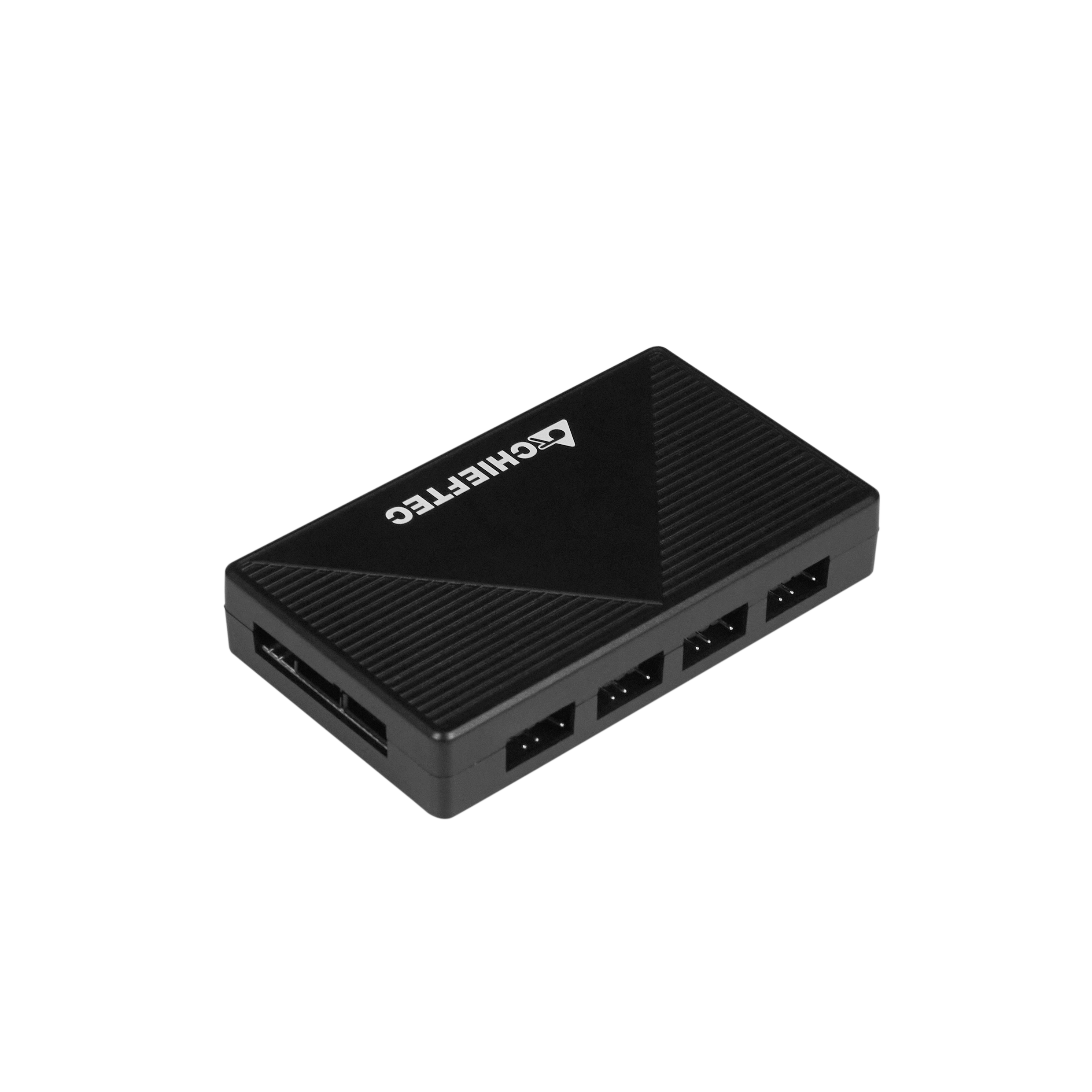

- A-RGB control hub with M/B sync and fan speed control
APEX LUMO
GA-01B-L-OP
OVERVIEW

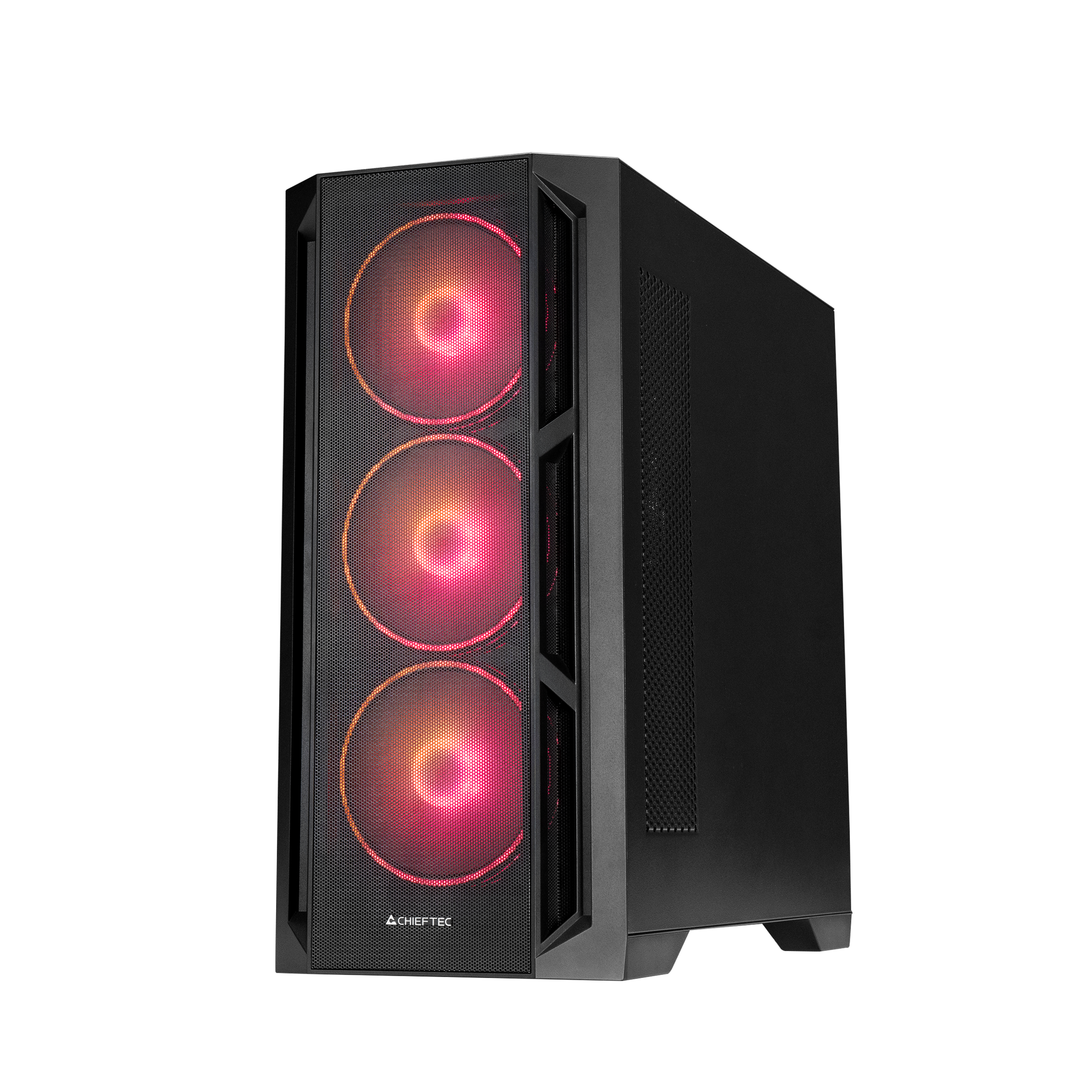

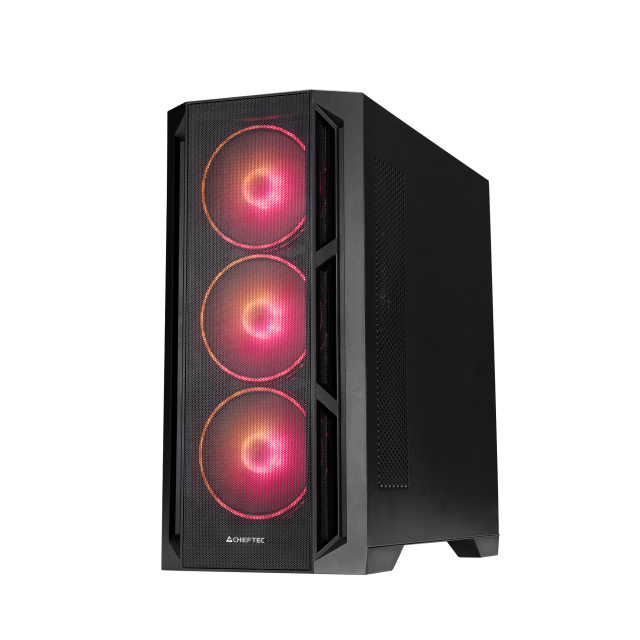

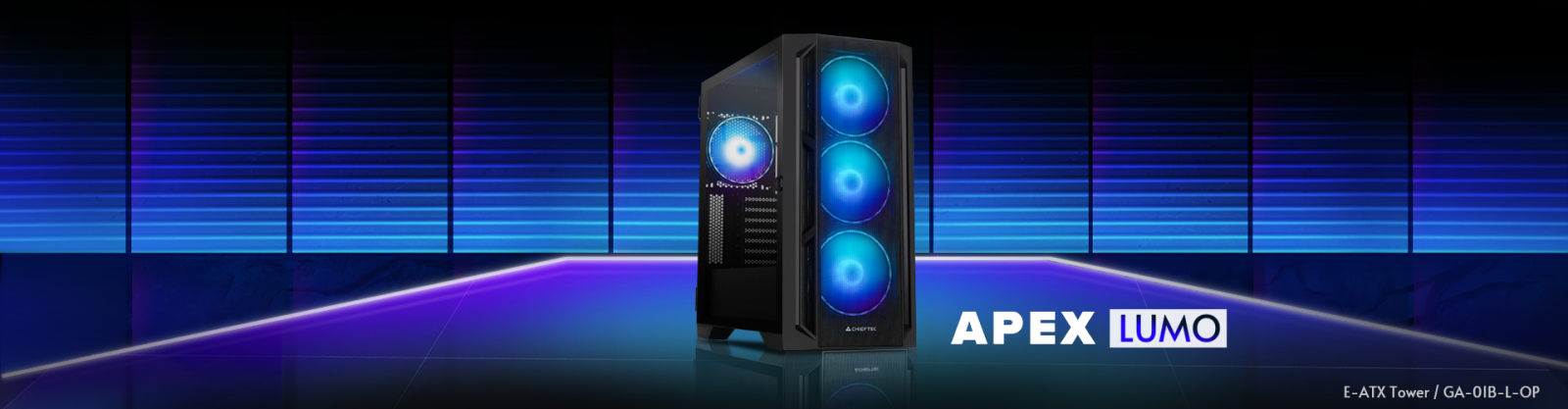

The CHIEFTEC APEX Lumo presents an E-ATX chassis with a large mesh front panel and tempered glass on the left side, including 4 pre-installed 140mm ARGB PWM fans that provide impressive style and powerful cooling.
The use of 140mm ARGB fans, pre-installed with a control hub featur-ing A-RGB M/B Sync as well as PWM fan speed control, offer an ideal combination of style, airflow and noise.The case itself is generous with space, offering support for GPUs up to 400mm in length, CPU coolers up to 175mm in height, and radiators support up to 360mm at the top and up to 420mm in the front.
The CHIEFTEC APEX Lumo is ready to bring both aesthetics and better cooling to modern gaming systems.
SPECIFICATIONS
| Model | APEX Lumo |
| Article no. | GA-01B-L-OP |
| EAN code | 0753263078810 |
| Color | Black |
| Material | Material 0.6mm SPCC and tempered glass at left side panel |

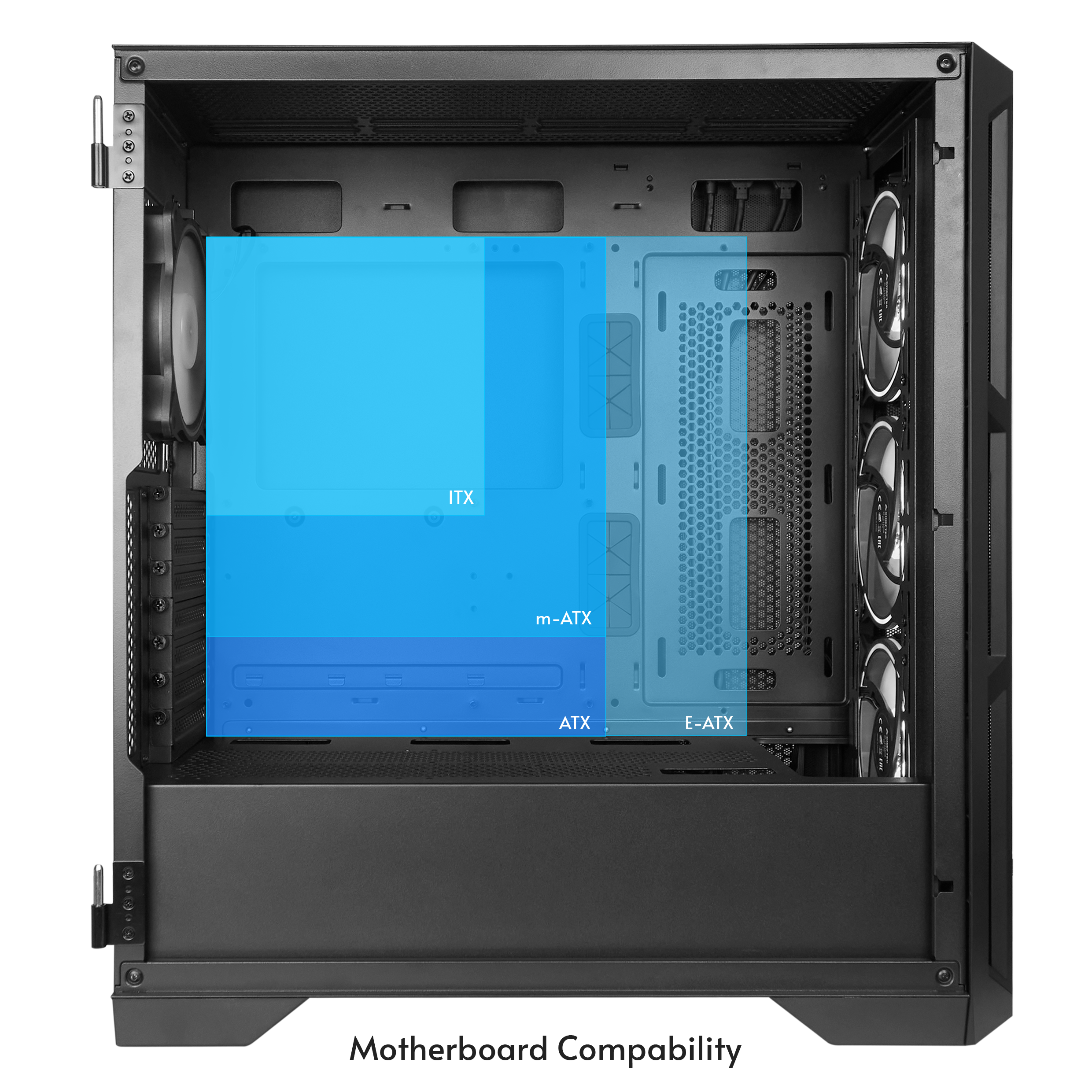

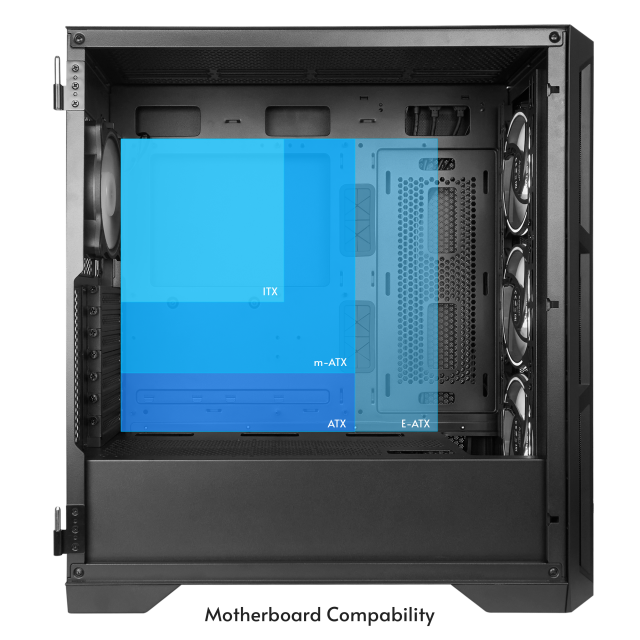

| Motherboard support | Mini ITX, M-ATX, ATX, E-ATX |
| Dimension (DxWxH) | 465mm x 230mm x 495mm |
| Weight (without/with package) | 7.75 kg / 9.15 kg |
| Drive bay external | - |
| Drive bay internal | 3x 2.5“ and 1x 3.5“ / 2x 2.5“ and 2x 3.5“ |
| Power supply | ATX PSU (optional, ~220mm) |

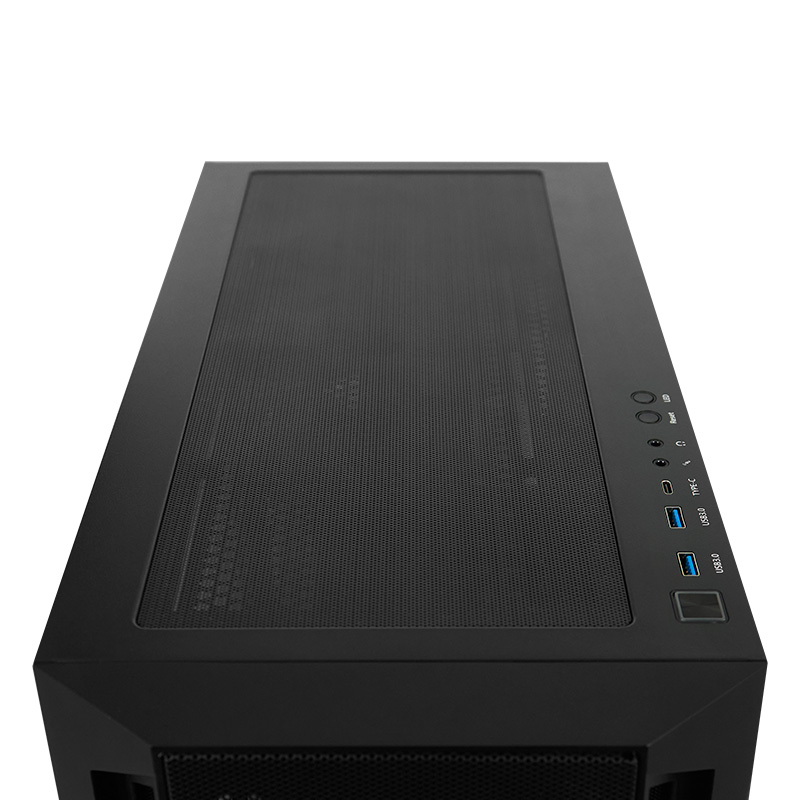

| Front I/O | 1x USB3.2 Gen2 Type C, 2x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-In, RGB Mode Button |
| Scope of delivery | Set of screws, instruction manual RGB control hub (DF-200) with 3PIN +5V M/B Sync and SATA power cable Front: 3x 140mm ARGB PWM fans pre-installed Rear: 1x 140mm ARGB PWM fan pre-installed |

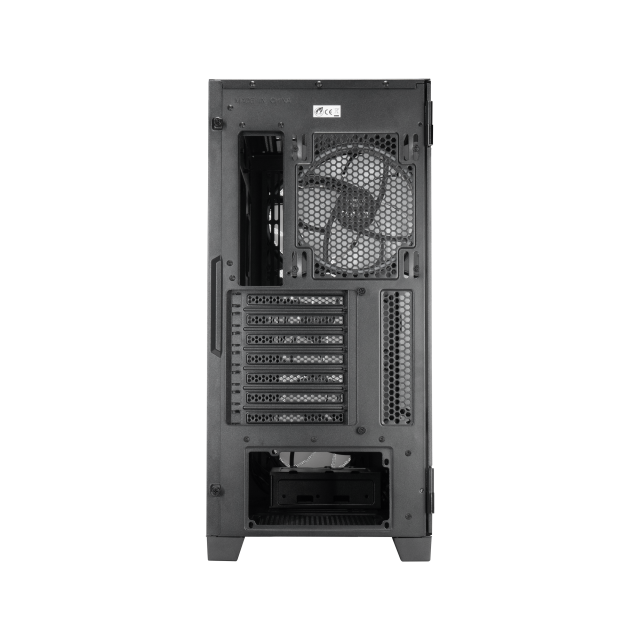

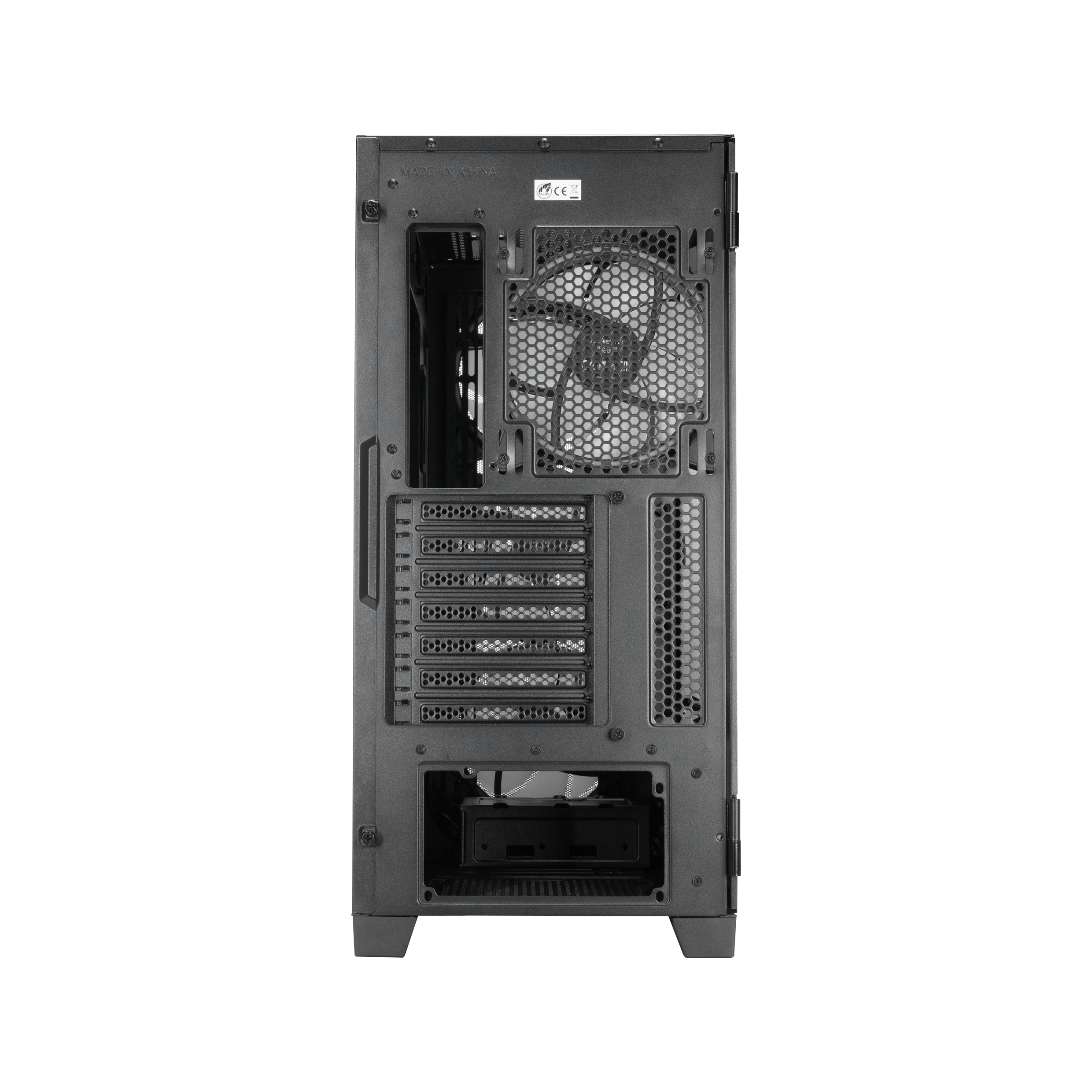

| Expansion slots | 7 |

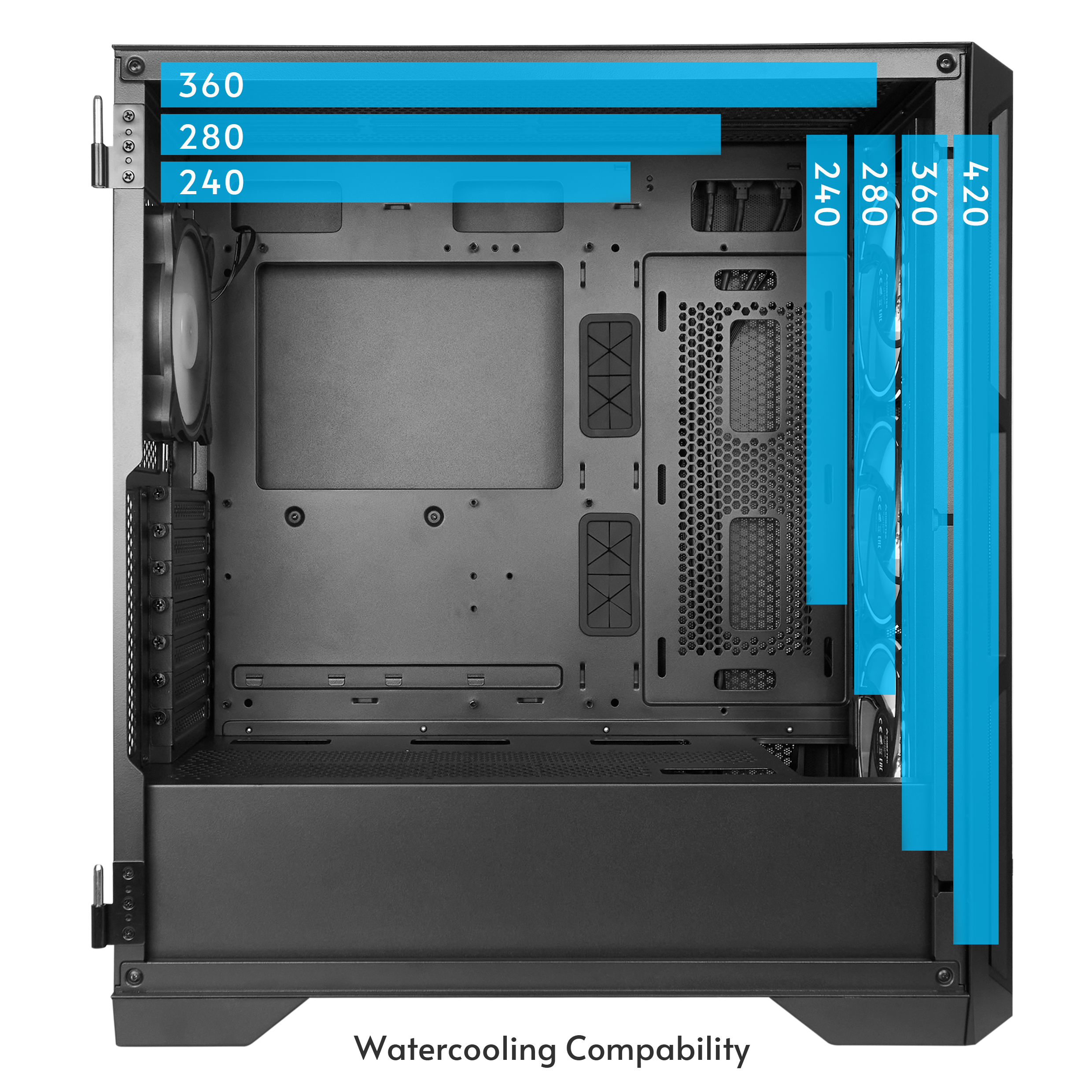

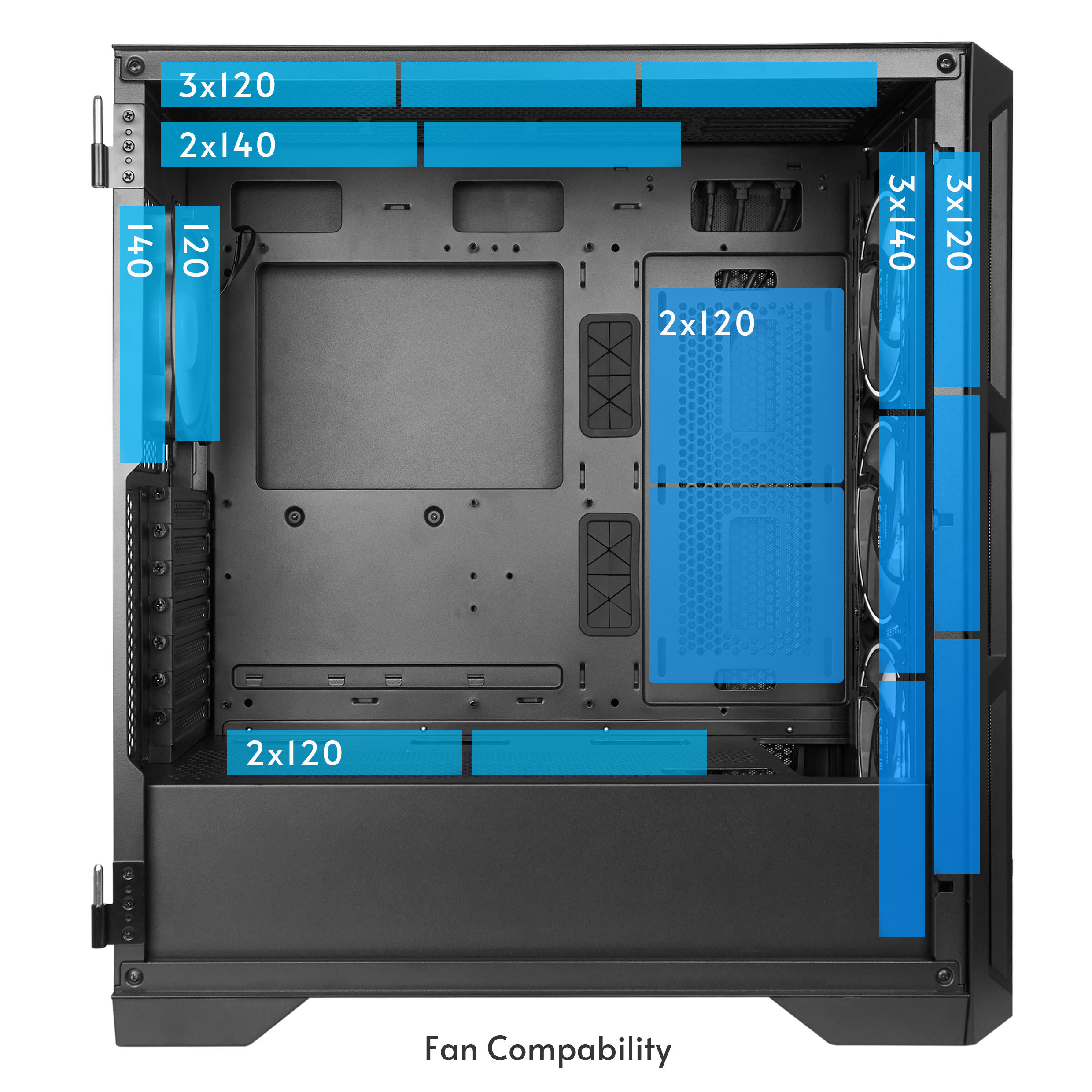

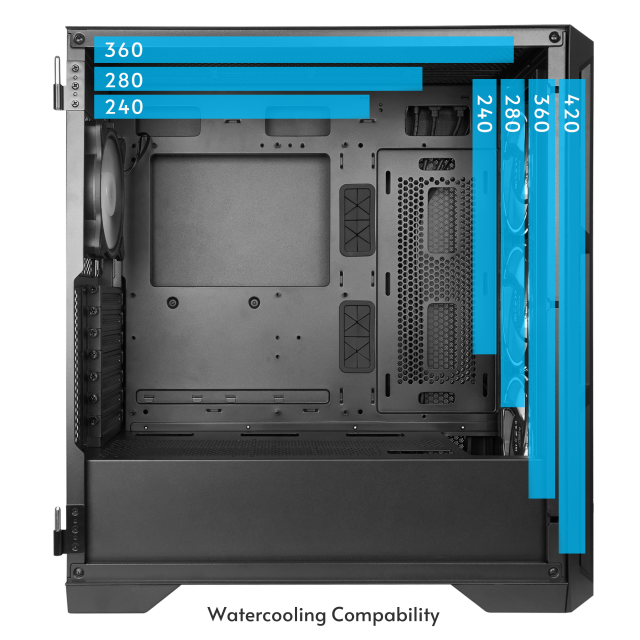

| Cooling Compatibility | Front: 3x 120mm / 3x 140mm / 240mm radiator / 280mm radiator / 360mm radiator / 420mm radiator Top: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360mm radiator Rear: 120mm / 140mm PSU Cover : 2 x 120mm Side : 2 x 120mm |
| CPU cooler height (max.) | 175mm |
| VGA card length (max.) | 400mm |
| Warranty | 24 Months |
