- Dual-chamber design
- Combination of brushed aluminum and mesh front panel
- Side panel made of TEMPERED GLASS
- Compatibility with back-connect motherboards
- 3x 140mm PWM fans pre-installed
VISIO AIR
GM-30B-M-OP
OVERVIEW
The CHIEFTEC Visio Air performance chassis features a dual-chamber layout to accommodate the latest back-connect motherboards, streamlining cable management for a cleaner interior view (ASUS BTF and MSI Project Zero compatible). The Visio Air comes with tempered glass on the side, a front combining brushed aluminum and mesh panel, along with two pre-installed 140mm PWM fans on the bottom and one 140mm PWM fan on the rear. This design enhances stability and airfl ow, e ffectively reducing heat accumulation inside the chassis while keeping noise levels low.

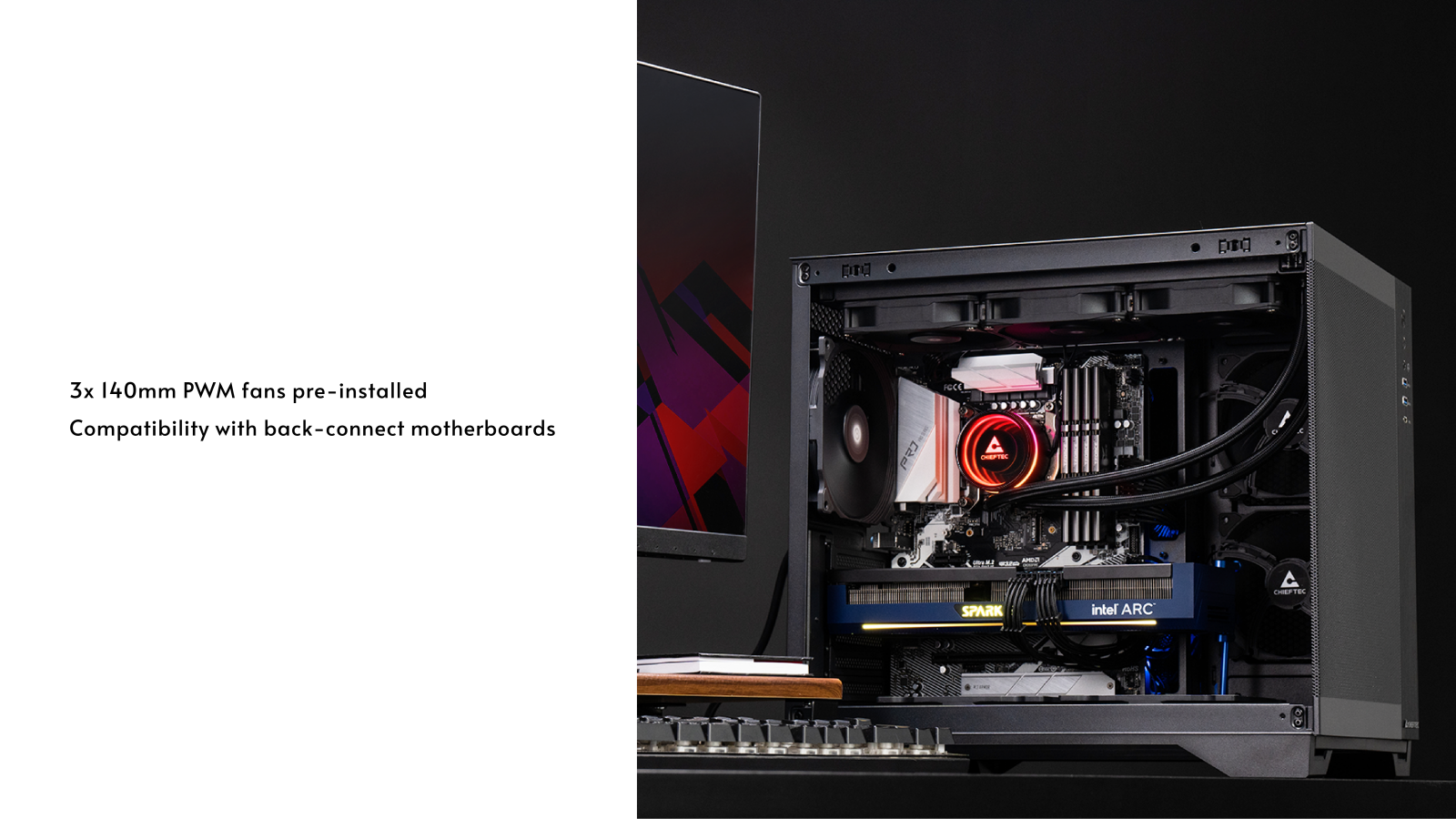

The re ned internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated con guration.
The CHIEFTEC Visio Air is versatile enough for both work and home environments, making it a practical choice for various settings.
SPECIFICATIONS
| Model | Visio AIR |
| Article no. | GM-30B-M-OP |
| EAN code | 0753263078704 |
| Color | Black |
| Material | 0.65-0.9mm SPCC and tempered glass at side panel |
| Motherboard support | Mini ITX, mATX, ATX |
| Dimension (DxWxH) | 430mm x 295mm x 390mm |
| Weight (without/with package) | 6.8 kg / 8.3 kg |
| Drive bay external | -- |
| Drive bay internal | 2x 2.5" and 2x 3.5“ |
| Power supply | ATX PSU (optional, ~200mm) |
| Front I/O | 1x USB3.2 Gen2 Type C, 2 x USB3.0, Audio-out (AZALIA / HD-Audio), Mic-In |
| Scope of delivery | Set of screws, instruction manual Bottom: 2x 140mm PWM fans pre-installed Rear: 1x 140mm PWM fan pre-installed |
| Expansion slots | 6 |
| Cooling Compatibility | Bottom: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360mm radiator Top: 3x 120mm / 2x 140mm / 240mm radiator / 280mm radiator / 360 mm radiator M/B side: 2x 120mm / 240mm radiator Rear: 1x 120mm / 1x 140mm |
| CPU cooler height (max.) | 175mm |
| VGA card length (max.) | 410mm |
| Warranty | 24 Months |
