- Elegant & modern design
- Sound-absorbing material
- 1x 120mm PWM fan pre-installed
Pro mini
AZ-01B-OP
OVERVIEW

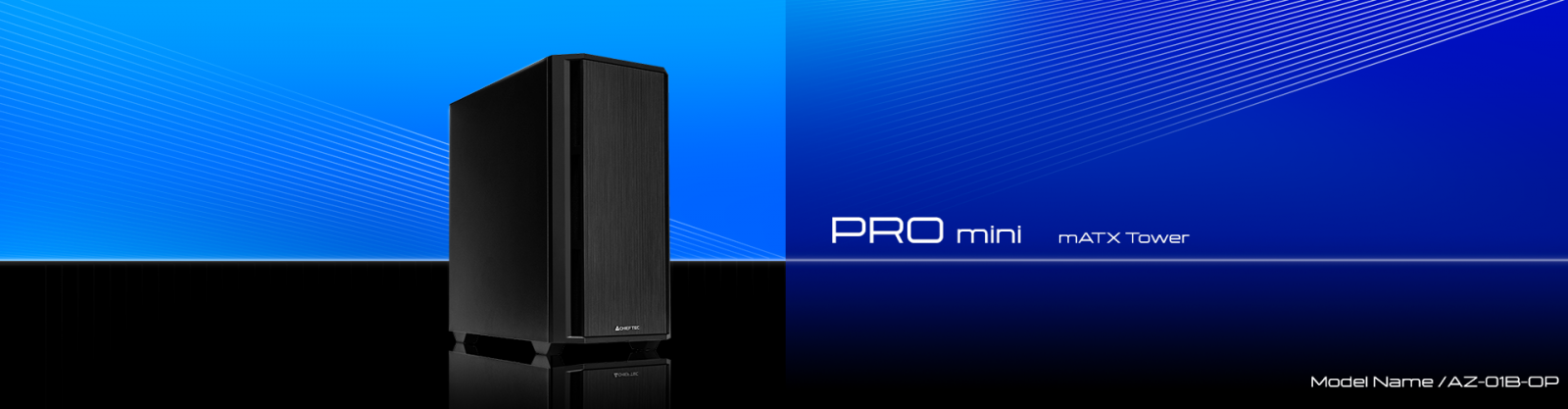

The CHIEFTEC Pro Mini presents a modern m-ATX mini tower PC case with a timelessly elegant, brushed front panel, complemented by an interior designed with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini features added sound-absorbing material on the side and front panels to provide an optimized noise level, while a total of 8 possible fan mounts provides fl exible cooling confi gurations. The Pro Mini is ready to deliver customers an ideal combination of performance, noise and quality design.
SPECIFICATIONS
| Model | Pro mini |
| Article no. | AZ-01B-OP |
| EAN code | 0753263078674 |
| Color | Black |
| Material | Material 0.6mm SPCC; Sound-absorbing material added to the front, left and right panels |
| Motherboard support | Mini ITX, mATX |
| Dimension (DxWxH) | 360mm x 212mm x 420mm |
| Weight (without/with package) | 5.15 kg / 6.0 kg |
| Drive bay external | - |
| Drive bay internal | 2x 2.5" and 1x 3.5“ |
| Power supply | ATX PSU (optional, ~180mm) |
| Front I/O | 1x USB Type C, 1x USB3.0, 1x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-In |
| Scope of delivery | Set of screws, instruction manual Rear: 1x 120mm PWM fan pre-installed |
| Expansion slots | 4 |
| Cooling Compatibility | Front: 3x 120mm / 240mm radiator / 280mm radiator / 360mm radiator Top: 2x 120mm / 2x 140mm / 240mm radiator / 280mm radiator Rear: 120mm PSU Cover: 2 x 120mm |
| CPU cooler height (max.) | 165mm |
| VGA card length (max.) | 330mm |
| Warranty | 24 Months |
