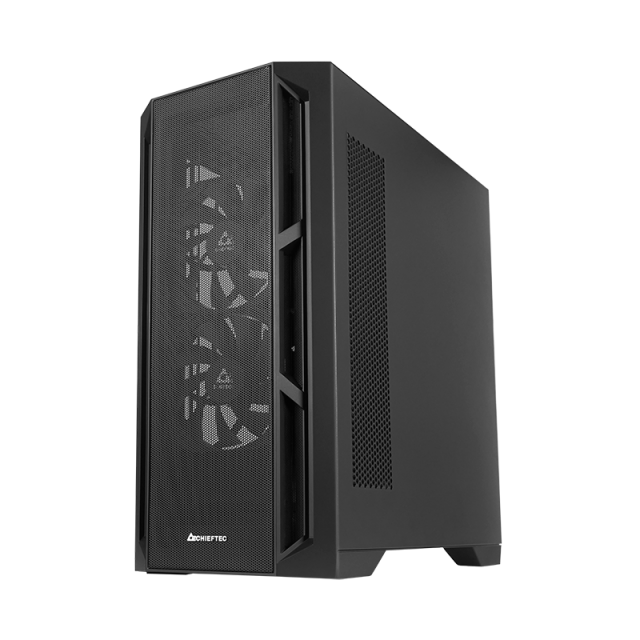

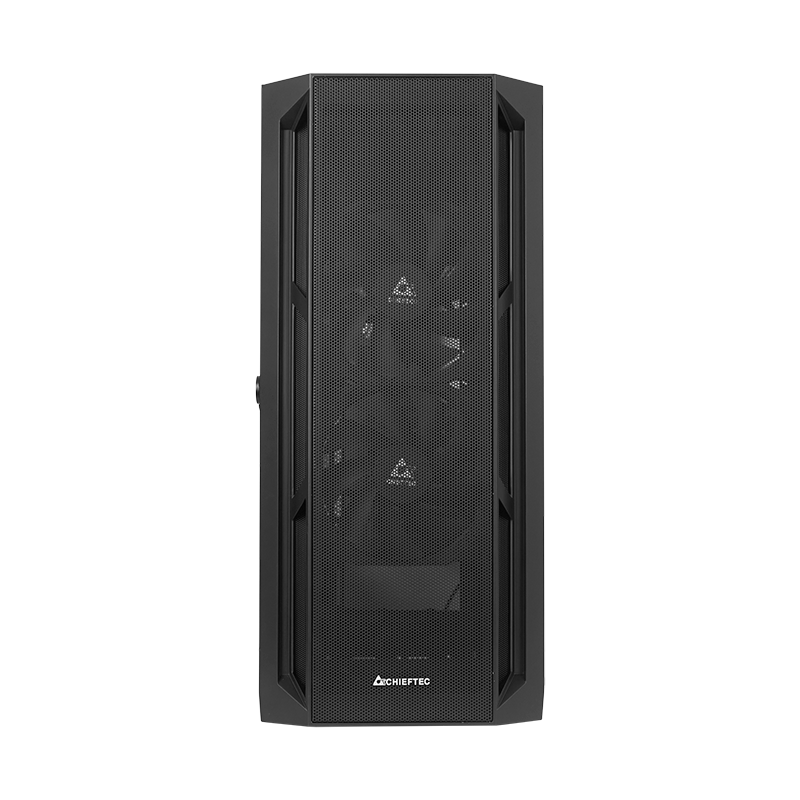

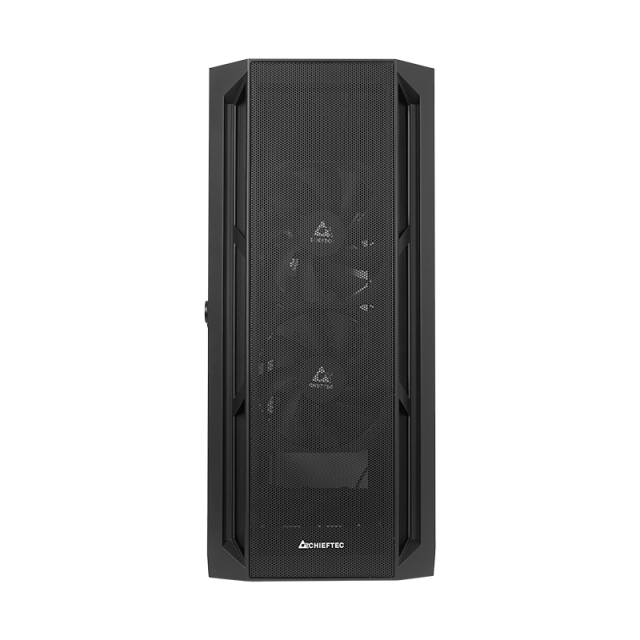

- High-airflow optimized front mesh panel

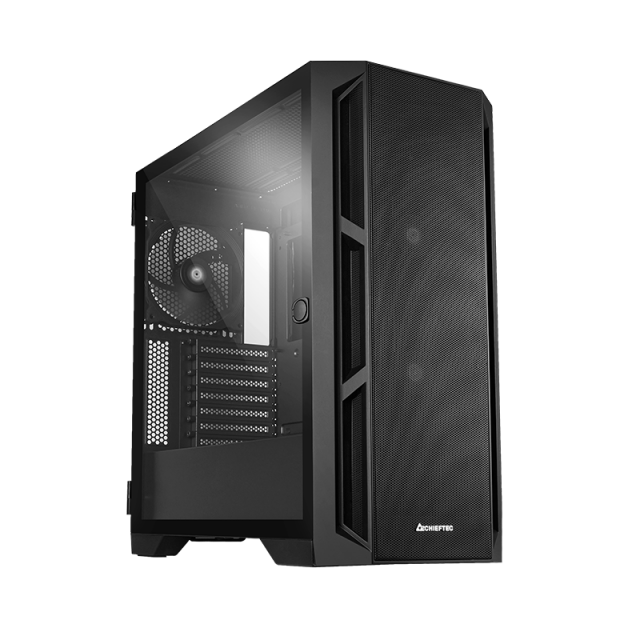

- Side panel made of TEMPERED GLASS
- 3x 140mm PWM fans pre-installed
APEX AIR
GA-01B-M-OP
OVERVIEW

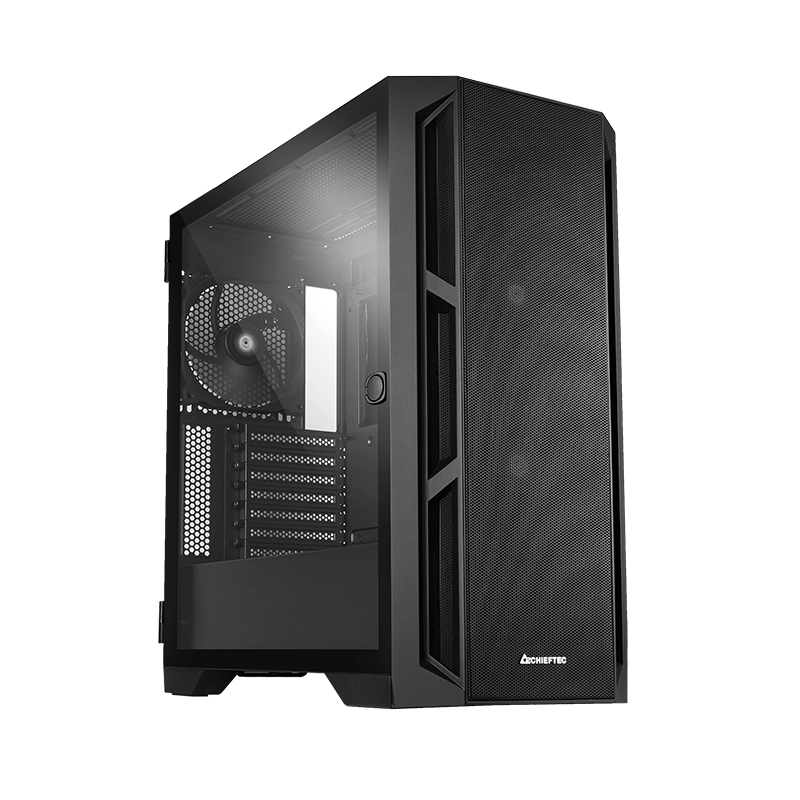

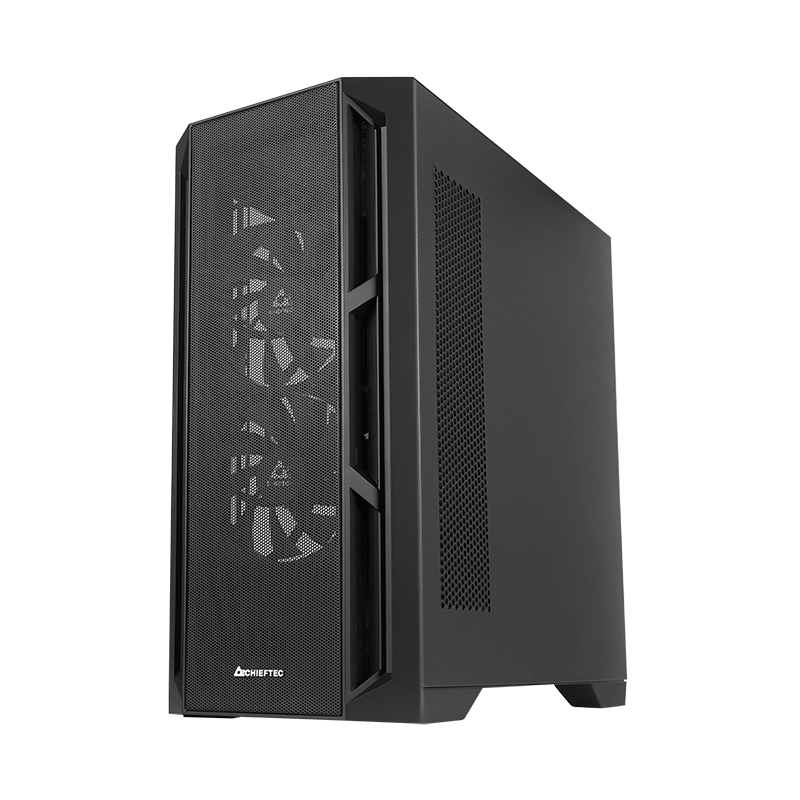

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh
front panel and three pre-installed 140mm PWM fans that, in combination,
are designed to enable high-airflow systems while maintaining
low noise.

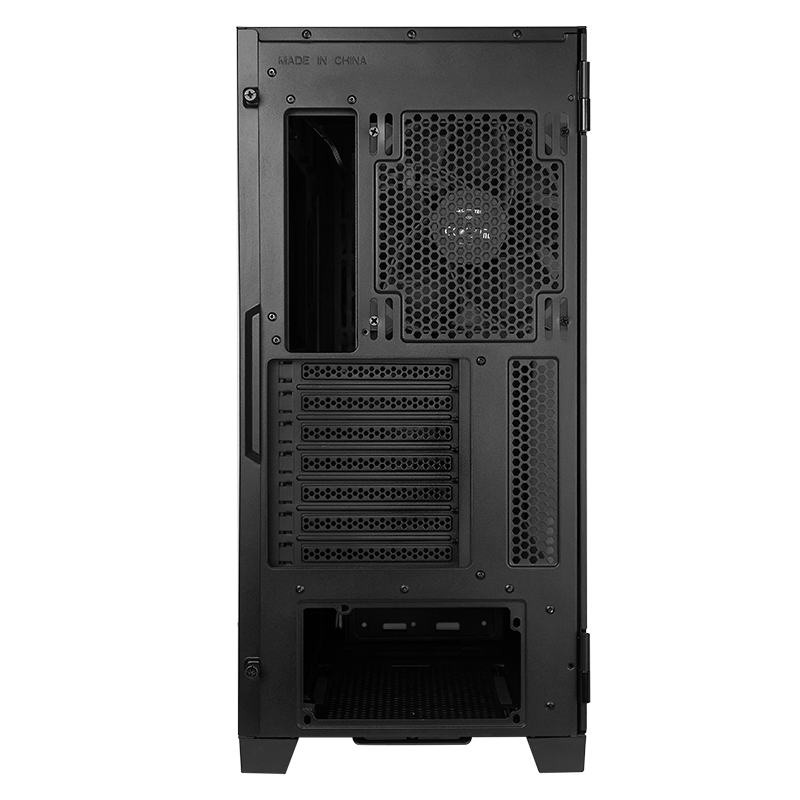

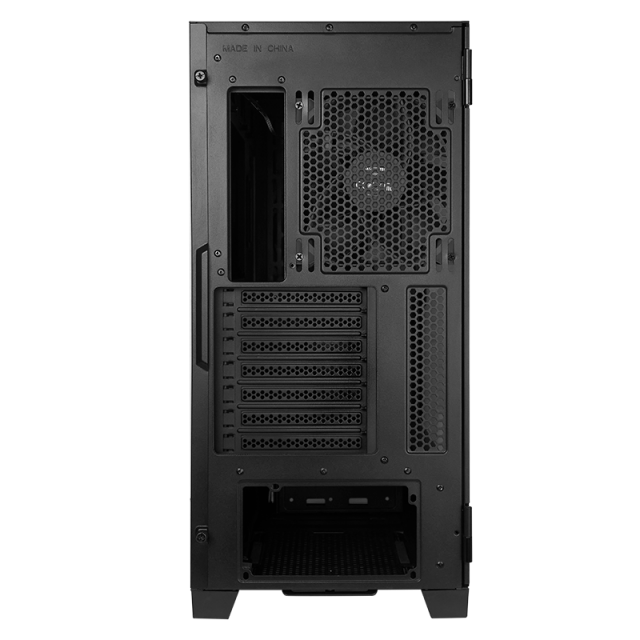

APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in
the front and 1 pre-installed in the rear, which creates a smooth airflow
path from the front intake to rear exhaust.

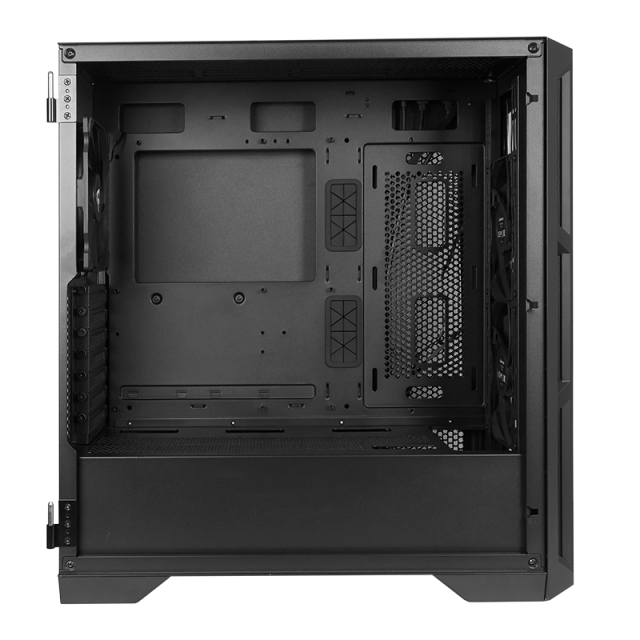

The case is generous with space, offering support for GPU‘s up to 400
mm in length, CPU coolers up to 175mm in height and radiator support
up to 360mm on the top, as well as up to 420mm in the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to
modern gaming systems.
SPECIFICATIONS
| Model | APEX AIR |
| Article no. | GA-01B-M-OP |
| EAN code | 0753263078537 |
| Color | Black |
| Material | Material 0.6mm SPCC and tempered glass at left side panel |

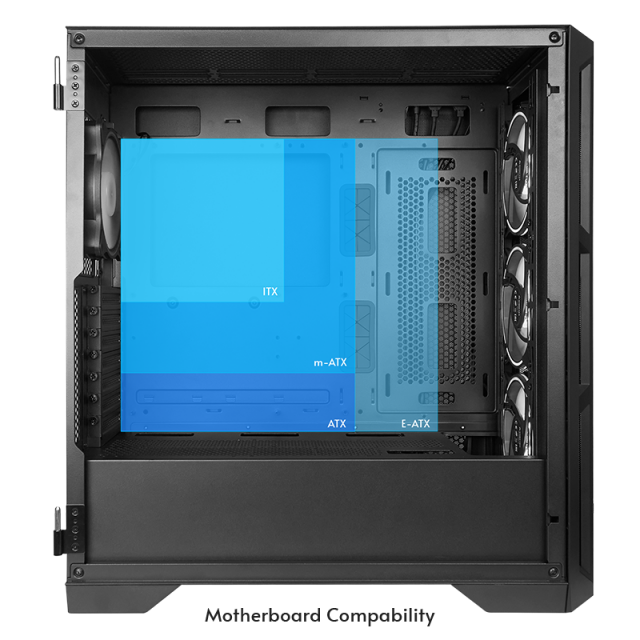

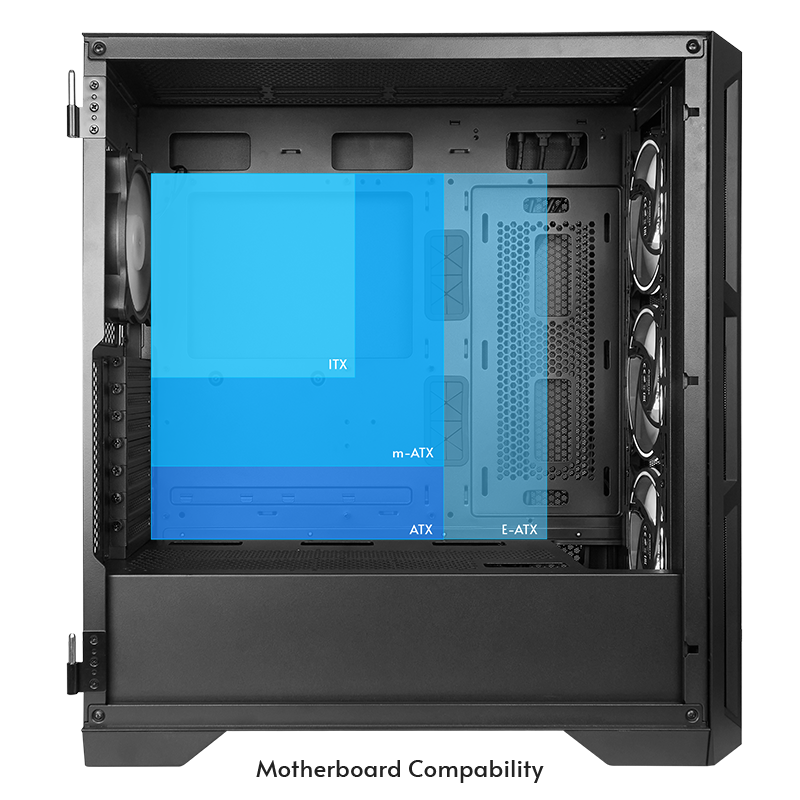

| Motherboard support | Mini ITX, M-ATX, ATX, E-ATX |
| Dimension (DxWxH) | 465mm x 230mm x 495mm |
| Weight (without/with package) | 7.30 kg / 8.75 kg |
| Drive bay external | - |
| Drive bay internal | 3x 2.5“ and 1x 3.5“ / 2x 2.5“ and 2x 3.5“ |
| Power supply | ATX PSU (optional, ~220mm) |

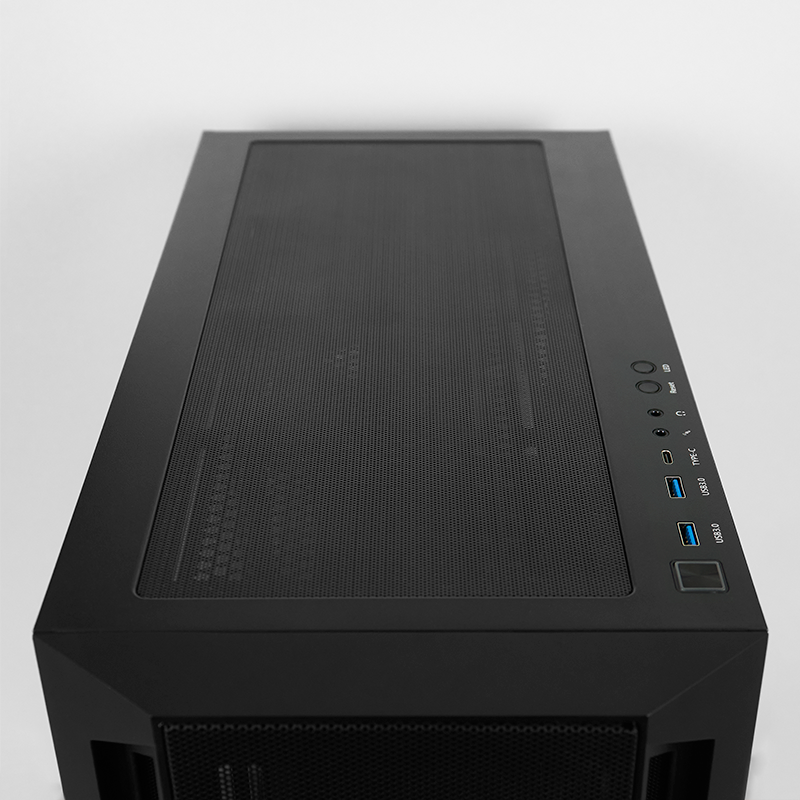

| Front I/O | 1x USB3.2 Gen2 Type C, 2x USB3.0 , Audio-out (AZALIA / HD-Audio), Mic-In, RGB Mode Button |
| Scope of delivery | Set of screws, instruction manual Front: 2x 140mm PWM fans pre-installed Rear: 1x 140mm PWM fan pre-installed |
| Expansion slots | 7 |

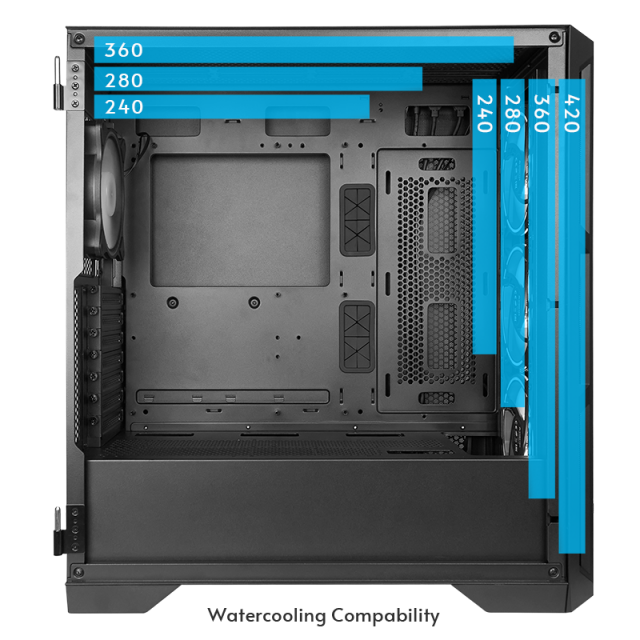

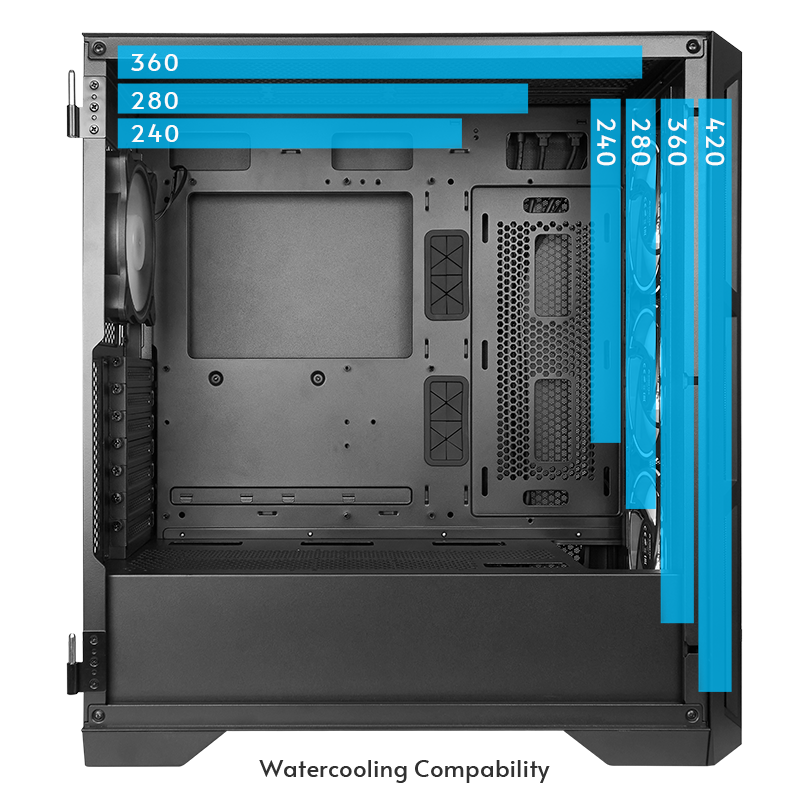

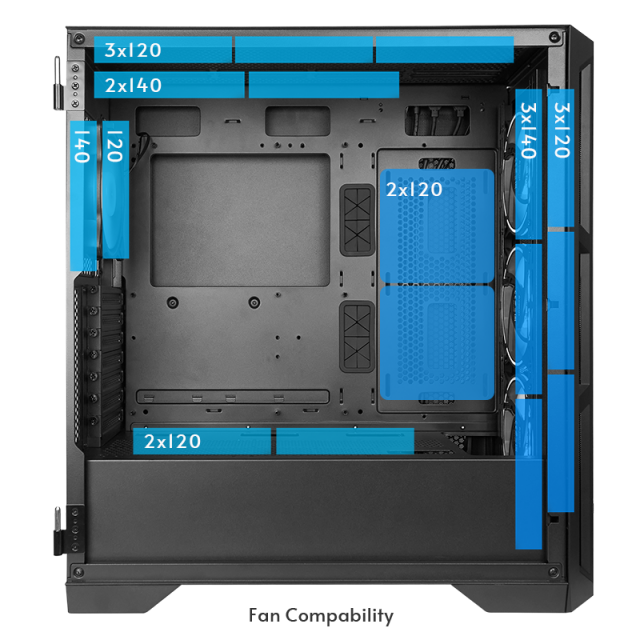

| Cooling Compatibility | Front: 3x 120mm or 3x 140mm or 240mm radiator or 280mm radiator or 360mm radiator or 420mm radiator Top: 3x 120mm or 2x 140mm or 240mm radiator or 280mm radiator or 360mm radiator Rear: 1x 120mm or 1x 140mm PSU Cover : 2 x 120mm fan Side: 2 x 120mm fan |
| CPU cooler height (max.) | 175mm |
| VGA card length (max.) | 400mm |
| Warranty | 24 Months |
