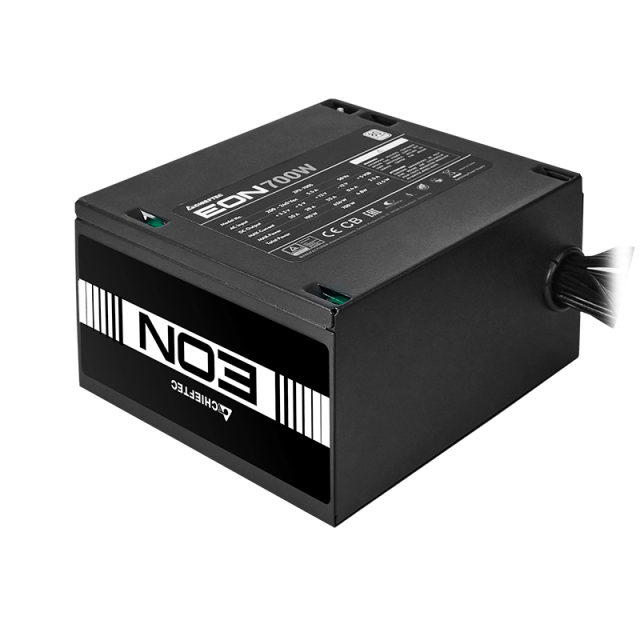

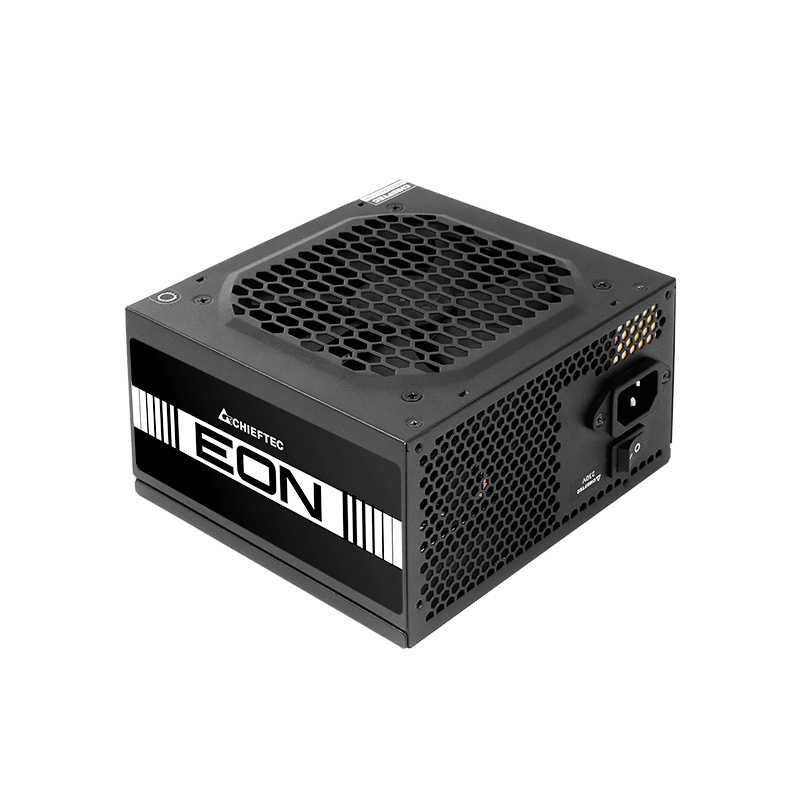

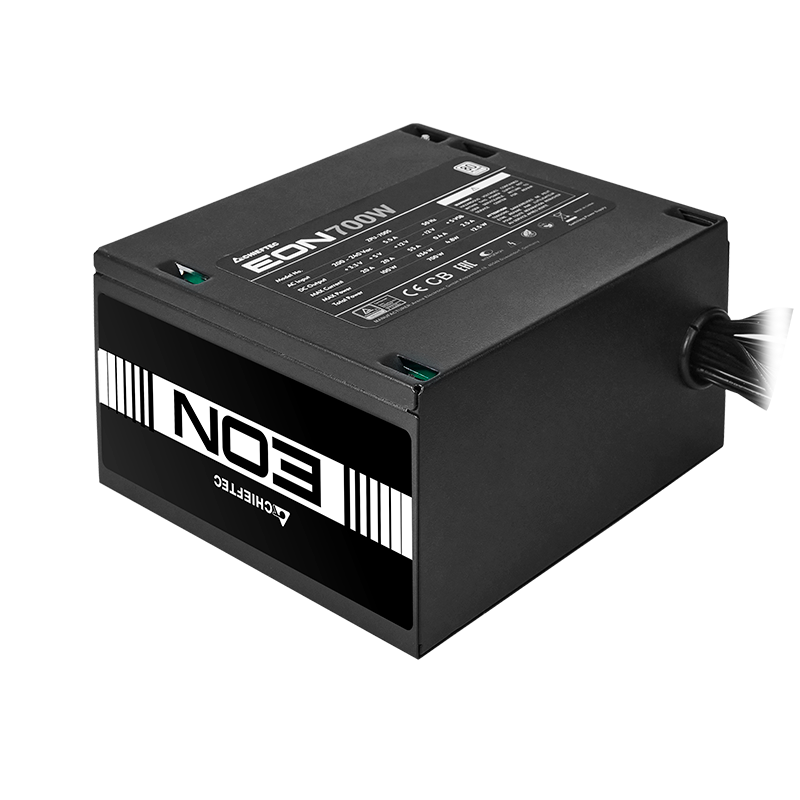

ZPU-500S
EON Series

  • EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.
80 PLUS WHITE 230V EU

OVERVIEW

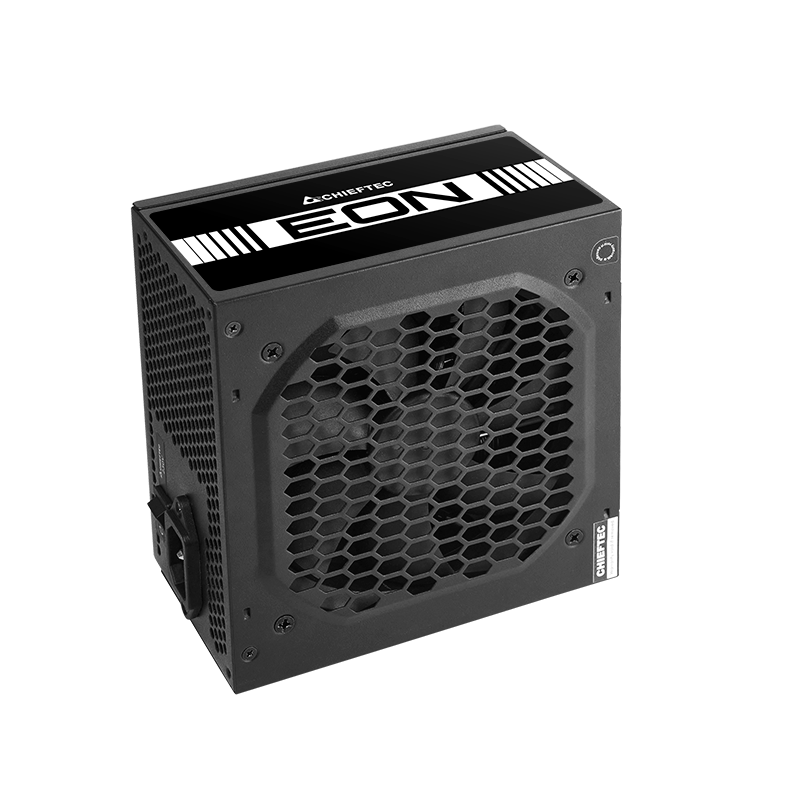

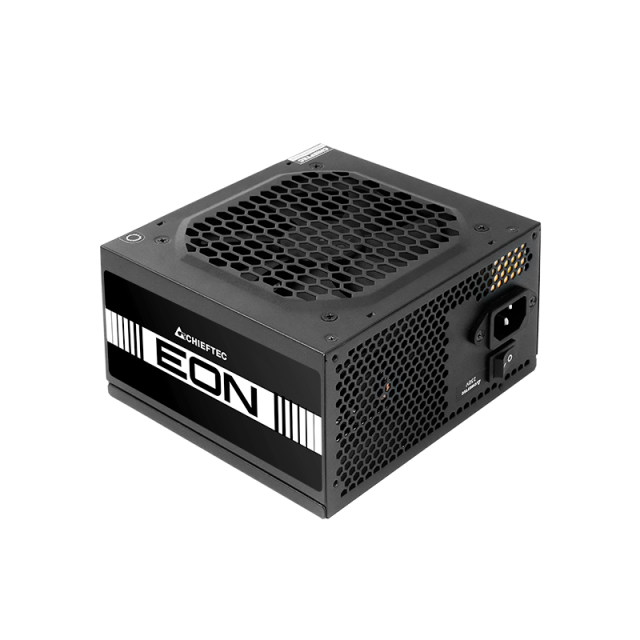

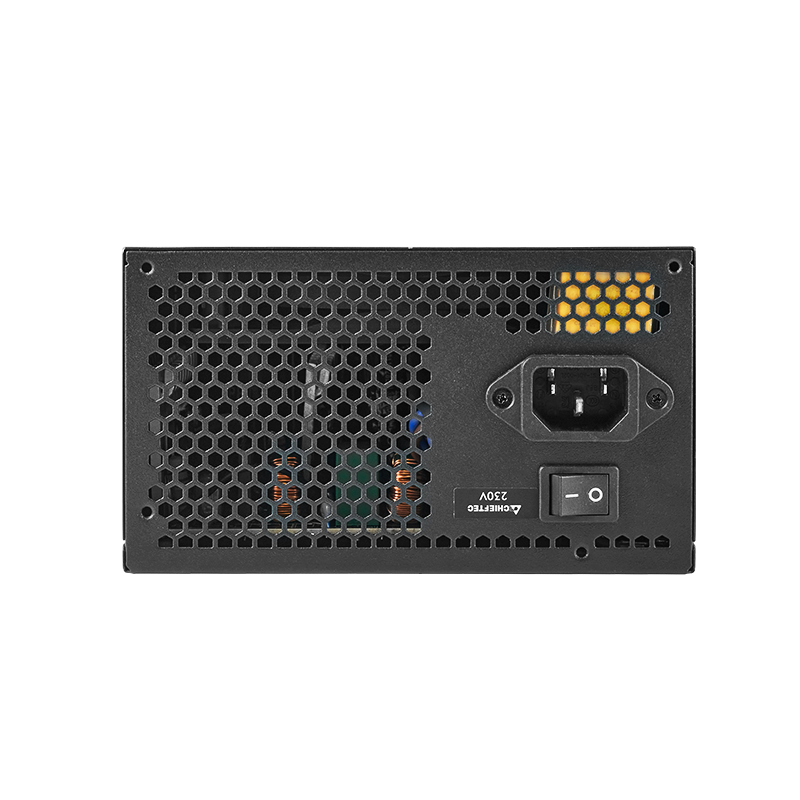

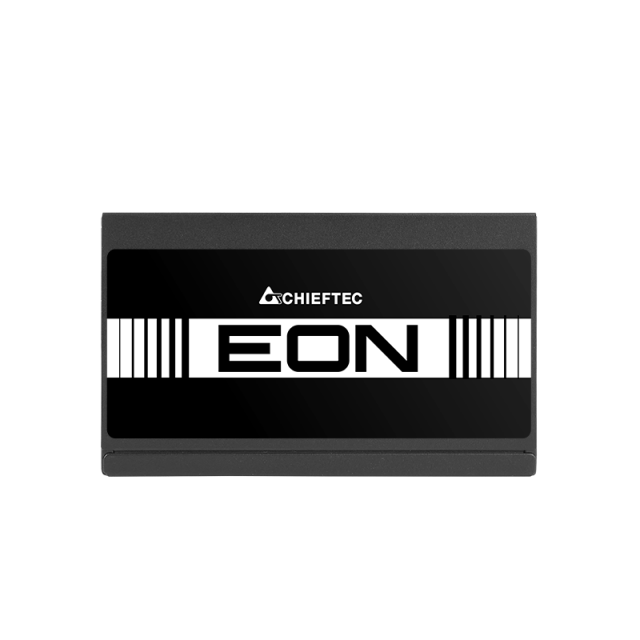

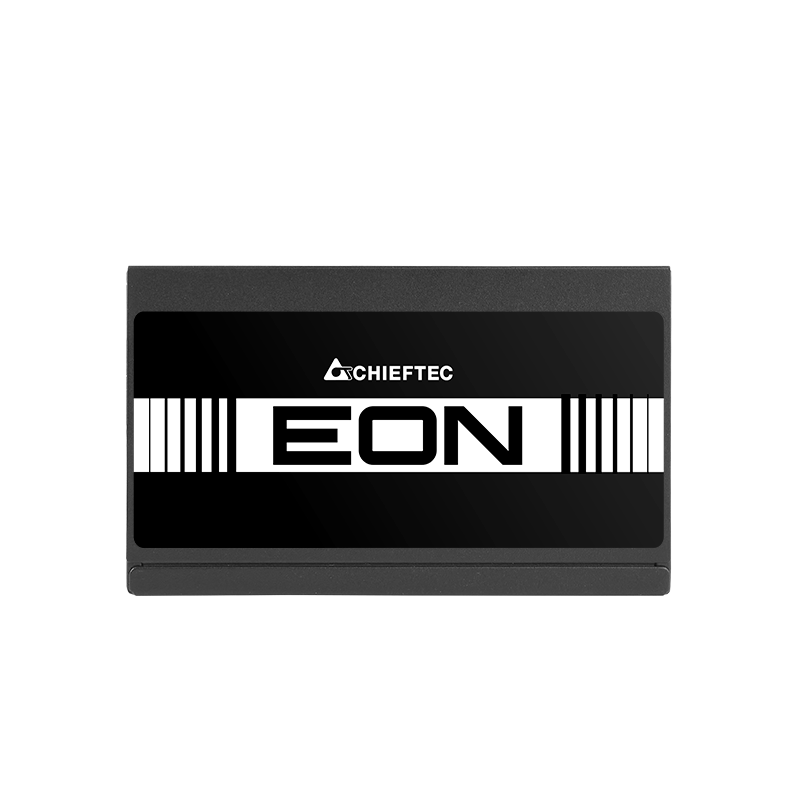

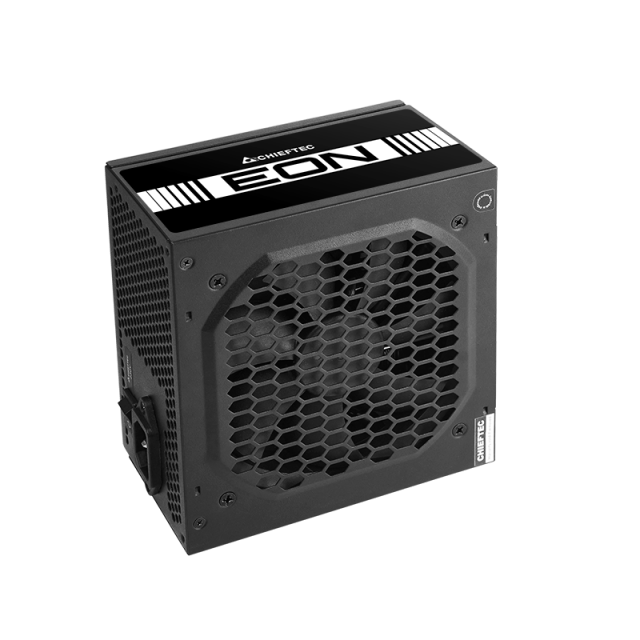

The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly
competitive pricing, equipped with silent 120mm fans.

The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model EON 500W
Article no. ZPU-500S
EAN code 0753263078612
Weight (without/with package) 1.2 kg / 1.45 kg
AC Input 200-240V~ / 3.5A
Frequency 50Hz
+5V 20A
+3.3V 20A
+5V & +3.3V combined 100W
+12V1 37A
+12V2 --
+12V1, +12V2 combined 444W
P.F. >0.9
-12V 0.4A / 4.8W
+5VSB 2.5A / 12.5W
Maximum Power 500W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 2
8 PIN PCIe (6+2) 2
SATA/MOLEX 4/2

Cable length (mm)
20+4 PIN ATX 550
8 PIN EPS (4+4) 1 x 600/100
8 PIN PCIe (6+2) 1 x 550/150
SATA/MOLEX 2 x 450/150/150

Features
Specification ATX 12V 2.3
Form factor ATX
Efficiency 80Plus Standard 230V EU
Dimension (DxWxH) 140mm x 150mm x 86mm
PFC Active PFC (0.9)

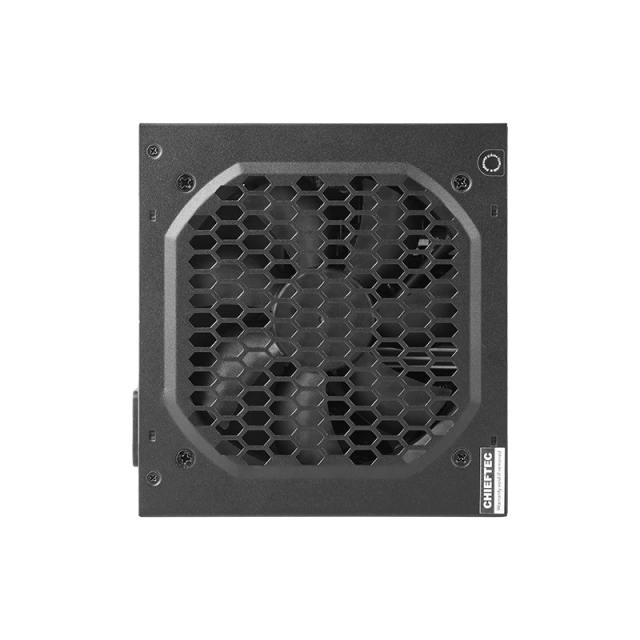

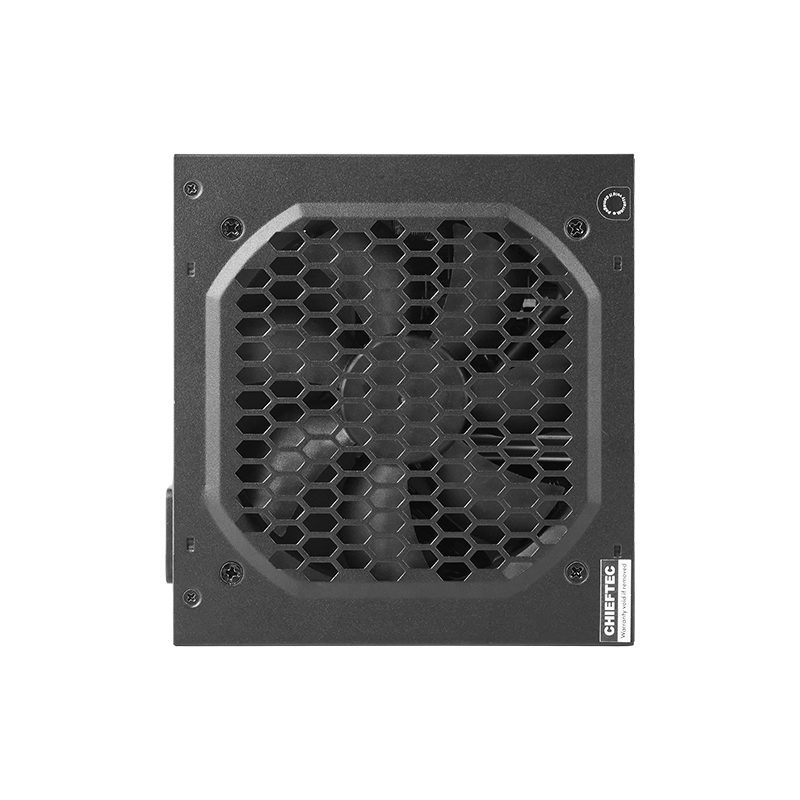

Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Overload protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage protection)
Warranty 24 Months
