ZPU-600S
EON Series
![80 PLUS WHITE 230V EU](https://www.chieftec.eu/upload/img/c-product_icon1210330180913_1614.jpg)
OVERVIEW

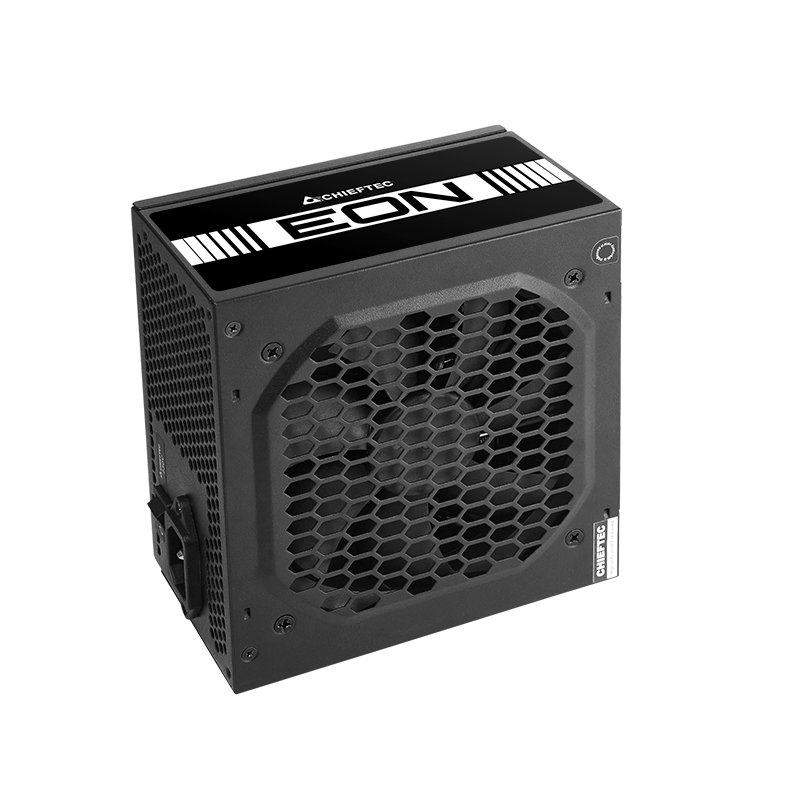

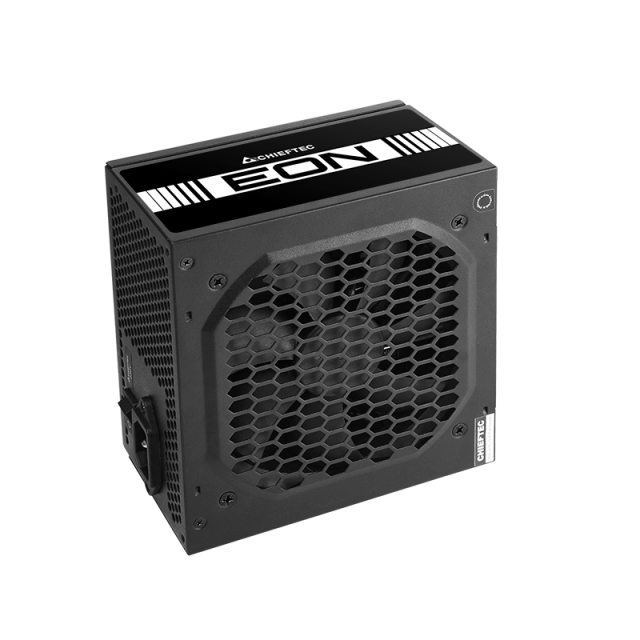

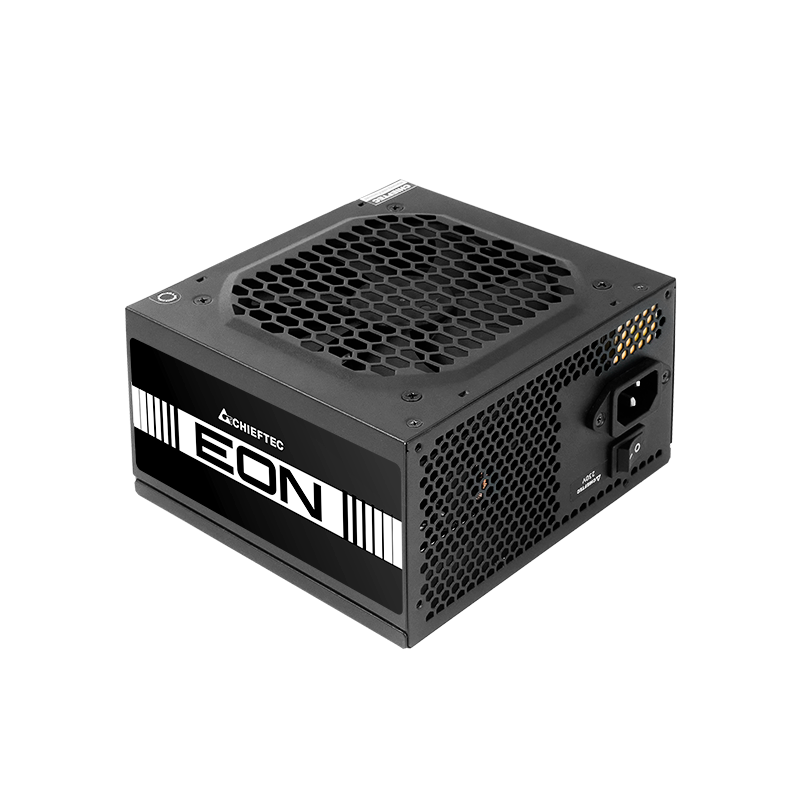

The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly
competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and
equipped with extra-long native cables. The EON Series runs quietly and provides
its power with all essential protection and safety features.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![CB](https://www.chieftec.eu/upload/img/c-product_icon2201130170718_4334.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![ErP](https://www.chieftec.eu/upload/img/c-product_icon2201130170907_1075.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
![E](https://www.chieftec.eu/upload/img/c-product_icon2201130170818_9523.png)
![TUV](https://www.chieftec.eu/upload/img/c-product_icon2201130170639_8801.png)
Model | EON 600W |
---|---|
Article no. | ZPU-600S |
EAN code | 0753263078438 |
Weight (without/with package) | 1.34kg / 1.62kg |
AC Input | 200-240V / 4.5A |
Frequency | 50Hz |
+5V | 20A |
+3.3V | 20A |
+5V & +3.3V combined | 100W |
+12V1 | 45A |
+12V2 | -- |
+12V1, +12V2 combined | 540W |
P.F. | >0.9 |
-12V | 0.4A / 4.8W |
+5VSB | 2.5A / 12.5W |
Maximum Power | 600W |
20+4 PIN ATX | 1 |
---|---|
8 PIN EPS (4+4) | 2 |
8 PIN PCIe (6+2) | 2 |
SATA | 4 |
MOLEX/FLOPPY | 2 |
20+4 PIN ATX | 650 |
---|---|
8 PIN EPS (4+4) | 700/100 |
8 PIN PCIe (6+2) | 550/150 |
SATA | 450/150/150 |
MOLEX/FLOPPY | 450/150/150 |
ATX12V Version | ATX 12V 2.3 |
---|---|
Efficiency | 80 PLUS® 230V EU |
Dimension (DxWxH) | 140mm x 150mm x 86mm |
PFC | Active PFC (0.9) (only 230V) |

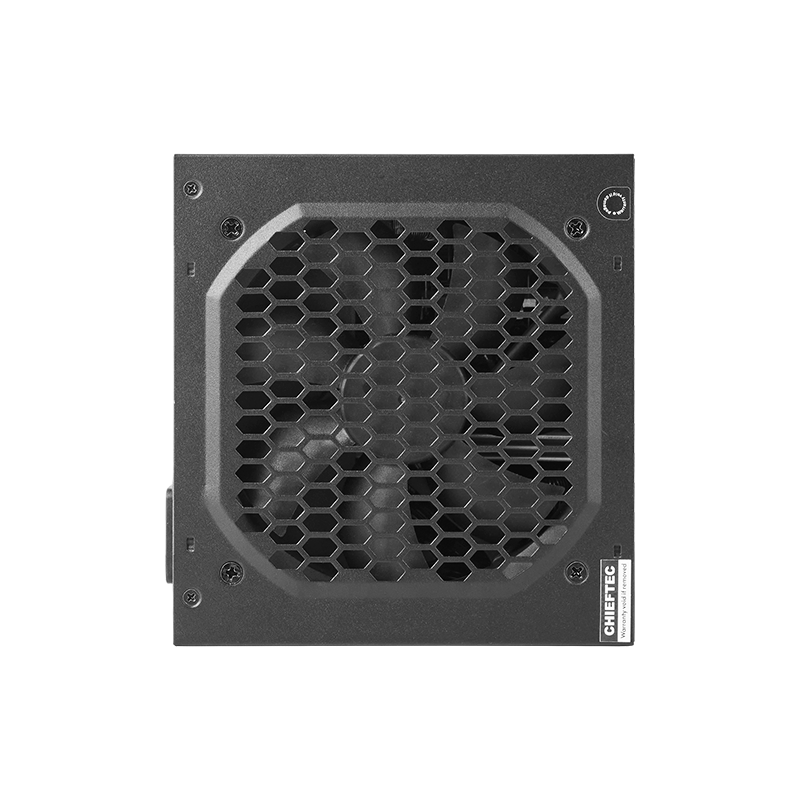

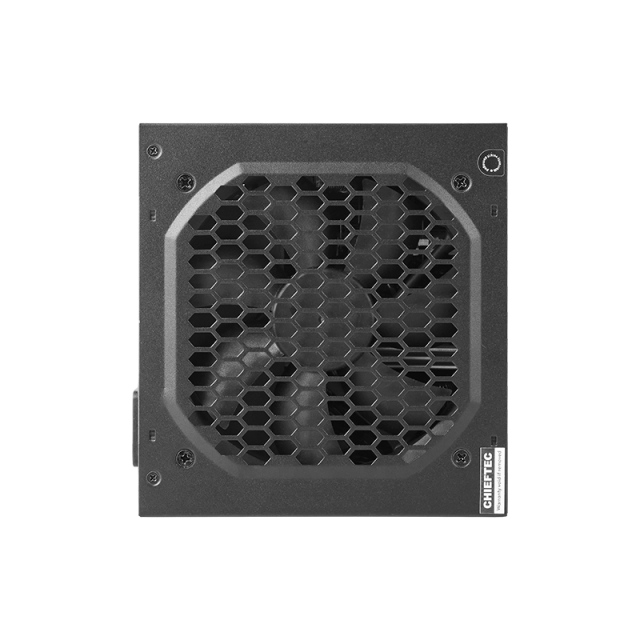

Fan | 120mm silent fan |
Security | AFC (Automatic Fan Speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Warranty | 24 Months |
