- 19” Rack chassis with 2U height
- Short Depth (<500mm) for ATX M/B
- Solid build quality with 1.2mm steel
UNC-209S-B-OP
OVERVIEW

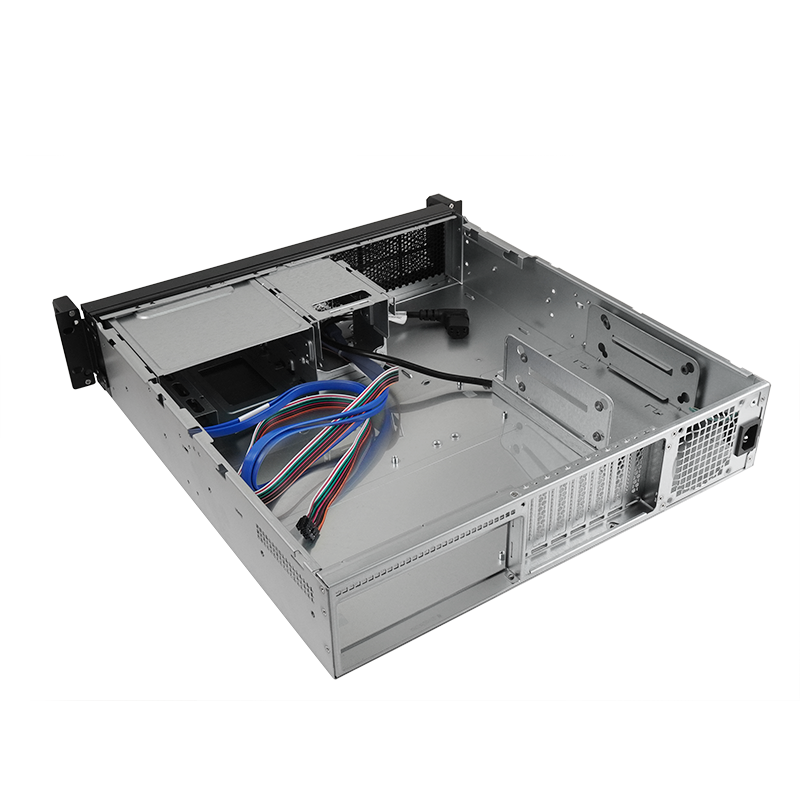

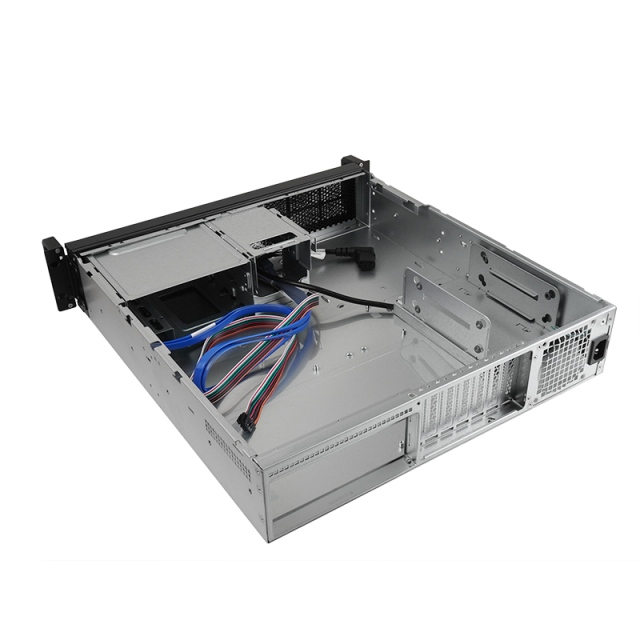

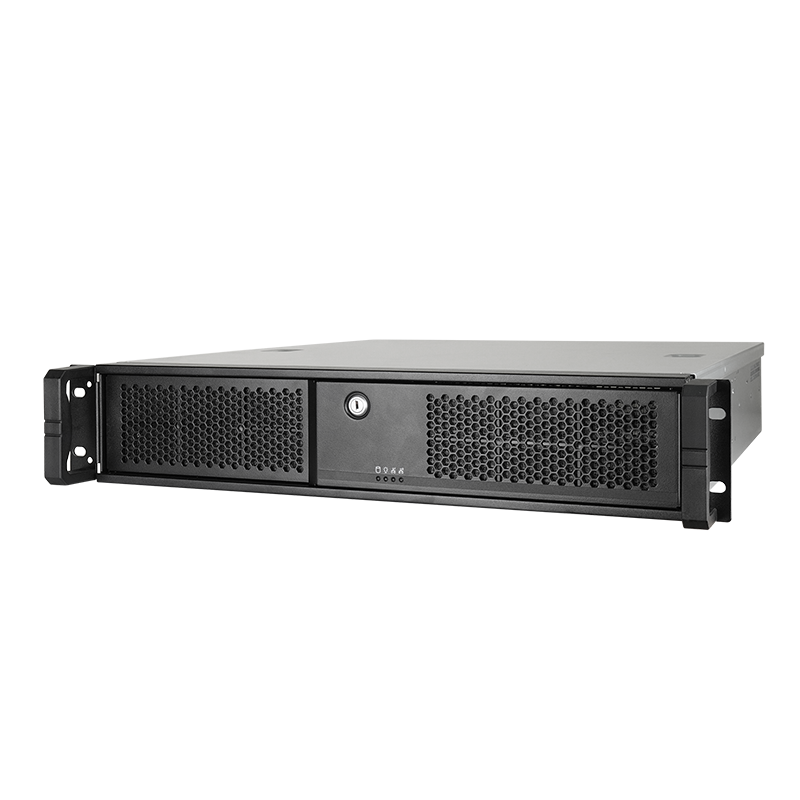

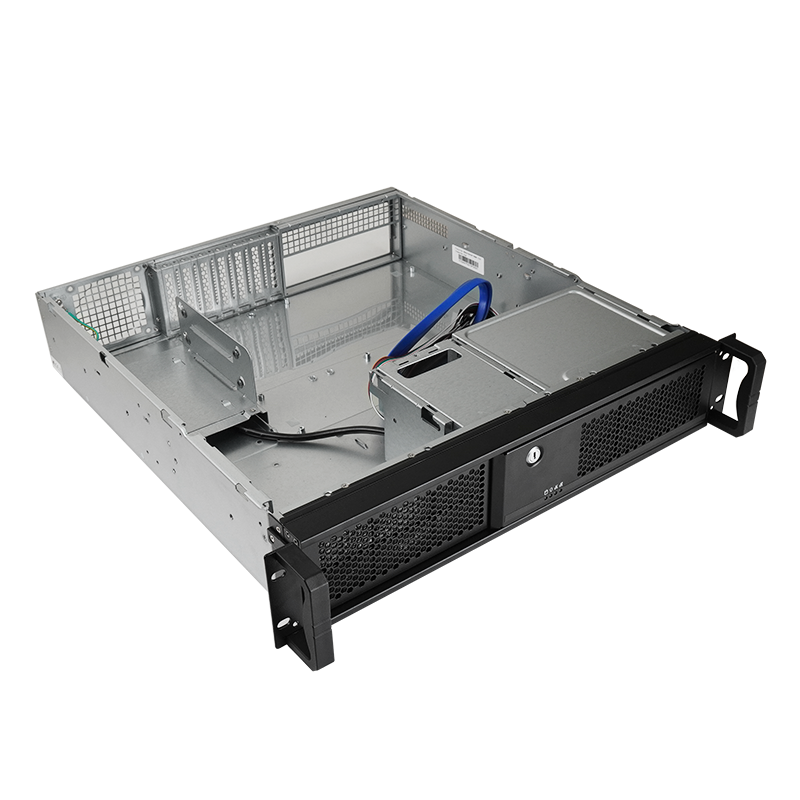

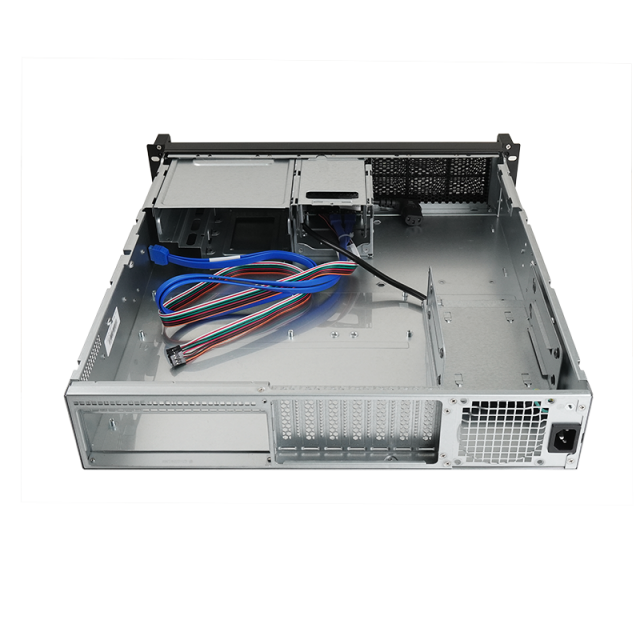

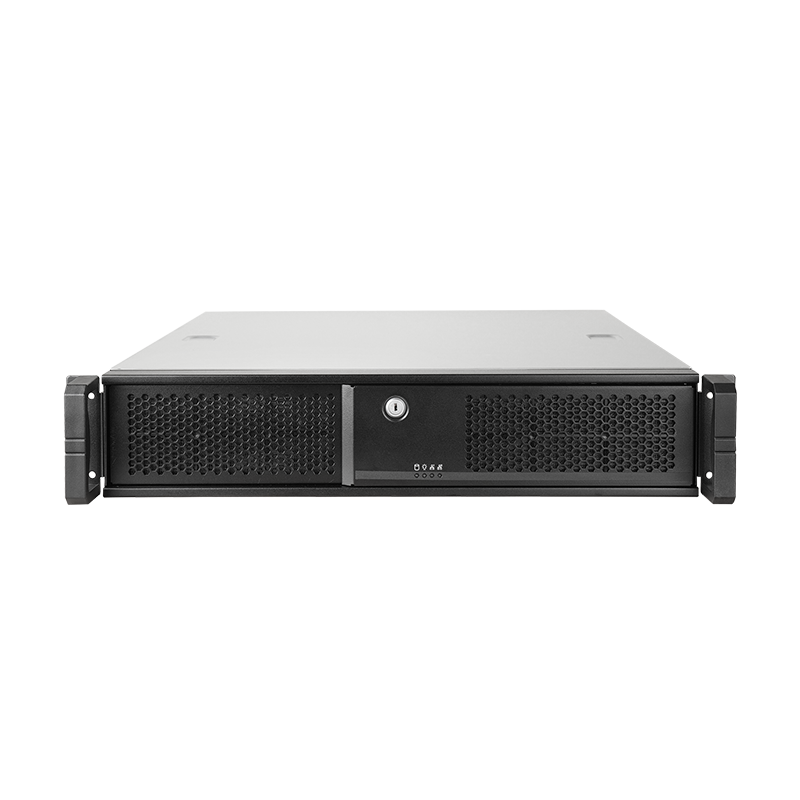

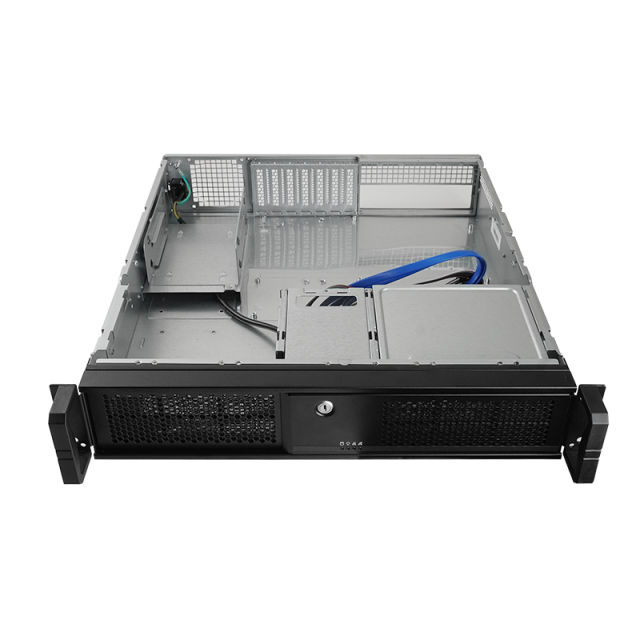

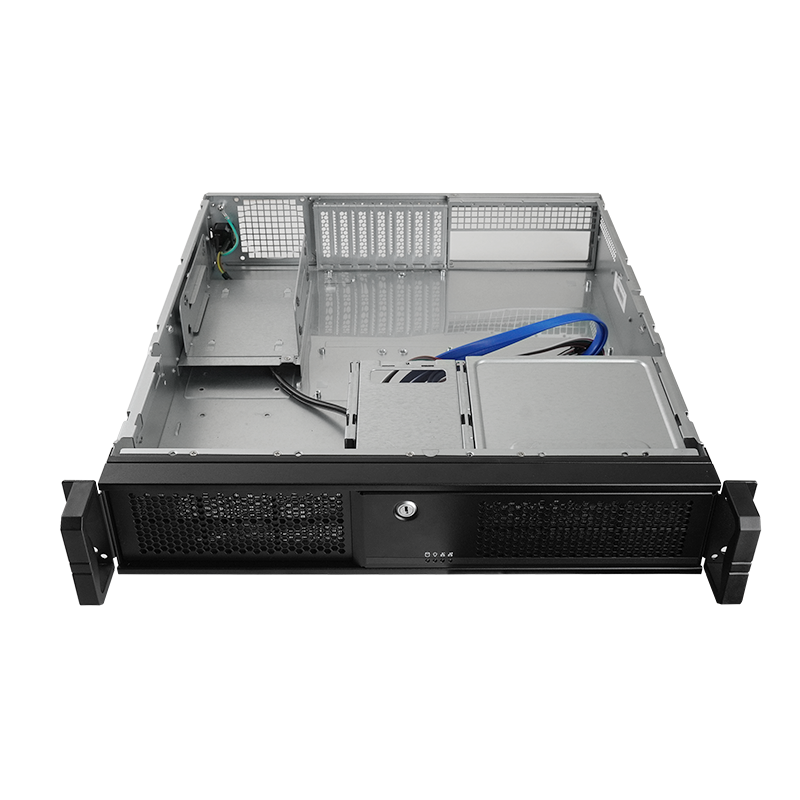

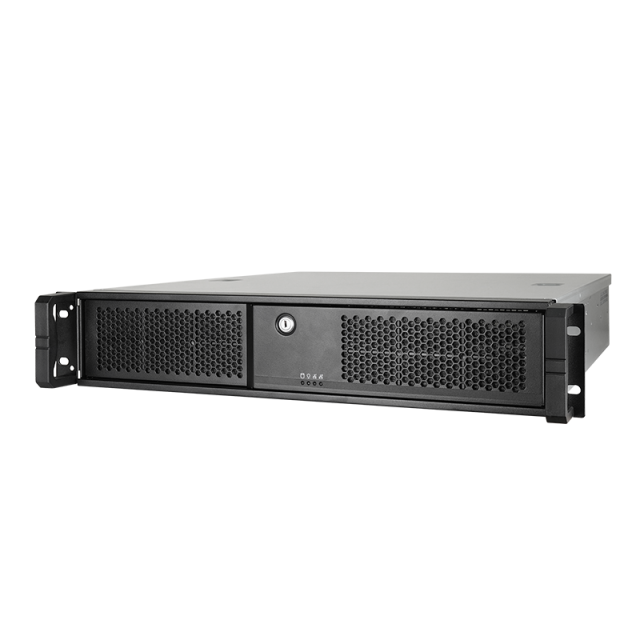

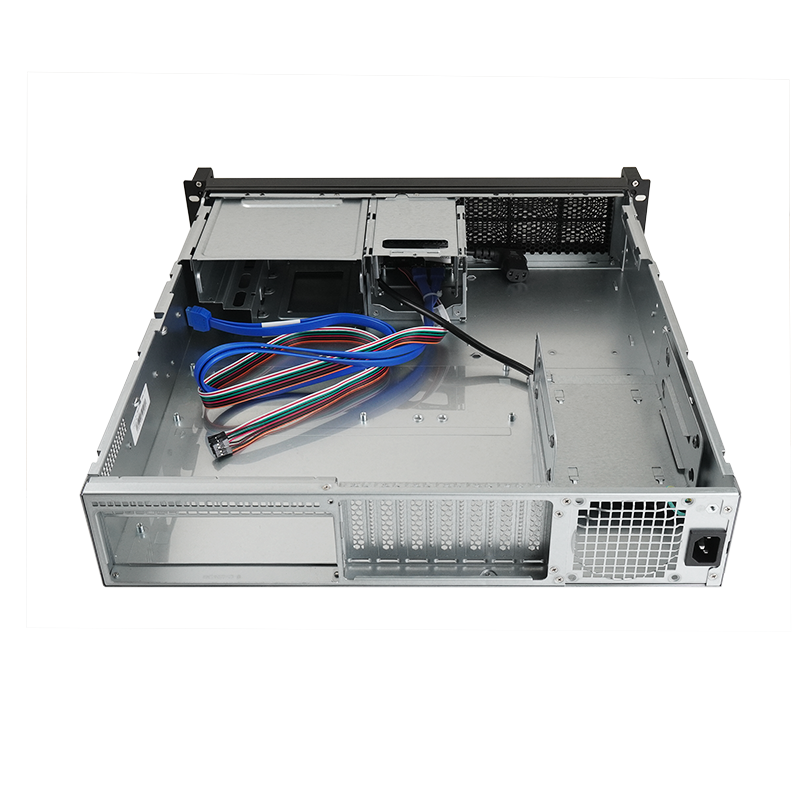

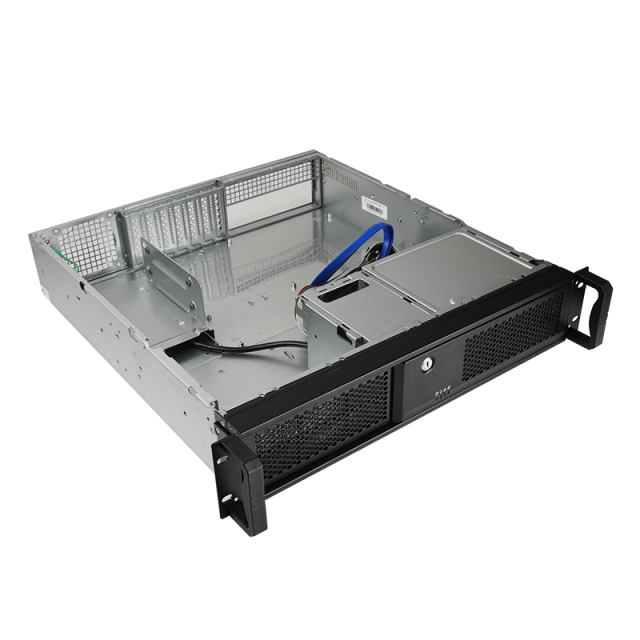

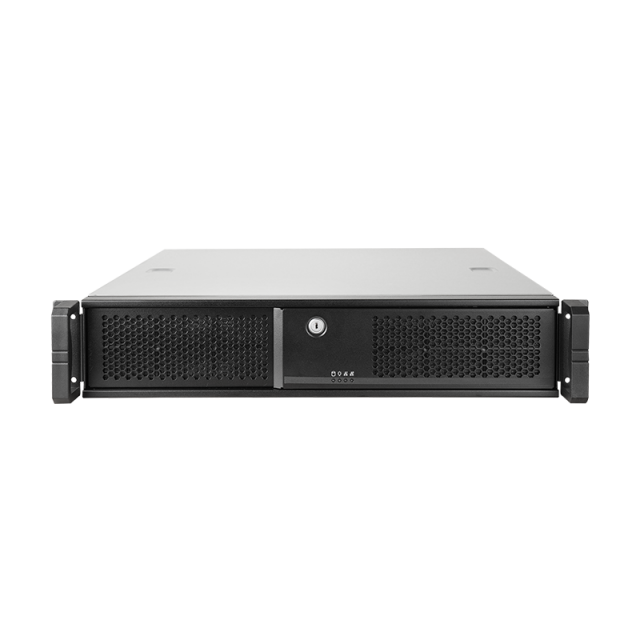

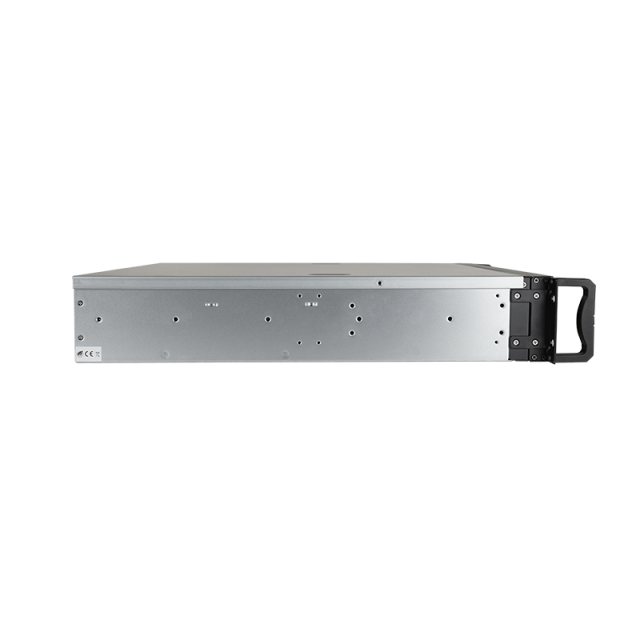

The UNC-209S-B-OP is a compact 2U ATX rackmount case, with a short depth of only 457mm, while able to install ATX motherboards. The robust build quality with 1.0mm thick SGCC steel ensures good protection of the hardware and serves as a reliable and flexible long-term solution. Two fast USB 3.1 ports in the front panel add to the features on offer with this chassis.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
Article no. | UNC-209S-B | UNC-209S-B-OP |
EAN code | 0753263078483 | 0753263078452 |
Color | Black | Black |
Material | 1.0mm SGCC | 1.0mm SGCC |
Motherboard support | mATX, ATX | mATX, ATX |

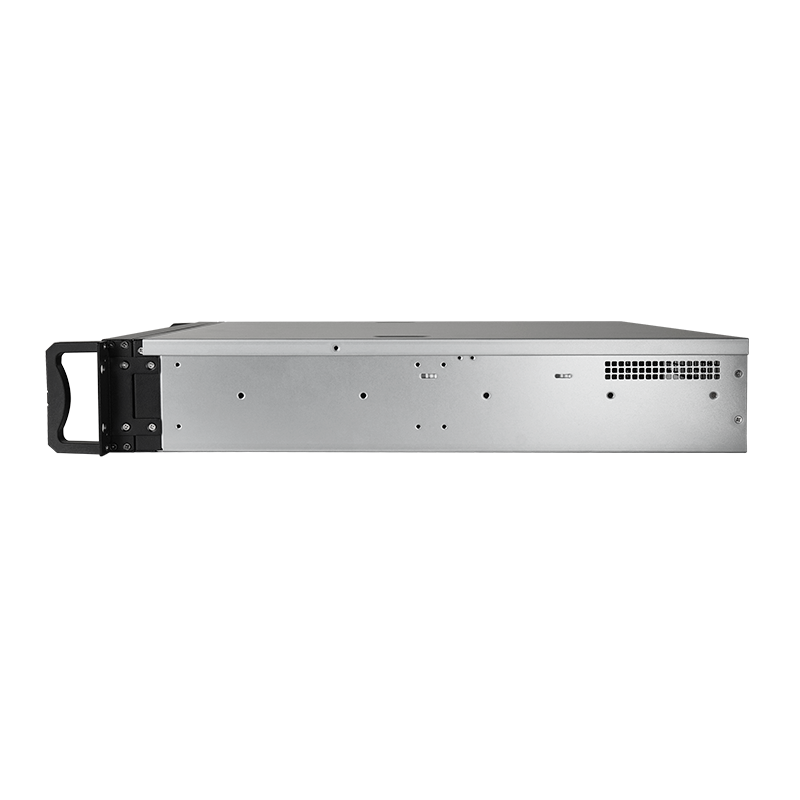

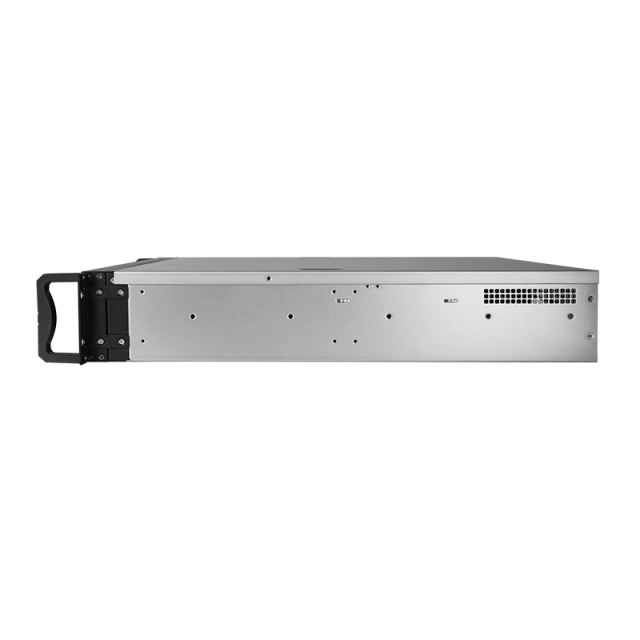

Dimension (DxWxH)mm | 457mm x 430mm x 88mm | 457mm x 430mm x 88mm |
Weight (Net/Gross) | 8.92kg / 12.43kg | 6.62kg / 10.76kg |
Drive bay external | 1x 5.25” and 1x 3.5” | 1x 5.25” and 1x 3.5” |

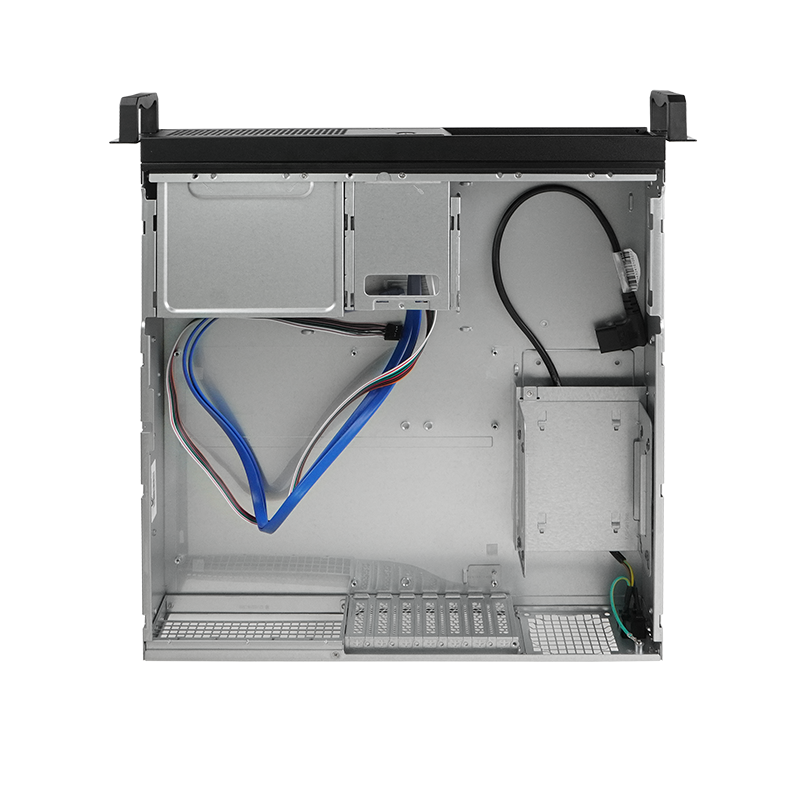

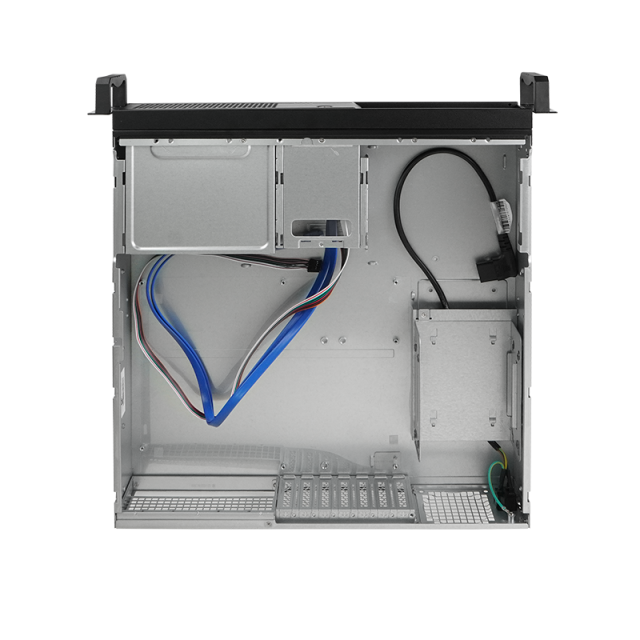

Drive bay internal | 2x 2.5” and 2x 3.5” | 2x 2.5” and 2x 3.5” |
Power supply | PSF-400B(400W) | ATX Optional |
Front I/O | 2x USB3.1 (USB3.2 Gen 1) | 2x USB3.1 (USB3.2 Gen 1) |

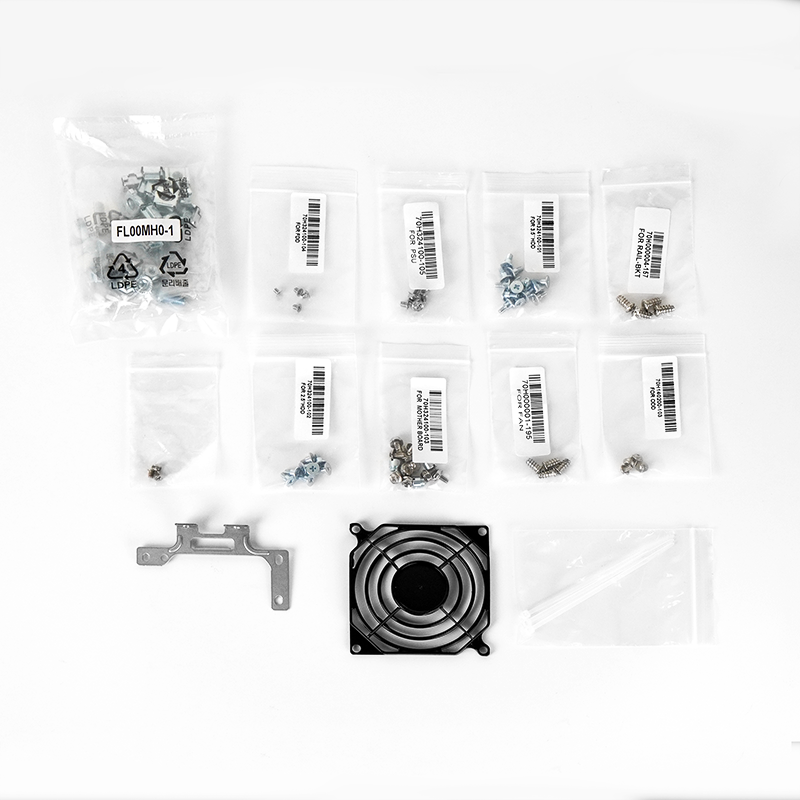

Scope of delivery | Set of screws | Set of screws |

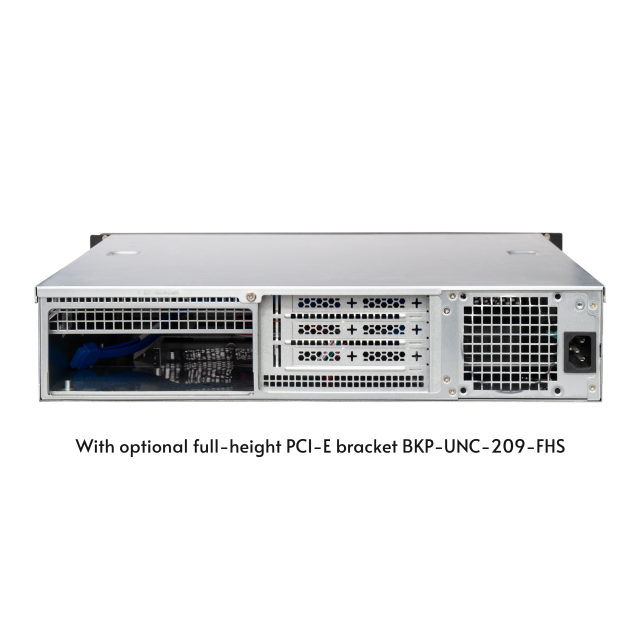

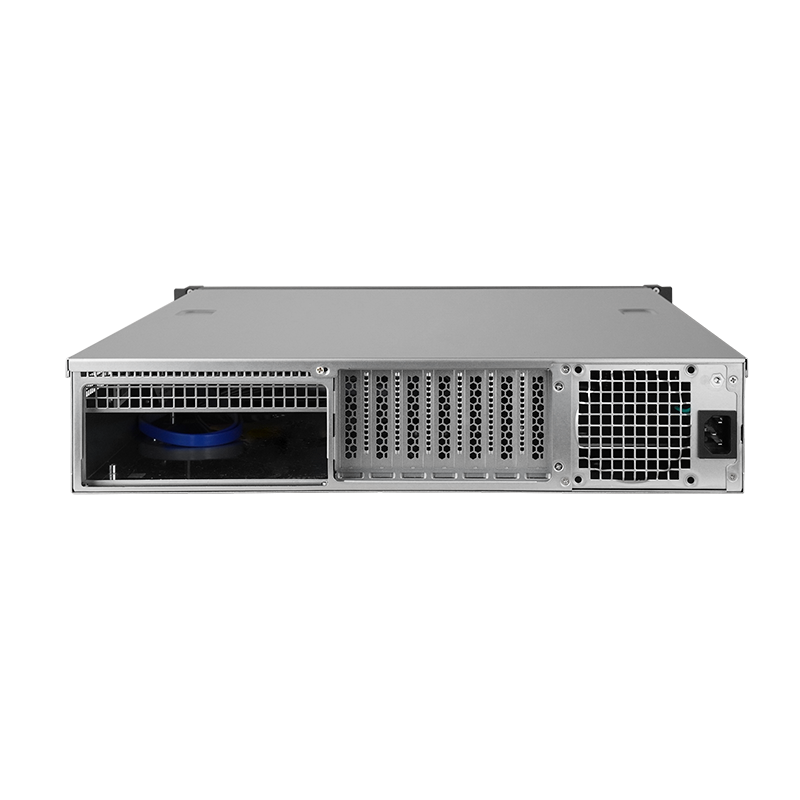

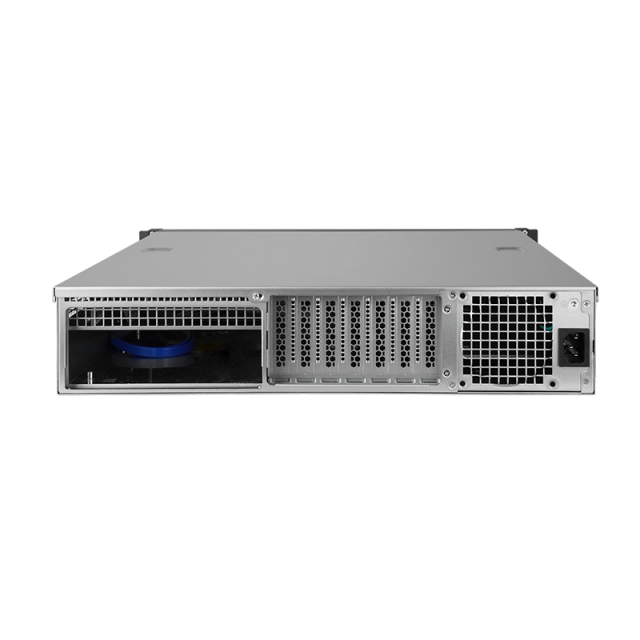

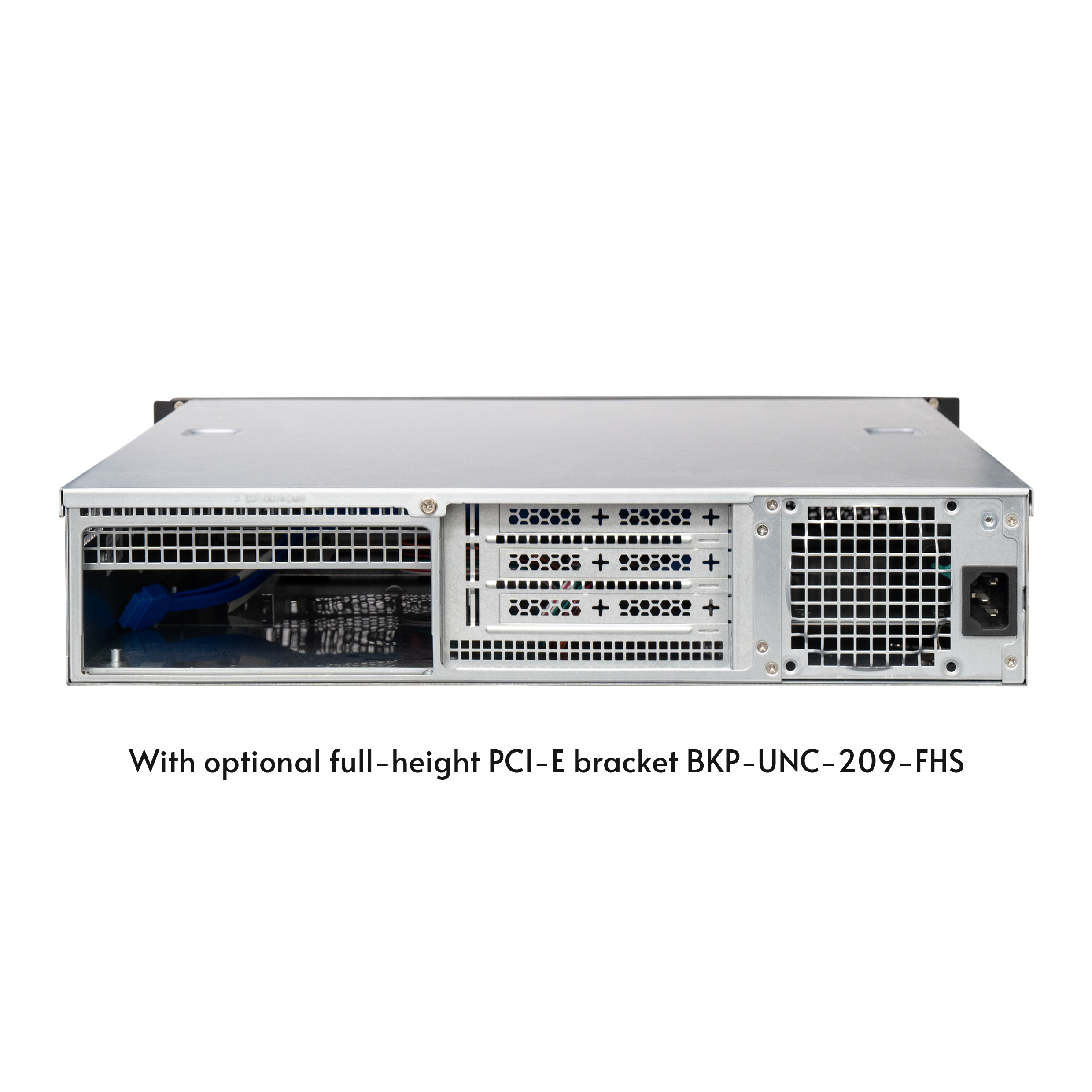

Expansion slots | 7 | 7 |
Cooling (optional) | Front: 1x 80mm Rear: 1x 80mm or 2x 40mm |
Front: 1x 80mm Rear: 1x 80mm or 2x 40mm |
CPU cooler height (max.) | 60mm | 60mm |
VGA card length (max.) | - | - |
Warranty | 24 months | 24 months |
