- ATX 3.0 with PCIe GEN5, 12VHPWR
- 80PLUS® GOLD certified efficiency
- Japanese Main Capacitors
- LLC Half-Bridge converter with DC to DC technology

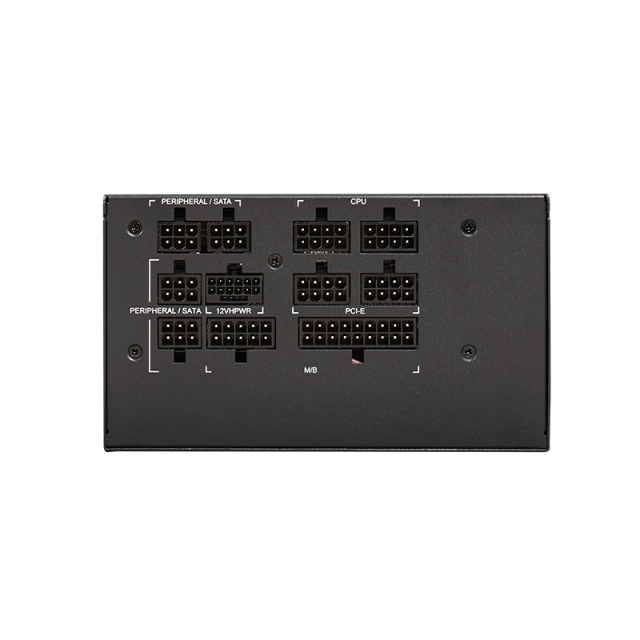

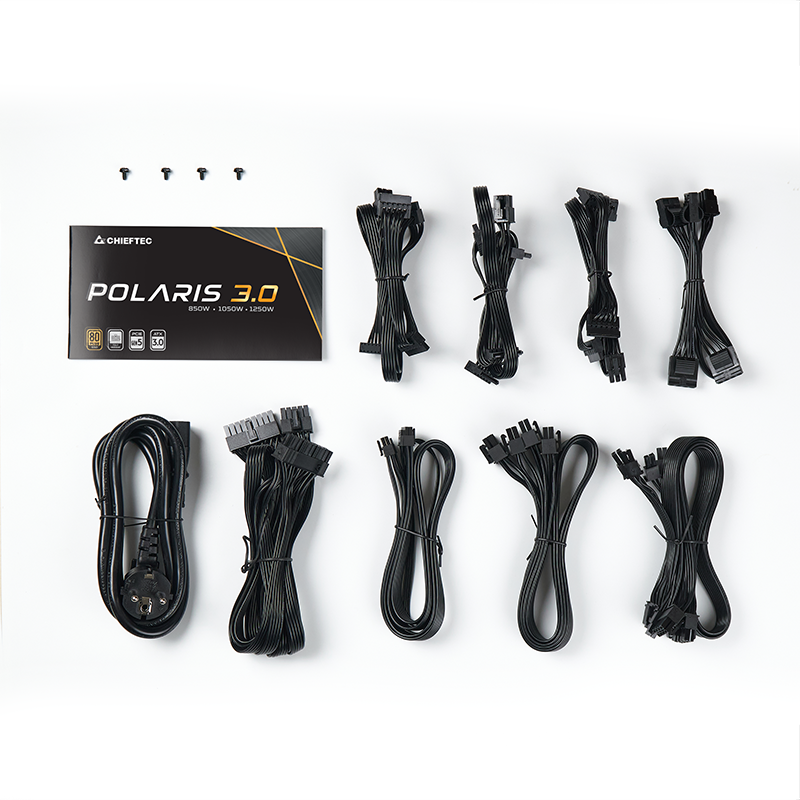

- Fully modular cable management
PPS-1250FC-A3
POLARIS 3.0 SERIES
OVERVIEW

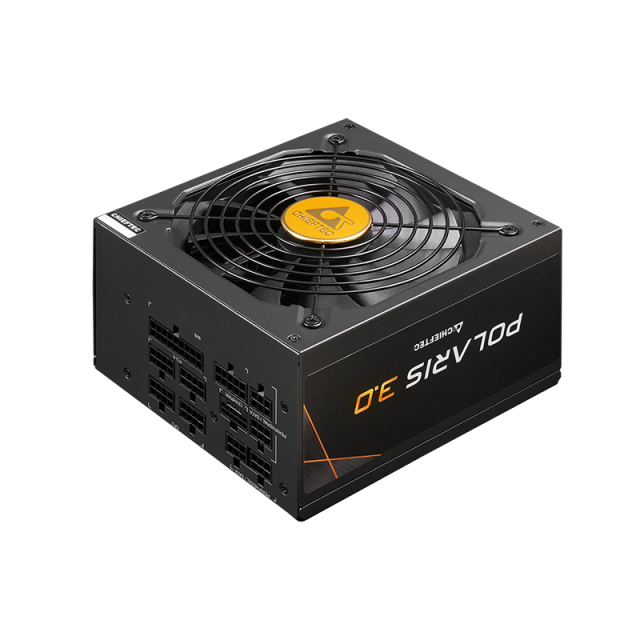

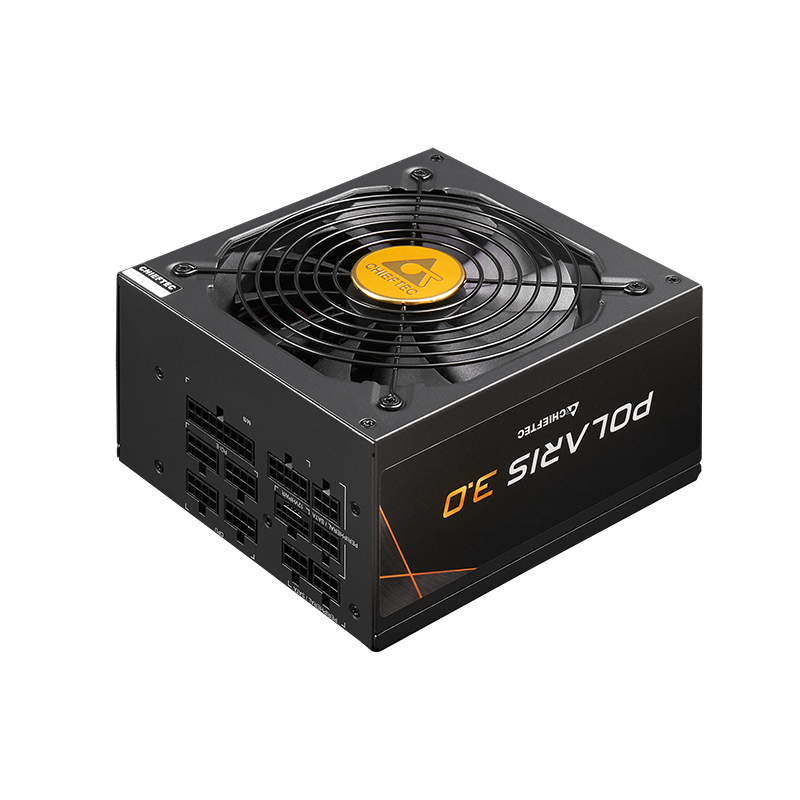

The CHIEFTEC Polaris 3.0 series is designed to Intel’s ATX 3.0 standard and supports PCIe GEN 5 with 80 PLUS® GOLD certified efficiency, promising exceptional performance. Polaris 3.0 features state-of-the-art technical design including LLC half-bridge converter with DC- to-DC technology, as well as Japanese main capacitors to achieve low ripple and tight voltage regulation. The Polaris 3.0 135mm FDB silent fan optimizes the balance between cooling and noise with excellent durability. Fully modular cable management ensures a clean and convenient build inside any system.
SPECIFICATIONS
| Model | POLARIS 3.0 1250W |
|---|---|
| Article no. | PPS-1250FC-A3 |
| EAN code | 0753263078155 |
| Weight (Net/Gross) | 3.01 kg / 3.35 kg |

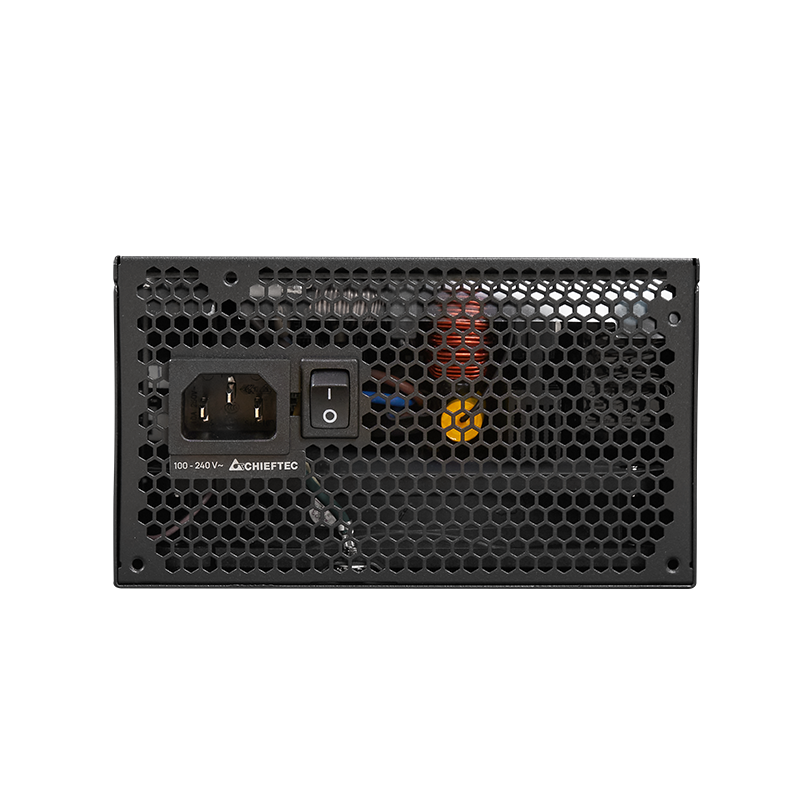

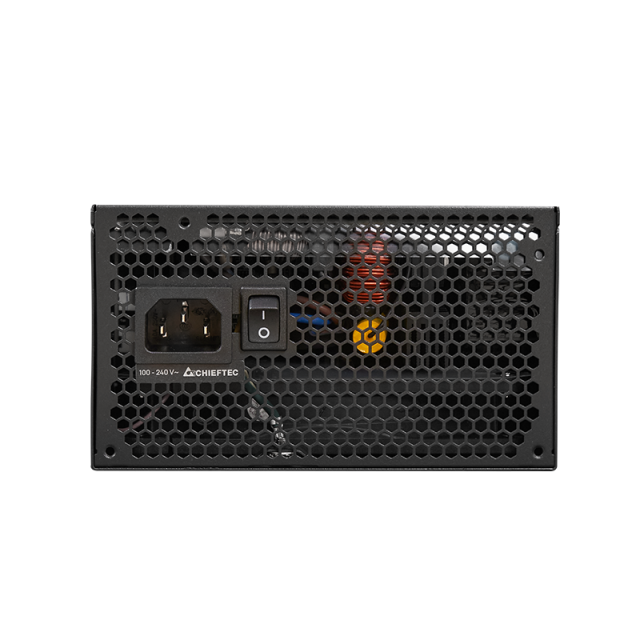

| AC Input | 100-240V / 15-8A |
| Frequency | 50 - 60Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V1 | 104.1A |
| +12V2 | - |
| +12V1, +12V2 combined | 1250W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3.0A / 15W |
| Maximum Power | 1250W |

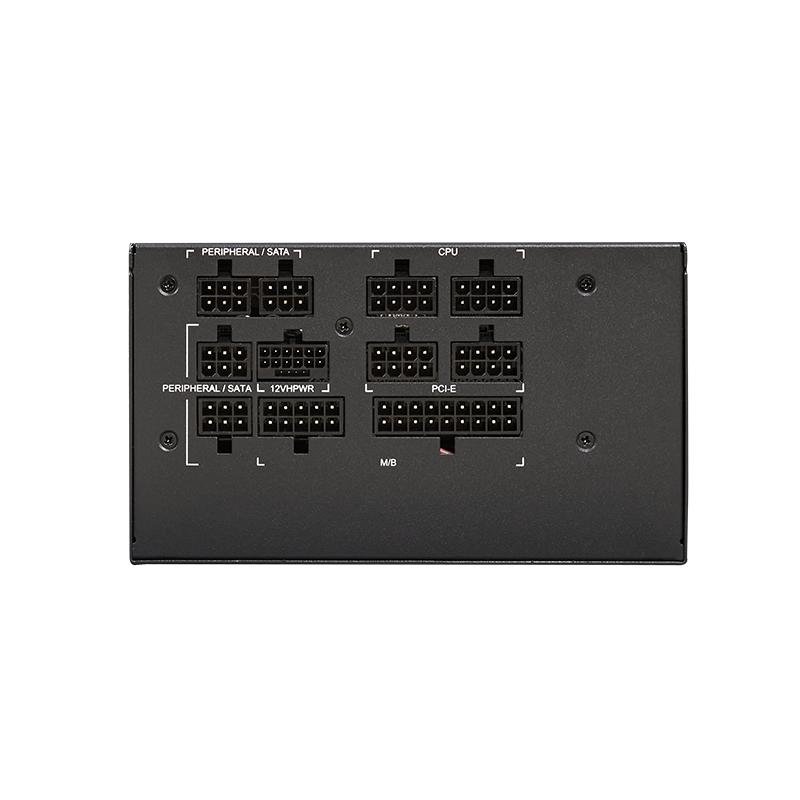

| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 2 |
| 8 PIN PCIe (6+2) | 4 |

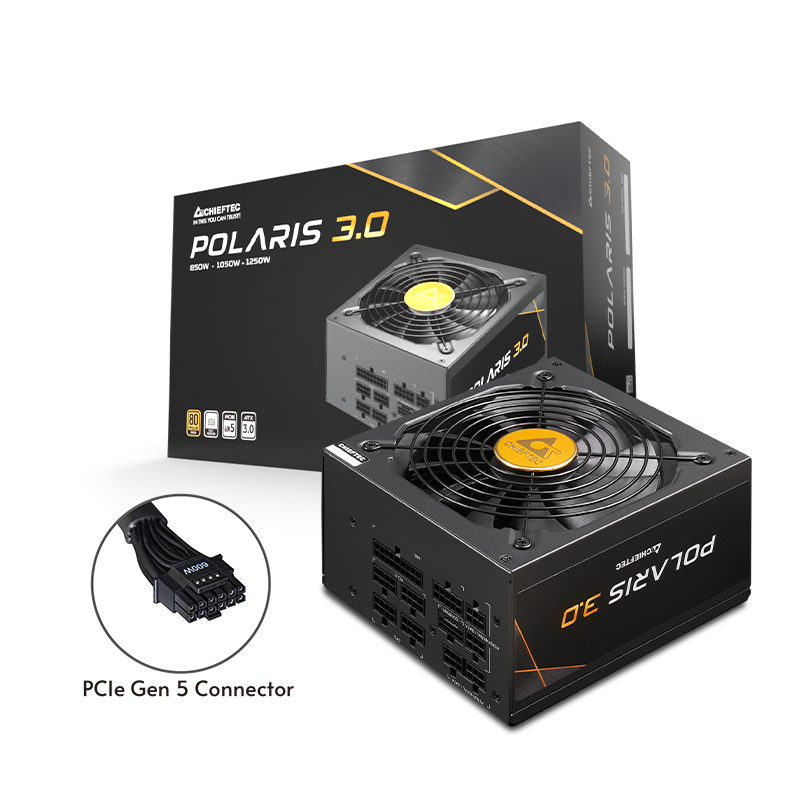

| 16 PIN PCIe Gen5 | 1 |
| SATA | 12 |
| MOLEX | 4 |
| 20+4 PIN ATX | 650 |
|---|---|
| 8 PIN EPS (4+4) | 2x 650 |
| 8 PIN PCIe (6+2) | 2x 600/100 |
| 16 PIN PCIe Gen5 | 600 |
| SATA | 3x 550/100/100/100 |
| MOLEX | 550/100/100/100 |
| ATX12V Version | ATX 12V 3.0 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
| PFC | Active PFC |

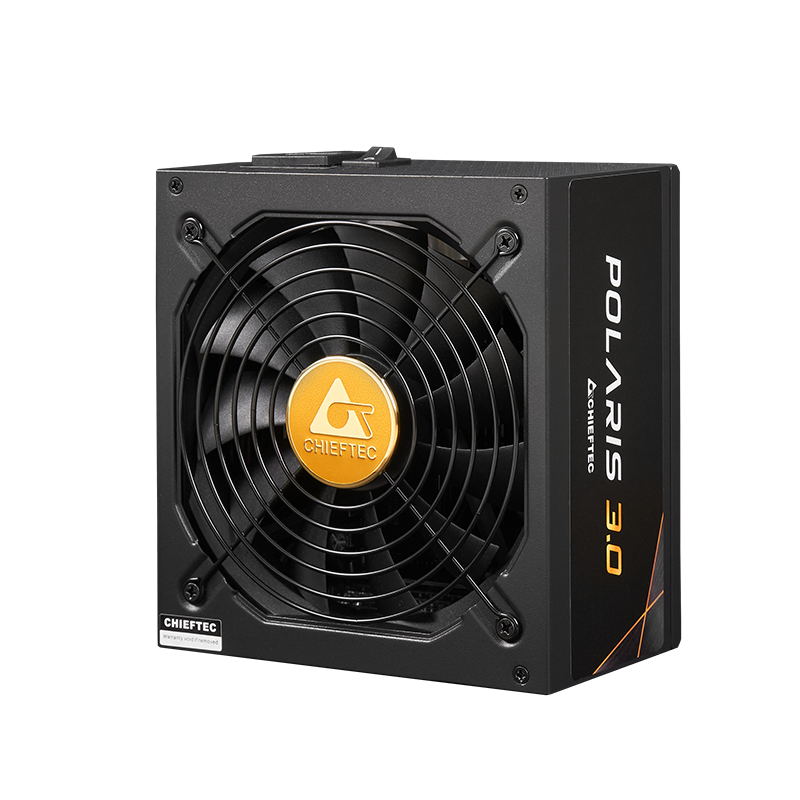

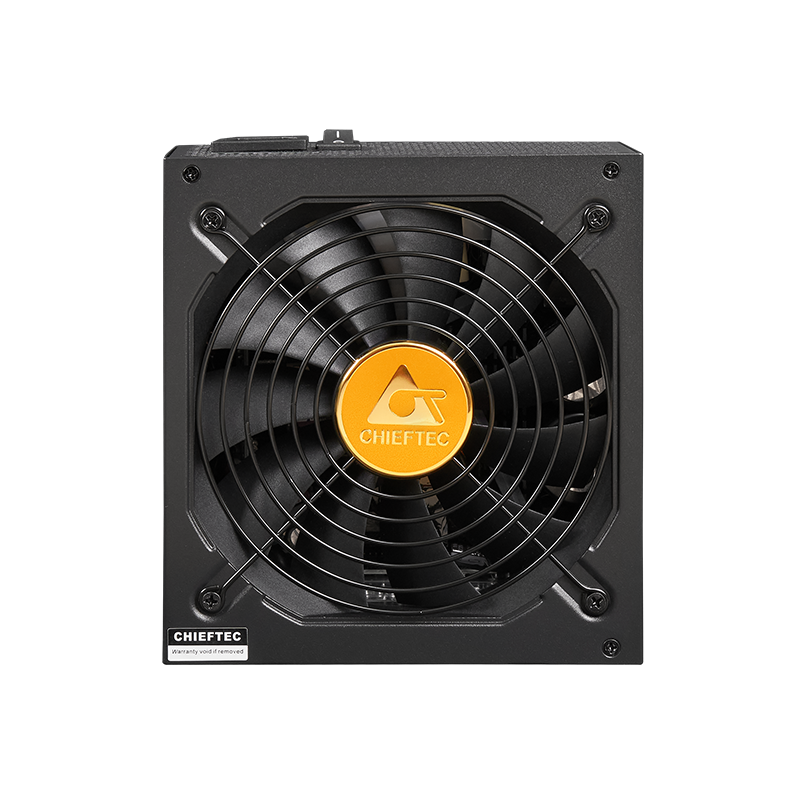

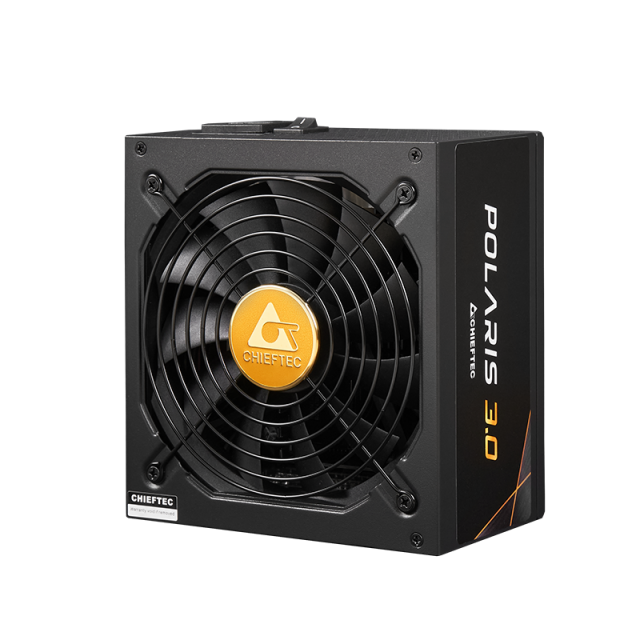

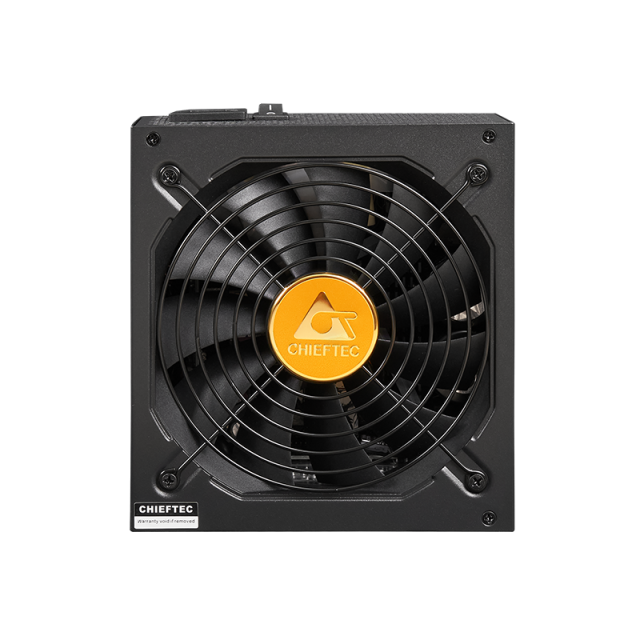

| Fan | 135mm FDB fan |
| Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 5 Years |
