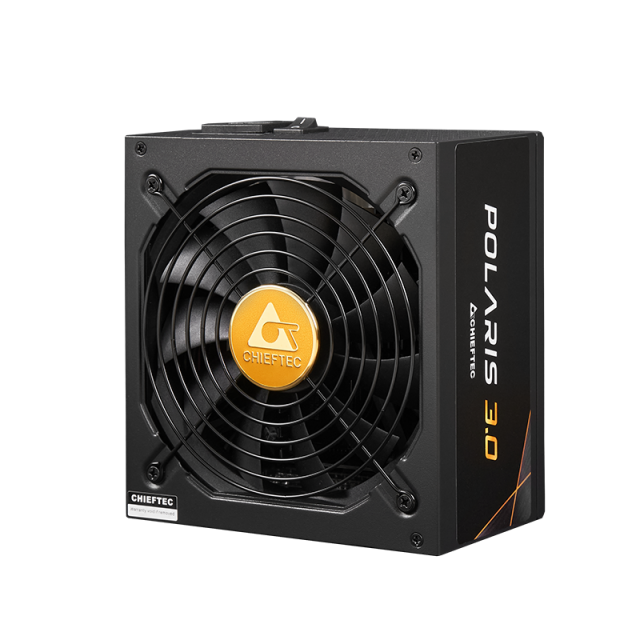

PPS-1050FC-A3

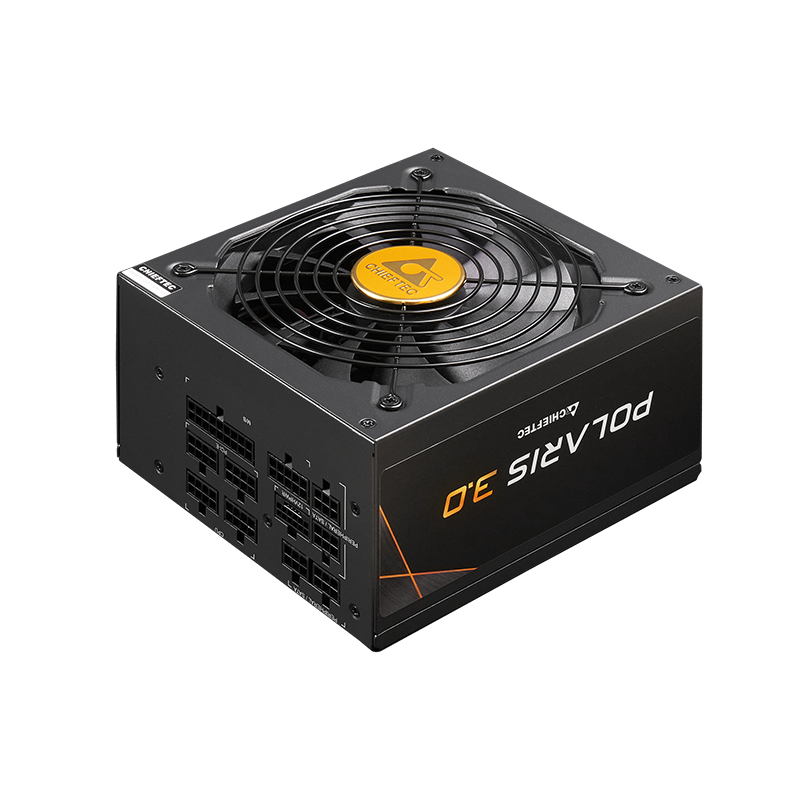

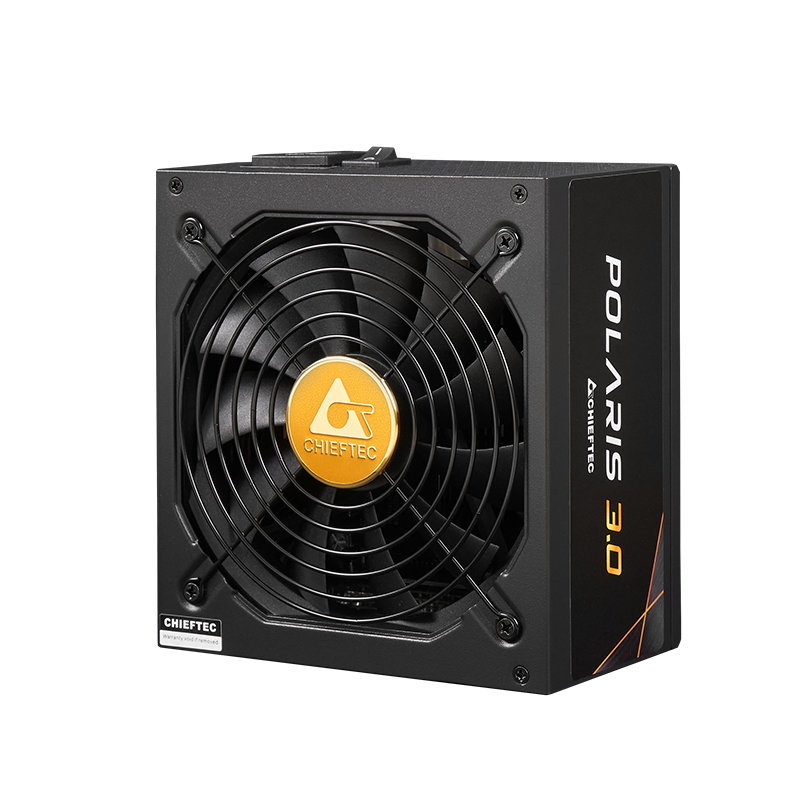

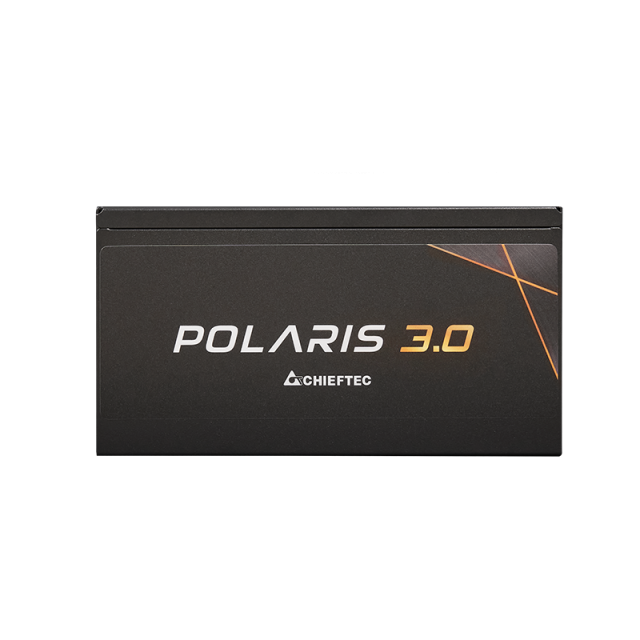

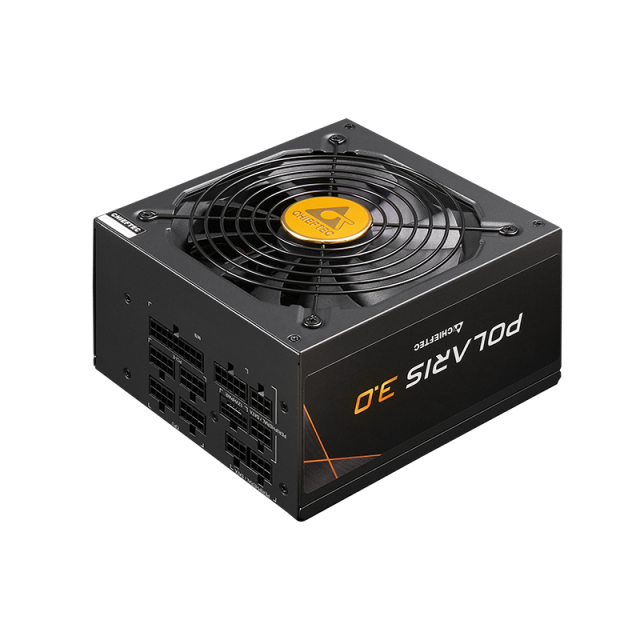

POLARIS 3.0 SERIES

  • ATX 3.0 with PCIe GEN5, 12VHPWR
  • 80PLUS® GOLD certified efficiency
  • Japanese Main Capacitors
  • LLC Half-Bridge converter with DC to DC technology
  • Fully modular cable management
80 PLUS Gold

OVERVIEW

The CHIEFTEC Polaris 3.0 series is designed to Intel’s ATX 3.0 standard and supports PCIe GEN 5 with 80 PLUS® GOLD certified efficiency, promising exceptional performance. Polaris 3.0 features state-of-the-art technical design including LLC half-bridge converter with DC- to-DC technology, as well as Japanese main capacitors to achieve low ripple and tight voltage regulation. The Polaris 3.0 135mm FDB silent fan optimizes the balance between cooling and noise with excellent durability. Fully modular cable management ensures a clean and convenient build inside any system.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
cTUVus
FCC
TECHNICAL DATA
Model POLARIS 3.0 1050W
Article no. PPS-1050FC-A3
EAN code 0753263078148
Weight  (Net/Gross) 3.00kg / 3.34kg

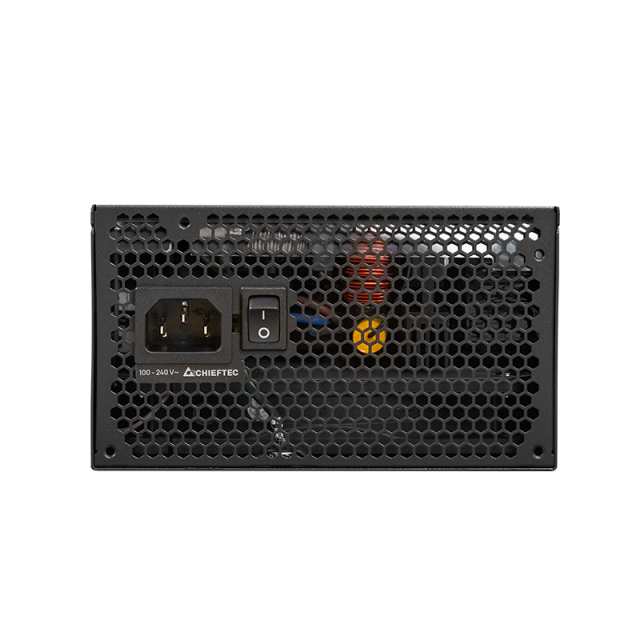

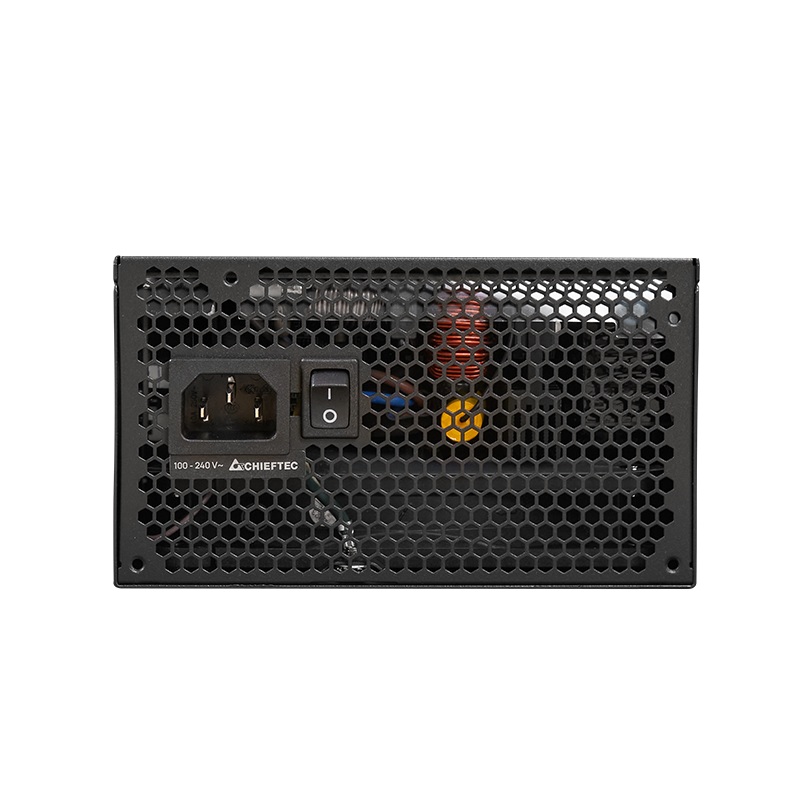

AC Input 100-240V / 15-8A
Frequency 50 - 60Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V1 87.5A
+12V2 -
+12V1, +12V2 combined 1050W
P.F. >0.9
-12V 0.3A / 3.6W
+5VSB 3.0A / 15W
Maximum Power 1050W

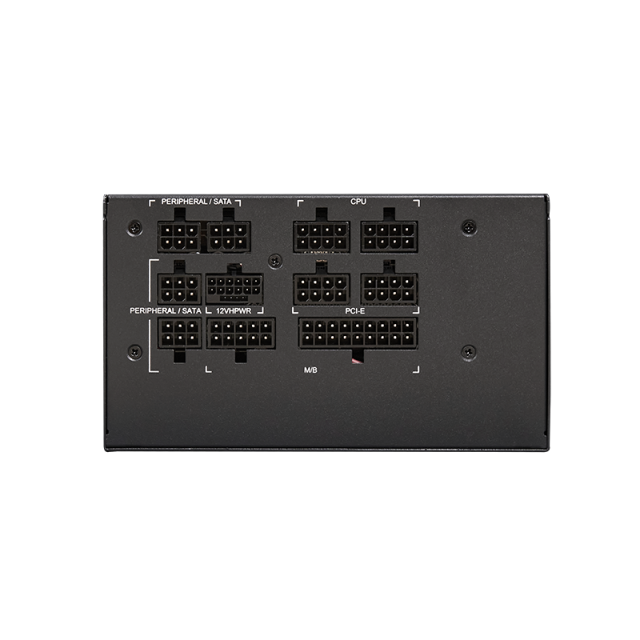

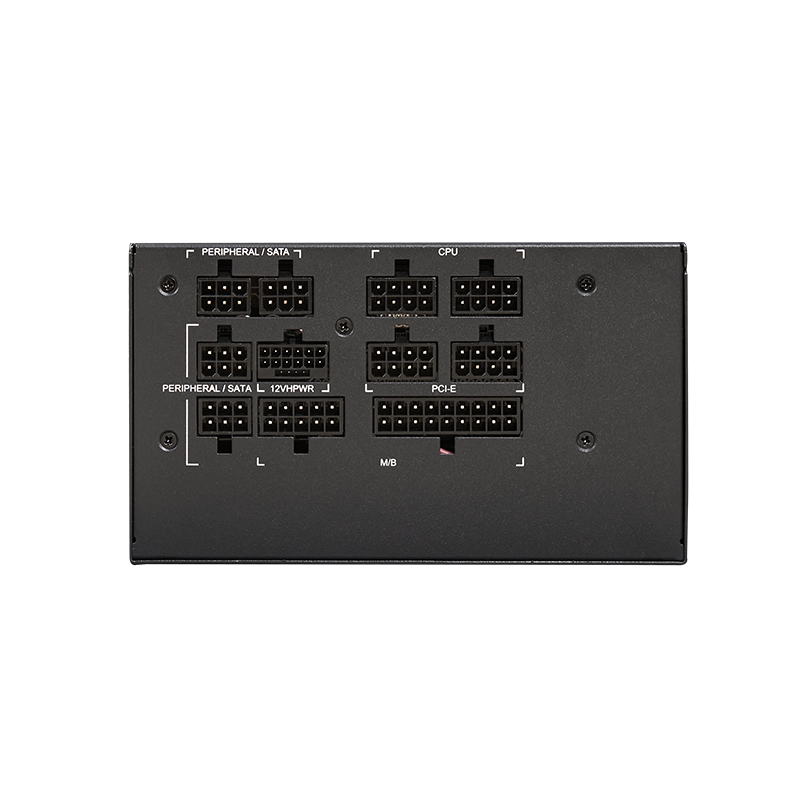

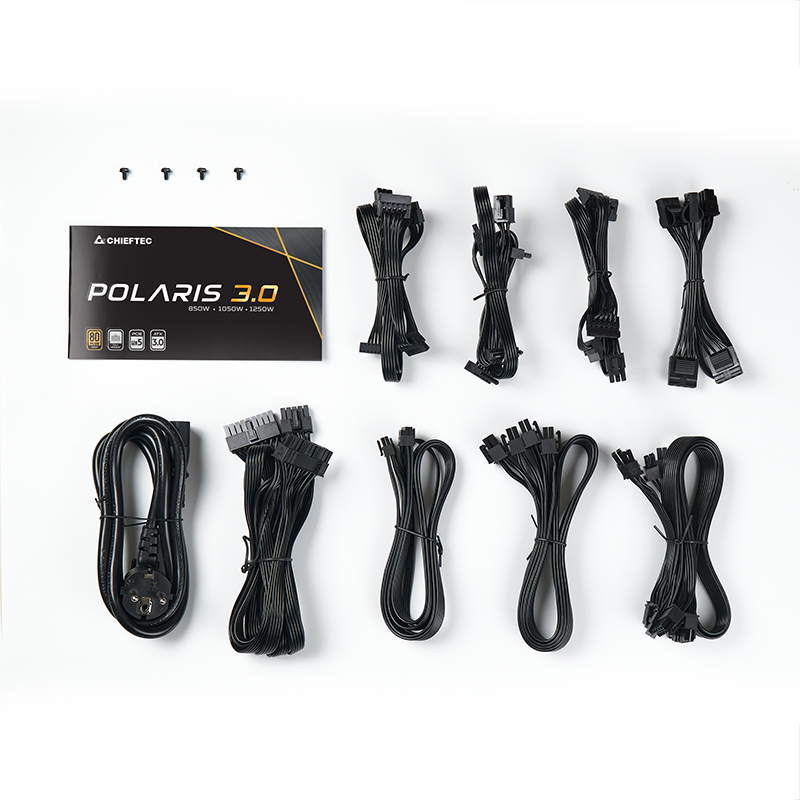

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 2
8 PIN PCIe (6+2) 4

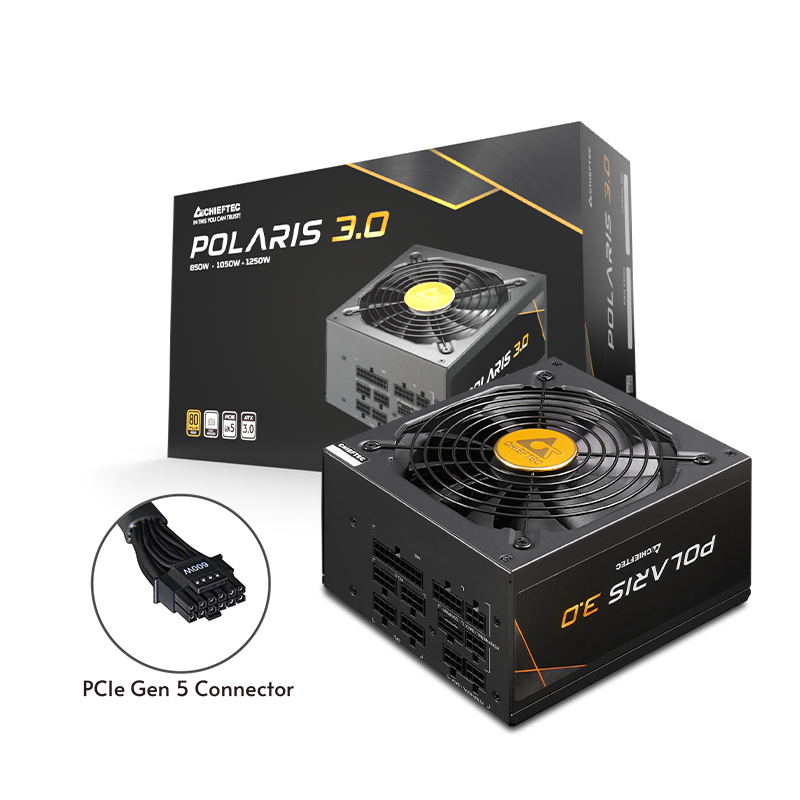

16 PIN PCIe GEN5 1
SATA 12
MOLEX 4

Cable length (mm)
20+4 PIN ATX 650
8 PIN EPS (4+4) 2 x 650
8 PIN PCIe (6+2) 2 x 600/100
16 PIN PCIe GEN5 600
SATA 3 x 550/100/100/100
MOLEX 550/100/100/100


Features
ATX12V Version ATX 12V 3.0
Efficiency 80Plus Gold
Dimension (DxWxH) 160 mm x 150 mm x 86 mm
PFC Active PFC (0.9)

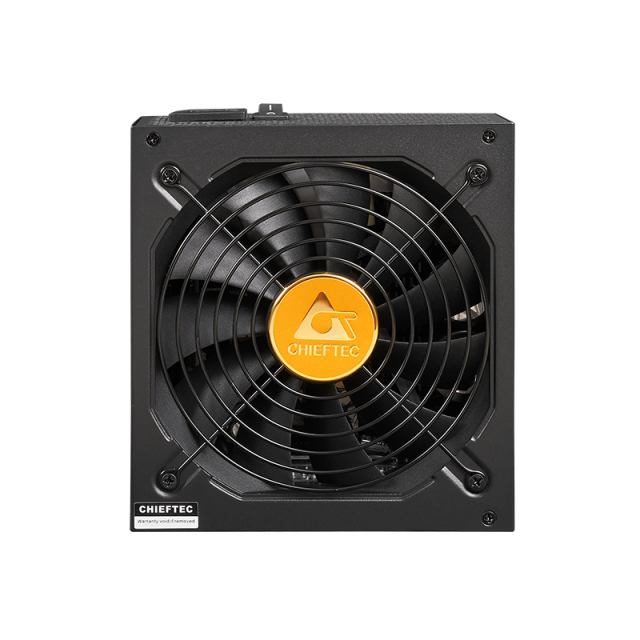

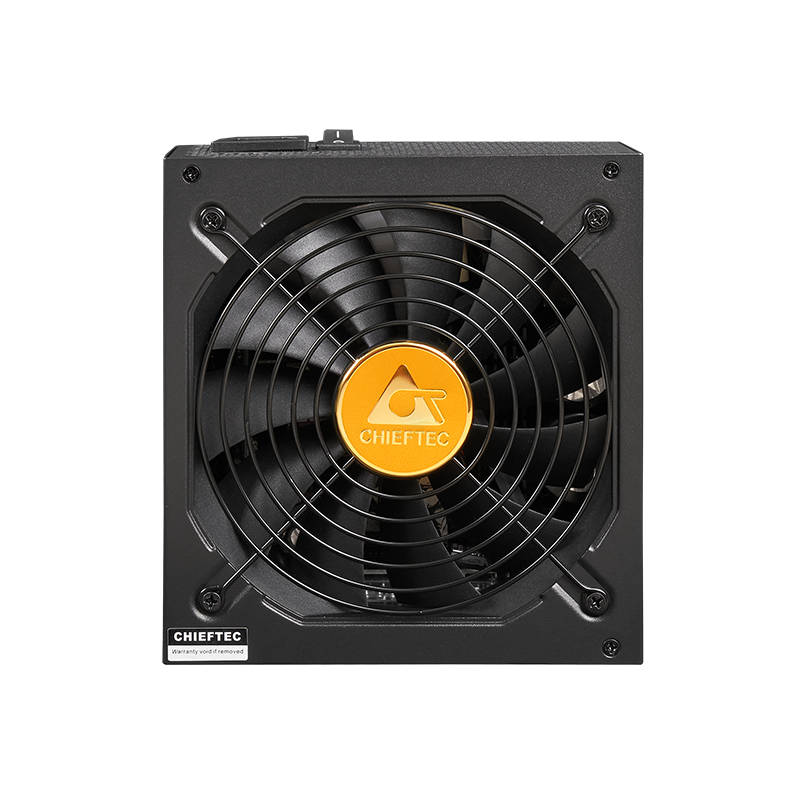

Fan 135mm FDB fan
Security AFC (Automatic Fan speed Control)
OPP (Overload protection)
OTP (Over Temperature Protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage protection)
OCP (Over-Current Protection)
Warranty 5 Years
