BX-10B-OP

  • Compact, modern m-ATX tower
  • Optimal cooling compatibility
  • Support 240mm radiator
  • 1x 120mm PWM fan pre-installed

OVERVIEW

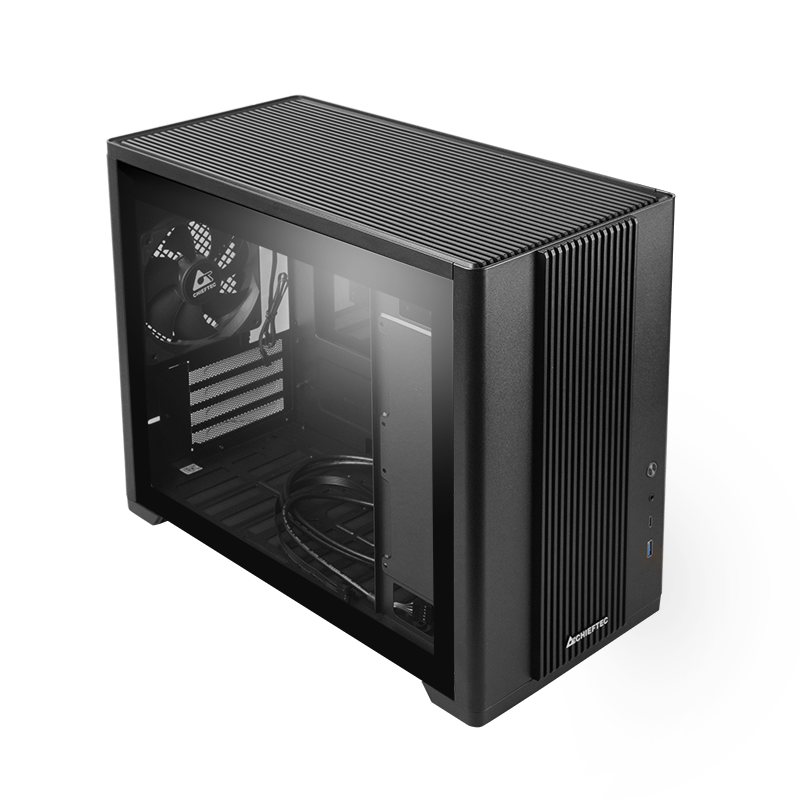

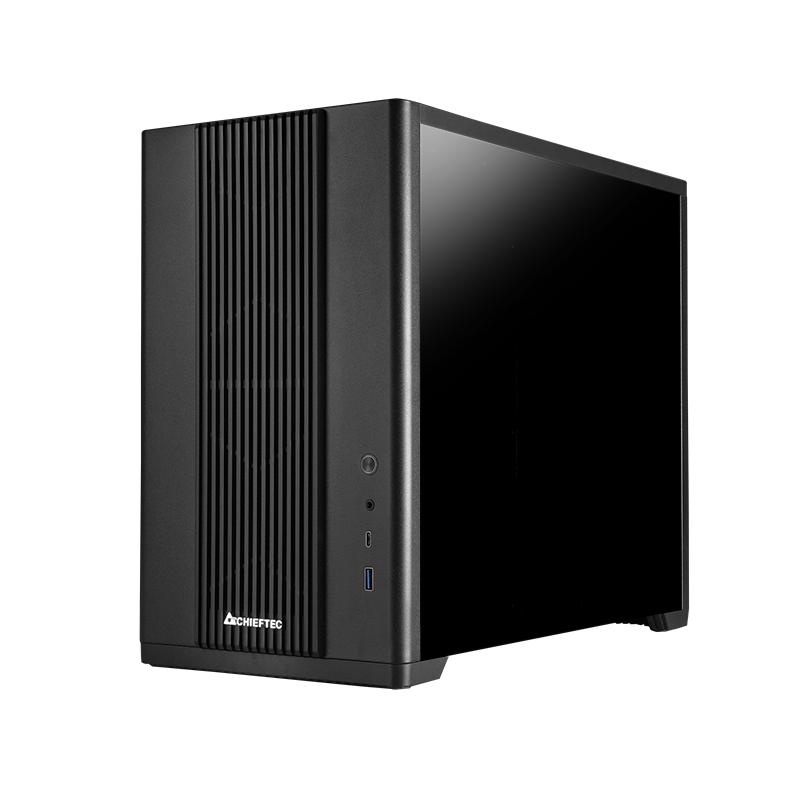

The CHIEFTEC BX-10B-OP is a modern, compact mini tower that combines elegant and subtle design with high functionality and easy-installation for a capable system. Featuring standard ATX PSU compatibility, m-ATX boards and graphics cards up to a maximum length of 380mm, as well as a total of 6 possible installed fans, modern configurations should have no trouble being installed into the BX-10B-OP from a space or cooling perspective.

SPECIFICATIONS

CE
EAC
interseroh
Recycle
RoHS
WEEE
Article no. BX-10B-OP
EAN code 0753263078063
Color Black
Material 0.6mm SPCC

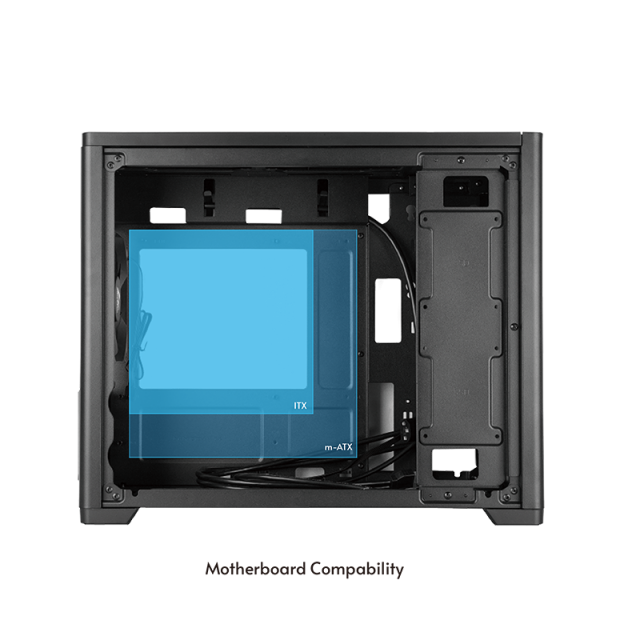

Motherboard support Mini ITX, mATX
Dimension (DxWxH) 415mm x 204mm x 325mm + (15mm feet)
Weight (without/with package) 4.78 kg / 5.48 kg
Drive bay external -
Drive bay internal 1 x 3,5" & 3 x 2,5" or 4 x 2.5”
Power supply ATX PSU (optional)

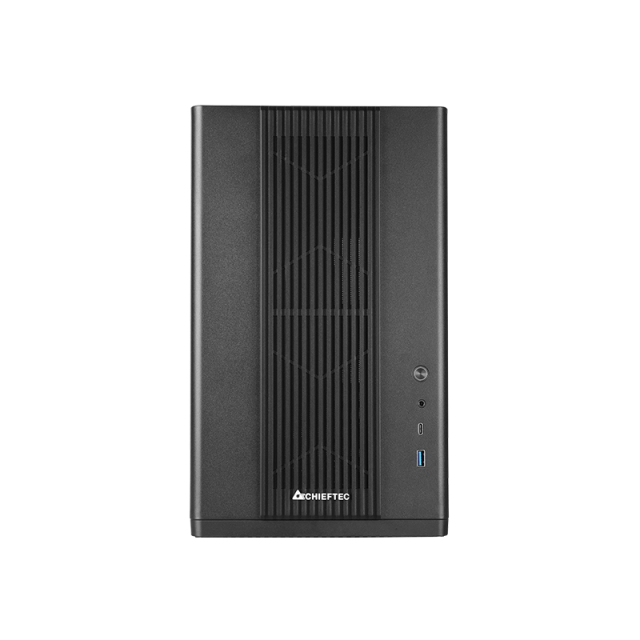

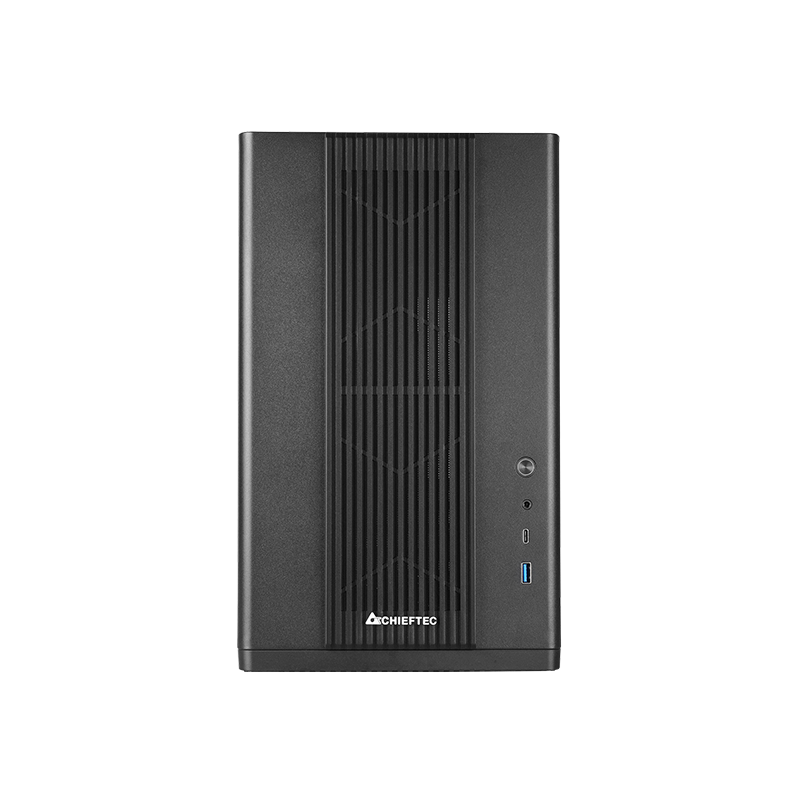

Front I/O 1x USB3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C, Audio-Out/Mic-In
Scope of delivery Set of screws , 1x 120mm PWM fan pre-installed

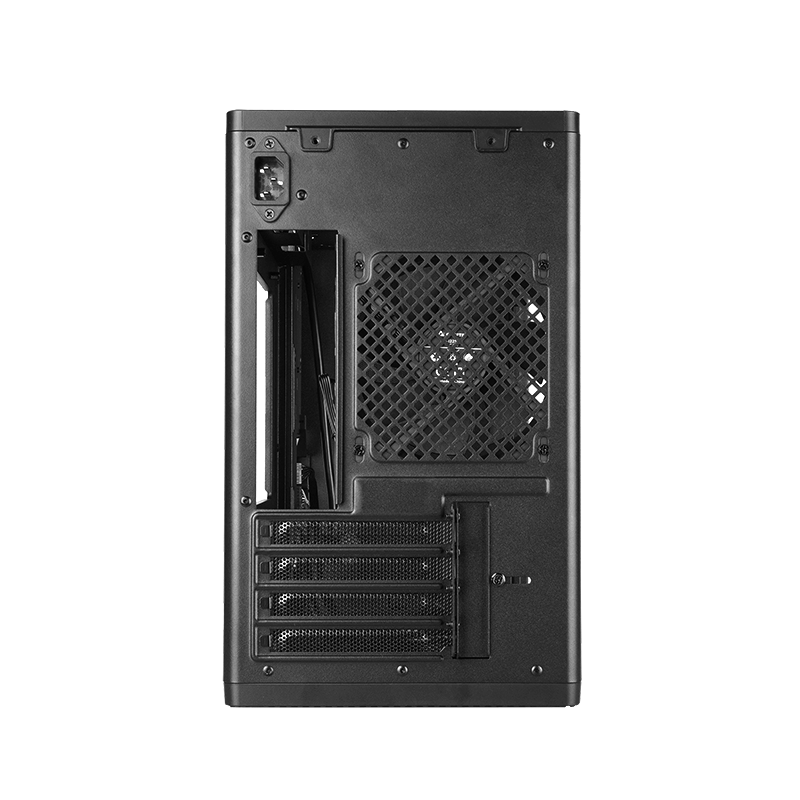

Expansion slots 4

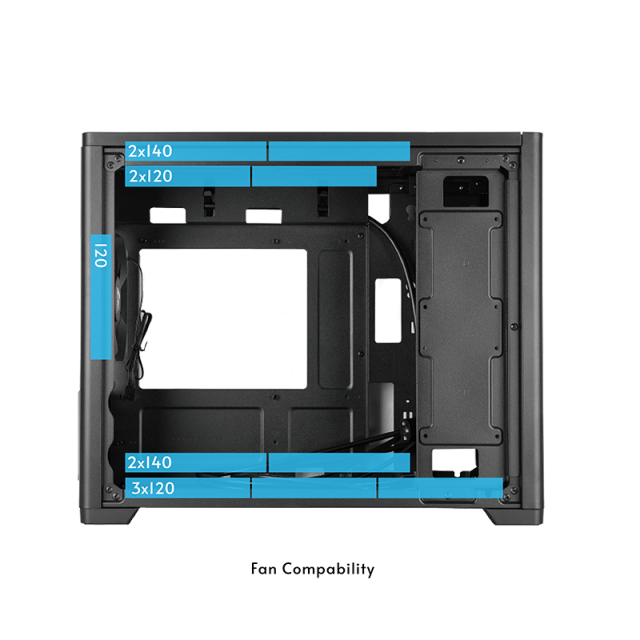

Cooling Compatibility Bottom: 3x 120mm or 2x 140mm (140mm only with ITX board)
Rear: 1x 120mm pre-installed
Top: 2x 120mm or 2x 140mm fans or 240mm radiator
CPU cooler height (max.) 165mm
VGA card length (max.) 380mm (300mm, if PSU longer than 180mm installed)
Warranty 24 Months
