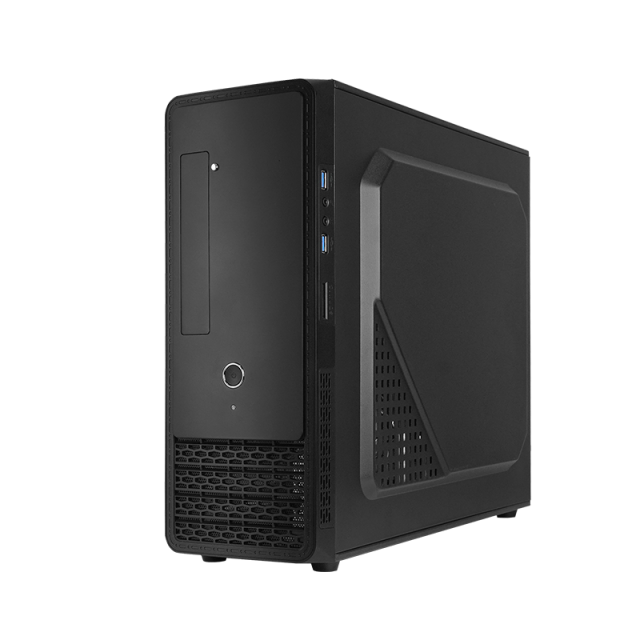

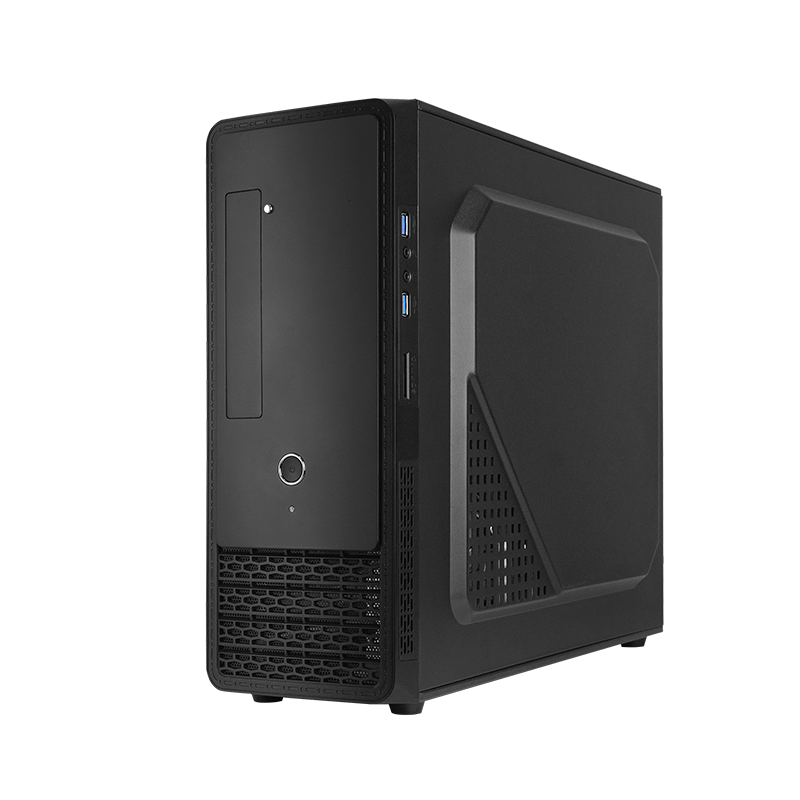

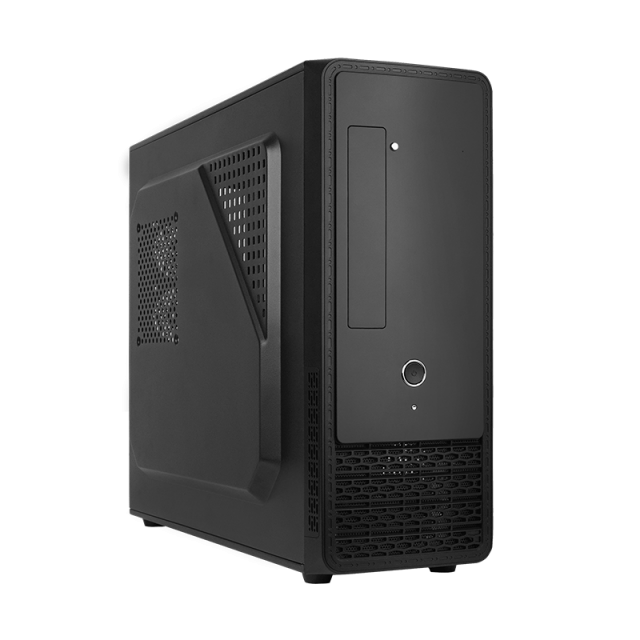

UC-03B-OP

  • ATX Slim Tower Case
  • Support ATX form factor PSU
  • Kensington- & Padlock compatible
  • SD Card reader

OVERVIEW

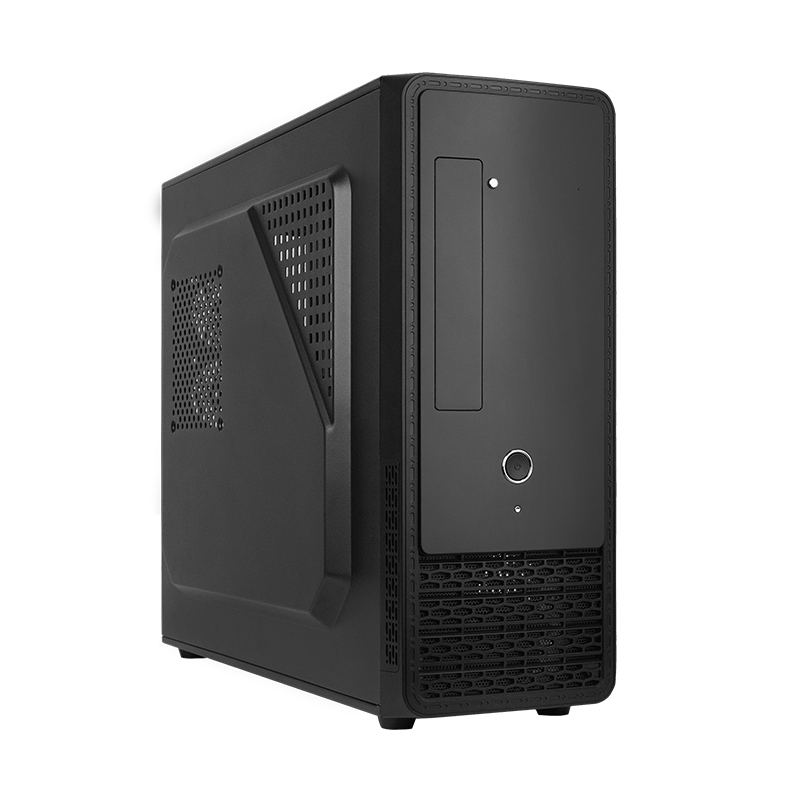

The slim ATX Tower – That it is possible to offer a state-of-the-art and technically advanced ATX Tower at a highly competitive cost has been proven beyond every reasonable doubt by the new UC-03B-OP chassis from CHIEFTEC. The Tow-er, not being overloaded with frills and uncalled-for features, sets a new accent in the ATX Tower without appearing bulky. On the interior, the chassis offers enough space for an ATX board of the latest generation and a standard PS II type PSU. The cooling concept is well thought through and can be optionally fitted with two 60mm and/or 120mm fans respectively.







SPECIFICATIONS

CE
EAC
interseroh
Recycle
RoHS
WEEE
Model UC-03B-OP
EAN code 0753263078025
Color Black
Material 0.5mm SGCC
Motherboard support Mini ITX, mATX, ATX
Dimension (DxWxH) 443mm x 166mm x 373mm
Weight (without/with package) 3.15kg / 3.87kg

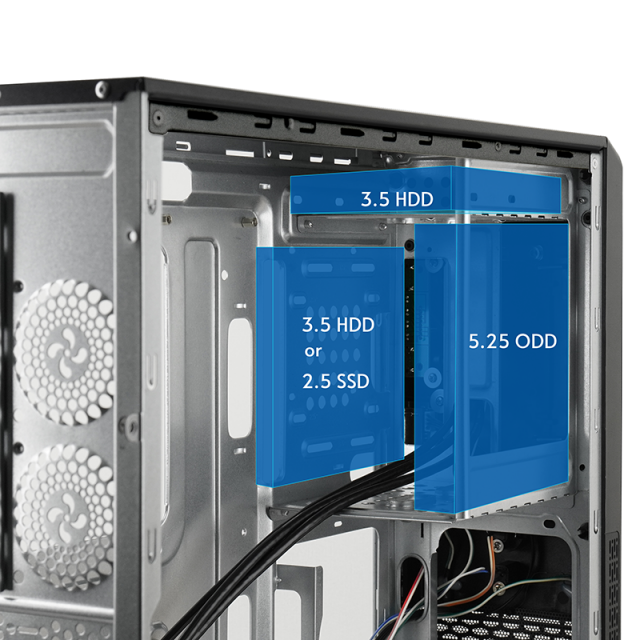

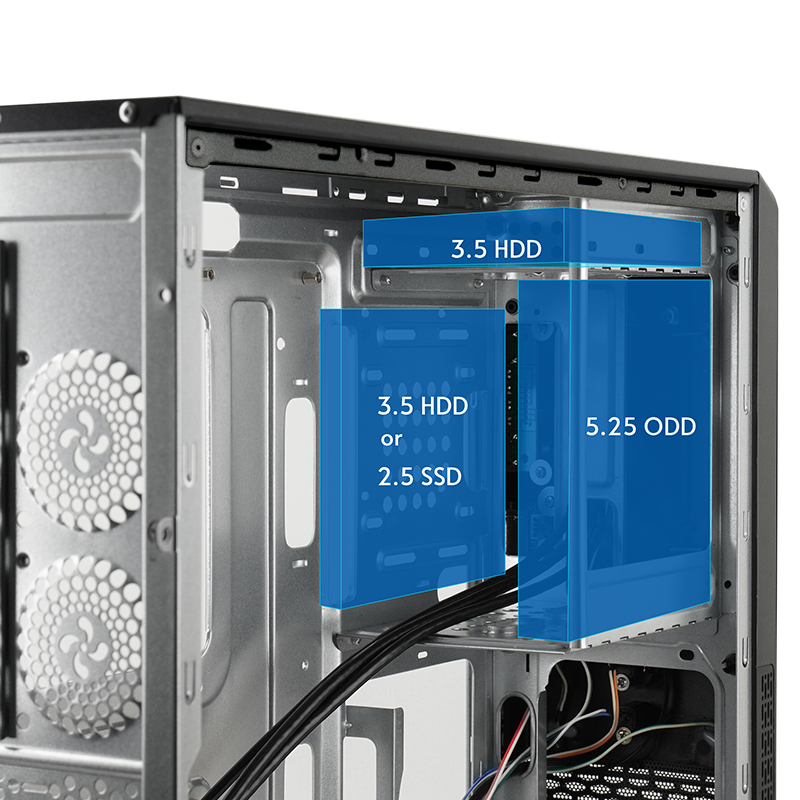

Drive bay external 1x 5,25”

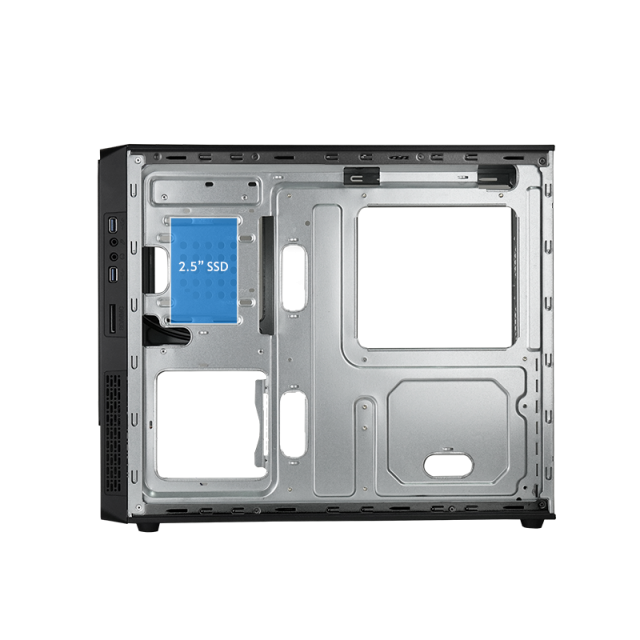

Drive bay internal 2 x 3.5" & 2x 2.5" or 1x 3.5" & 3x 2.5"

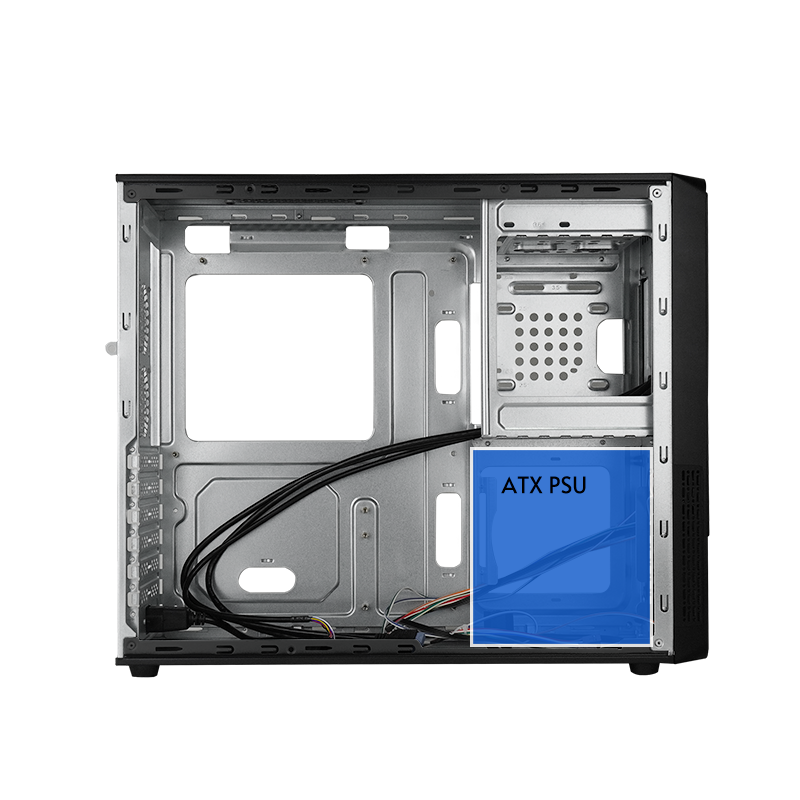

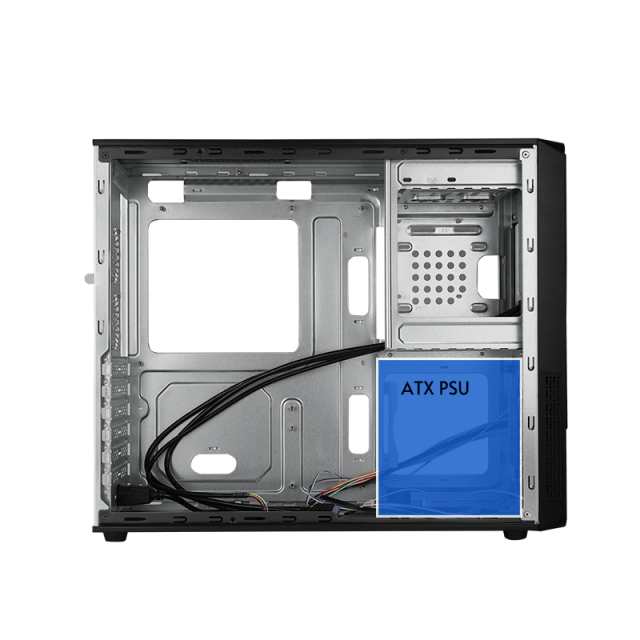

Power supply ATX PSU (optional)

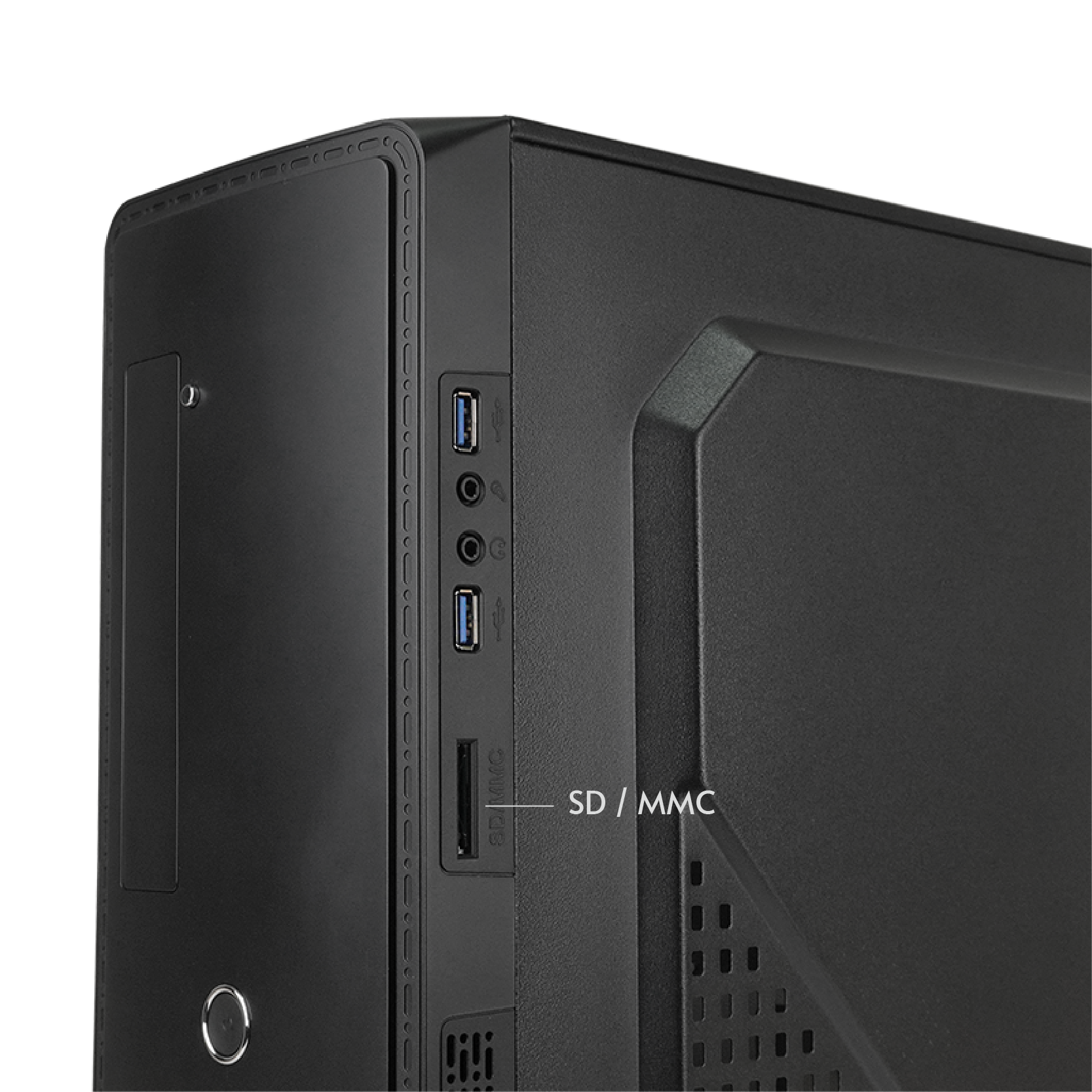

Front I/O 2x USB3.2 Gen 1, Audio-out (AZALIA / HD-Audio), Mic-In, Reset,SD Card slot
(Support SD/MMC/MS cards with data transfer rate up to 480Mbit/s)

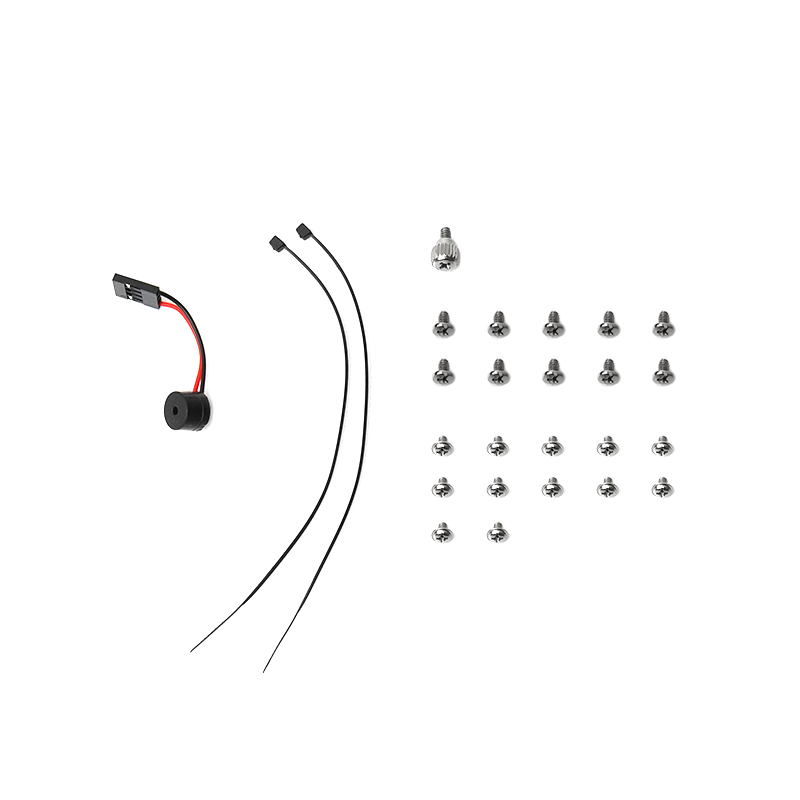

Scope of delivery Set of screws
Expansion slots 6

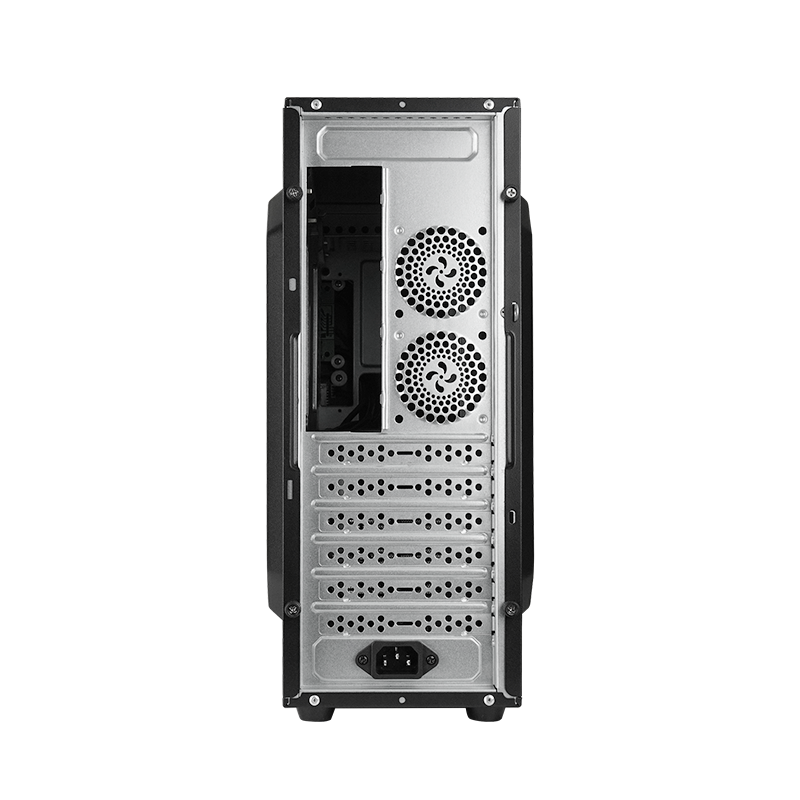

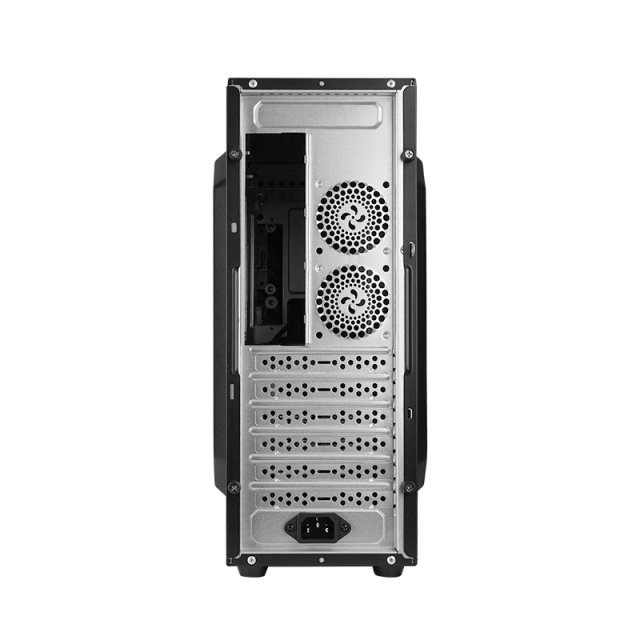

Cooling Compatibility Rear: 2x 60mm fan

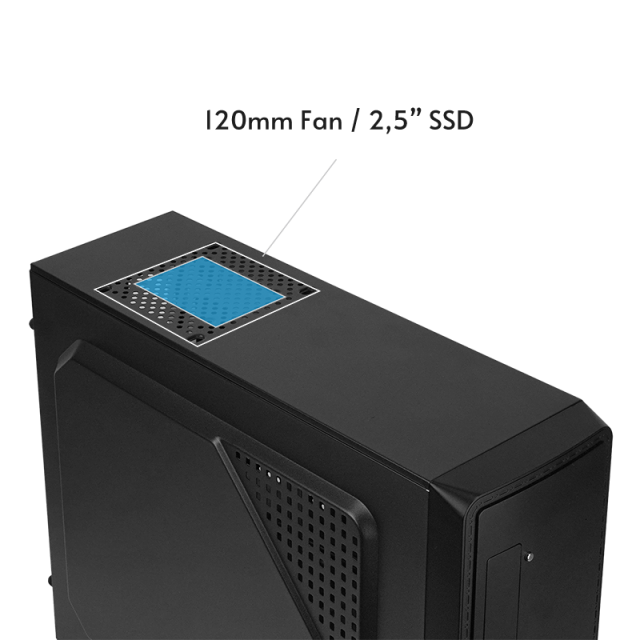

Top: 1x 120mm fan

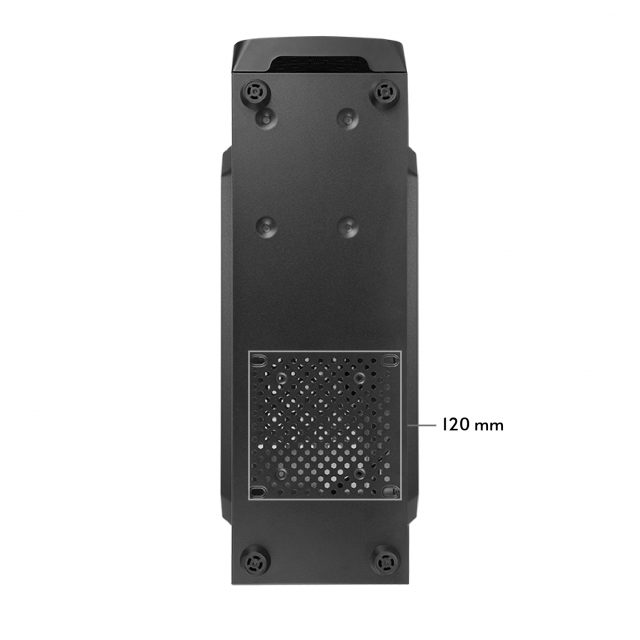

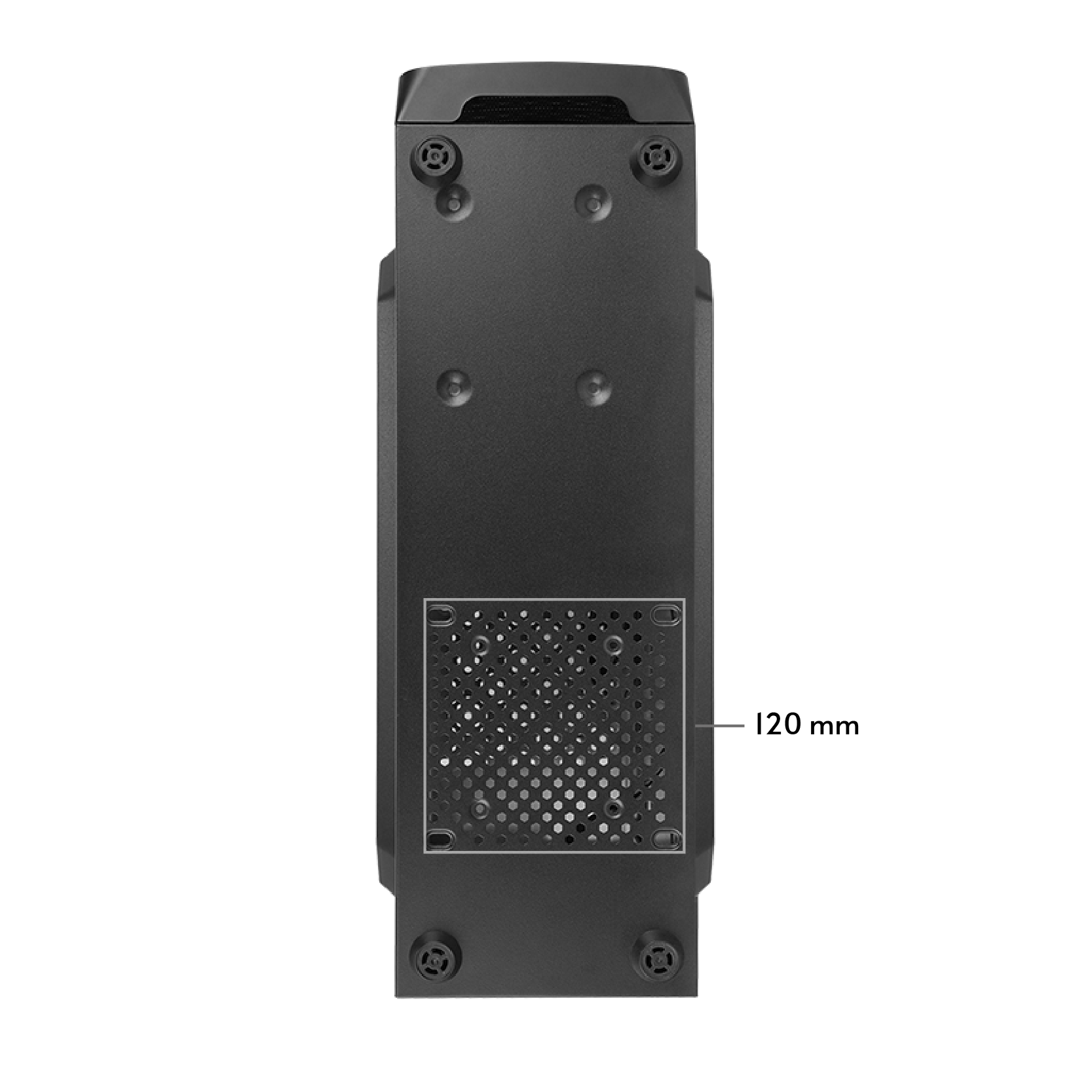

Bottom: 1x 120mm fan
Side: 1x 120mm fan
CPU cooler height (max.) 120mm
VGA card length (max.) 250mm
Warranty 24 Months
