UNC-409S-B

  • 19” Rack chassis with 4U height
  • Short Depth (<500mm) for ATX M/B
  • Solid build quality with 1.2mm SECC steel
  • Excellent Cooling

OVERVIEW

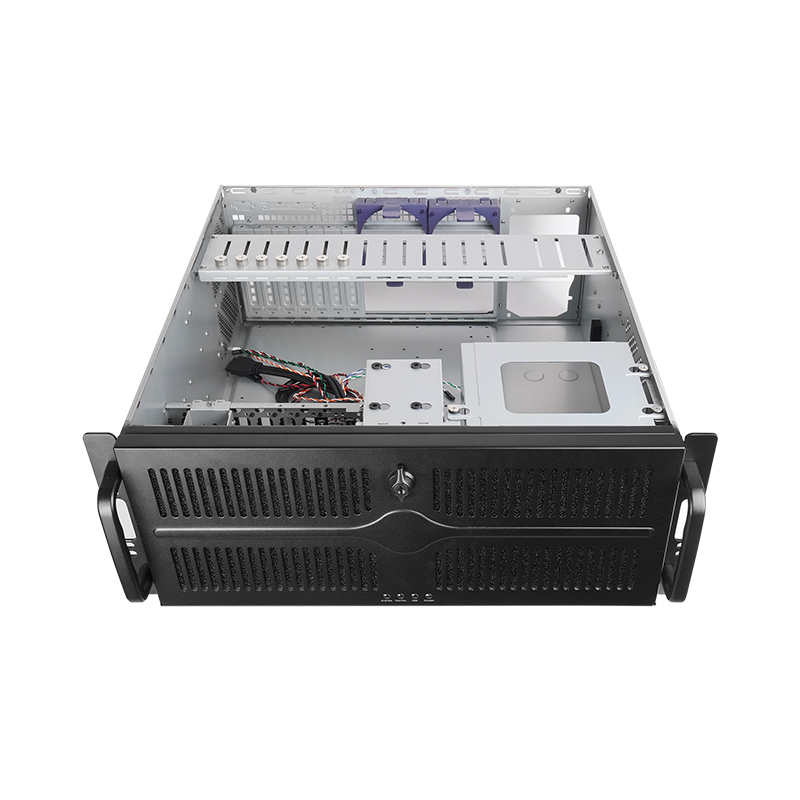

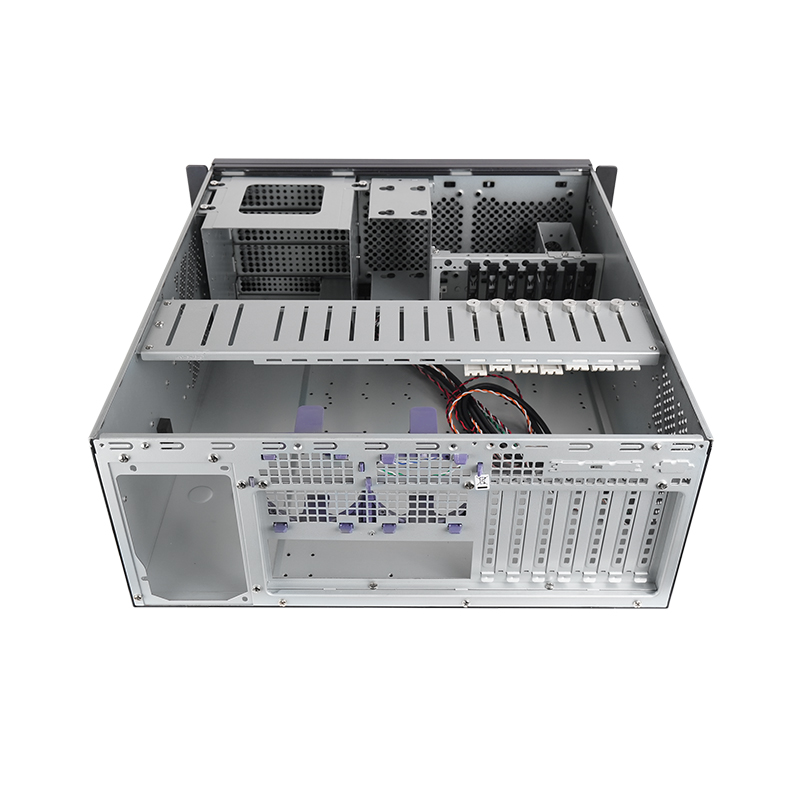

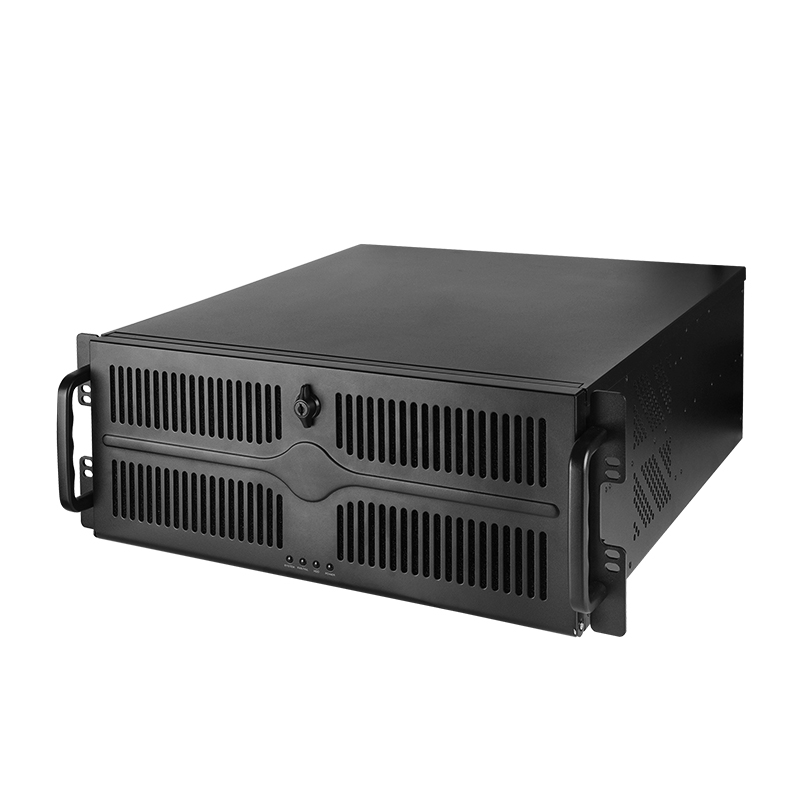

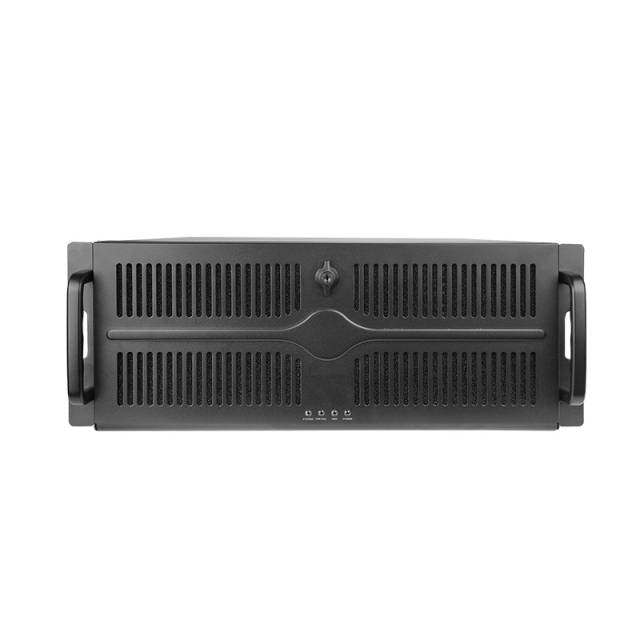

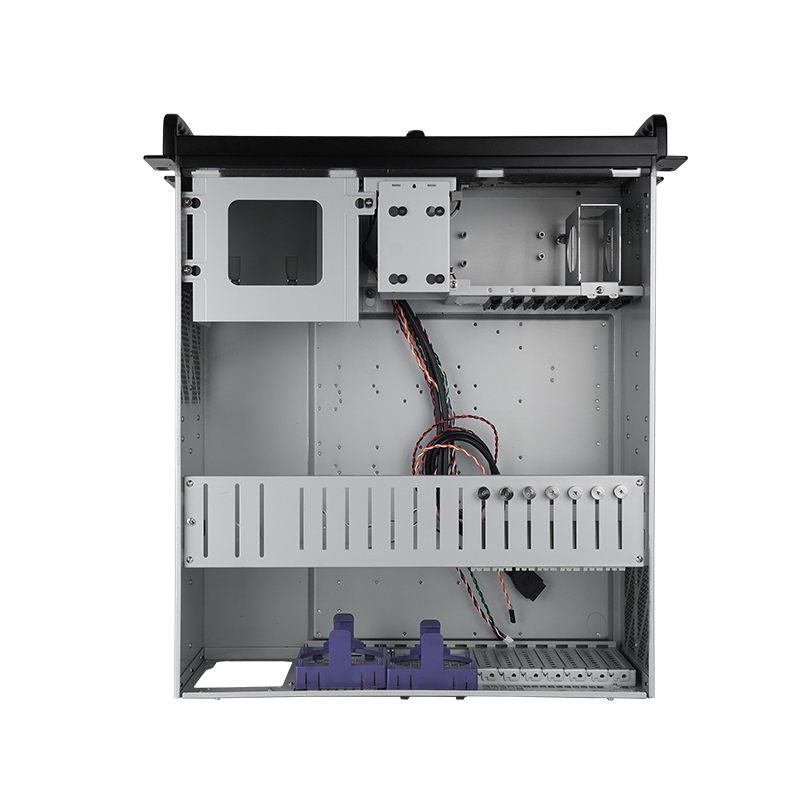

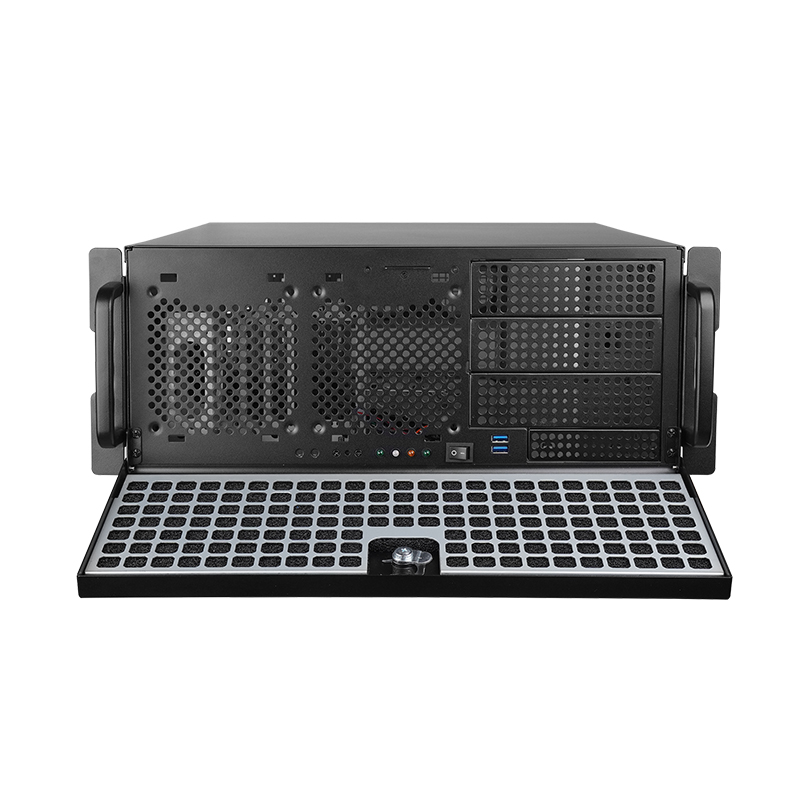

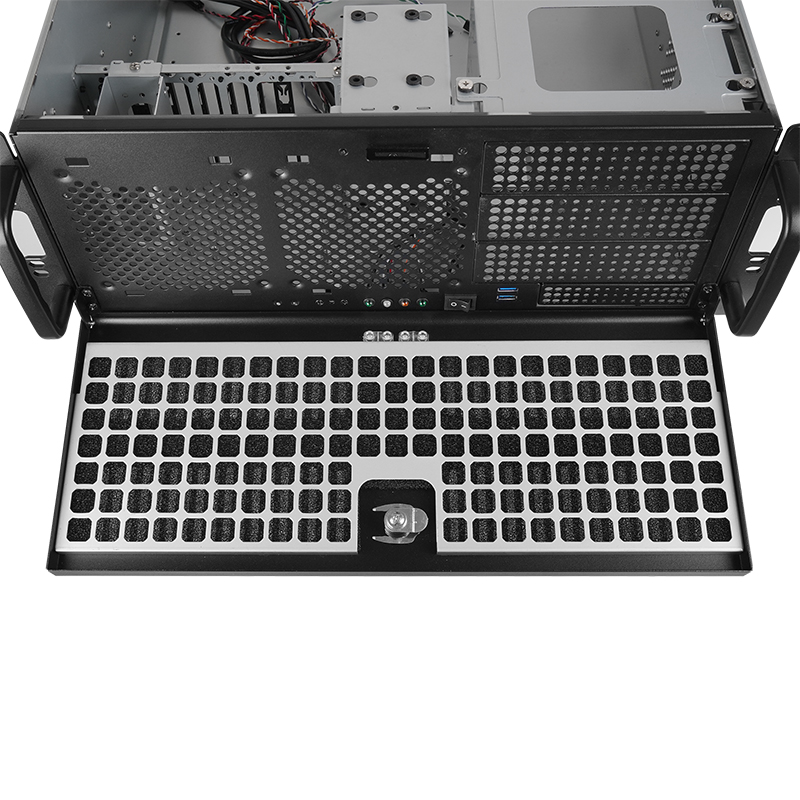

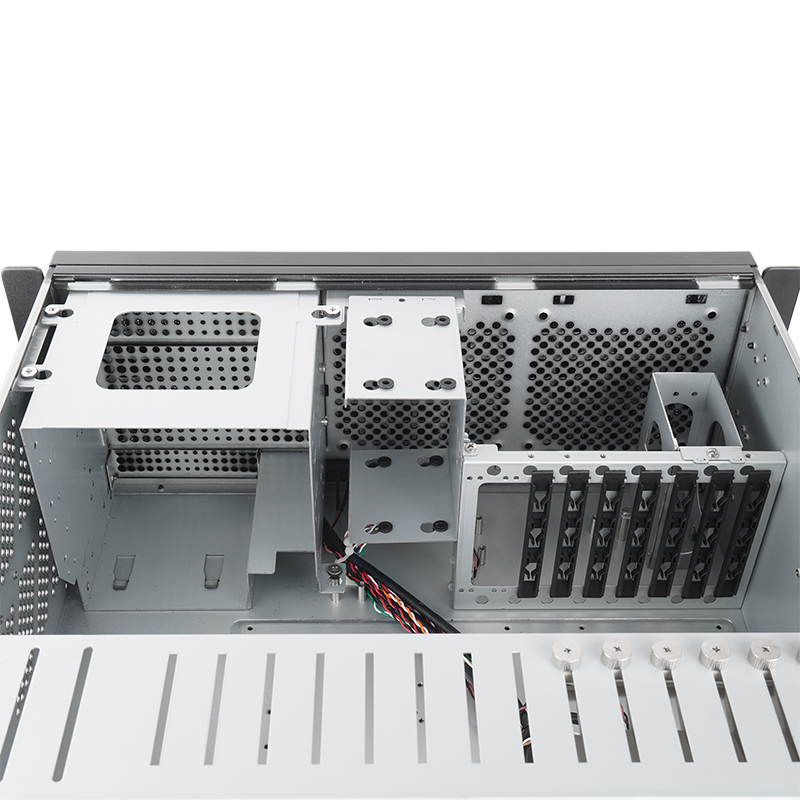

The UNC-409S-B is a compact 4U ATX rackmount case, with a short depth of only 482mm, while able to install ATX motherboards. The robust build quality with 1.2mm thick SECC steel ensures good protection of the hardware and serves as a reliable and flexible long-term solution. Sufficient cooling options with 2x 120mm front and 2x 80mm rear installation of optionally available fans are provided. Two fast USB 3.1 ports in the front panel add to the features on offer with this chassis.


SPECIFICATIONS

CE
EAC
interseroh
Recycle
RoHS
WEEE
Article no. UNC-409S-B UNC-409S-B-OP
EAN code 0753263077776 0753263077653
Color Black Black
Material 1.2mm SECC 1.2mm SECC
Motherboard support mATX, ATX mATX, ATX
Dimension (DxWxH) 482mm x 480mm x 177.5mm 482mm x 480mm x 177.5mm
Weight (without/with package) 12.2 kg / 13.9 kg 10.57 kg / 12.21 kg
Drive bay external 3x 5.25” and 1x 3.5” 3x 5.25” and 1x 3.5”
Drive bay internal 2x 3.5” and 3x 2.5”  2x 3.5” and 3x 2.5”
Power supply PSF-400B (400W) Standard ATX PSU or installation of a 1+1 redundant PSU with included mounting kit(not included) Optional Standard ATX PSU or installation of a 1+1 redundant PSU with included mounting kit
Front I/O 2x USB 3.0 (USB3.2 Gen 1) 2x USB 3.0 (USB3.2 Gen 1)
Scope of delivery screw set, clamp-down bar for PCI-E cards screw set, clamp-down bar for PCI-E cards

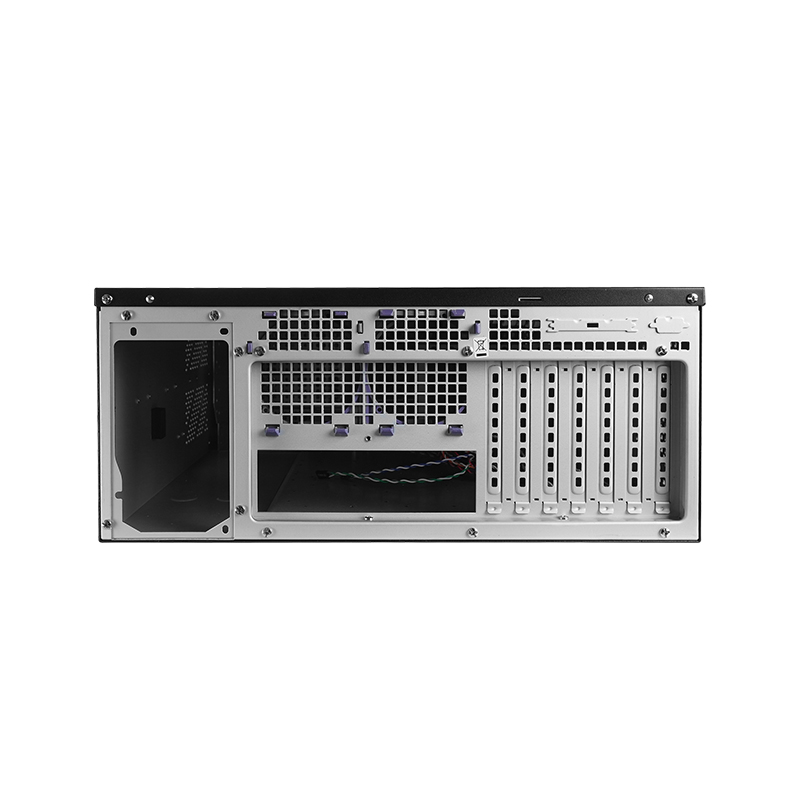

Expansion slots 7 7

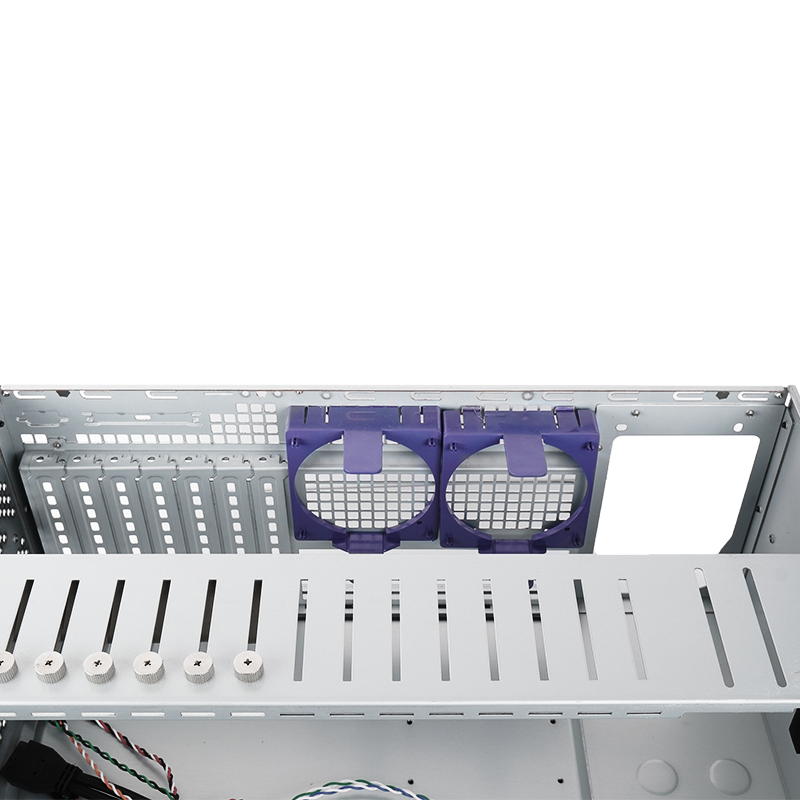

Cooling Compatibility Front: 2x 120mm fan
Rear: 2x 80mm fan
Front: 2x 120mm fan
Rear: 2x 80mm fan
CPU cooler height (max.) 140mm 140mm
VGA card length (max.) 350mm  350mm
Warranty 24 Months 24 Months
