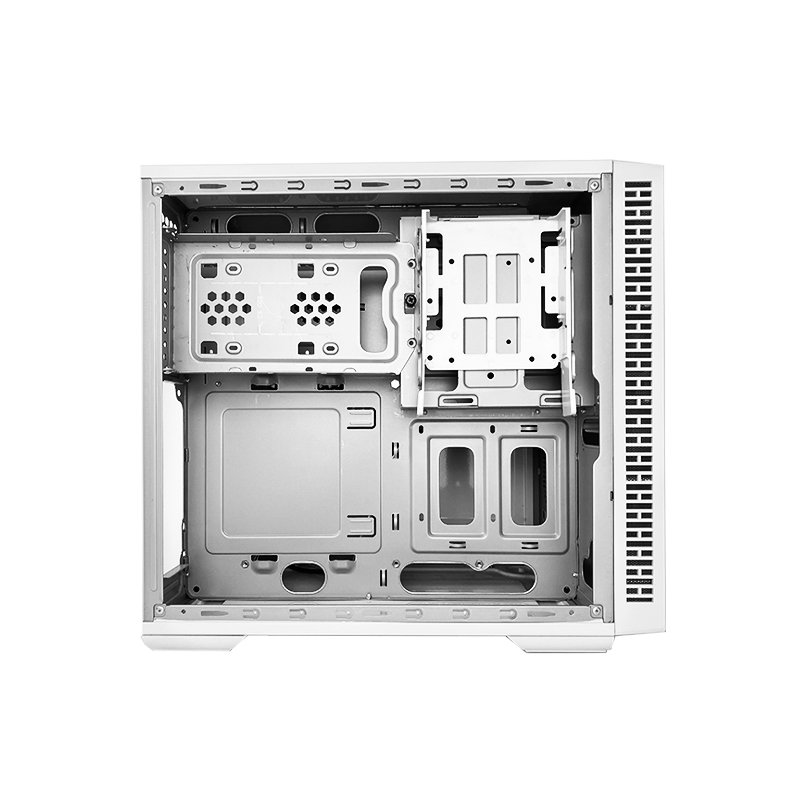

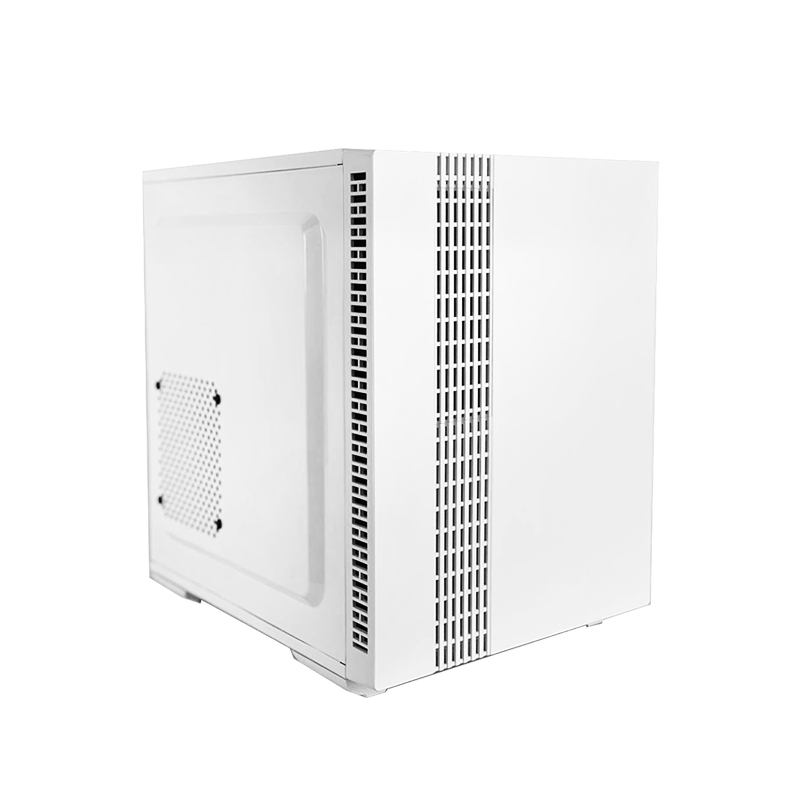

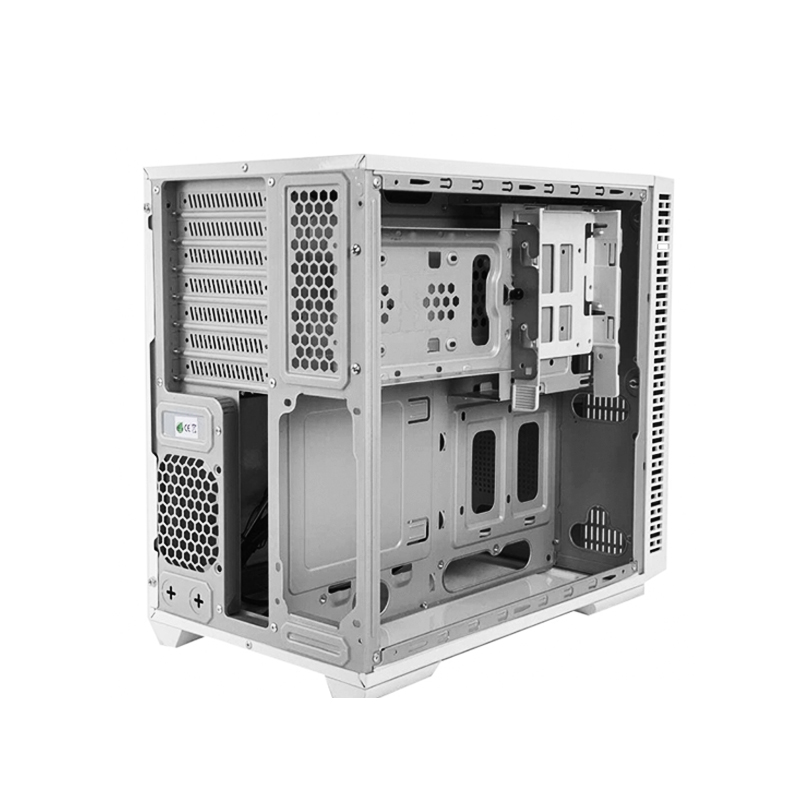

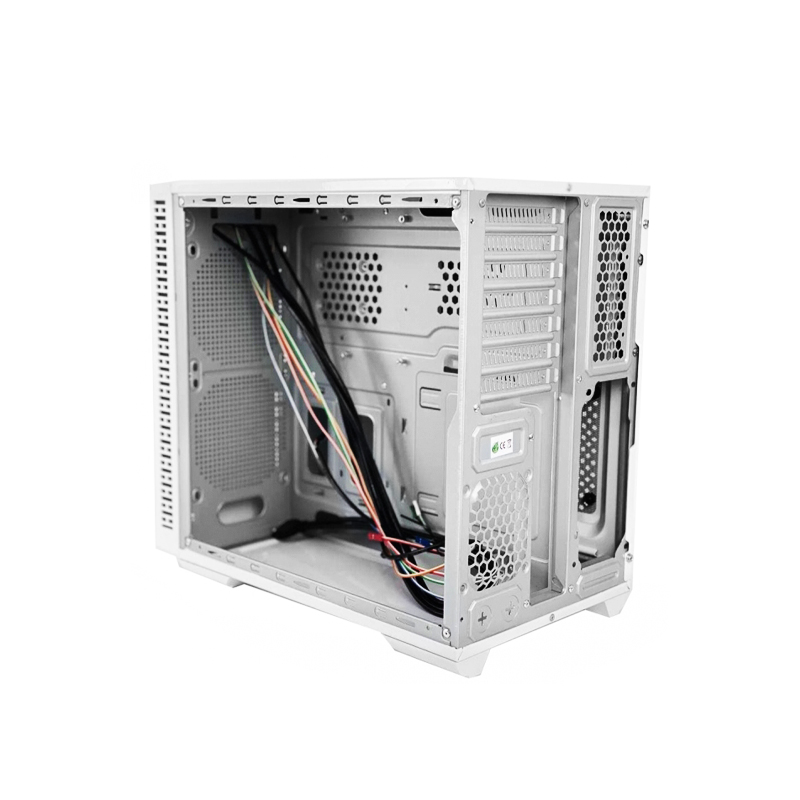

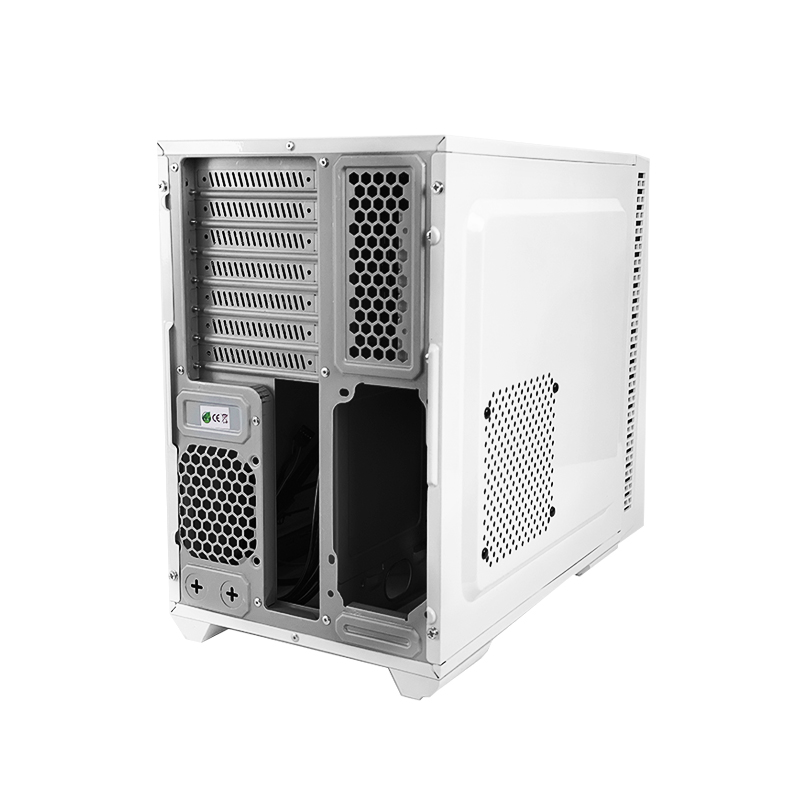

UK-02W-OP

  • USB Type C connector to front panel
  • Perforated Mesh Front panel to enhance airflow
  • Compact ATX Cube with ATX PSU mounting
  • Including dust guards to side panels

OVERVIEW

With the just launched PC ATX chassis UK-02W-OP, CHIEFTEC adds yet another innovative model to the well renowned UNI series which offers vast possiblilities to install standard ATX components in very compact dimensions. With its slightly conservative look, the UK-02W-OP allows a variety of applications for system builders, office users, gamers and/or fans of the HTPC.

SPECIFICATIONS

CE
EAC
interseroh
Recycle
RoHS
Article no. UK-02W-OP
EAN code 0753263077370
Color White
Material 0,5mm SECC
Motherboard support Mini ITX, mATX, ATX
Dimension (DxWxH) 380mm x 227mm x 342mm (Stand +17mm)
Weight (without/with package) 3.73 kg / 4.51 kg
Drive bay external 1x 5,25“
Drive bay internal 1x 2,5" & 2x 3,5“ or 2x 2,5“ & 1x 3,5“
Power supply ATX PSU (optional, 140mm - 200mm)

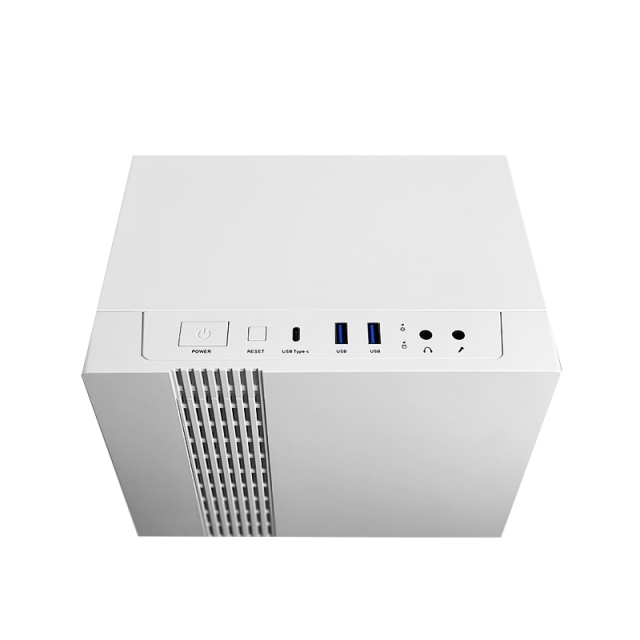

Front I/O 2x USB3.0, Audio-out (AZALIA / HD-Audio),  Mic-in, 1x USB Type C (480Mbit/s)
Scope of delivery Set of screws, detachable mesh dust filter in the front and in the side panels.
Expansion slots 7
Cooling Compatibility Front: 2x 120mm
Rear: 1x 80mm
CPU cooler height (max.) 110mm
VGA card length (max.) With fan: 290mm, without fan: 315mm
Warranty 24 Months
