- 80 PLUS® Gold certified efficiency

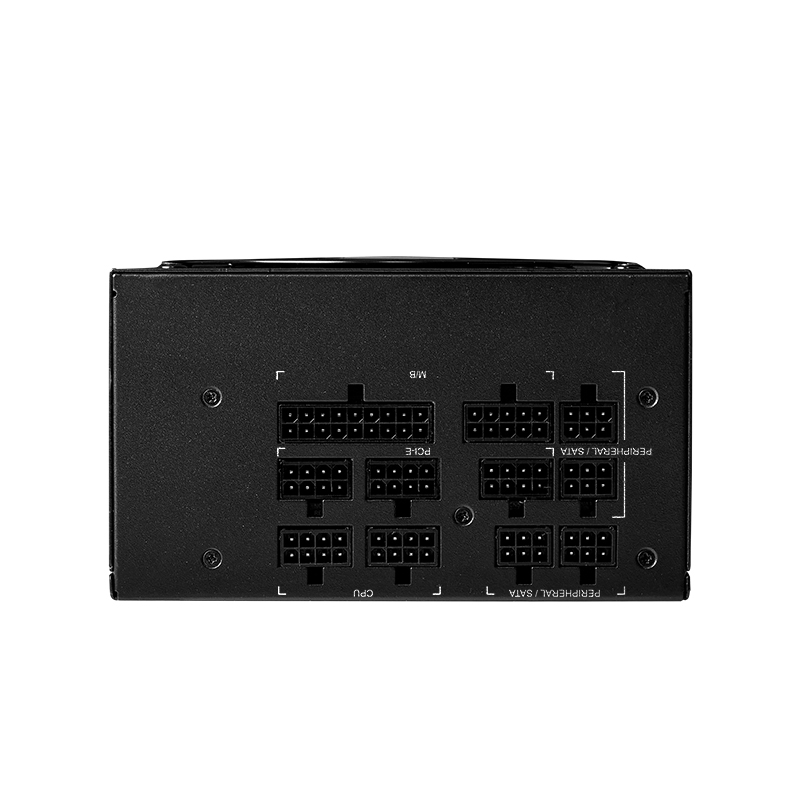

- Fully modular cable management
- LLC Half-Bridge converter with DC-to-DC technology

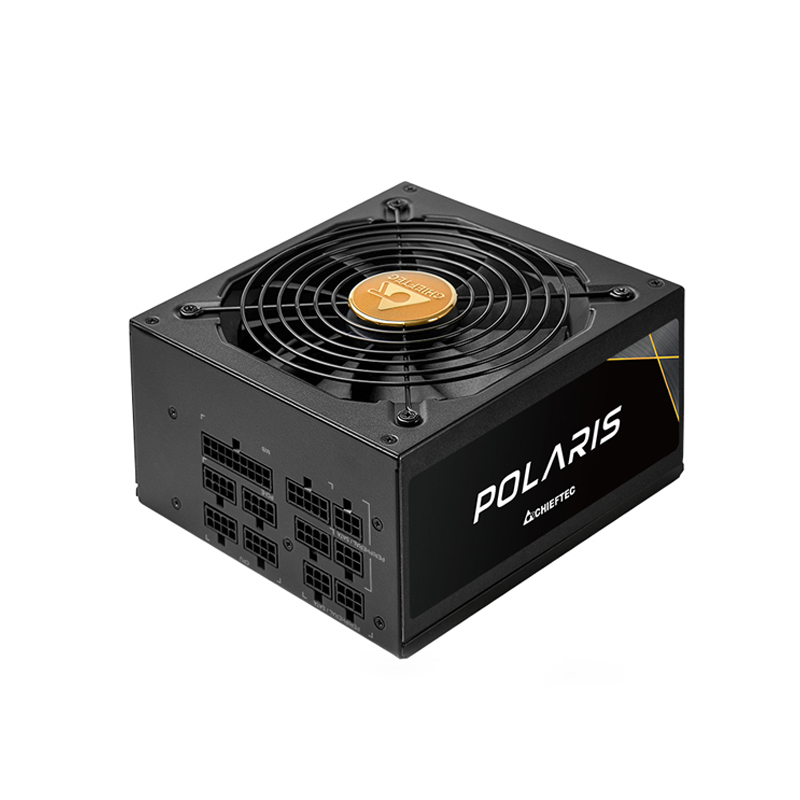

PPS-850FC
POLARIS SERIES
![80 PLUS Gold](https://www.chieftec.eu/upload/img/c-product_icon1210330182413_7834.jpg)
OVERVIEW
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power density to allow higher efficiency and power output with a more compact size.
Cable lengths of 650mm ensure that these power-supplies can be used evenin large builds.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![CB](https://www.chieftec.eu/upload/img/c-product_icon2201130170718_4334.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![ErP](https://www.chieftec.eu/upload/img/c-product_icon2201130170907_1075.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
![E](https://www.chieftec.eu/upload/img/c-product_icon2201130170818_9523.png)
![TUV](https://www.chieftec.eu/upload/img/c-product_icon2201130170639_8801.png)
![cTUVus](https://www.chieftec.eu/upload/img/c-product_icon2210331141437_6285.jpg)
![FCC](https://www.chieftec.eu/upload/img/c-product_icon2201231182745_4879.jpg)
Model | POLARIS 850W |
---|---|
Article no. | PPS-850FC |
EAN code | 0753263077356 |
Weight (without/with package) | 2.6kg / 3.3kg |
AC Input | 100-240V / 15A |
Frequency | 50 - 60Hz |
+5V | 22A |
+3,3V | 22A |
+5V & +3,3V combined | 120W |
+12V1 | 70.8A |
+12V2 | - |
+12V1, +12V2 combined | 850W |
P.F. | >0,9 |
-12V | 0,3A / 3,6W |
+5VSB | 3.0A / 15W |
Maximum Power | 850W |
20+4 PIN ATX | 1 |
---|---|
8 PIN EPS (4+4) | 2 |
8 PIN PCIe (6+2) | 4 |
SATA | 12 |
MOLEX | 4 |
20+4 PIN ATX | 650 |
---|---|
8 PIN EPS (4+4) | 2 x 650 |
8 PIN PCIe (6+2) | 2 x 600/100 |
SATA | 3 x 550/100/100/100 |
MOLEX/FLOPPY | 550/100/100/100 |
ATX12V Version | ATX 12V 2.53 |
---|---|
Efficiency | 80+Gold |
Dimension (DxWxH) | 160 mm x 150 mm x 86 mm |
PFC | Active PFC |

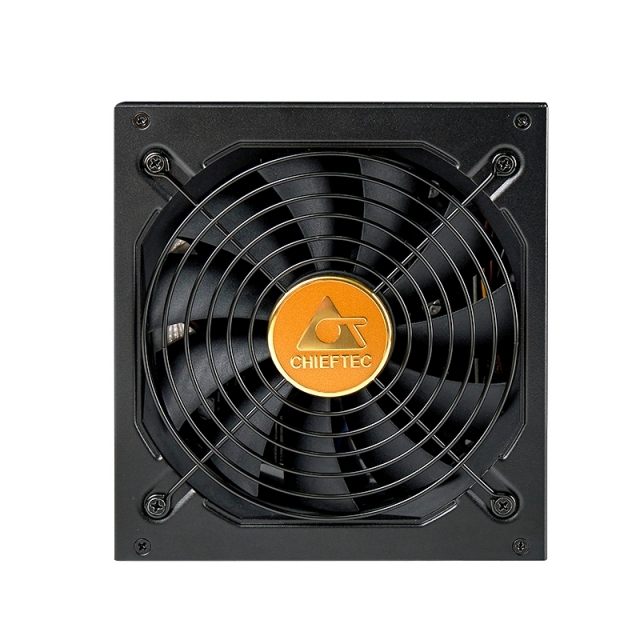

Fan | 135mm FDB fan |
Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Warranty | 24 Months |
