CMR-3141SAS
OVERVIEW

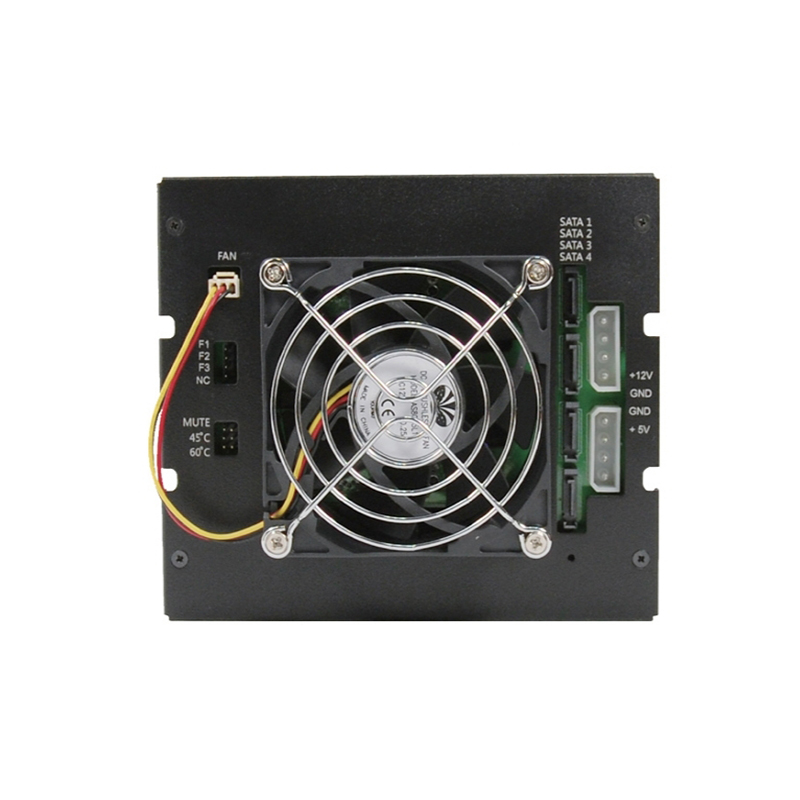

This SAS / SATA Backplanes as well as the detachable bays, are all exclusively designed and made of SECC Steel that they are especially suited to keeping the HDDs/SSDs cool. The Backplane is Plug & Play compatible and supports hot swap. With an 80mm fan, even the fastest HDDs/SSDs are kept cool. The operating status of each HDD/SSD as well as the power and the activity of the fans are shown in the front of the Backplane by LED's.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![CB](https://www.chieftec.eu/upload/img/c-product_icon2201130170718_4334.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
Interface (HDD/SSD) | SATA/SAS I/II/III |
Dimension (DxWxH) | 217mm x 146mm x 126mm |
Weight | 2,407 kg |
Form Factor | 3x 5,25" bays for 4x SATA/SAS HDDs/SSDs (3,5"/2,5") |
Cooling | 80mm fan |
Power Connector | 2x Molex |
Data Interface (ext.) | 4x SATA |
Supported Raid-Level | No Raid controller is included |
Special Features |
|

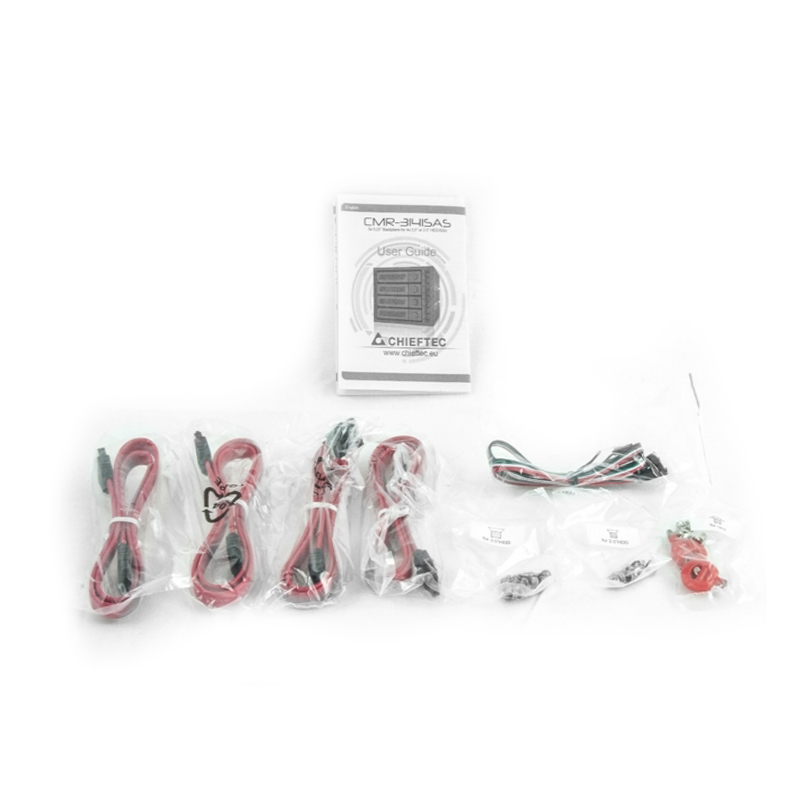

Scope of delivery | Backplane, 4x SATA cable, set of screws, User manual (engl.) |
Warranty | 24 Month |
