CMR-225
OVERVIEW

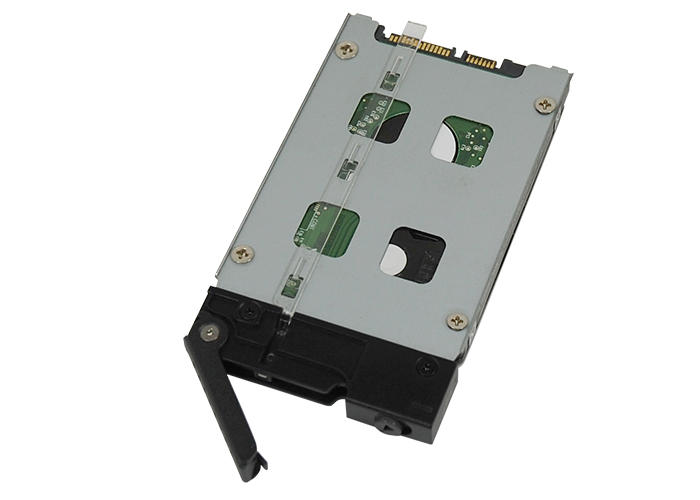

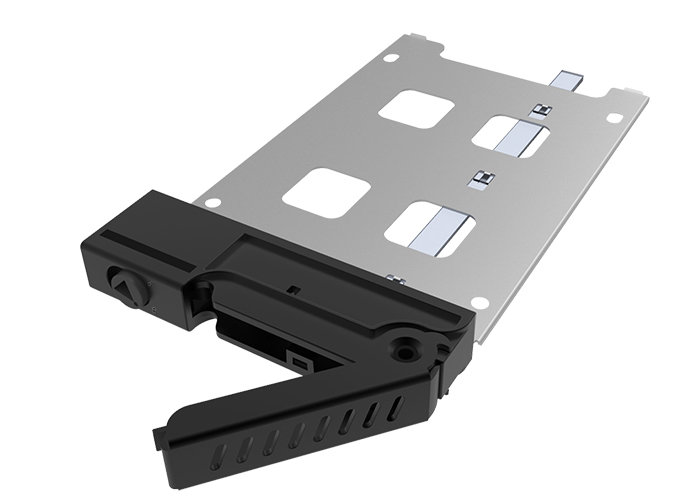

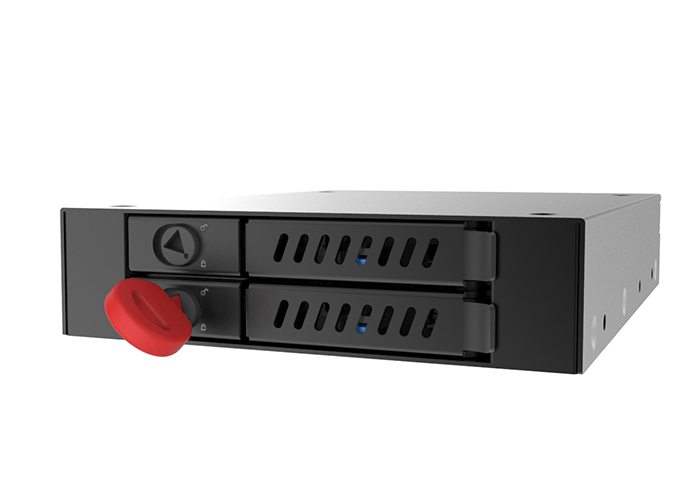

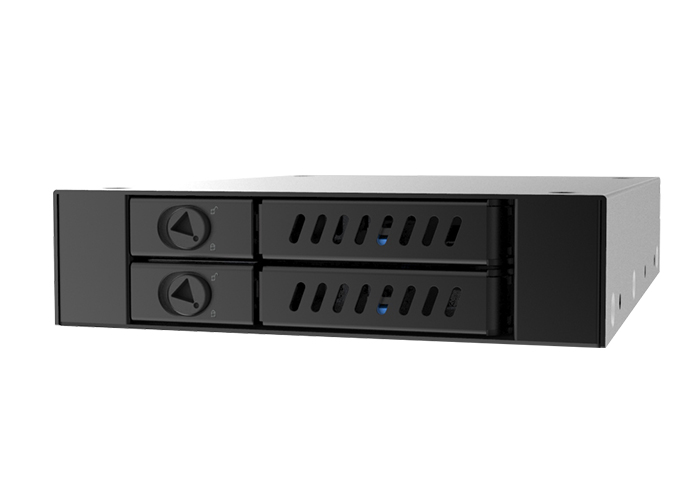

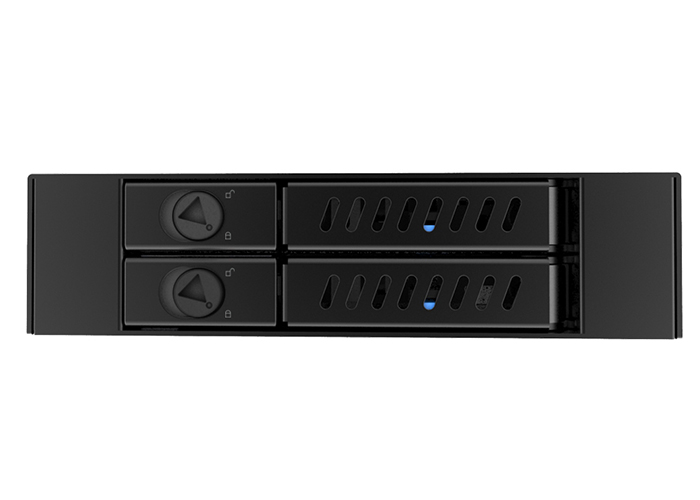

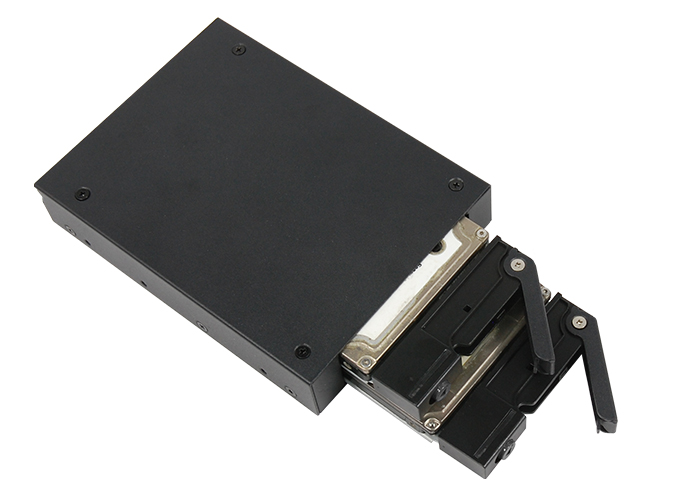

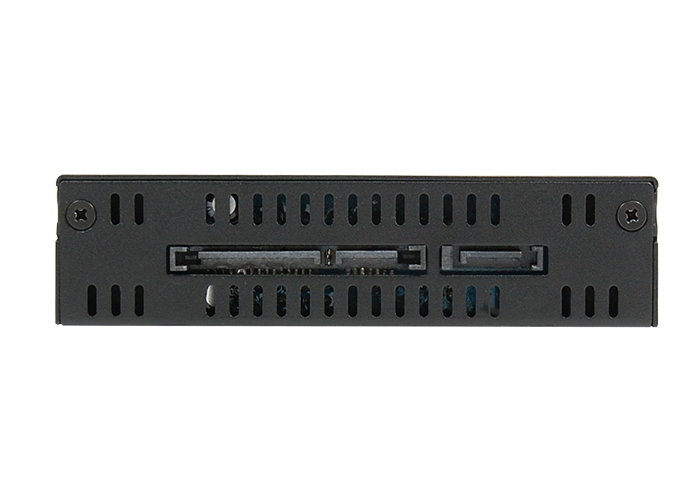

The highly innovative backplane CMR-225 sets a new standard by providing 2x 2,5” HDD/SSD//SATA I /II/III mounting option using a 1x 3,5” external slot. Compatible with all 2,5” HDDs/SSDs (height: 7 ~ 9,5mm) it sources its power via the SATA connection offers LEDs to indicate HDD access and power while trays are detachable for easy installation. The case being 100% metal and lockable ensures maximum security. All installed discs are hot-swappable which makes it suitable for diverse applications.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![CB](https://www.chieftec.eu/upload/img/c-product_icon2201130170718_4334.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
Interface (HDD/SSD) | SATA I, SATA II, SATA III |
Dimension (DxWxH) | 137mm x 102mm x 26mm |
Weight | 0,394kg |
Form Factor | 1x 3,5" bay for 2x 2,5" HDDs/SSDs (max. HDD/SSD height up to 9,5mm) |
Cooling | N/A |
Power Connector | 1x SATA |
Data Interface (ext.) | 2x SATA |
Material | Full Metal structure |
Special Features |
|
Scope of delivery | SATA Backplane, 2x SATA cables, 2 keys, set of screws, User manual |
Warranty | 24 Month |
