- 80 PLUS® Gold certified efficiency

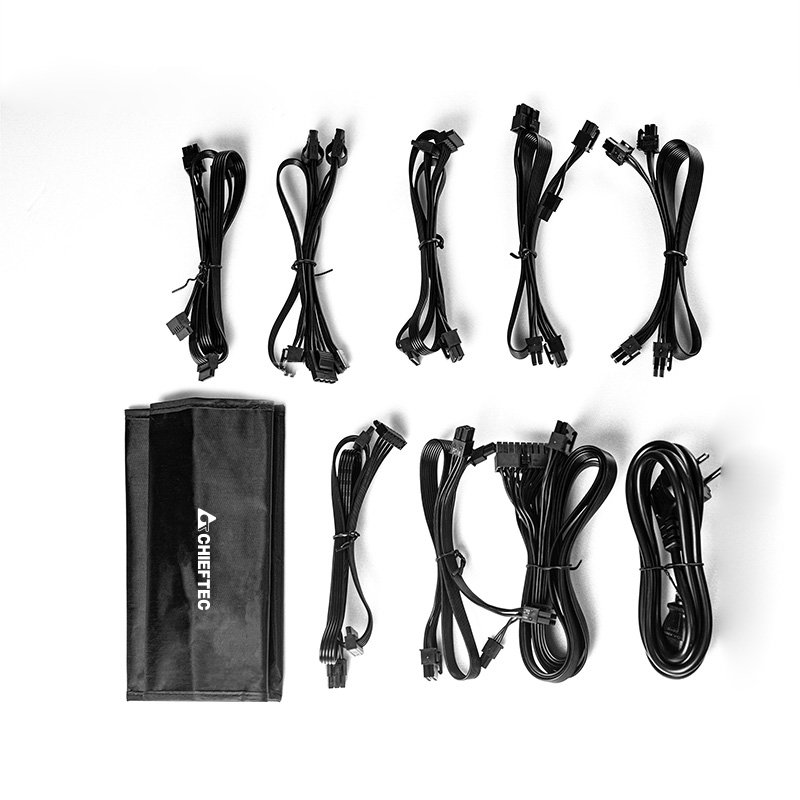

- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty

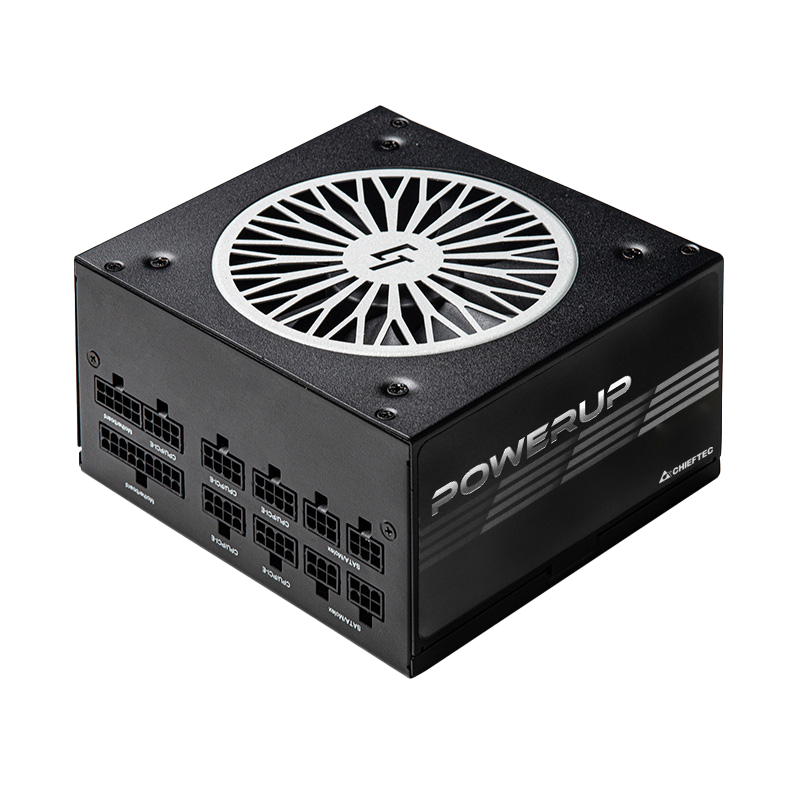

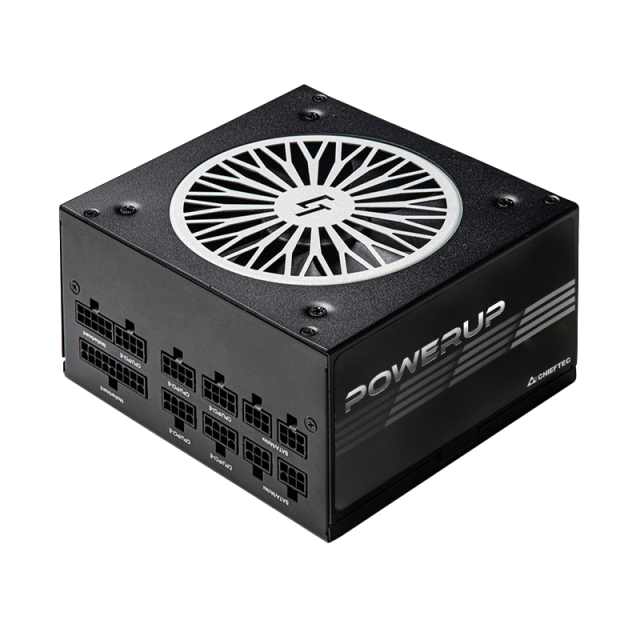

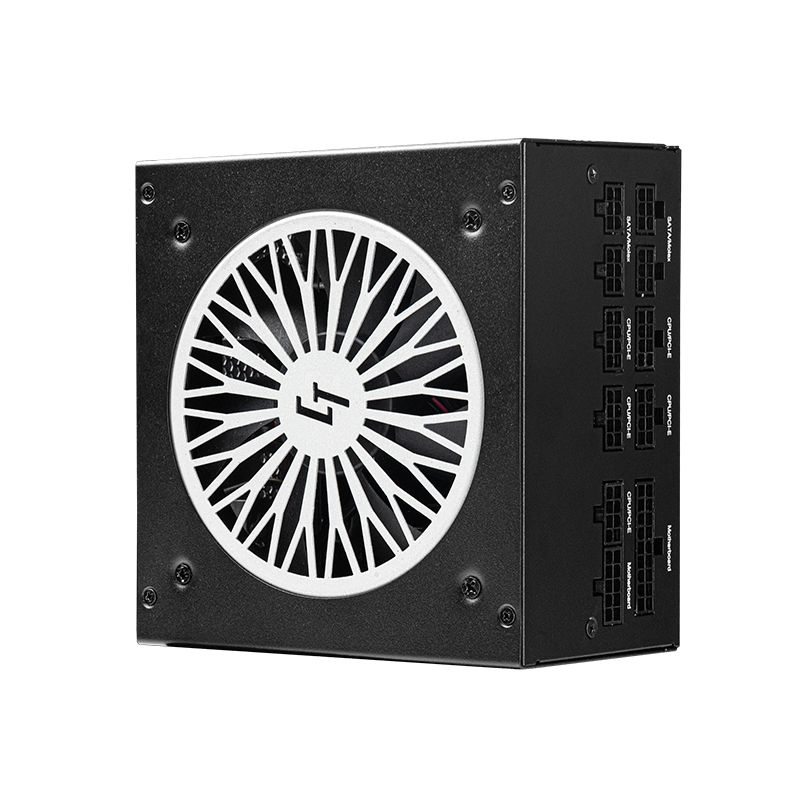

GPX-750FC
PowerUP SERIES
![80 PLUS Gold](https://www.chieftec.eu/upload/img/c-product_icon1210330182413_7834.jpg)
OVERVIEW
With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![CB](https://www.chieftec.eu/upload/img/c-product_icon2201130170718_4334.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![ErP](https://www.chieftec.eu/upload/img/c-product_icon2201130170907_1075.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
![E](https://www.chieftec.eu/upload/img/c-product_icon2201130170818_9523.png)
![TUV](https://www.chieftec.eu/upload/img/c-product_icon2201130170639_8801.png)
![FCC](https://www.chieftec.eu/upload/img/c-product_icon2201231182745_4879.jpg)
Model | PowerUP 750W |
---|---|
Article no. | GPX-750FC |
EAN code | 0753263077196 |
Weight (without/with package) | 2.3kg / 2.85kg |

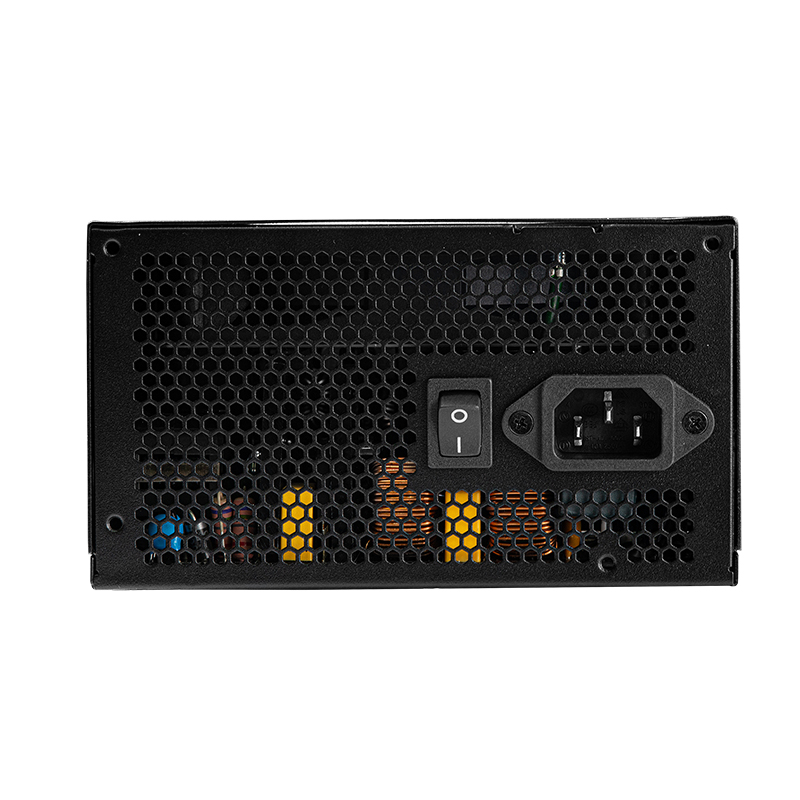

AC Input | 100 - 240V / 10.0A |
Frequency | 47 - 63Hz |
+5V | 20A |
+3,3V | 20A |
+5V & +3,3V combined | 110W |
+12V1 | 62A |
+12V2 | - |
+12V1, +12V2 combined | 744W |
P.F. | >0,9 |
-12V | 0,3A / 3,6W |
+5VSB | 2,5A / 12,5W |
Maximum Power | 750W |

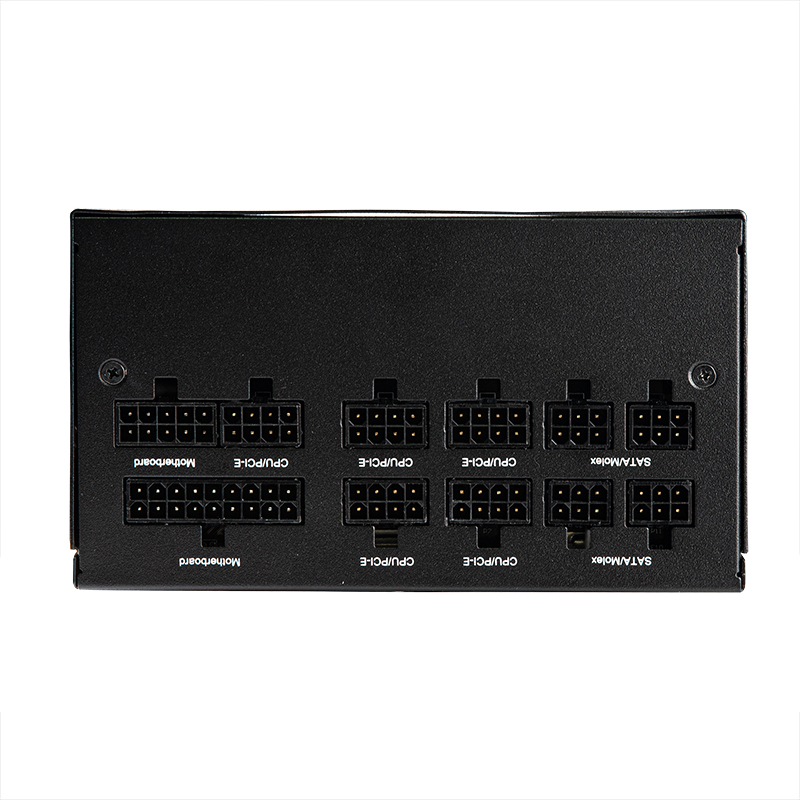

20+4 PIN ATX | 1 |
---|---|
8 PIN EPS(4+4) | 2 |
8 PIN PCIe (6+2) | 4 |
SATA | 9 |
MOLEX/FLOPPY | 3/1 |
20+4 PIN ATX | 650 |
---|---|
8 PIN EPS(4+4) | 650/150 |
8 PIN PCIe (6+2) | 2X 500/150 |
SATA | 3x 500/150/150 |
MOLEX/FLOPPY | 500/150/150/150 |
ATX12V Version | ATX 12V 2.53 |
---|---|
Efficiency | 80+Gold |
Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
PFC | Active PFC |

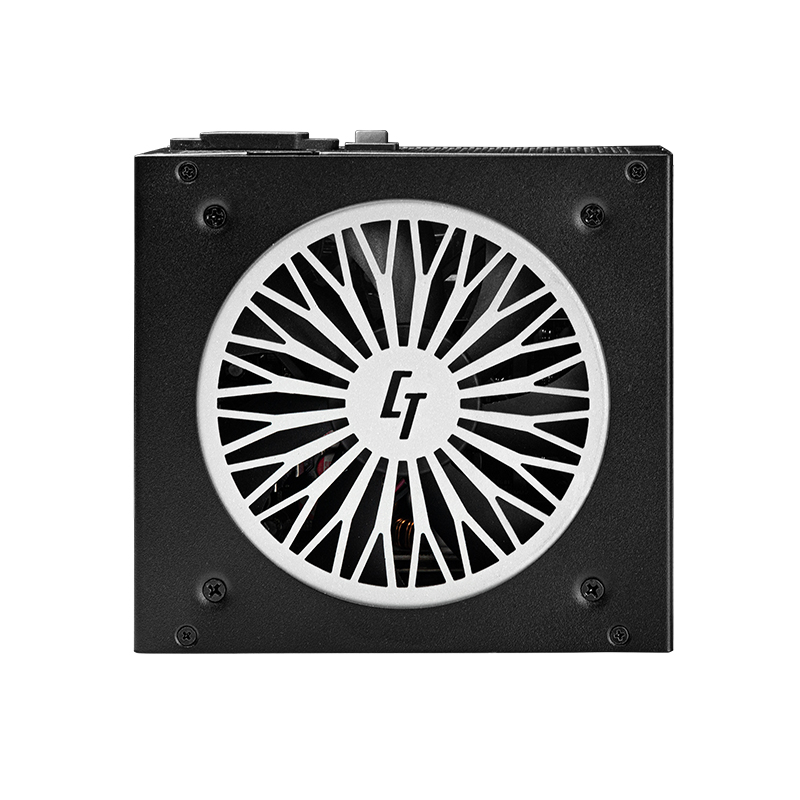

Fan | 120mm silent fan |
Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Warranty | 60 Months |
