- 80PLUS Platinum efficiency

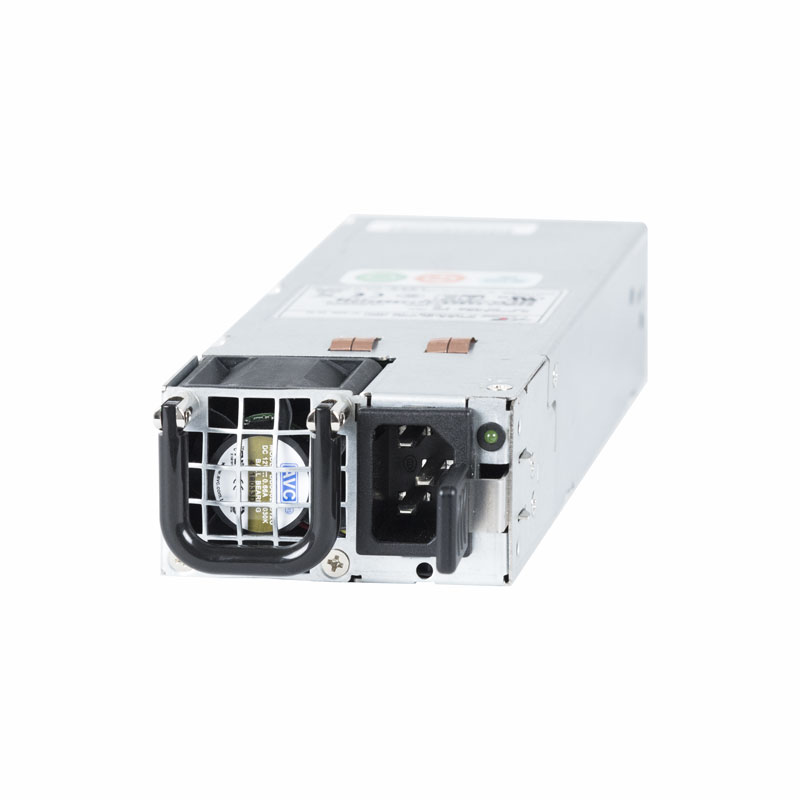

- 2x 600W / 800W / 1200W / 1600W redundant modules
- PMBUS 1.2

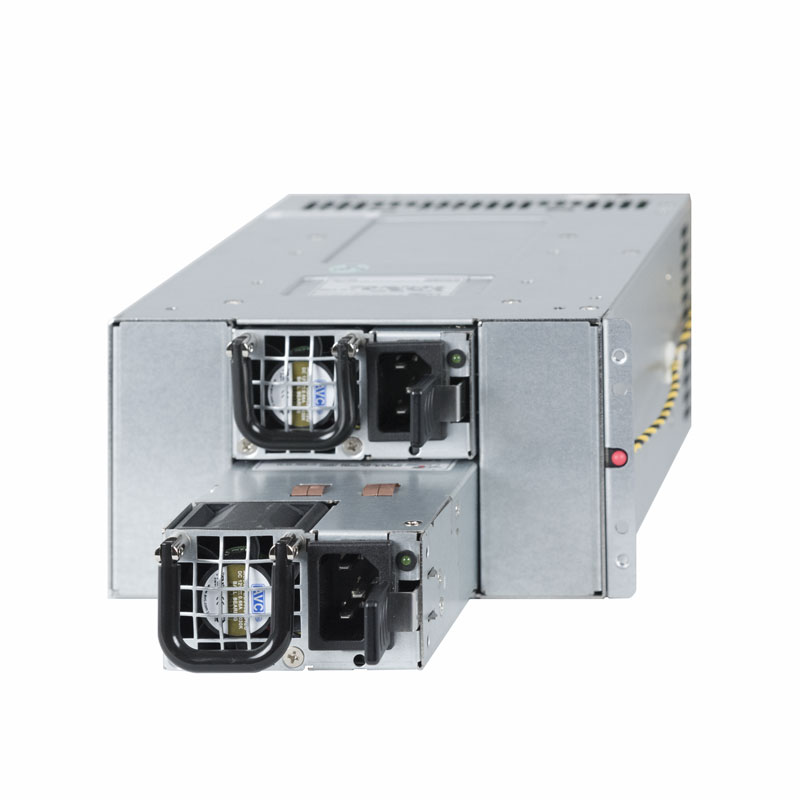

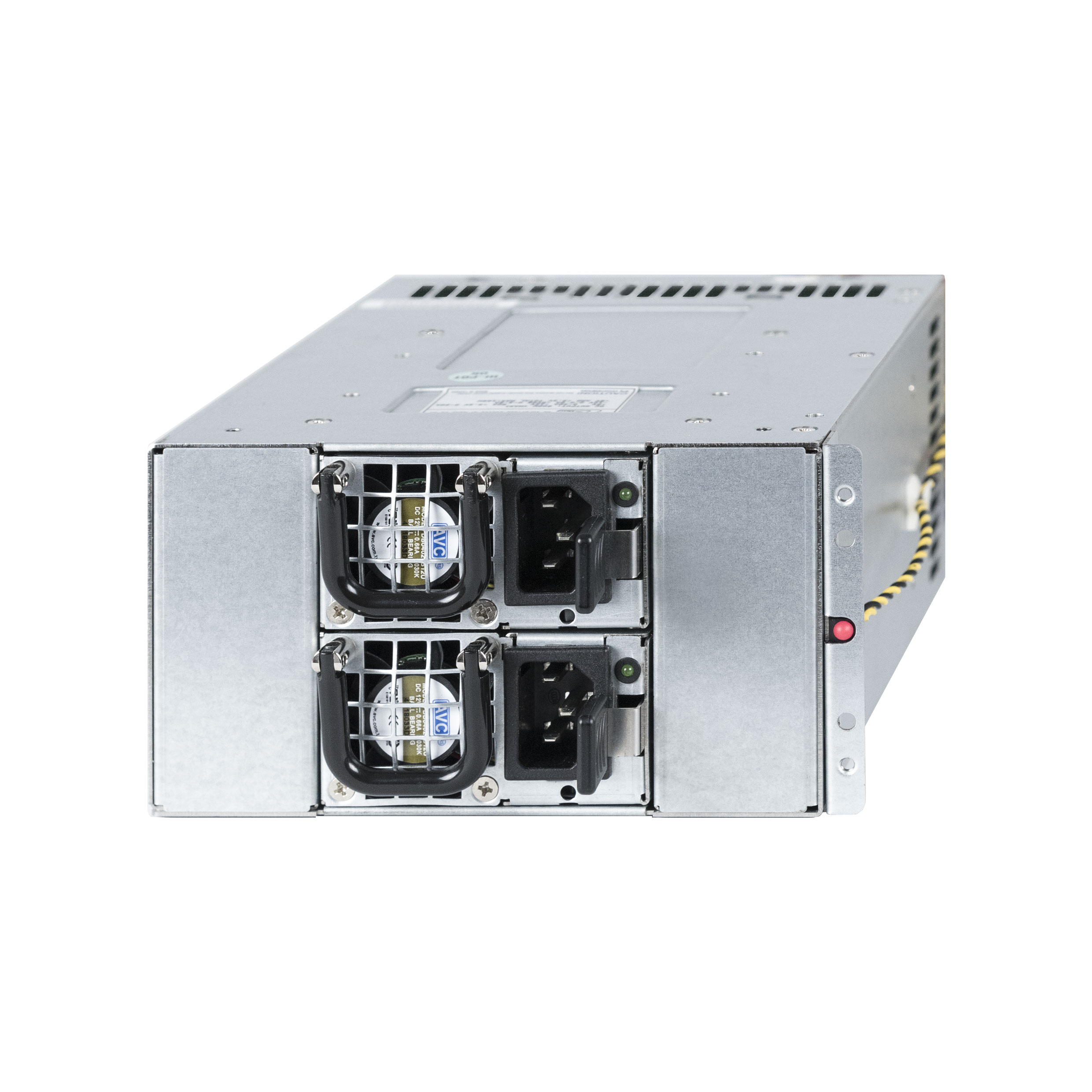

MRZ-5800K2V
Redundant PSU SERIES MRZ-5800K2V
OVERVIEW
The MRZ Series mini-redundant power-supplies provide highly reliable power output at an extremely high efficiency. When you need to have peace-of-mind in your system while saving energy and costs, the MRZ Series is the ideal choice.
SPECIFICATIONS
| Model | Redundant PSU 800W |
|---|---|
| Article no. | MRZ-5800K2V |
| EAN code | 0753263076687 |
| Weight (without/with package) | 5.2 kg / 5.7 kg |
| AC Input | 100 - 240V / 5-10A |
| Frequency | 47 - 63Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 165W |
| +12V1 | 50A |
| +12V2 | |
| +12V1, +12V2 combined | |
| P.F. | >0,9 |
| -12V | 0,5A |
| +5VSB | 3,5A |
| Maximum Power | 800W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 6 |
| SATA | 4 |
| MOLEX/FLOPPY | 2/2 |
| 20+4 PIN ATX | |
|---|---|
| 8 PIN EPS(4+4) | |
| 8 PIN PCIe (6+2) | |
| SATA | |
| MOLEX/FLOPPY |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Platinum |
| Dimension (DxWxH) | 222 mm x 150 mm x 86 mm |
| PFC | Active PFC (0,9) |
| Fan | 2x 40mm fan (1 fan per module) |
| Security | OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) UVP (Under Voltage Protection) |
| Warranty |
