Tornado
CF-3012-RGB

  • Advanced cooling with high-velocity airflow
  • Special fan blades designed for maximum airflow and uniform illumination
  • Ultimate illuminations with 16.8 M colors
RGB-CHIEFTEC
ASUS-RGB
GIGABYTE-RGB
MSI-RGB
AsRock-RGB

OVERVIEW

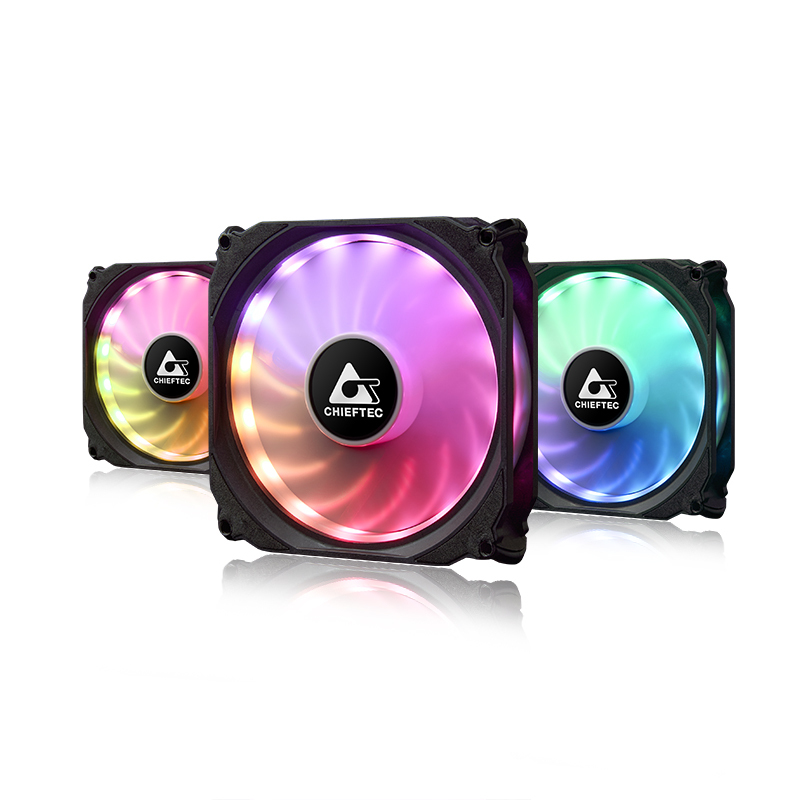

The new CF-3012-RGB 3-RGB fan set (Tornado) with a multi-functional control board and an RF remote control easily fulfills and surpasses all lighting expectations of a gamer. Thanks to the included multi-functional controller board, the RGB lighting can be controlled either via mainboard +5V LED header or completely independently, without motherboard by switching with corresponding + 5V LED headers. Each fan is equipped with 16 addressable LEDs and allows an almost infinite RGB effect variety which cannot be realised by a simple and conventional +12V RGB lighting. In addition, each fan is furnished with shock-absorbing and anti-vibration rubbers and designed with special shaped fan blades which guarantee a whisper quiet operation. The white fan blades ensure a uniform illumination. All conventional +5V addressable RGB motherboard technologies such as ASUSTM AURA, ASRockTM RGB Sync, MSITM Mystic Light Sync and GigabyteTM RGB FUSION are supported. The multifunctional hub can be connected to a +5V adressable RGB header. It offers 6x 6PIN fan connectors and 2x 3PIN +5V RGB connectors for other peripherals like LED strips or similar. The color modes and fan speed can also be controlled directly via the function buttons on the controller board which is of course compatible with all CHIEFTEC RGB fans.



SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
WEEE
TECHNICAL DATA
Article no. CF-3012-RGB
EAN Code 0753263075963
Dimension (DxWxH) 120 x 120 x 25mm (each)
Weight (without/with package) 765g / 795g
Start-up Voltage +5V
Operating Voltage DC +7V to DC +12V
Rating Voltage DC +12V
Power Connector 6PIN
Rated Current 0.65A Max
Fan Speed 1200 RPM (adjustable via remote control: 60% / 75% / 100%)
Air Flow 53 CFM
Noise Level 16 dBA
LED Colors 16.8 Million colors
Lightning mode 20x dynamic modes / 9x static modes
Scope of delivery 3x 120mm RGB +5V LED addressable fans, 1x Control System Hub (1x +5V addressable M/B connector, 6x 6PIN fan connectors, 2x +5V LED stripe connectors), 1x Remote Control, 1x +5V addressable RGB M/B sync cable,1x SATA power cable, 12x Mounting screws
RGB Sync Compatibilities Support and sync the lighting with: ASUSTM AURA SYNC, MSITM MYSTIC LIGHT SYNC, ASROCKTM POLYCHROME SYNC, GIGABYTETM RGB FUSION
Warranty 24 Months
