Nova
NF-1225RGB

  • 9 blade design with enhanced air pressure technology
  • Dual-Ring setup for perfect illumination inside and out
  • 32 addressable LEDs offering complex RGB effects
  • 4-PIN PWM fan-speed control and 3-PIN +5V A-RGB M/B-Sync Technologies supported
RGB-CHIEFTEC
ASUS-RGB
GIGABYTE-RGB
MSI-RGB
AsRock-RGB

OVERVIEW

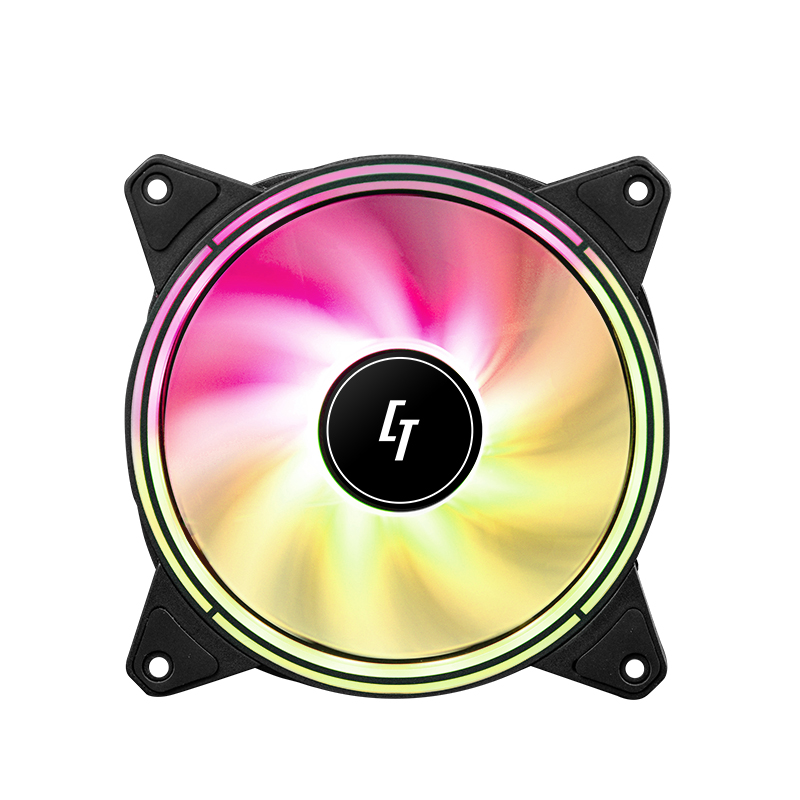

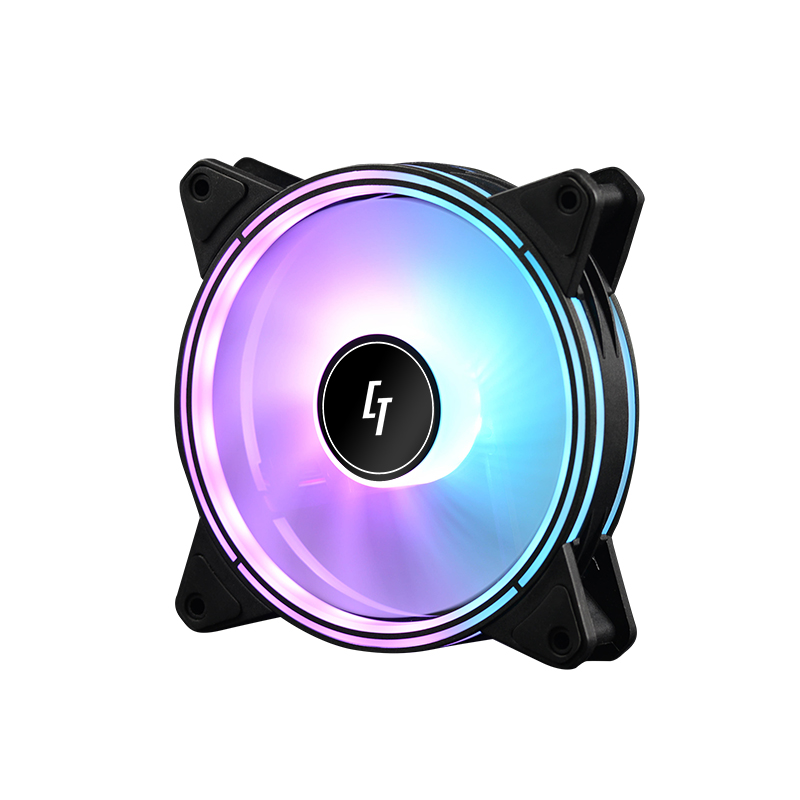

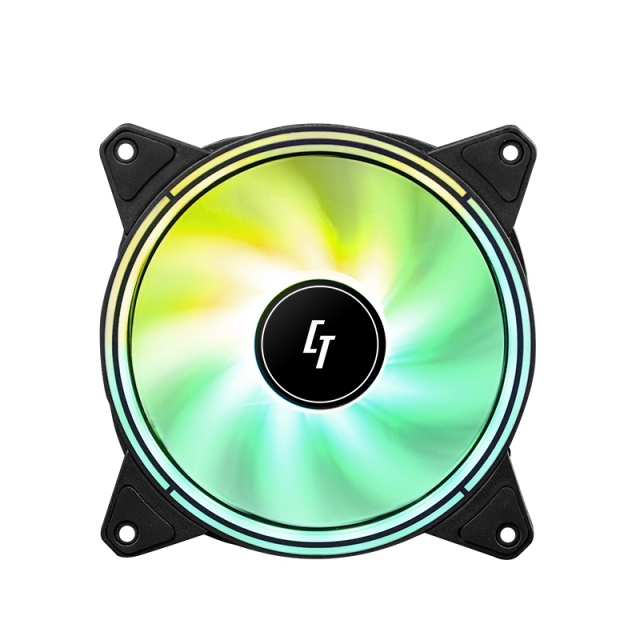

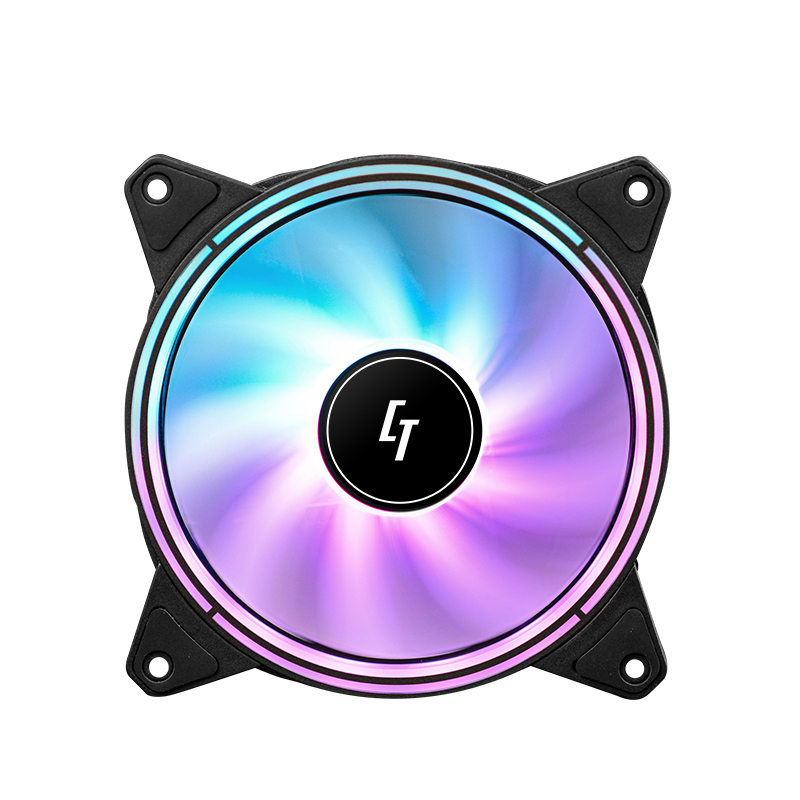

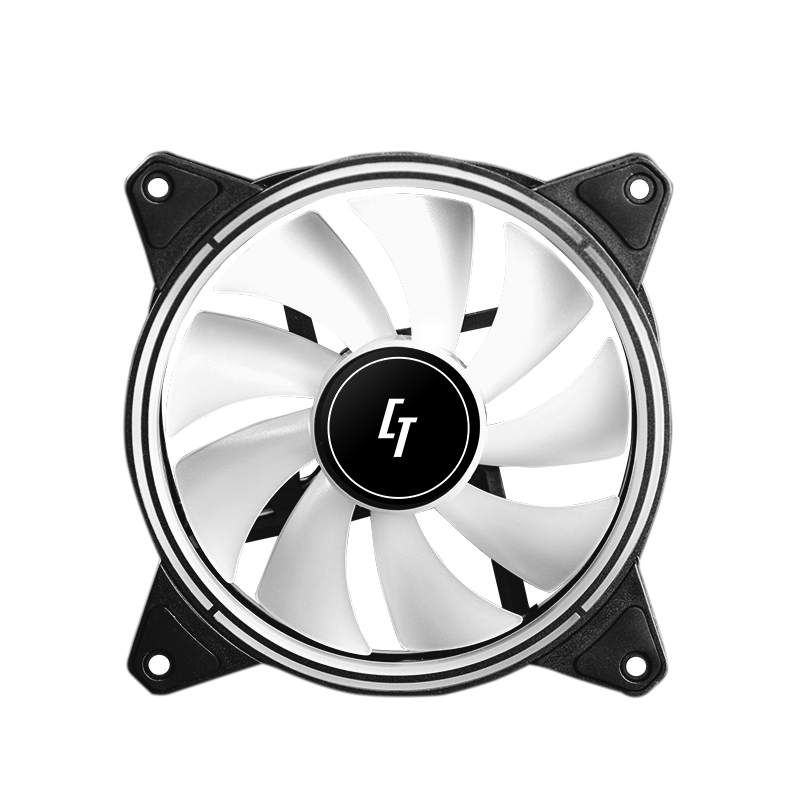

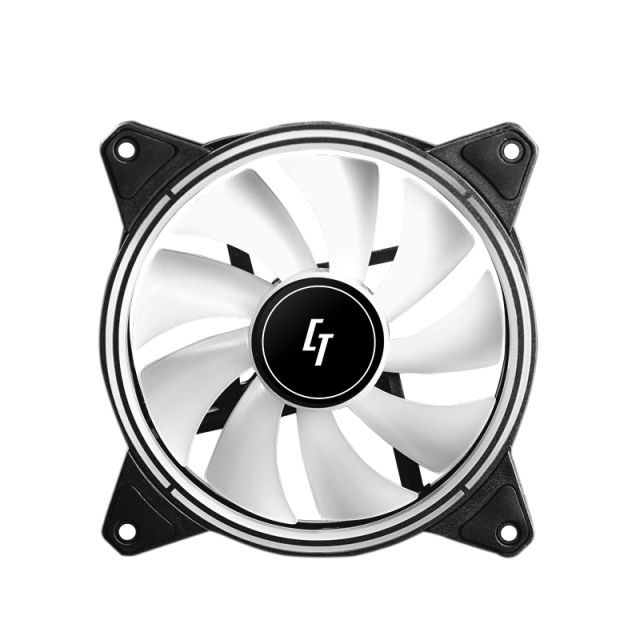

CHIEFTRONIC’s NOVA RGB Fan comes with beautiful A-RGB illumination from a dual-ring design to ensure smooth and full lighting with 16 LED’s on the inner ring as well as 16 more LED’s on the outer ring. Additional frame design elements on the outer ring ensure the Nova fan stands out from the crowd and impress visually.

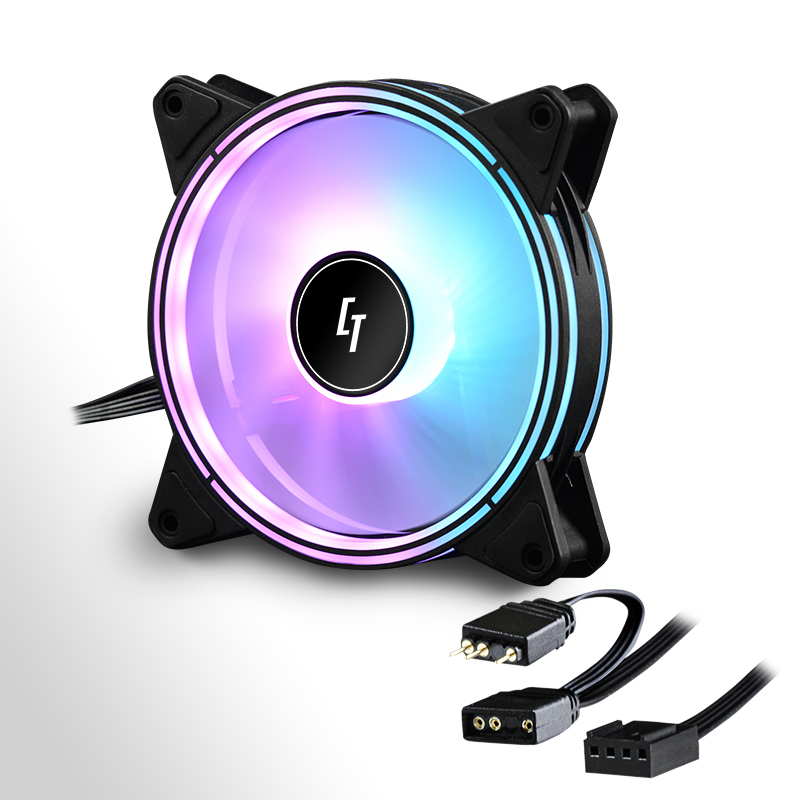

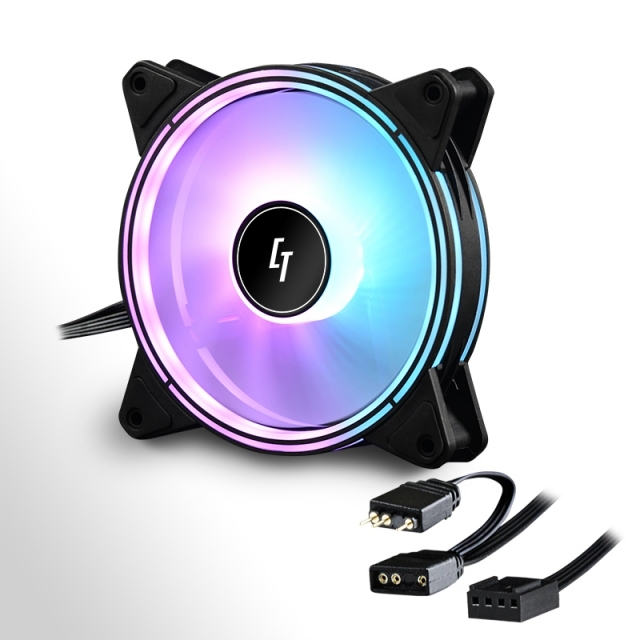

The single fan comes with 4-PIN PWM connector to power and control the fan speed via the motherboard, as well as a 3-PIN +5V A-RGB connector to allow for control via most mainstream motherboard sync technologies like ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC, GIGABYTE™ RGB FUSION.

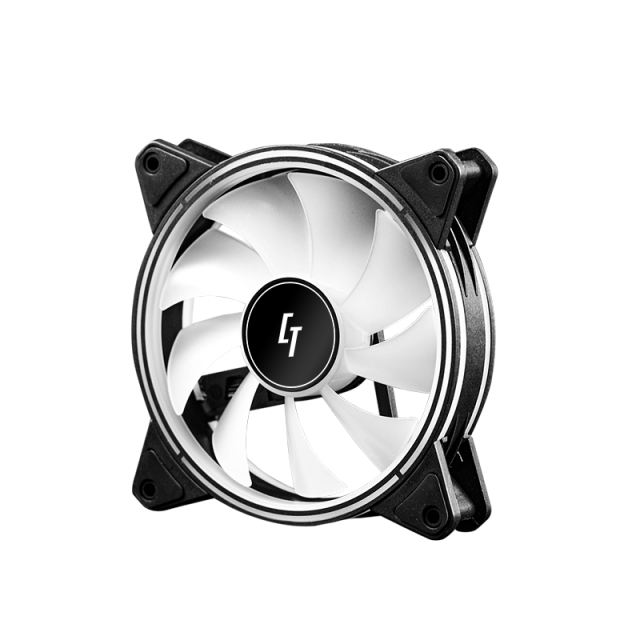

Translucent fan blades ensure lighting transfers evenly throughout the entire fan, while anti-vibration pads ensure smooth and quiet operation.





SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
WEEE
Model NOVA
Article no. NF-1225RGB
EAN Code 0753263077257
Connectors Fan: 4 pin PWM ; ARGB: 3 pin
Dimension  120 x 120 x 25mm
Weight (without/with package) 135g / 145g
Bearing Type Hydraulic
LED Type Addressable RGB (A-RGB)
LED Count 32 pcs (Inner Ring: 16 pcs ; Outer Ring: 16pcs )
Rated Voltage FAN: DC12V ; LED: DC5V
Rated Current 0.29A (Max: 0.65A)
Operating Voltage 7V -13.2V
Fan Speed (RPM) 1600 RPM ± 10%
Air Flow (CFM) 68 CFM
Air Pressure (mmH2O) 2.2 mmH2O
Noise Level (dBA) 24 dBA (Max: 28)
Scope of delivery 1x 120mm RGB Rainbow fan, 4x Mounting screws
RGB Sync Compatibilities ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC,
GIGABYTE™ RGB FUSION
Warranty 24 Months
