GPF-350P
SMART SERIES

>85%(Full Range)
Bulk

OVERVIEW

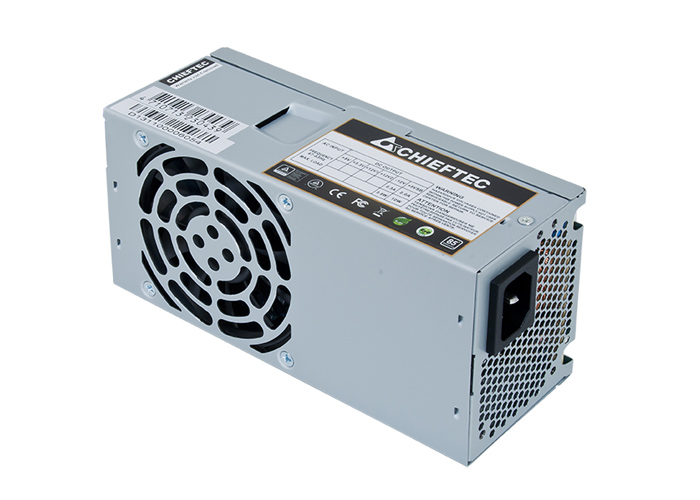

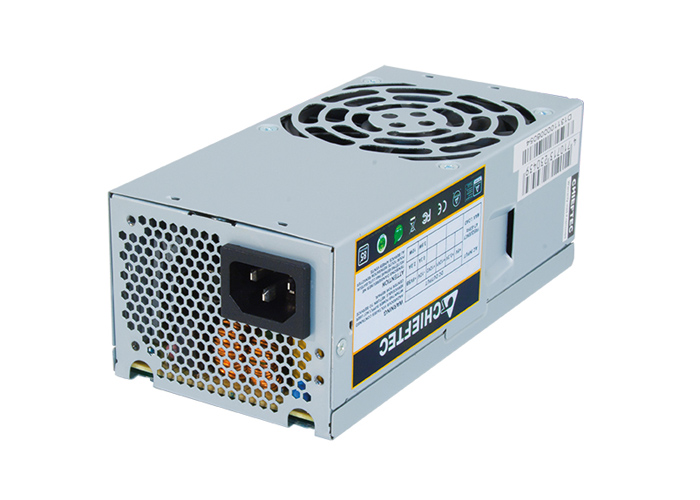

A strong GPF power supply unit in TFX format with the latest ATX 2.3 specification and active PFC that is compatible with Intel as well as with AMD CPUs.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
FCC
TECHNICAL DATA
Model SMART 350W
Article no. GPF-350P
EAN code 4710713234673
Weight (without/with package)
AC Input 100 - 240V / 6.3A
Frequency 47 - 63Hz
+5V 16A
+3,3V 16A
+5V & +3,3V combined 100W
+12V1 15A
+12V2 15A
+12V1, +12V2 combined 300W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,0A / 10W
Maximum Power 350W

Connectors
20+4 PIN ATX 1
8 PIN EPS(4+4) 1
8 PIN PCIe (6+2)
SATA 4
MOLEX/FLOPPY 2/1

Cable length (mm)
20+4 PIN ATX 300
8 PIN EPS(4+4) 350
8 PIN PCIe (6+2)
SATA 2 x 350/150
MOLEX/FLOPPY 350/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency >85%
Dimension (DxWxH) 175 mm x 86 mm x 65 mm
PFC Active PFC (0,9)
Fan 80mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
