- Fully modular cable management
- 80 PLUS Gold Efficiency
- Premium Japanese capacitors for minimal ripple noise
- Quality case housing finish with eye-catching fan filter design
Chieftronic GPU-650FC
PowerPlay Gold SERIES
OVERVIEW
The Chieftronic PowerPlay series builds on Chieftec’s many years of experience developing top-quality power-supplies and combines top specs like 80 PLUS Gold (at 550W, 650W, 750W) and 80 PLUS Platinum (at 850W, 1050W), premium Japanese capacitors for low ripple noise with an eye-catching fan filter design to offer an attractive PSU for users who want a true top-tier product.
Featuring a rugged build quality, the PowerPlay series measures only 160mm in length, therefore comfortably fitting into almost any system supporting ATX format PSU’s and leaving plenty of space for easy cable management.
This combination of efficiency, performance and build design makes the PowerPlay series a true top-of-the-line model leading Chieftronic’s PSU line-up.
SPECIFICATIONS
| Model | PowerPlay Gold 650W |
|---|---|
| Article no. | GPU-650FC |
| EAN code | 0753263076076 |
| Weight (without/with package) | 2.36kg / 2.77kg |
| AC Input | 100 - 240V / 10.0A |
| Frequency | 47 - 63Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V1 | 54.2A |
| +12V2 | - |
| +12V1, +12V2 combined | 650.4W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 3,0A / 15W |
| Maximum Power | 650W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 9 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 600 |
|---|---|
| 8 PIN EPS(4+4) | 700 |
| 8 PIN PCIe (6+2) | 2x 600/150 |
| SATA | 3x 800/150/150 |
| MOLEX/FLOPPY | 700/150/150/150 |
| ATX12V Version | ATX 12V 2.53 |
|---|---|
| Efficiency | 80+Gold |
| Dimension (DxWxH) | 160 mm x 150 mm x 87 mm |
| PFC | Active PFC |

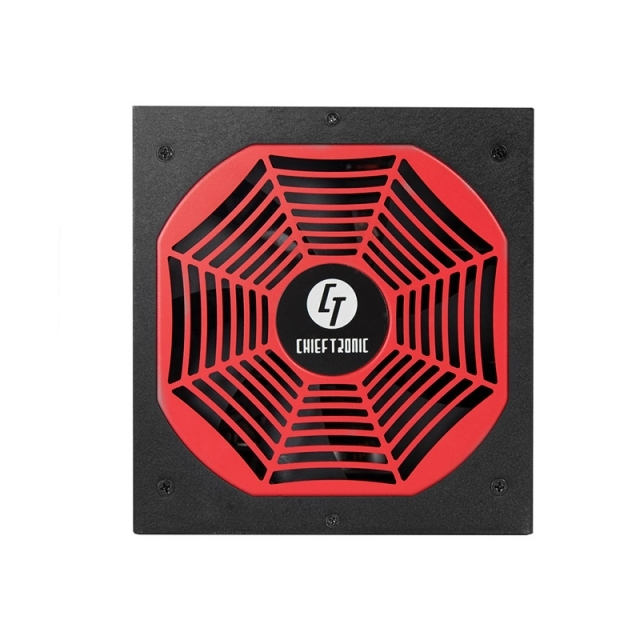

| Fan | 140mm silent fan |
| Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 60 Months |
