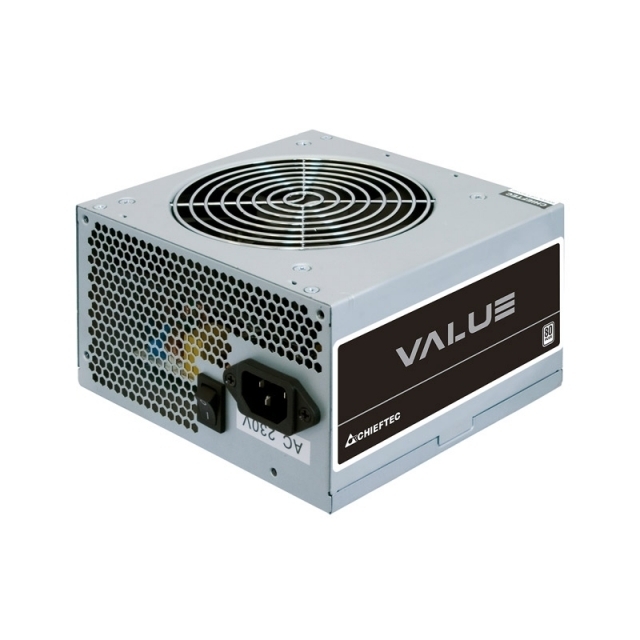

APB-700B8
VALUE SERIES
OVERVIEW
The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
SPECIFICATIONS
| Model | VALUE 700W |
|---|---|
| Article no. | APB-700B8 |
| EAN code | 0753263077820 |
| Weight (without/with package) | 1.42kg / 1.57kg |
| AC Input | 200-240V / 5.0A |
| Frequency | 47 - 63Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 130W |
| +12V1 | 54A |
| +12V2 | -- |
| +12V1, +12V2 combined | 648W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 700W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 4 |
| MOLEX/FLOPPY | 2/1 |
| 20+4 PIN ATX | 550 |
|---|---|
| 8 PIN EPS (4+4) | 550 |
| 8 PIN PCIe (6+2) | 550/150 |
| SATA | 2x500/150 |
| MOLEX/FLOPPY | 500/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80 PLUS® 230V EU |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0.9) (only 230V) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
