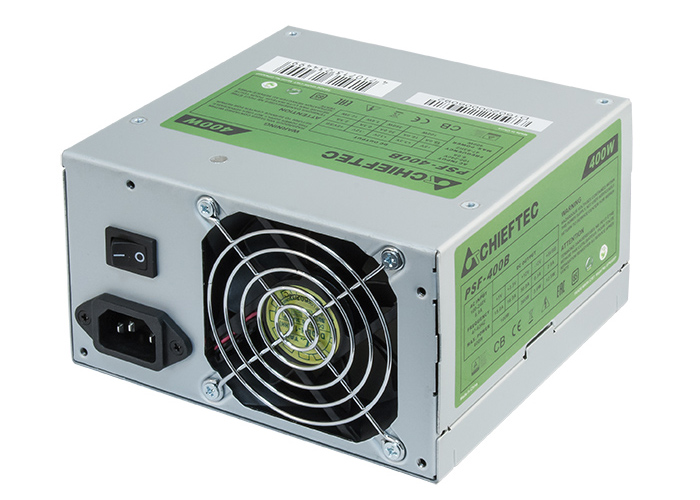

PSF-400B
SMART SERIES

  • PSF-400B is a reliable and efficient 400W power supply fulfills ENERGY STAR 5.0, suits the 19” IPC from 2U to 4U due to the cooling fan's blowing out direction
>85%(Full Range)
Bulk

OVERVIEW

The PSF-400B from its layout may remind on “fore gone” ATX standards but, compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 110V-240V being the European standard, the PSF-400B is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU. Dedicated majorly to the 19” IPC / UNC solutions ranging between 2U ~ 4U where the PSU position is delicate and/or tricky and the cooling fan MUST blow out the rear owing to highly limited height issues of the related chassis.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model SMART 400W
Article no. PSF-400B
EAN code 4710713234499
Weight (without/with package) 1.49kg / 1.63kg
AC Input 110V-240V / 6A
Frequency 47 - 63Hz
+5V 15A
+3,3V 16A
+5V & +3,3V combined 100W
+12V1 30A
+12V2 -
+12V1, +12V2 combined 360W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 400W

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
6 PIN PCIe 1
SATA 4
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 450
8 PIN EPS (4+4) 450
6 PIN PCIe 450
SATA 2x 450/150
MOLEX/FLOPPY 450/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency >85%
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC (0,9)
Fan 80mm silent fan
Security AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
