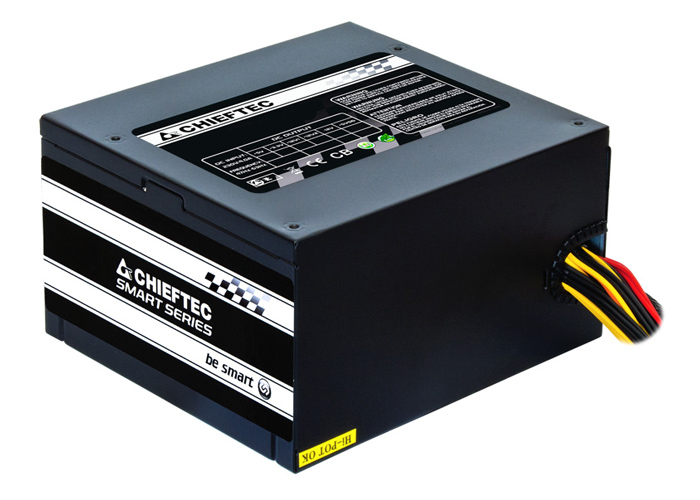

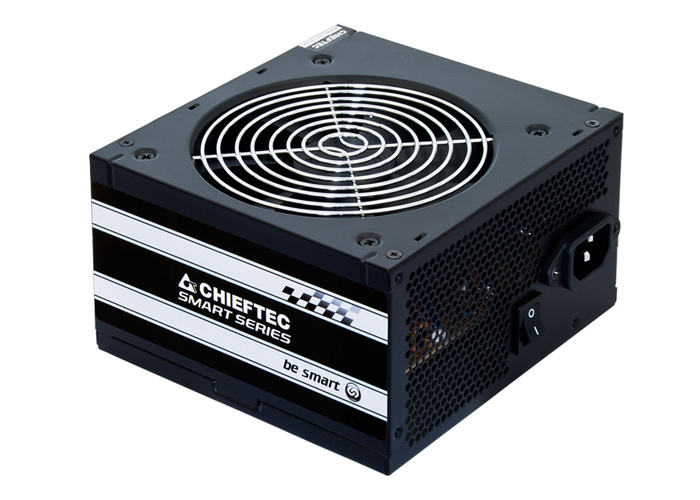

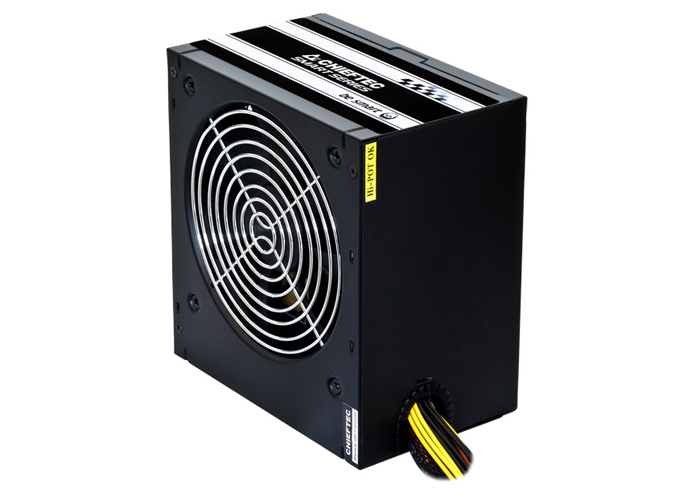

GPS-650A8
SMART SERIES
OVERVIEW
This new smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
SPECIFICATIONS
| Model | SMART 650W |
|---|---|
| Article no. | GPS-650A8 |
| EAN code | 4710713239562 |
| Weight (without/with package) | 1.60kg / 1.79kg |
| AC Input | 200-240V / 5.0A |
| Frequency | 47 - 63Hz |
| +5V | 20A |
| +3,3V | 20A |
| +5V & +3,3V combined | 120W |
| +12V1 | 50A |
| +12V2 | - |
| +12V1, +12V2 combined | 600W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 650W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 2/1 |
| 20+4 PIN ATX | 500 |
|---|---|
| 8 PIN EPS(4+4) | 500 |
| 8 PIN PCIe (6+2) | 500/150 |
| SATA | 2x 500/150/150 |
| MOLEX/FLOPPY | 500/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
