GDP-750C-RGB
PHOTON GOLD SERIES

  • Supports all renowned RGB synchronization systems

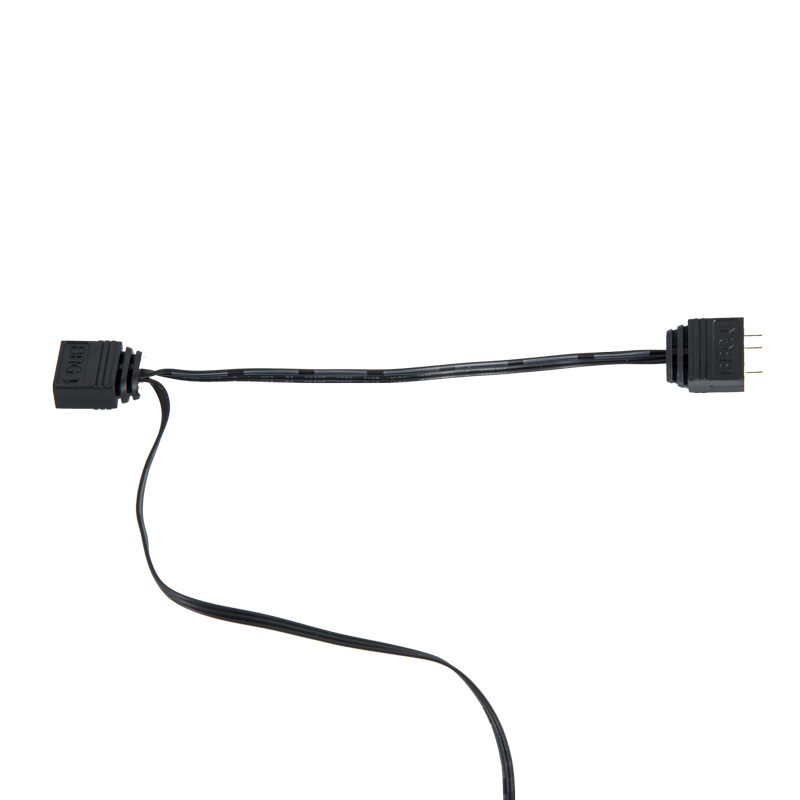

  • Rainbow RGB fan with a +5V addressable LED connector
  • High-Performance (90% Eff. @230V) RGB Gaming
>90%
ASUS-RGB
GIGABYTE-RGB
RGB-CHIEFTEC
MSI-RGB
AsRock-RGB

OVERVIEW

The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lighting effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lighting modes and effects, supports all renowned RGB lighting synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION.

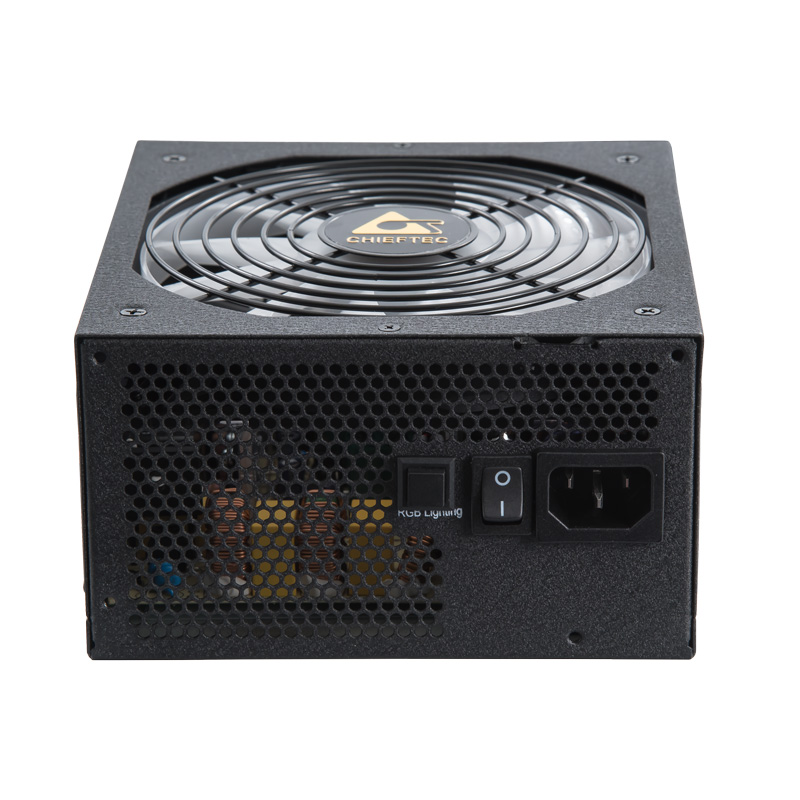

Photon GOLD series in addition provide a vast number of predefined and MBindependent lighting modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.

SPECIFICATIONS

CE
CB
EAC
interseroh
Recycle
RoHS
ErP
WEEE
E
TUV
TECHNICAL DATA
Model PHOTON GOLD 750W
Article no. GDP-750C-RGB
EAN code 0753263075901
Weight (without/with package) 2,3 kg/ 2,6 kg
AC Input 200-240V / 5.0A
Frequency 47 - 63Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V1 62A
+12V2 -
+12V1, +12V2 combined 744W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 750W

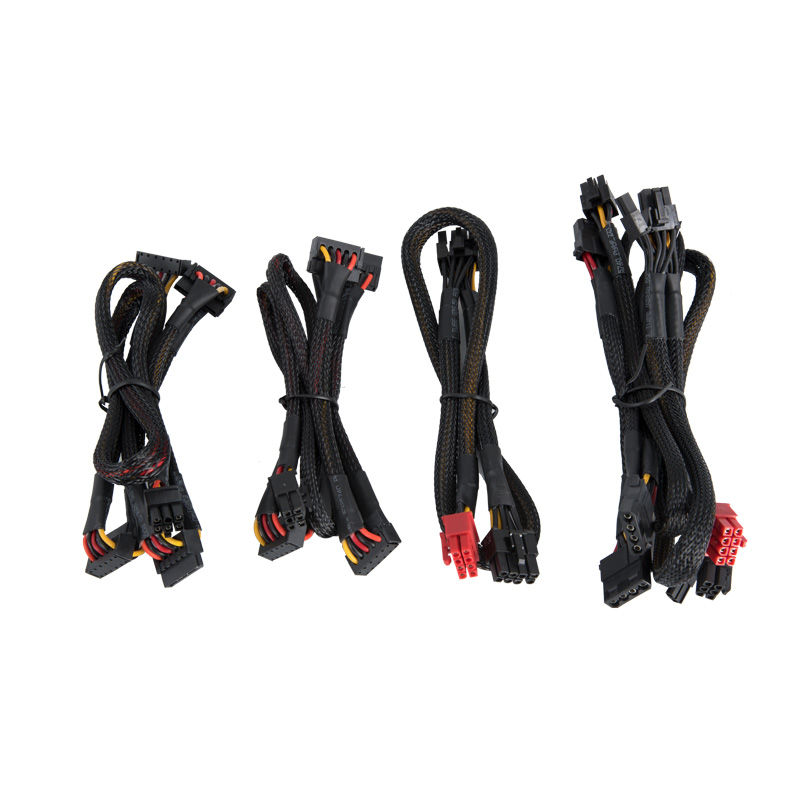

Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 4
SATA 8
MOLEX/FLOPPY 3/1

Cable length (mm)
20+4 PIN ATX 550
8 PIN EPS (4+4) 550
8 PIN PCIe (6+2) 2x 550/150
SATA 2x 550/150/150/150
MOLEX/FLOPPY 550/150/150/150

Features
ATX12V Version ATX 12V 2.3
Efficiency >90%
Dimension (DxWxH) 160 mm x 150 mm x 87 mm
PFC Active PFC (0,9)
Fan 140mm silent RGB Rainbow fan
Security AFC (Automatic Fan speed Control)
OCP (Over Current Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
Warranty 24 Months
