- Supports all renowned RGB synchronization systems

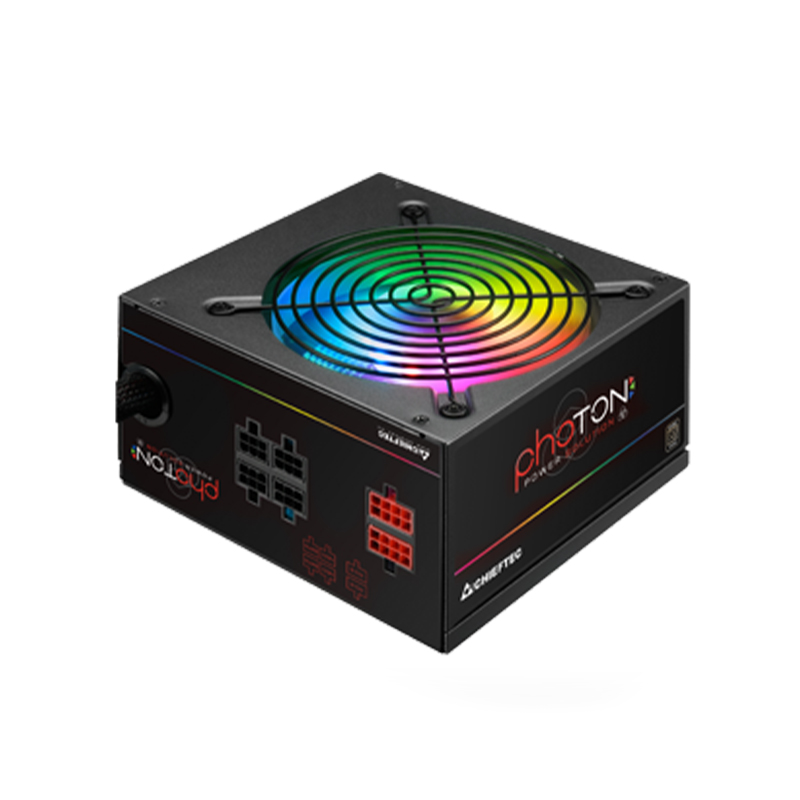

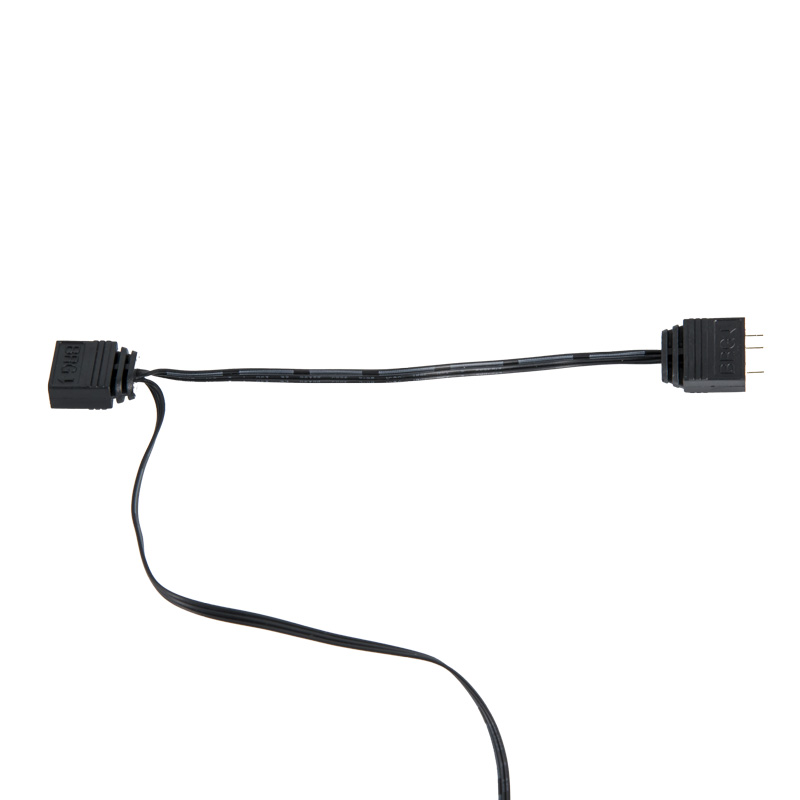

- Rainbow RGB fan with a +5V addressable LED connector
- High-Performance (85% Eff. @230V) RGB Gaming

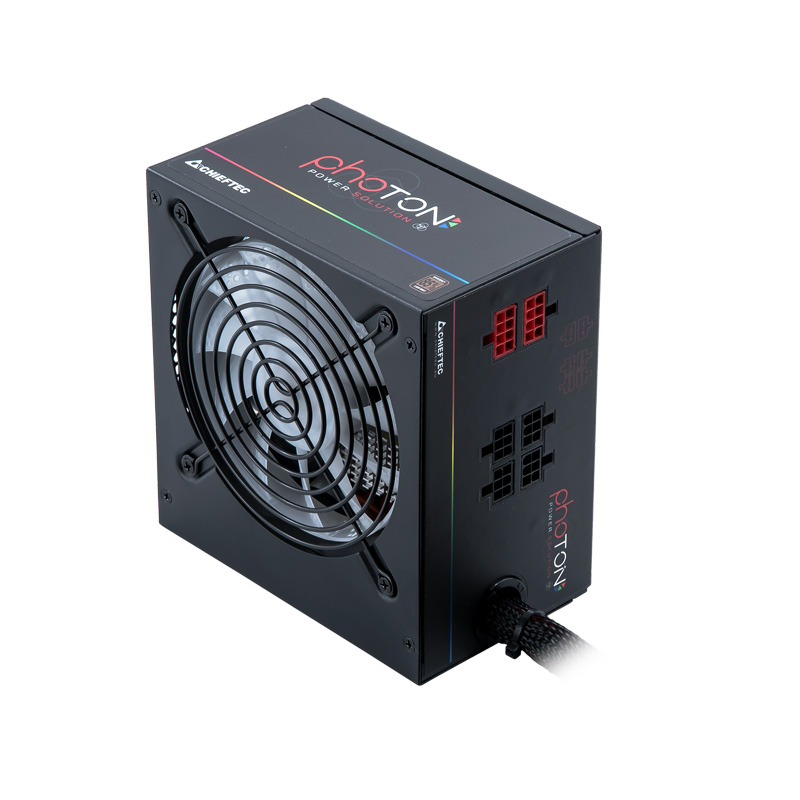

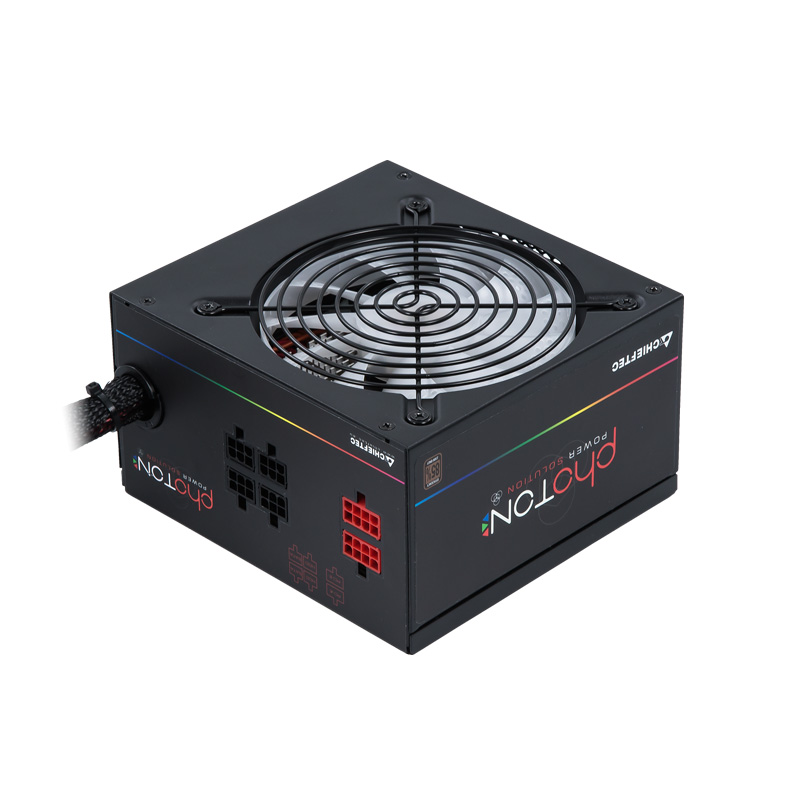

CTG-650C-RGB
PHOTON SERIES
![>85%(230V Only)](https://www.chieftec.eu/upload/img/c-product_icon1210330183504_5959.jpg)
![ASUS-RGB](https://www.chieftec.eu/upload/img/c-product_icon1210226174857_1606.jpg)
![GIGABYTE-RGB](https://www.chieftec.eu/upload/img/c-product_icon1210226175326_7017.jpg)
![RGB-CHIEFTEC](https://www.chieftec.eu/upload/img/c-product_icon1210226180621_5338.jpg)
![MSI-RGB](https://www.chieftec.eu/upload/img/c-product_icon1210226175120_8191.jpg)
![AsRock-RGB](https://www.chieftec.eu/upload/img/c-product_icon1210226175459_2177.jpg)
OVERVIEW
The highly innovative Photon series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lighting effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lighting modes and effects, supports all renowned RGB lighting synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION.

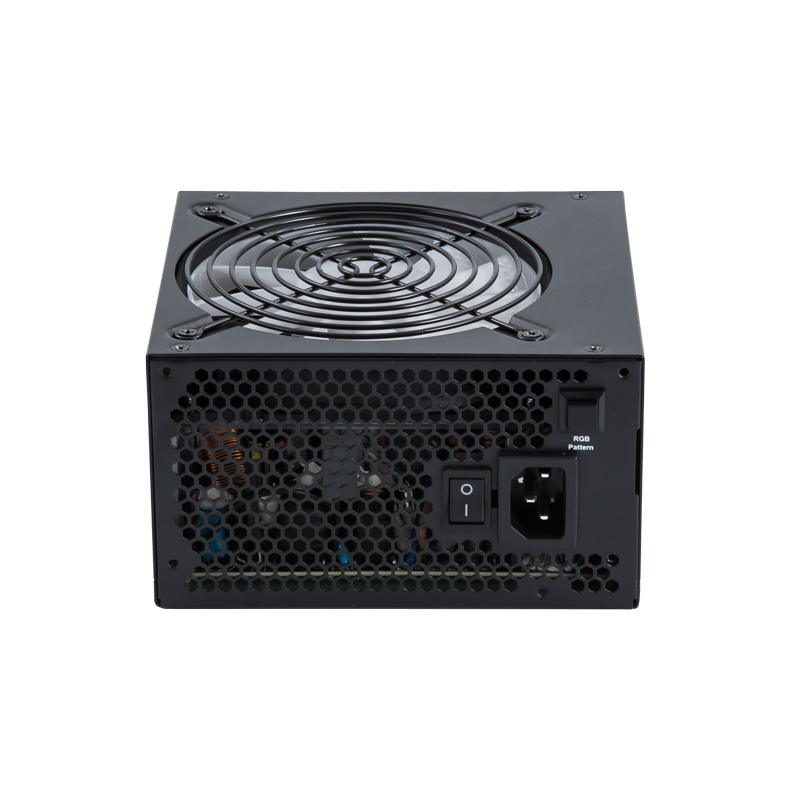

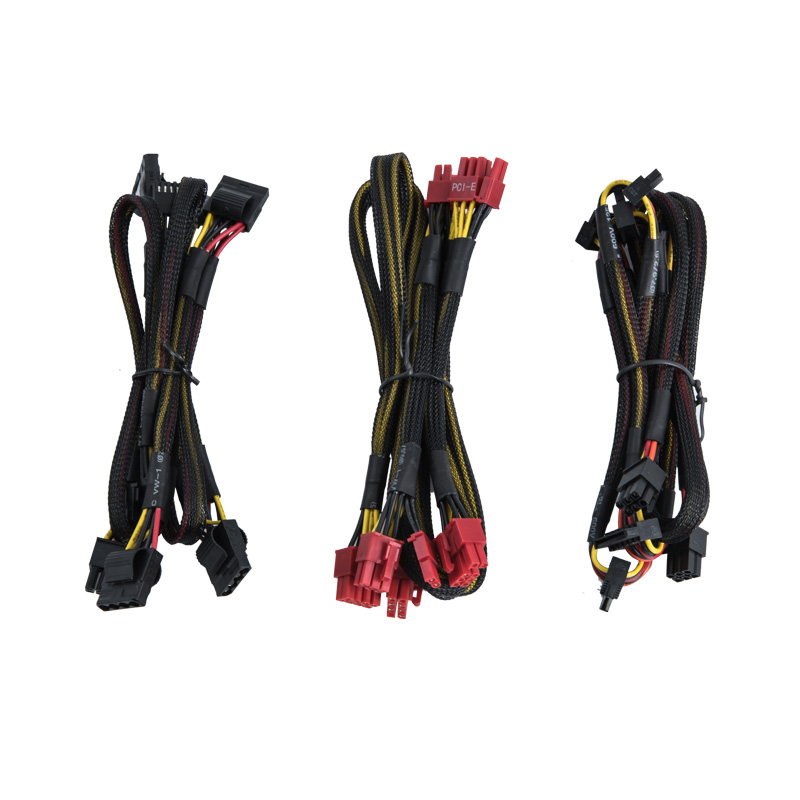

Photon series in addition provide a vast number of predefined and MB-independent lighting modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its modular cables and related vast amount of connectors, an efficiency of 85% @230V, coupled with its highly competitive price positioning, the models of the Photon series stand out as perfect RGB Gaming solutions.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![CB](https://www.chieftec.eu/upload/img/c-product_icon2201130170718_4334.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![ErP](https://www.chieftec.eu/upload/img/c-product_icon2201130170907_1075.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
![E](https://www.chieftec.eu/upload/img/c-product_icon2201130170818_9523.png)
![TUV](https://www.chieftec.eu/upload/img/c-product_icon2201130170639_8801.png)

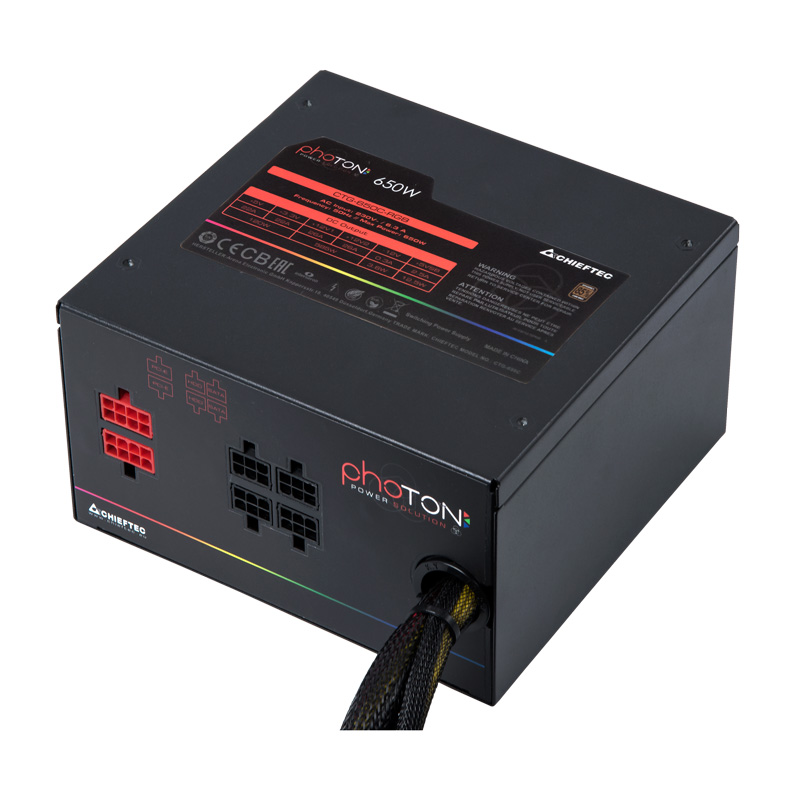

Model | PHOTON 650W |
---|---|
Article no. | CTG-650C-RGB |
EAN code | 0753263075918 |
Weight (without/with package) | 2,14 kg / 2,54 kg |
AC Input | 230V / 6,3A |
Frequency | 50 Hz |
+5V | 22A |
+3,3V | 22A |
+5V & +3,3V combined | 120W |
+12V1 | 26A |
+12V2 | 26A |
+12V1, +12V2 combined | 585W |
P.F. | >0,9 |
-12V | 0,3A / 3,6W |
+5VSB | 2,5A / 12,5W |
Maximum Power | 650W |
20+4 PIN ATX | 1 |
---|---|
8 PIN EPS (4+4) | 1 |
8 PIN PCIe (6+2) | 4 |
SATA | 6 |
MOLEX/FLOPPY | 4/2 |
20+4 PIN ATX | 550 |
---|---|
8 PIN EPS (4+4) | 600 |
8 PIN PCIe (6+2) | 2x 550/150 |
SATA | 2x 450/150/150 |
MOLEX/FLOPPY | 2x 450/150/150 |
ATX12V Version | ATX 12V 2.3 |
---|---|
Efficiency | >85% |
Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
PFC | Active PFC (0,9) |
Fan | 120mm silent RGB Rainbow fan |
Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Warranty | 24 Months |
