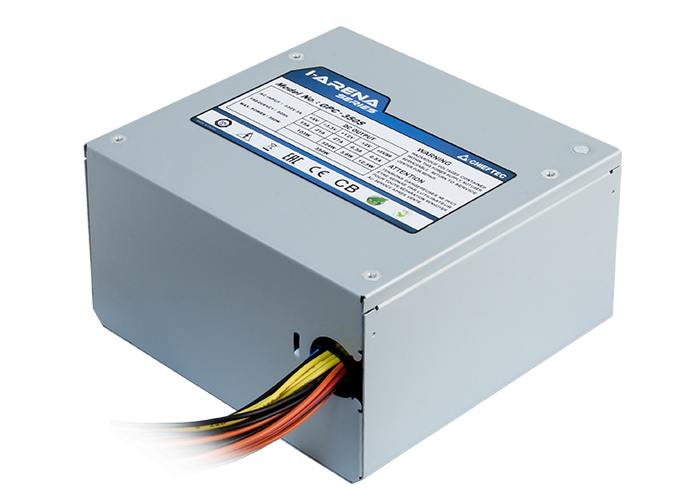

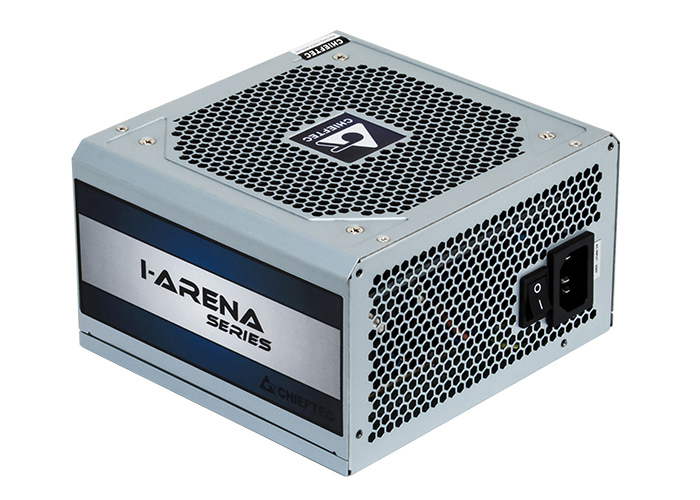

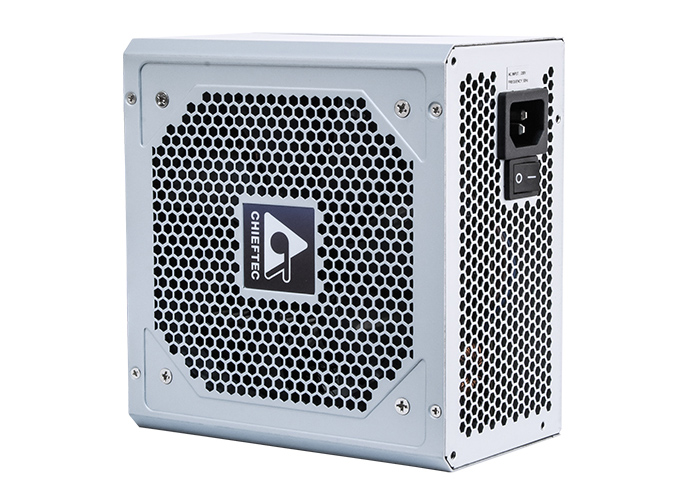

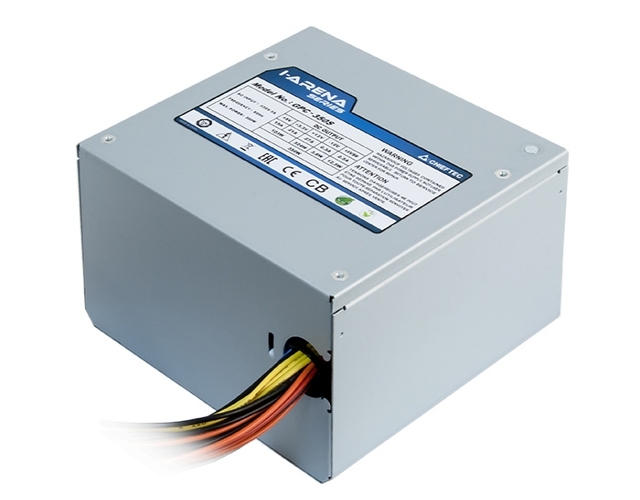

GPC-350S
IARENA SERIES
OVERVIEW
In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.
SPECIFICATIONS
| AC Input | 230V / 3A |
| Frequency | 50 Hz |
| +5V | 15A |
| +3,3V | 21A |
| +5V & +3,3V combined | 103W |
| +12V 1 | 27A / 324W |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | N/A |
| +12V 3 | N/A |
| +12V 4 | N/A |
| +12V 3 & +12V 4 combined | N/A |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Load | 350W |
| 20+4PIN ATX | 1 |
| SATA | 4 |
| MOLEX | 2 |
| Floppy | - |
| 4PIN 12V | 1 |
| 8PIN 12V | - |
| 8PIN (4+4) 12V | - |
| 6PIN PCIe | - |
| 8PIN (6+2) PCIe | - |
| Spezification | ATX 12V 2.3 |
| Form factor | PS II |
| Efficiency | 80% |
| Dimension (DxWxH) | 140 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
