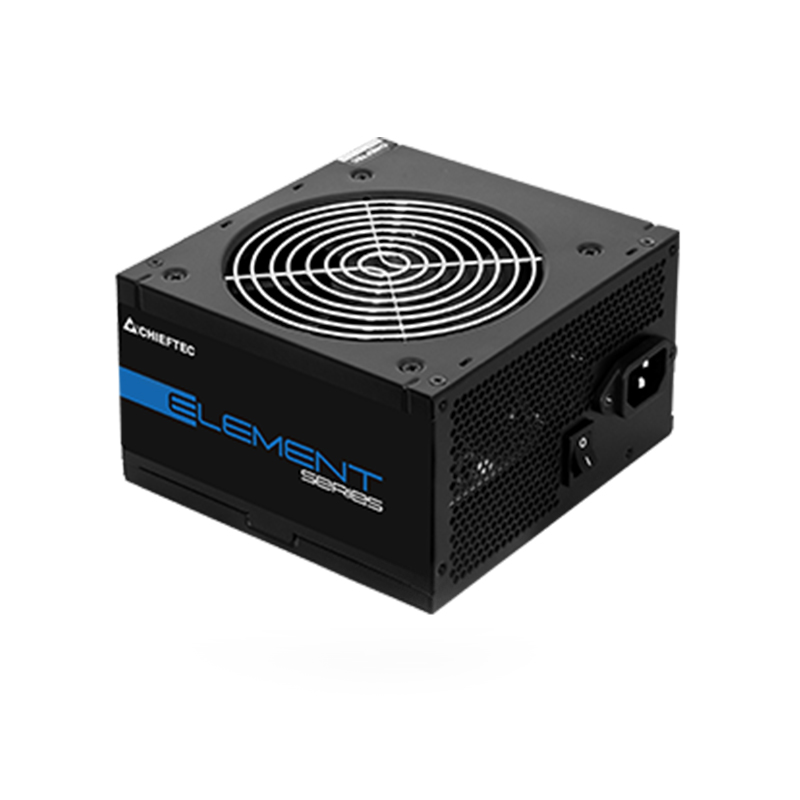

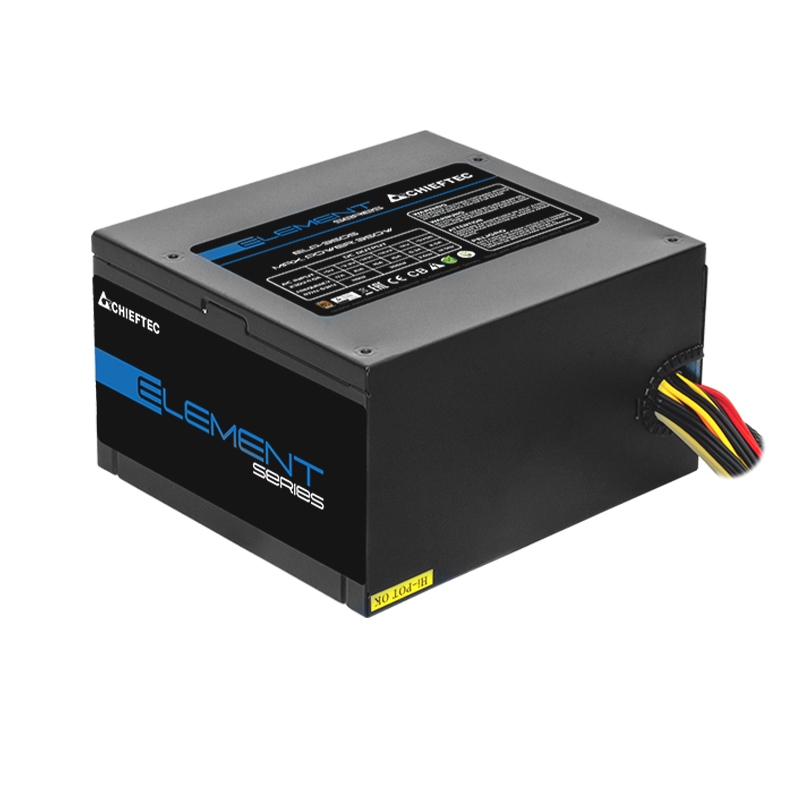

ELP-600S
ELEMENT SERIES
![>85%(230V Only)](https://www.chieftec.eu/upload/img/c-product_icon1210330183504_5959.jpg)
![FOB](https://www.chieftec.eu/upload/img/c-product_icon1210331182200_2637.jpg)
![Bulk](https://www.chieftec.eu/upload/img/c-product_icon1210331182316_7977.jpg)
OVERVIEW
The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
SPECIFICATIONS
![CE](https://www.chieftec.eu/upload/img/c-product_icon2201130170659_9036.png)
![CB](https://www.chieftec.eu/upload/img/c-product_icon2201130170718_4334.png)
![EAC](https://www.chieftec.eu/upload/img/c-product_icon2201130170739_3704.png)
![interseroh](https://www.chieftec.eu/upload/img/c-product_icon2201231182818_7480.jpg)
![Recycle](https://www.chieftec.eu/upload/img/c-product_icon2210107174335_4189.jpg)
![RoHS](https://www.chieftec.eu/upload/img/c-product_icon2201130170844_9436.png)
![ErP](https://www.chieftec.eu/upload/img/c-product_icon2201130170907_1075.png)
![WEEE](https://www.chieftec.eu/upload/img/c-product_icon2201130170942_3172.png)
![E](https://www.chieftec.eu/upload/img/c-product_icon2201130170818_9523.png)
![TUV](https://www.chieftec.eu/upload/img/c-product_icon2201130170639_8801.png)
Model | ELEMENT 600W |
---|---|
Article no. | ELP-600S |
EAN code | 4710713230965 |
Weight (without/with package) | 1.62kg /1.87kg |
AC Input | 200-240V / 4.5A |
Frequency | 47 - 63Hz |
+5V | 20A |
+3,3V | 20A |
+5V & +3,3V combined | 120W |
+12V1 | 46A |
+12V2 | - |
+12V1, +12V2 combined | 552W |
P.F. | >0,9 |
-12V | 0,3A / 3,6W |
+5VSB | 2,5A / 12,5W |
Maximum Power | 600W |
20+4 PIN ATX | 1 |
---|---|
8 PIN EPS(4+4) | 1 |
8 PIN PCIe (6+2) | 2 |
SATA | 4 |
MOLEX/FLOPPY | 2/1 |
20+4 PIN ATX | 650 |
---|---|
8 PIN EPS(4+4) | 650 |
8 PIN PCIe (6+2) | 500/150 |
SATA | 2x 500/150 |
MOLEX/FLOPPY | 500/150/150 |
ATX12V Version | ATX 12V 2.3 |
---|---|
Efficiency | >85% |
Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
PFC | Active PFC (0,9) |
Fan | 120mm silent fan |
Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Warranty | 24 Months |
