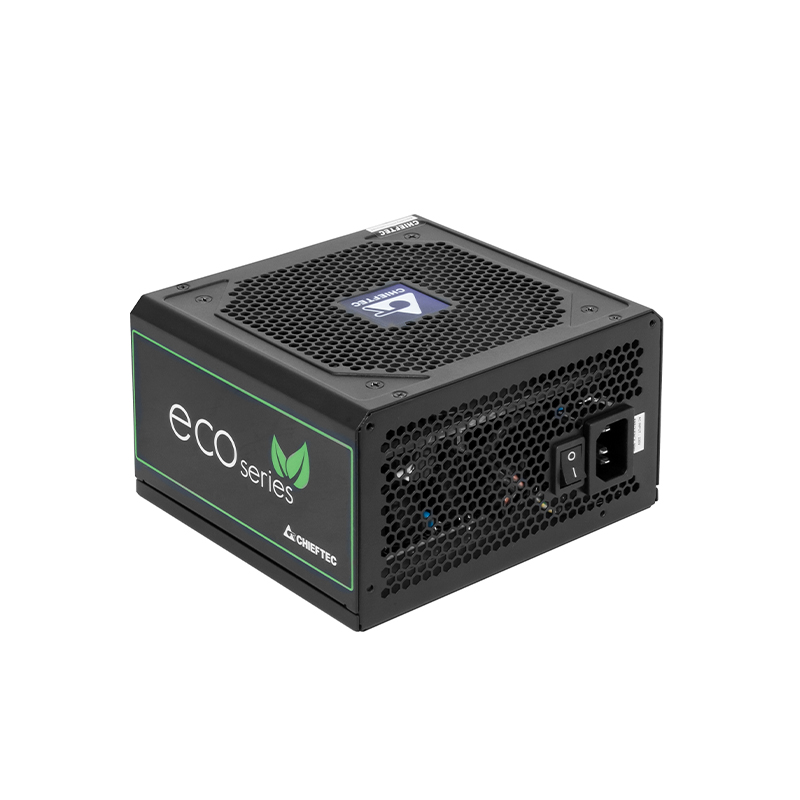

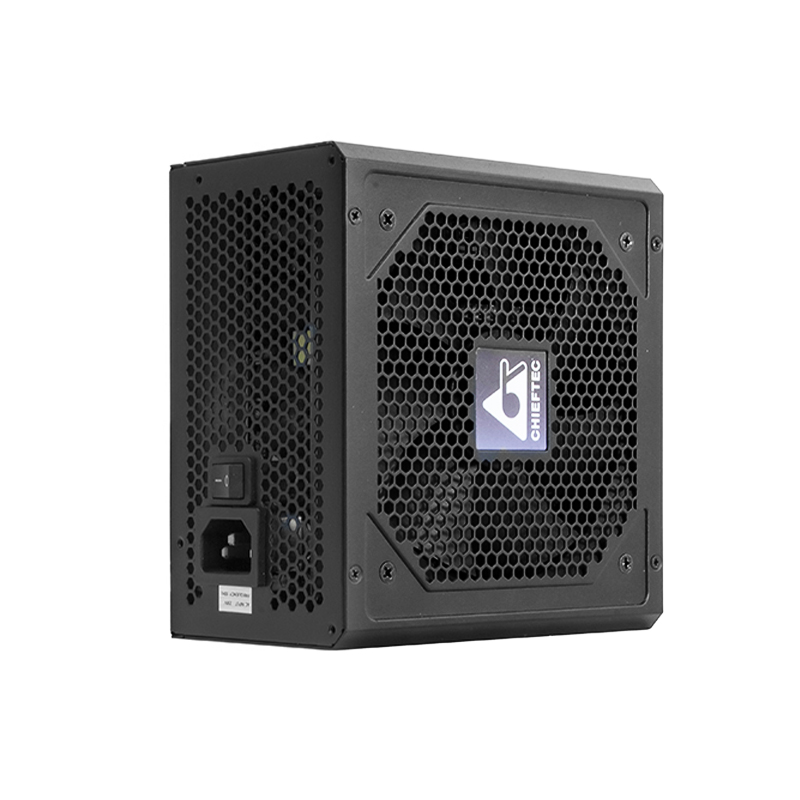

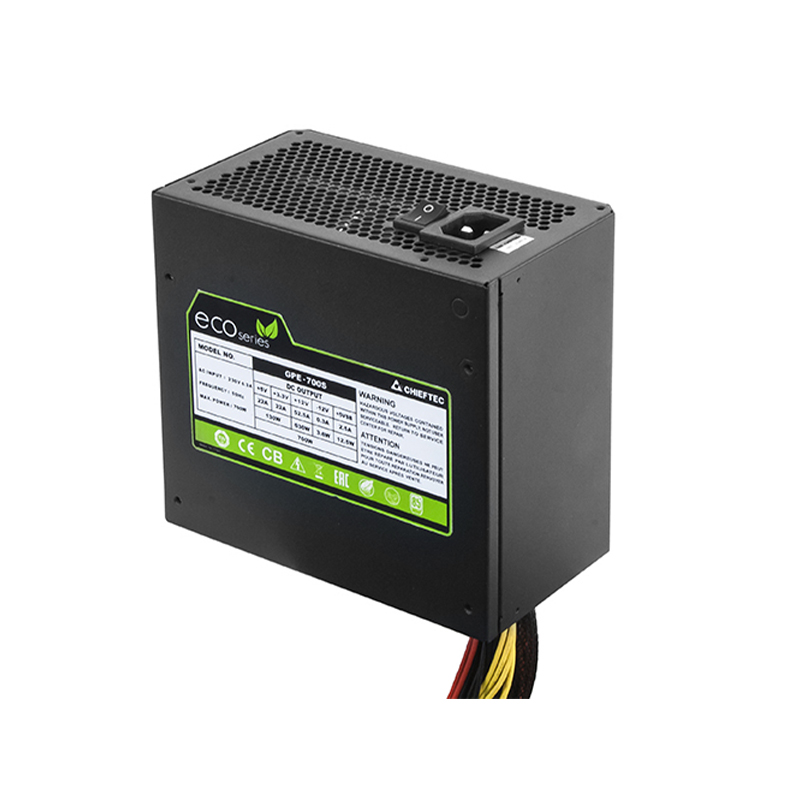

GPE-600S
ECO SERIES
OVERVIEW
The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
SPECIFICATIONS
| Model | ECO 600W |
|---|---|
| Article no. | GPE-600S |
| EAN code | 4710713234192 |
| Weight (without/with package) | 1.32kg / 1.44kg |
| AC Input | 230V / 6.3A |
| Frequency | 50 Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V1 | 45A |
| +12V2 | - |
| +12V1, +12V2 combined | 540W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 600W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX/FLOPPY | 2 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS(4+4) | 550 |
| 8 PIN PCIe (6+2) | 450/150 |
| SATA | 2x 350/150/150 |
| MOLEX/FLOPPY | /150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC (0,9) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Month |
