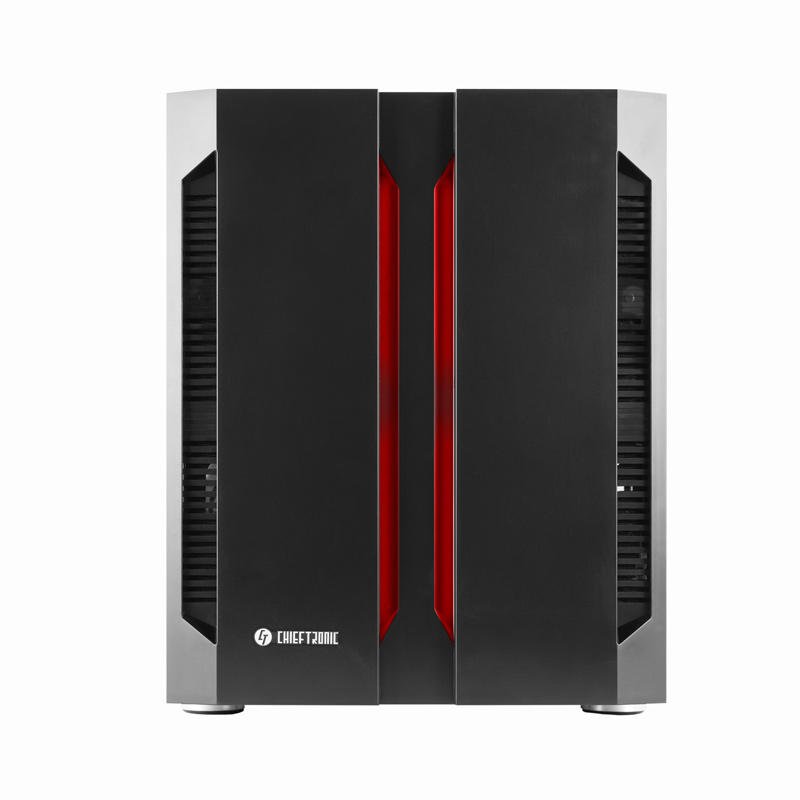

- 2x addressable +5V RGB LED strips in front panel
- 1x addressable +5V RGB fan (120mm)

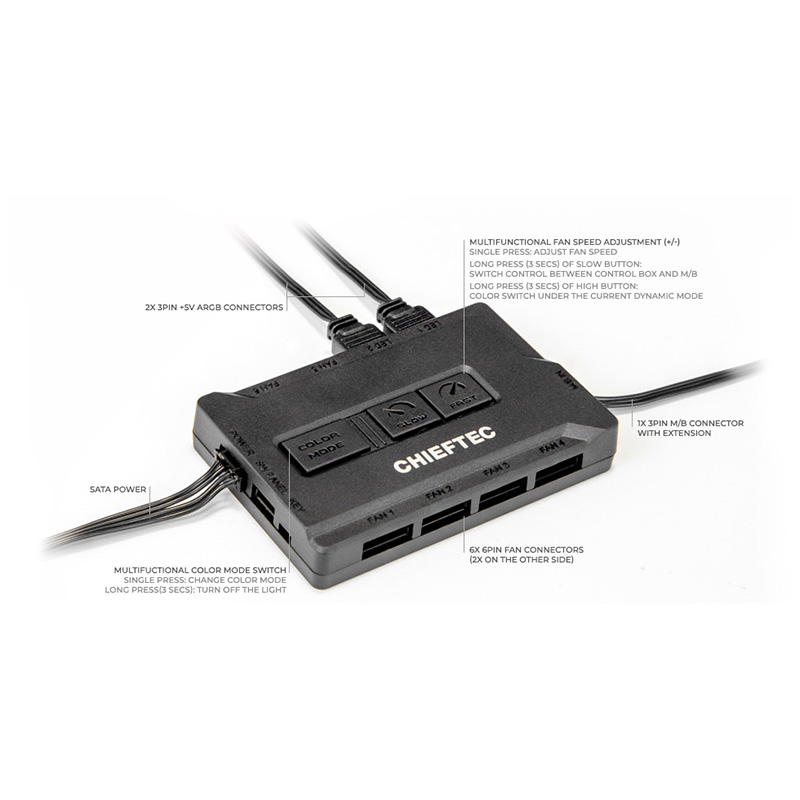

- Certified RGB control hub with M/B sync

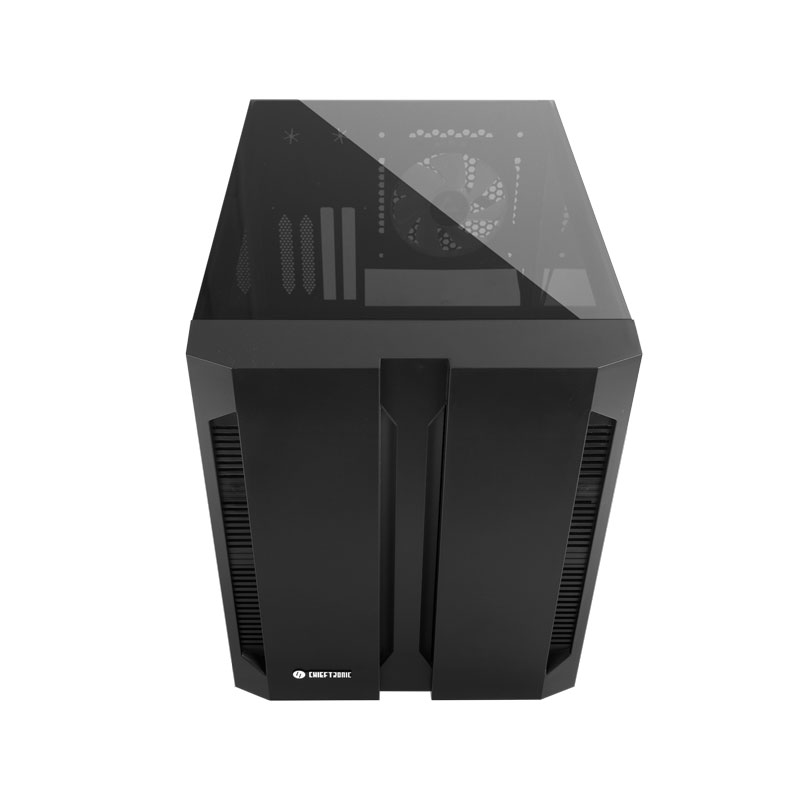

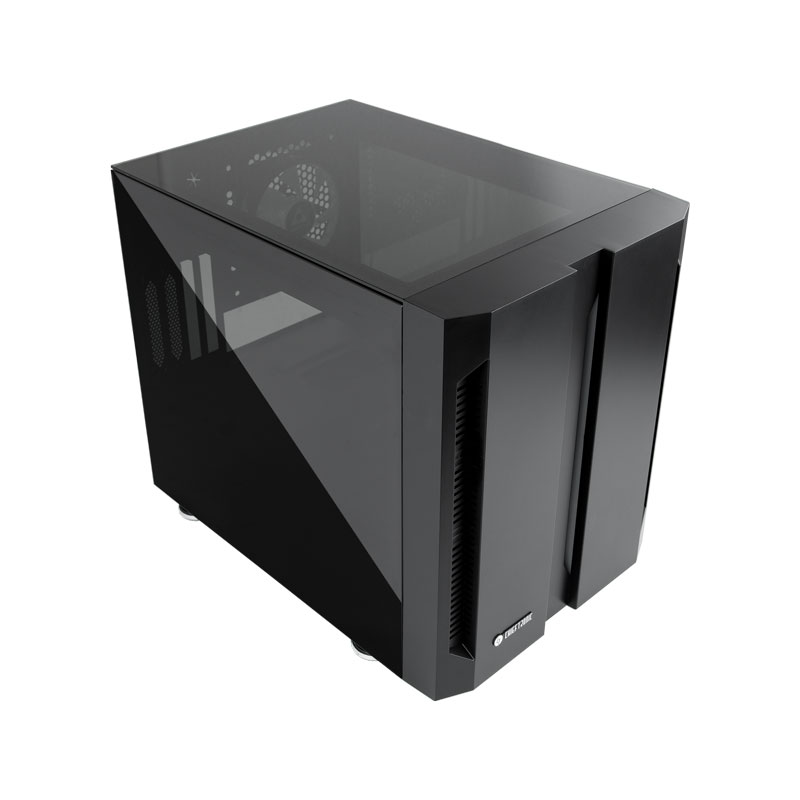

- 3x tempered glass for perfect view of interior
- Supports up to 280mm radiator
Chieftronic M1
GM-01B-OP
OVERVIEW

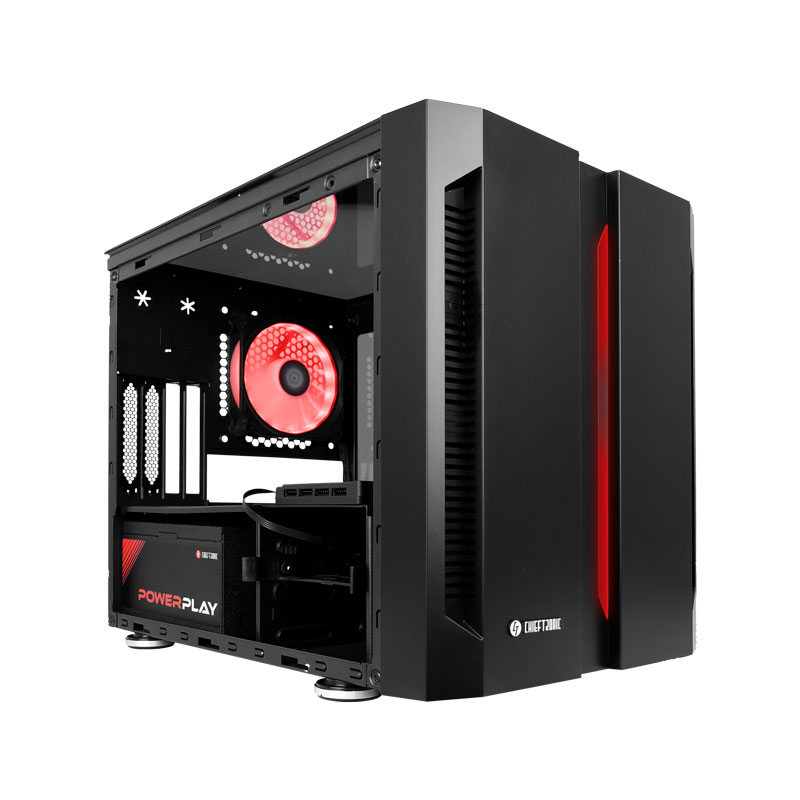

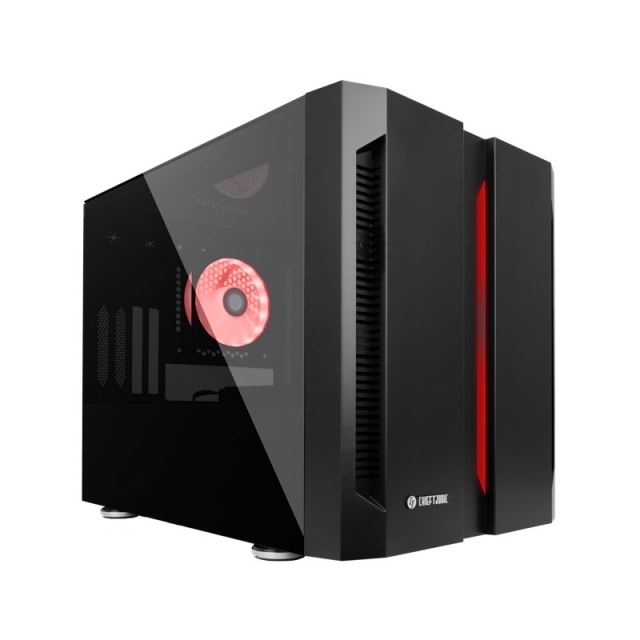

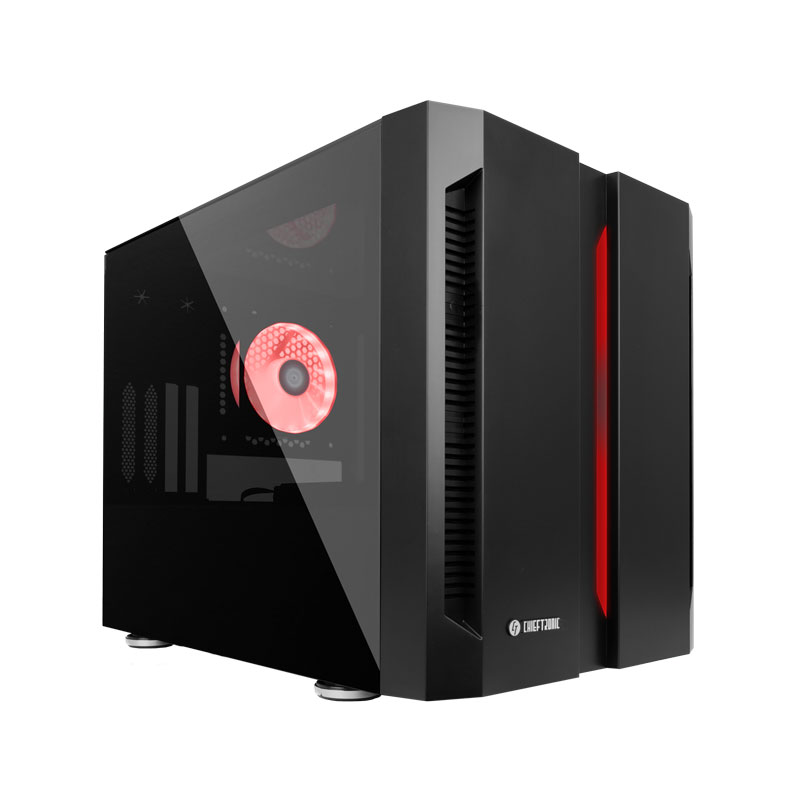

With the M1 Gaming Cube, Chieftronic builds out its case portfolio and offers a beautiful cube case with three tempered glass panels to display the gaming system in full glory. The M1 is kept in the same design as its “bigger brother” the G1 and hence adds perfectly to the series.
Sporting a refined, modern RGB-LED dual-stripe look, the case is ideal for RGB enthusiasts that still want to keep their build looking timeless and elegant. The front panel and pre-installed fan are sync-compatible with all major +5V motherboard technologies such as ASUS™ Aura, ASRock™ RGB Sync, MSI™ Mystic Light Sync and Gigabyte™ RGB Fusion.

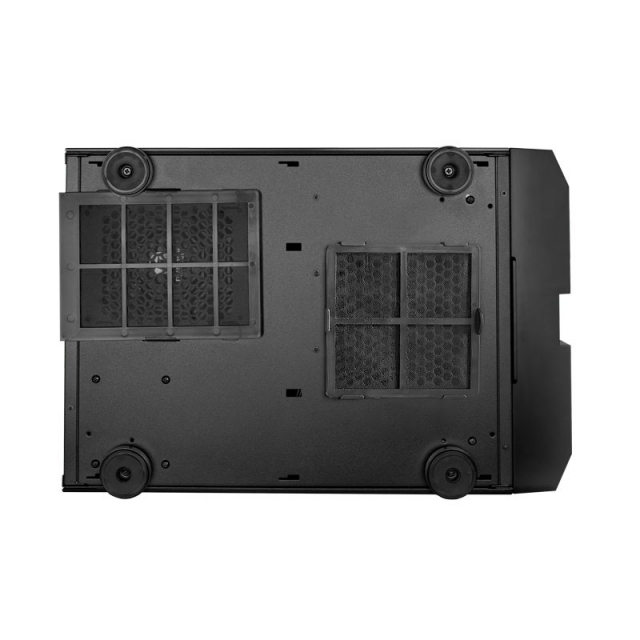

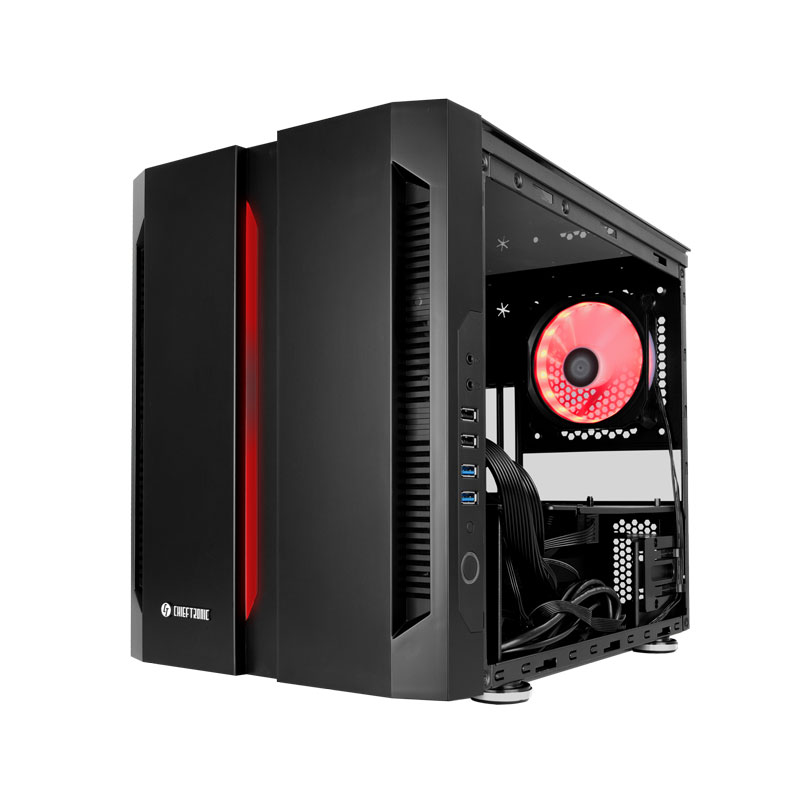

For those wishing to add more fans to the M1 than the pre-installed rear RGB-fan, optional front fan or radiator installation provides many additional possibilities. With front ventilation slits equipped with dust filters and removable dust filters at the bottom of the case, the Chieftronic M1 ensures that the system remains clean and protected.
SPECIFICATIONS
| Model | CHIEFTRONIC M1 |
| Article no. | GM-01B-OP |
| EAN code | 0753263076380 |
| Color | Black |
| Material | 0.8 SPCC and tempered glass top and side panels |
| Motherboard support | Mini ITX, mATX |
| Dimension (DxWxH) | 400mm x 270mm x 345mm |
| Weight (without/with package) | 7,47kg / 8,93kg |
| Drive bay external | - |

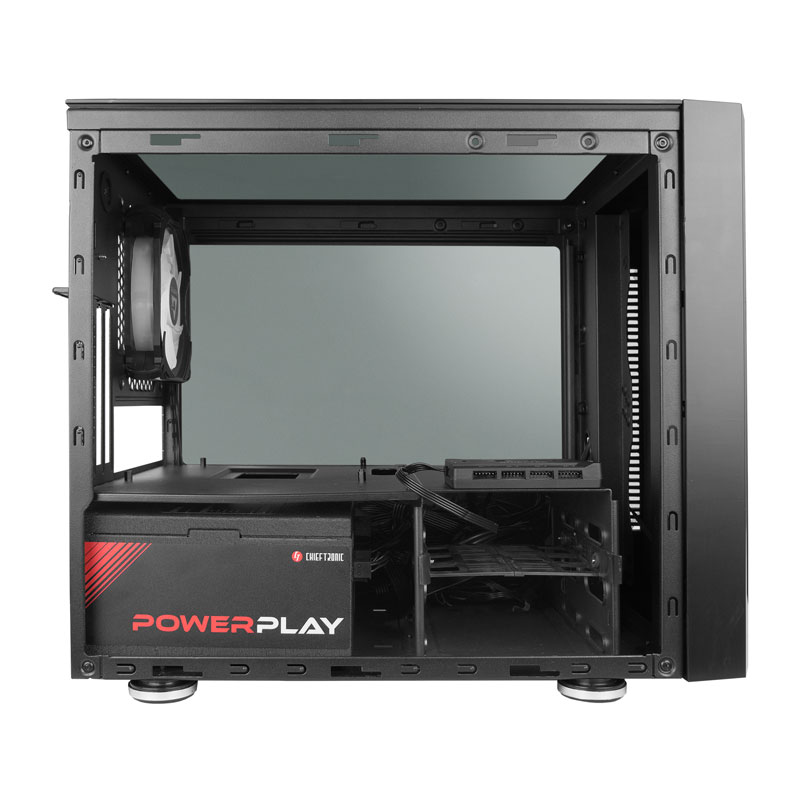

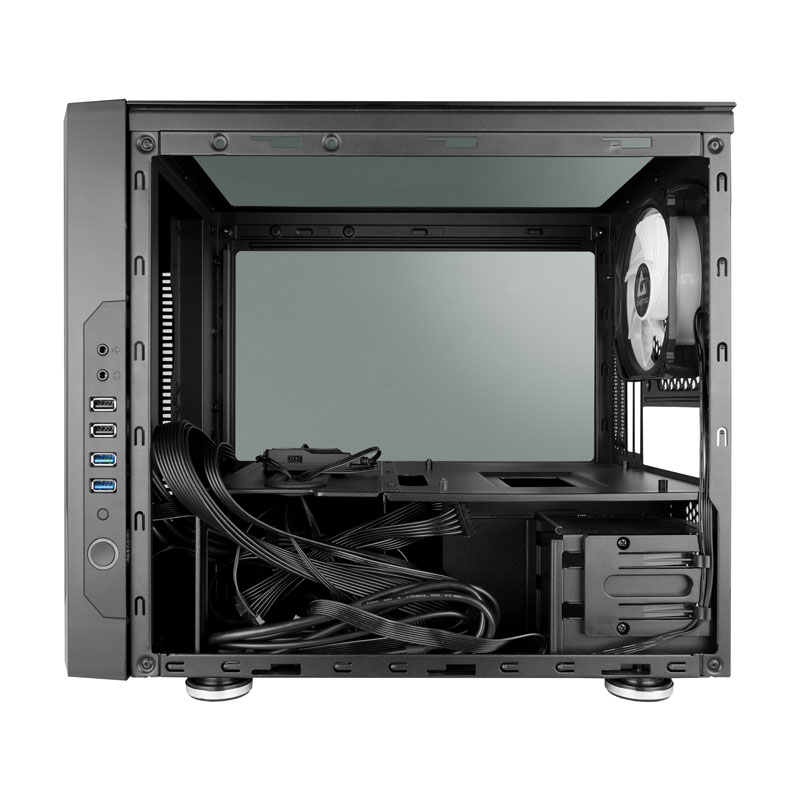

| Drive bay internal | (2x 3.5” and 2x 2.5”) or 4x 2.5” |
| Power supply | ATX PSU (optional, 140mm - 160mm) |

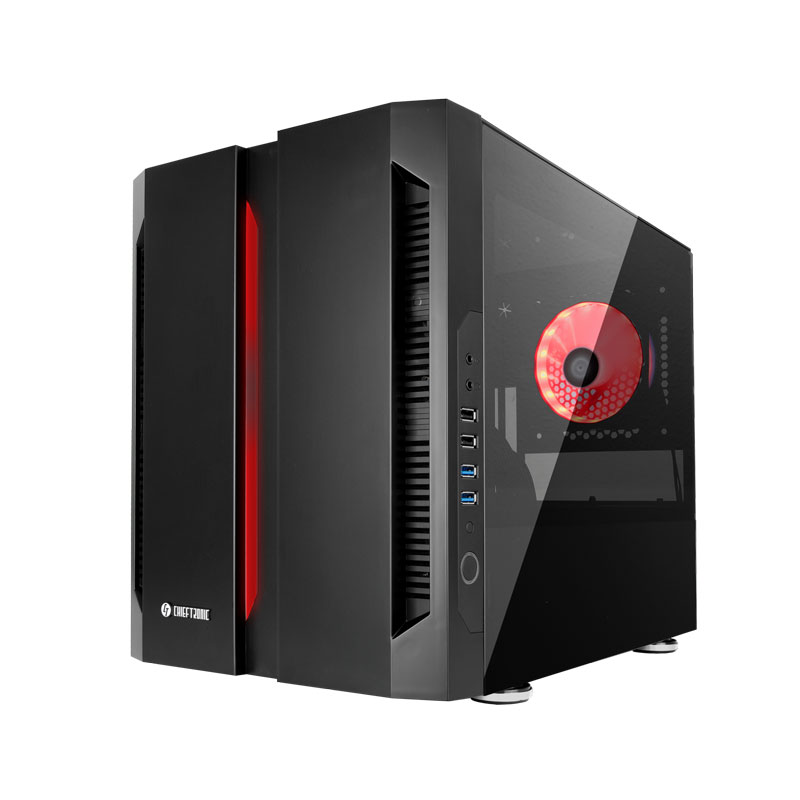

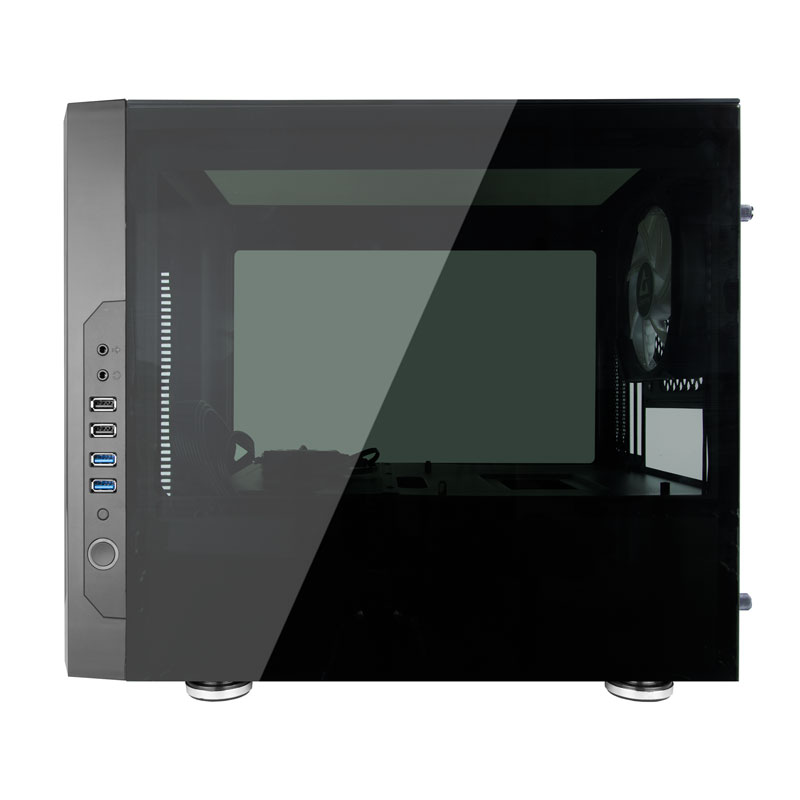

| Front I/O | 2x USB 3.0 (USB 3.1 Gen 1), 2x USB 2.0, Audio-out (AZALIA / HD-Audio), Mic-in |

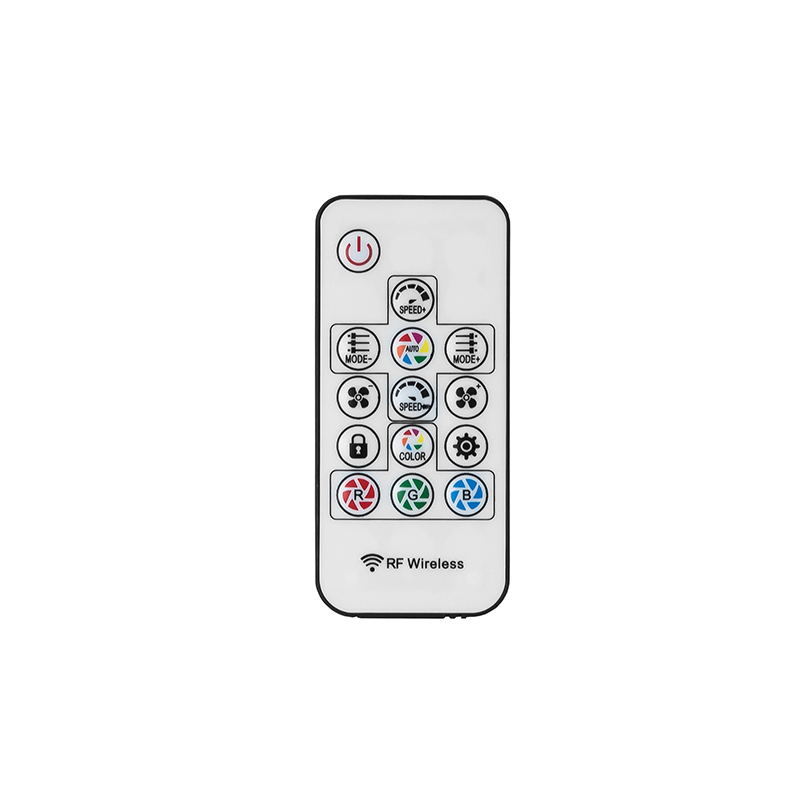

| Scope of delivery | User manual, screw set, 120mm RGB fan pre-installed, A-RGB LED strips pre-installed, 1x RGB control hub, remote control, removable dust filters |
| Expansion slots | 4 |

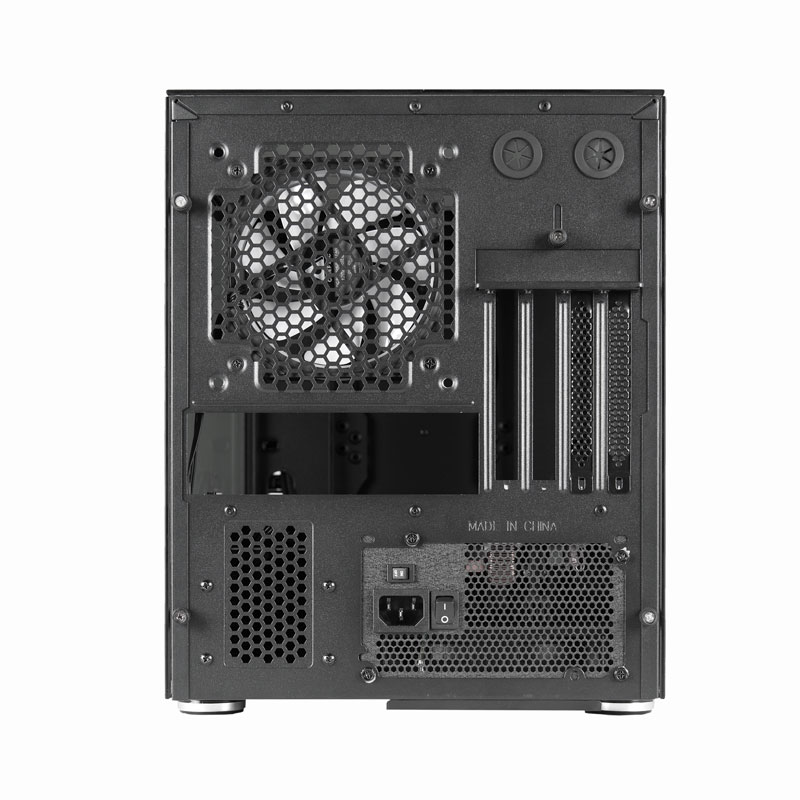

| Cooling Compatibility | Front: 2x 120mm or 2x 140mm or 280mm radiator Rear: 1x 120mm or 140mm (120mm fan pre-installed) |
| CPU cooler height (max.) | 180mm |
| VGA card length (max.) | 320mm |
| Warranty | 24 Months |
