- 19” Rack chassis with 4U height
- Installation of mainboards up to E-ATX form factor
- Solid build quality with 1.2mm SECC steel
UNC-411E-B
OVERVIEW

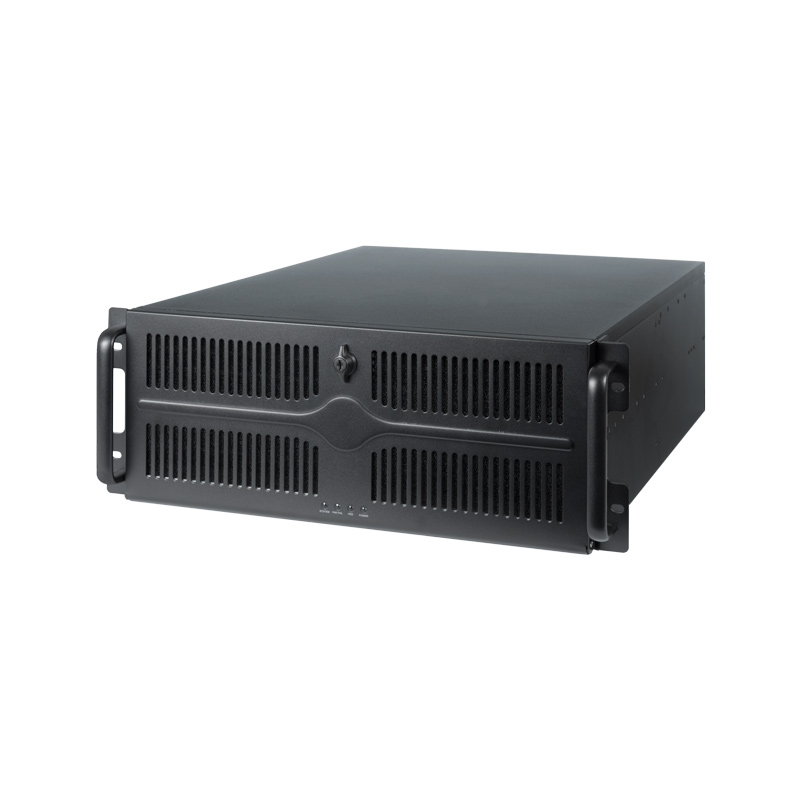

The UNC-411E-B is the flexible 4U E-ATX server rack chassis for even the most demanding systems. The robust build quality with 1.2mm thick SECC steel ensures good protection of the hardware and servers as a reliable and flexible long-term solution. Sufficient cooling options with 1x 120mm front and 2x 80mm rear installation of optionally available fans are provided. Two fast USB 3.1 ports in the front panel add to the features on offer with this chassis.
SPECIFICATIONS
| Article no. | UNC-411E-B | UNC-411E-B-OP |
| EAN code | 0753263077004 | 0753263076359 |
| Color | Black | Black |
| Material | 1.2mm SECC | 1.2mm SECC |
| Motherboard support | mATX, ATX, EATX | mATX, ATX, EATX |
| Dimension (DxWxH) | 600mm x 485mm x 177,5mm | 600mm x 485mm x 177,5mm |
| Weight (without/with package) | 16.2kg / 19.7kg | 14.5kg / 18.5kg |

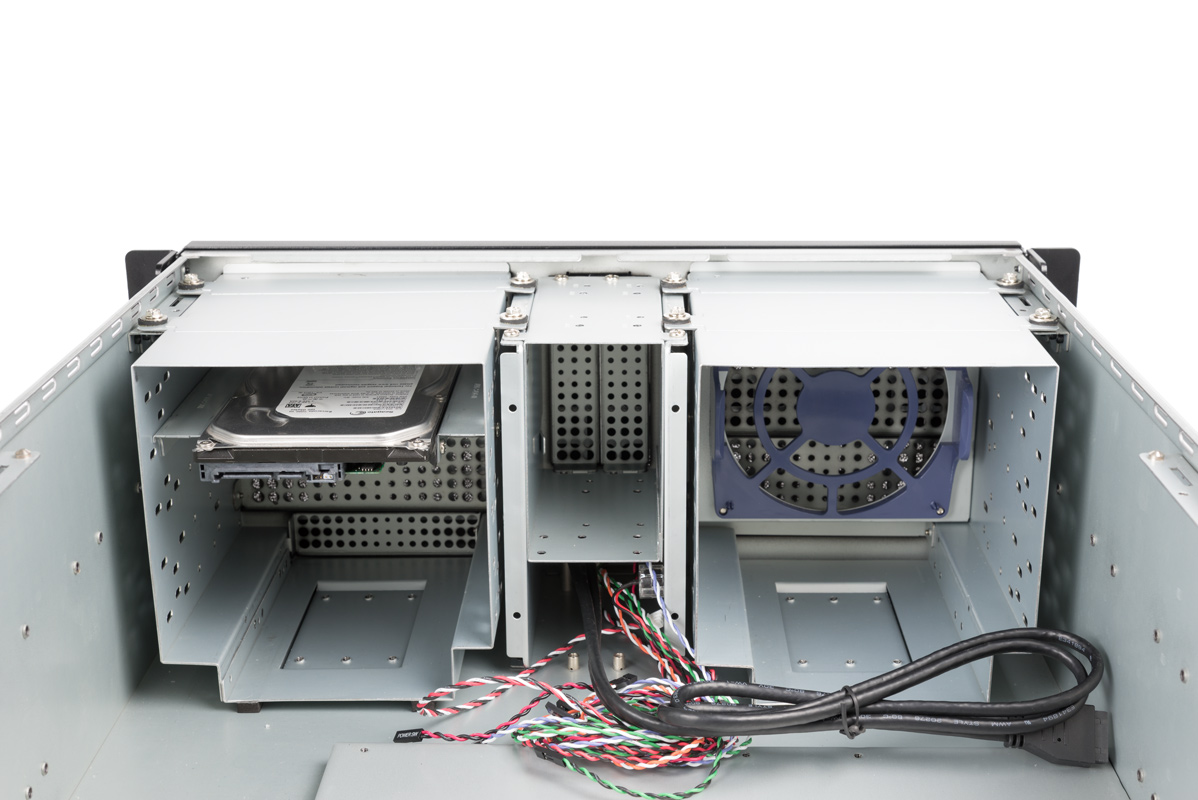

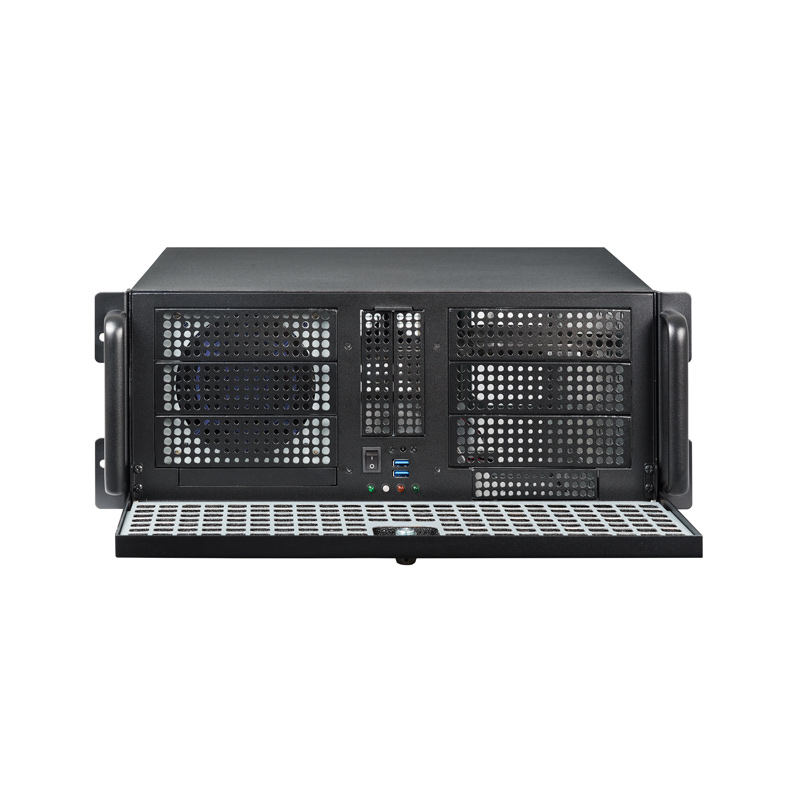

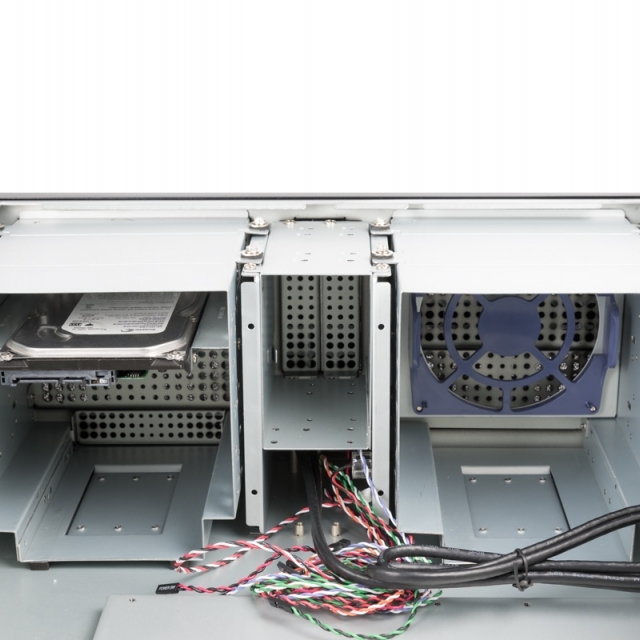

| Drive bay external | 6x 5.25” and 3x 3.5” and 1x 5.25” slim line ODD | 6x 5.25” and 3x 3.5” and 1x 5.25” slim line ODD |
| Drive bay internal | 2x 3.5” | 2x 3.5” |
| Power supply | PSF-400B (400W) Standard ATX PSU or installation of a 1+1 redundant PSU with included mounting kit(not included) | Optional Standard ATX PSU or installation of a 1+1 redundant PSU with included mounting kit |
| Front I/O | 2x USB3.0 (USB3.1 Gen 1) | 2x USB3.0 (USB3.1 Gen 1) |
| Scope of delivery | Screw set, 10x brackets for 5.25” → 3.5” converter, clamp-down bar for PCI-E cards | Screw set, 10x brackets for 5.25” → 3.5” converter, clamp-down bar for PCI-E cards |

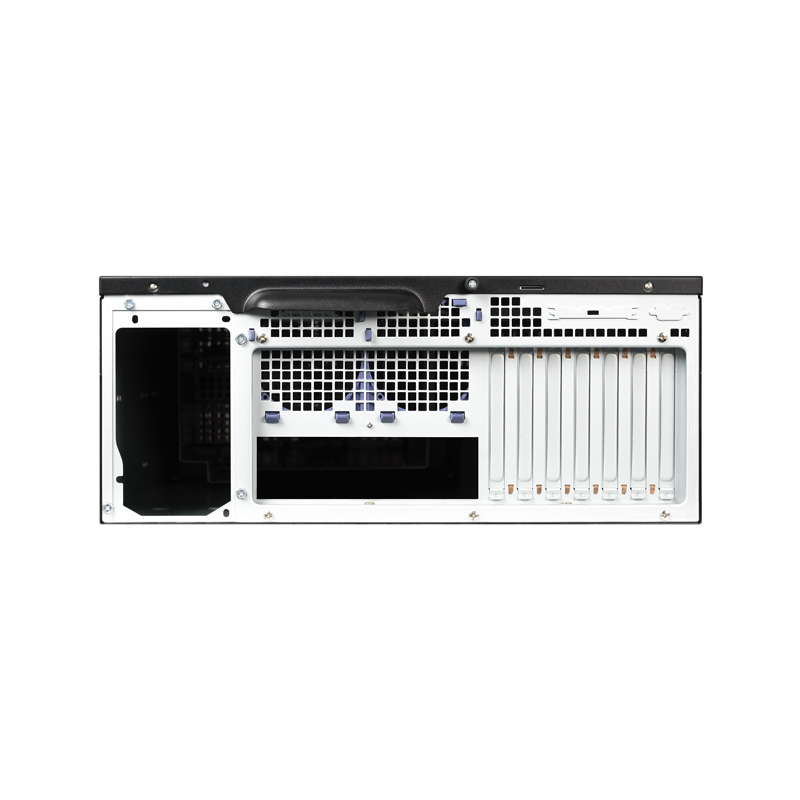

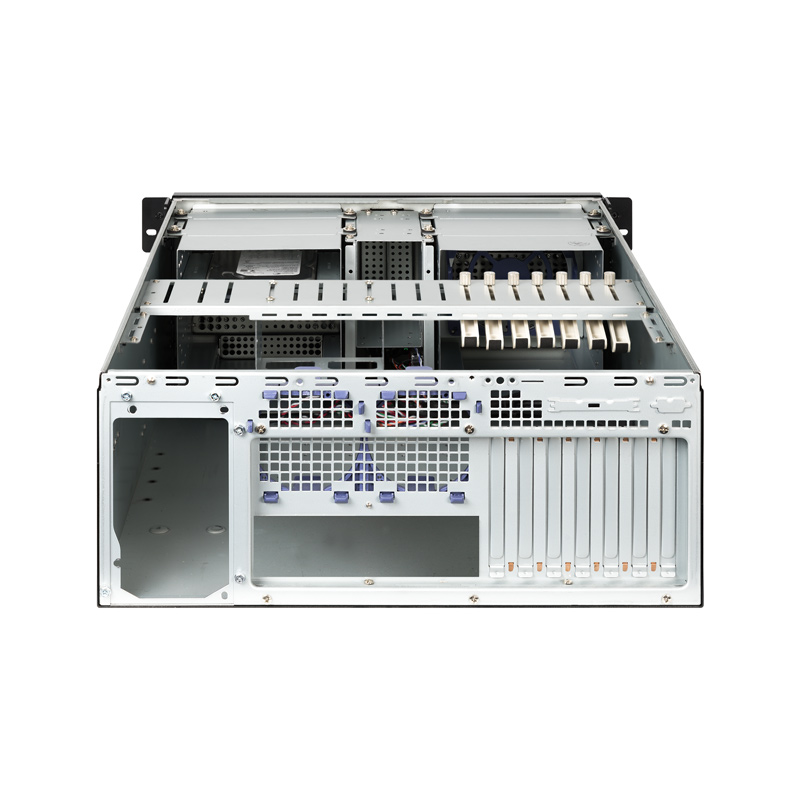

| Expansion slots | 7 | 7 |

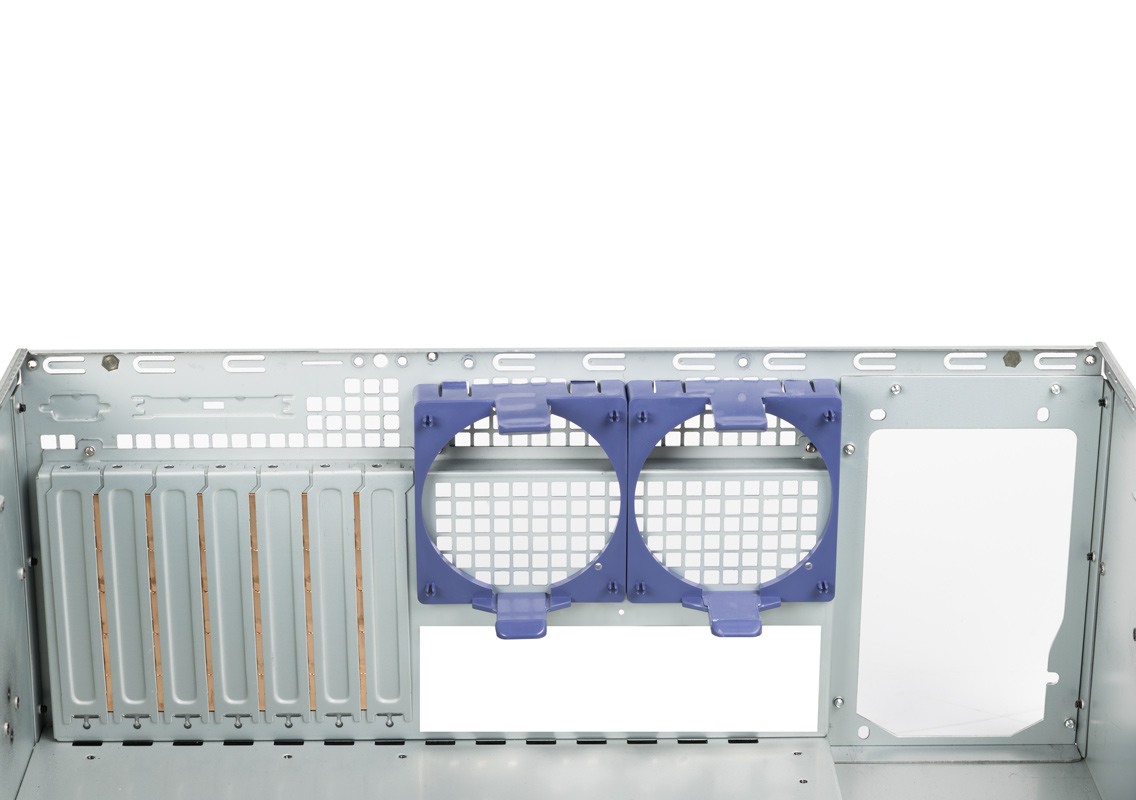

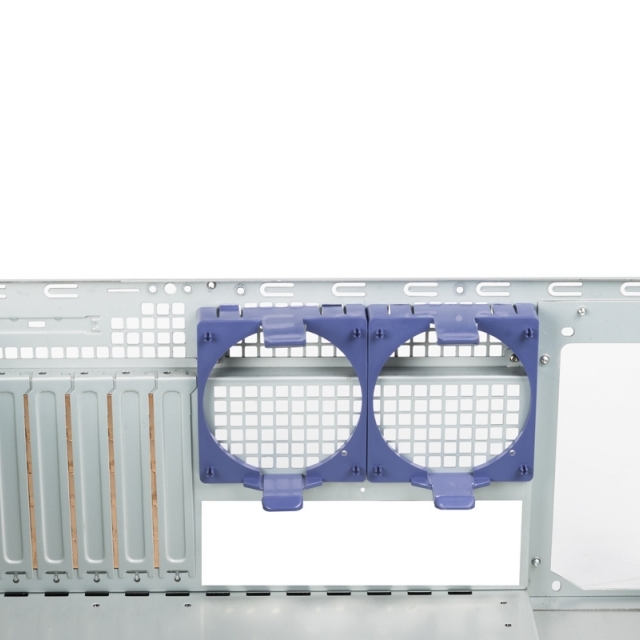

| Cooling Compatibility | Front: 1x 120mm fan Rear: 2x 80mm fans |
Front: 1x 120mm fan Rear: 2x 80mm fans |
| CPU cooler height (max.) | 140mm | 140mm |
| VGA card length (max.) | 330mm | 330mm |
| Warranty | 24 Months | 24 Months |
